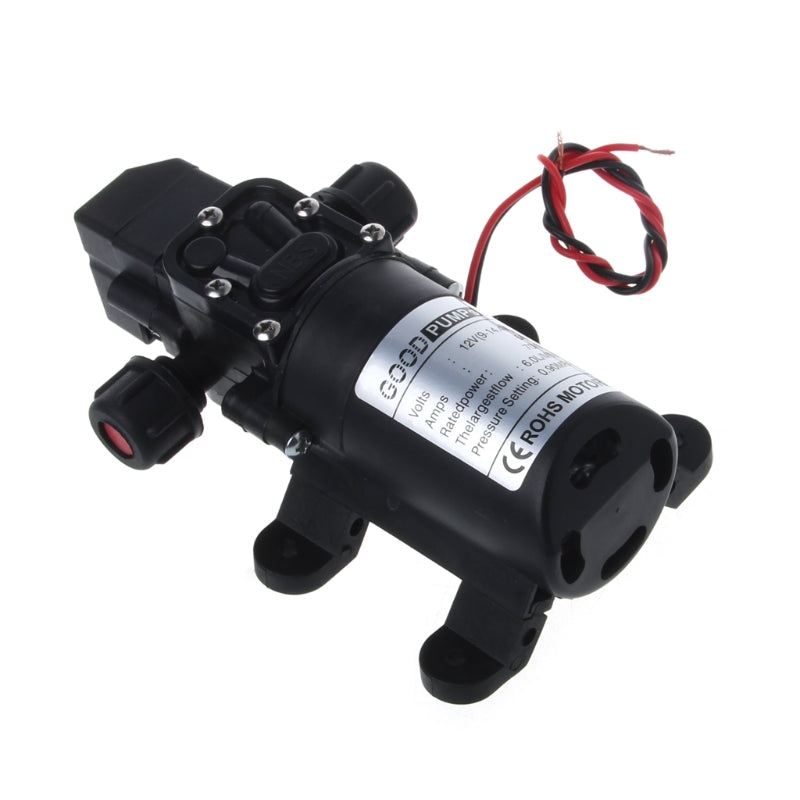

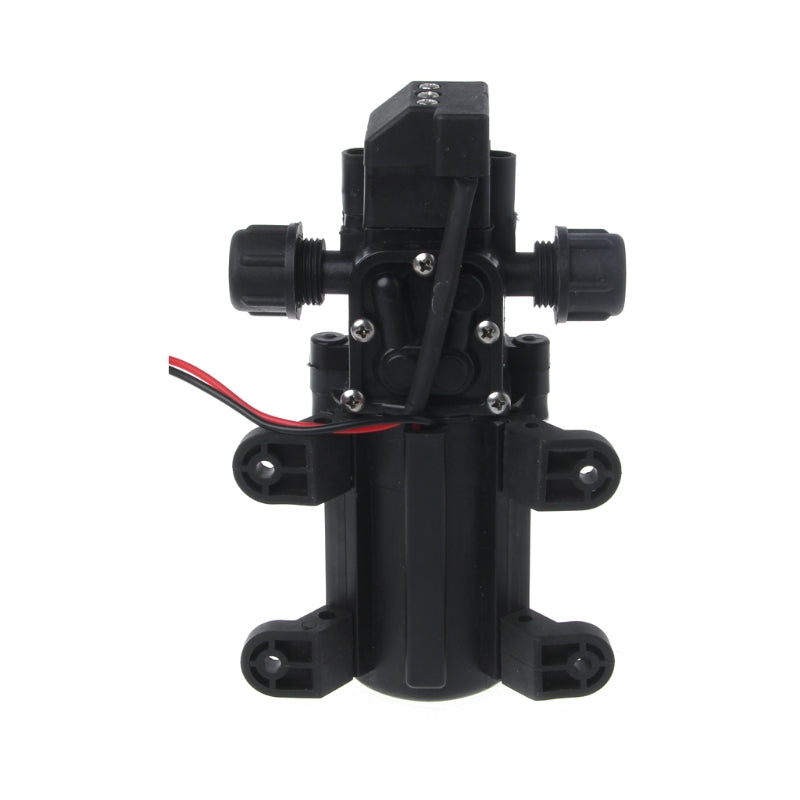

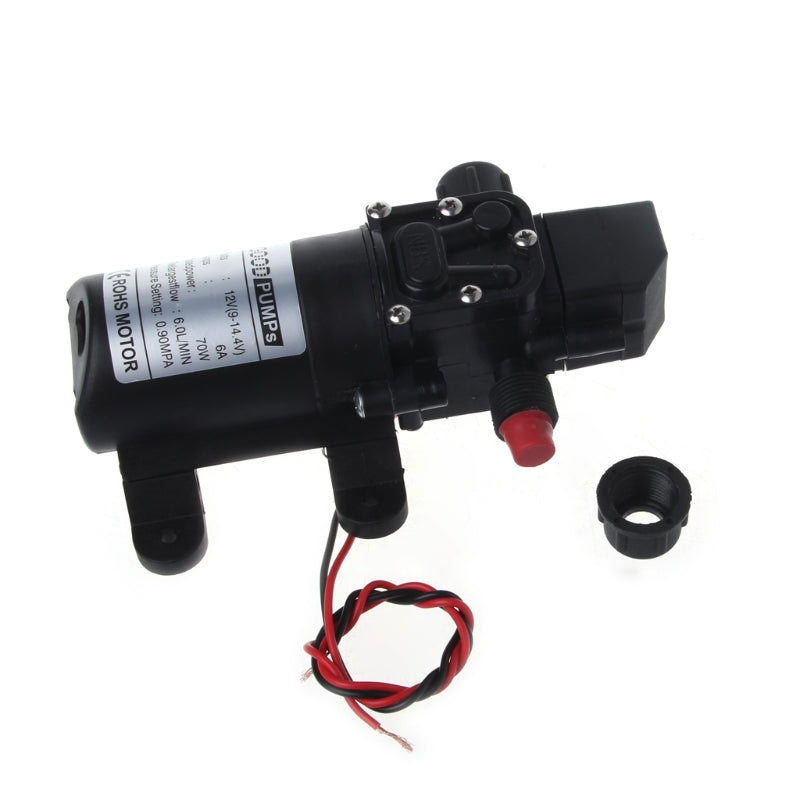

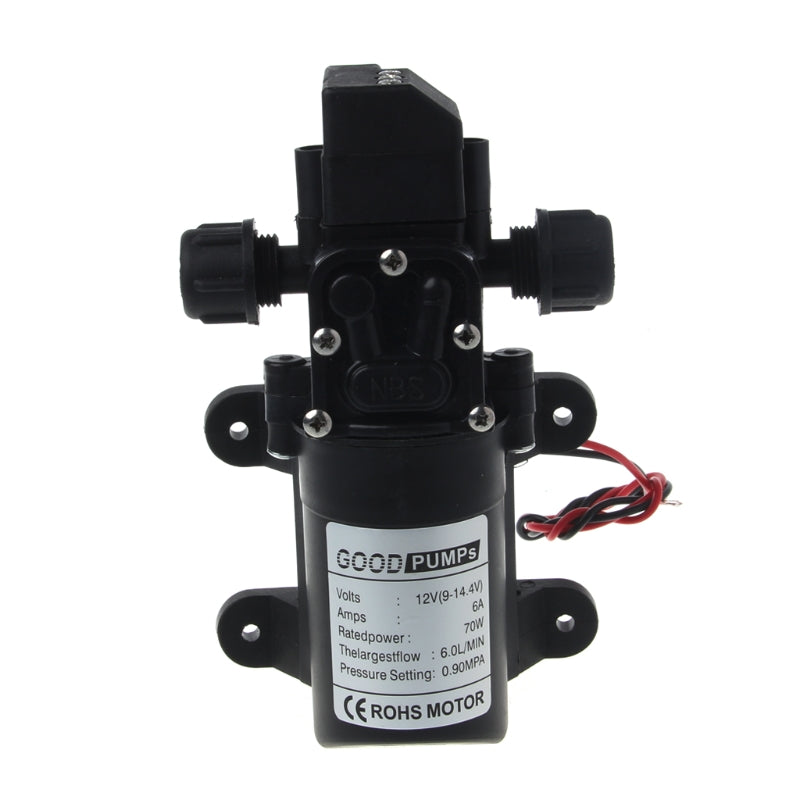

DC12V 6L/Min water high pressure diaphragm self-priming pump, widely used in farming (lawn and garden), tour vehicles

        Diaphragm pump combines the advantages of self-priming pump and chemical pump

        Using a variety of imported corrosion-resistant materials, self-priming, thermal protection, smooth operation, long-time continuous idling, long-time continuous load operation

        Automatically on or off: When the water outlet is closed, it will automatically cut off power, the motor stops. After the water outlet is opened, it will automatically power on, the motor runs.

        Rubber bracket can absorb vibration from the pump when working

        Intermittent service: different working pressures leads to different continuous working times

        Maximum flow of 6 L / min, flow rate can be adjusted from 0.1 to 6 liters / min depending on your needs

        Maximum pressure is 130PSI (9.0 kg). Pressure can be adjusted from 75PSI (5 kg) -130PSI (9.0 Kg) according to different needs.

        Installed in a dry, well-ventilated location and can't work in water

        Water pump with a pressure switch will be automatically cut off when the pressure of water outlet is big enough

        Widely used in farming (lawn and garden), tour vehicles, special vehicle, ship, beverage, vehicle cleaning, carpet cleaning, ground cleaning, water purification and water treatment equipment.

                 Specifications:

        Largest Flow: 6L/MIN

        Pump Suction: 1~2m

        Pump Head: 70m

        Protection Valve Type: Intelligent Valve(with pressure switch)

        Voltage: DC12V

        Current: 6A

        Power: 70W

        Pressure: 0.90MPA (MAX 130PSI)

        PH Value: 5-8

        Temperature: 0-100°

        Inlet and Outlet Diameter: 10mm/0.4 inch (Approx.)

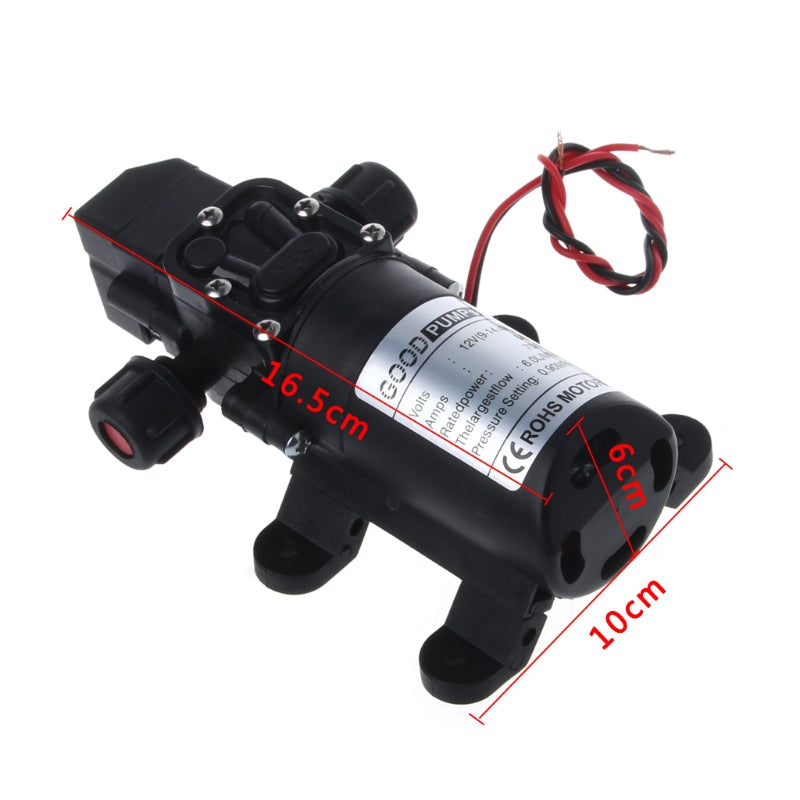

        Size: 16.5x10x6cm

        Quantity: 1 Pc

                           No

                   Note:

          Transition: 1cm=10mm=0.39inch

          No retail package.

          Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid.

          Due to the difference between different monitors, the picture may not reflect  the actual color of the item. Thank you!

                   Package includes:

                 1 x Water Pump
