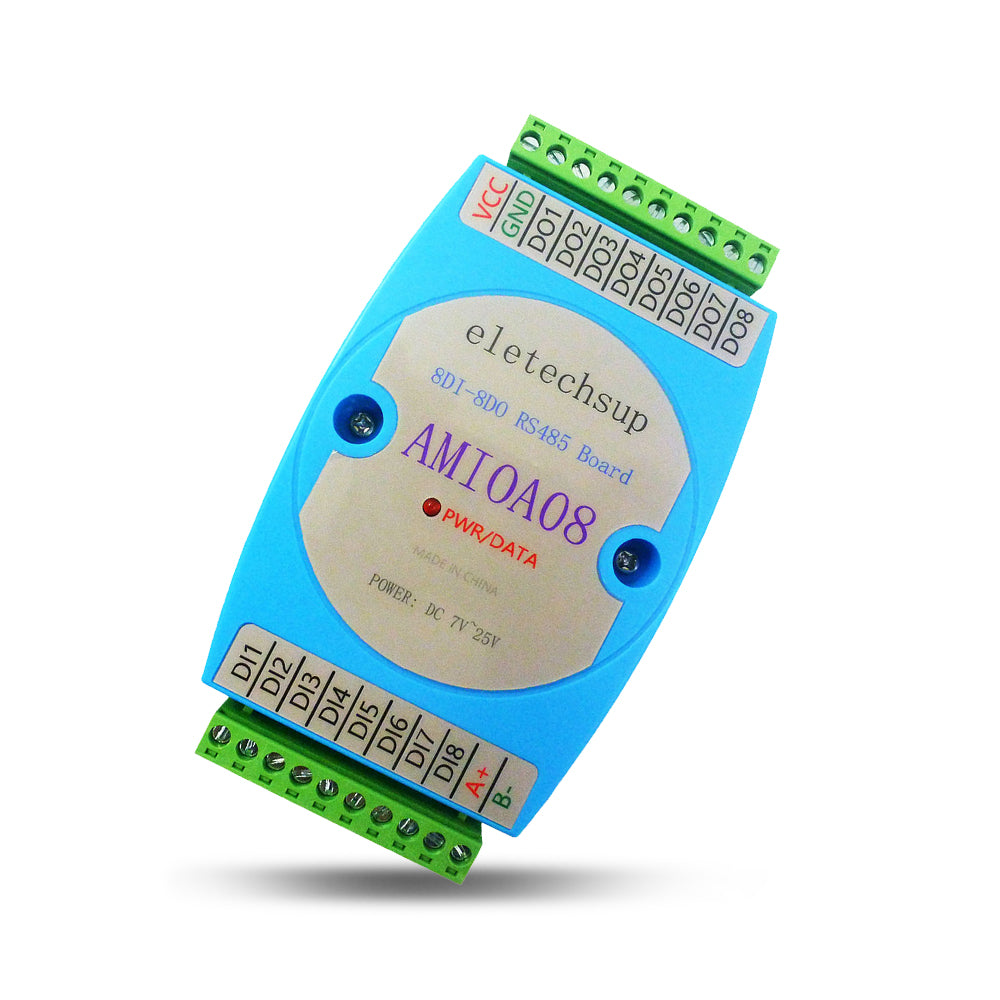

DC 7-25V 8DI-8DO RS485 Digital NPN Input and Output Module Optocoupler Isolated Communication MODBUS RTU PLC Expansion Board
Features:
1: Wide range of applications
2: With guide rail good installation
3: Small size
4: Stable performance
5: Operating voltage: DC 7-25V (9V 12V 24V)
Description:
Road opto-isolated digital input channel (NPN low-level input)
(ULN2803 NPN output)
RS485 MODBUS RTU standard communication protocol
Networking with configuration software, PLC or industrial touch screen
Networking Lightning and interference-proof communication circuit immunity
For signal acquisition and control in industrial sites
Specifications:
1. Operating voltage: DC 7-25V (9V 12V 24V)
2. Operating current: 8-50MA
3. 8 optoisolated input port (NPN low level active)
4. 8 (ULN2803 NPN output), maximum load current 300MA per channel
5. RS485 communication isolation protection 3000VDC, DI digital input port isolation protection 3000VDC
6. Standard MODBUS RTU commands (function codes, 05/06/15/16 write, 01/02/03 read)
7. Baud rate: 1200 2400 4800 9600 (default) 19200 38400 57600 115200
8. Parity bits: none (default) / even / odd
9. Mounting method Standard DIN rail mounting
10. Dimension: 125×70×30mm
11. Weight: 114g

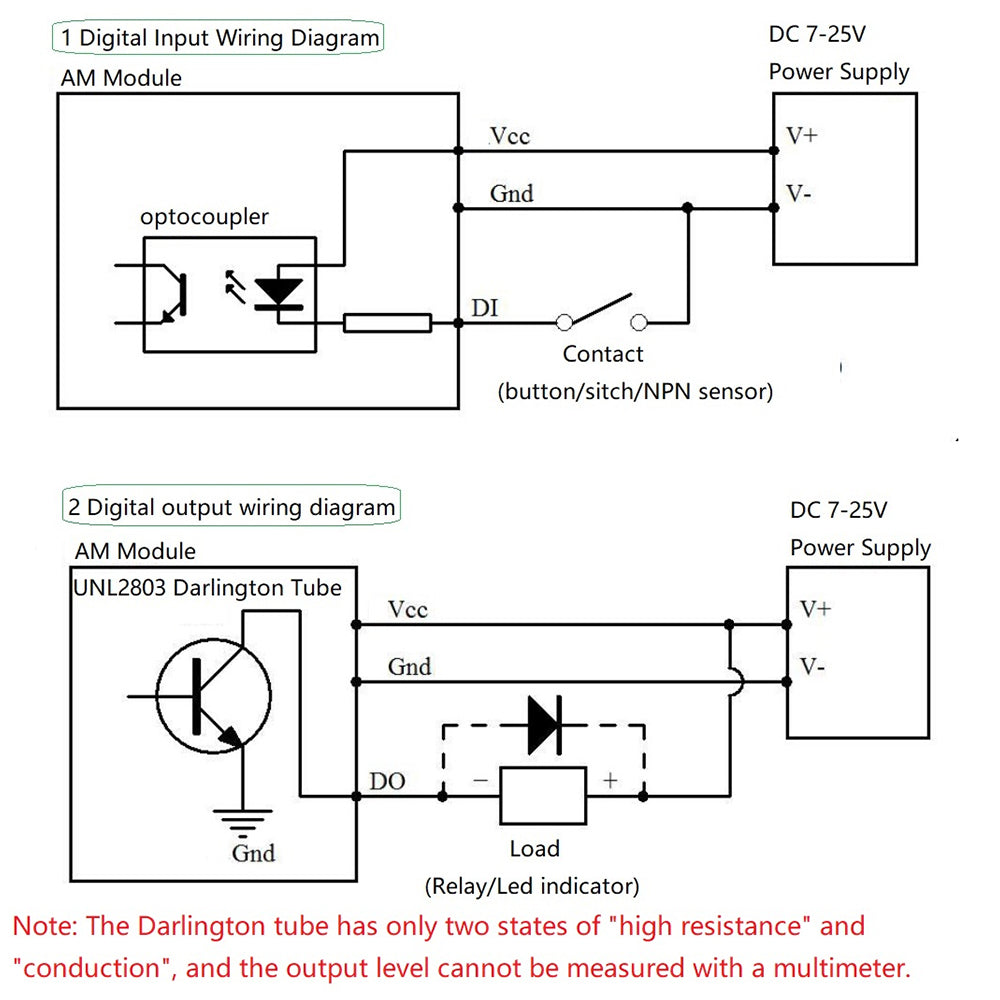

Interface Definition:
VCC: Power input +
GND: Power input
DO1: Digital output channel 1
DO2: Digital output channel 2
DO3: Digital output channel 3
DO4: Digital output channel 4
DO5: Digital output channel 5
DO6: Digital output channel 6
DO7: Digital output channel 7
DO8: Digital output channel 8
DI1: Digital input channel 1
DI2: Digital input channel 2
DI3: Digital input channel 3
DI4: Digital input channel 4
DI5: Digital input channel 5
DI6: Digital input channel 6
DI7: Digital input channel 7
DI8: Digital input channel 8
A+:RS485 signal A+
B-: RS485 signal B-
Applications:
PLC output expansion boards
Smart Home,Home Automation,Wiser Home.
PTZ CCTV cameras
Security monitoring
Identification systems.
Motor FW & BW
Automatic window control
Package Included:
1*DC7-25V Digital Input/Output Module Optocoupler Isolated RS485 MODBUS RTU Communication Board
