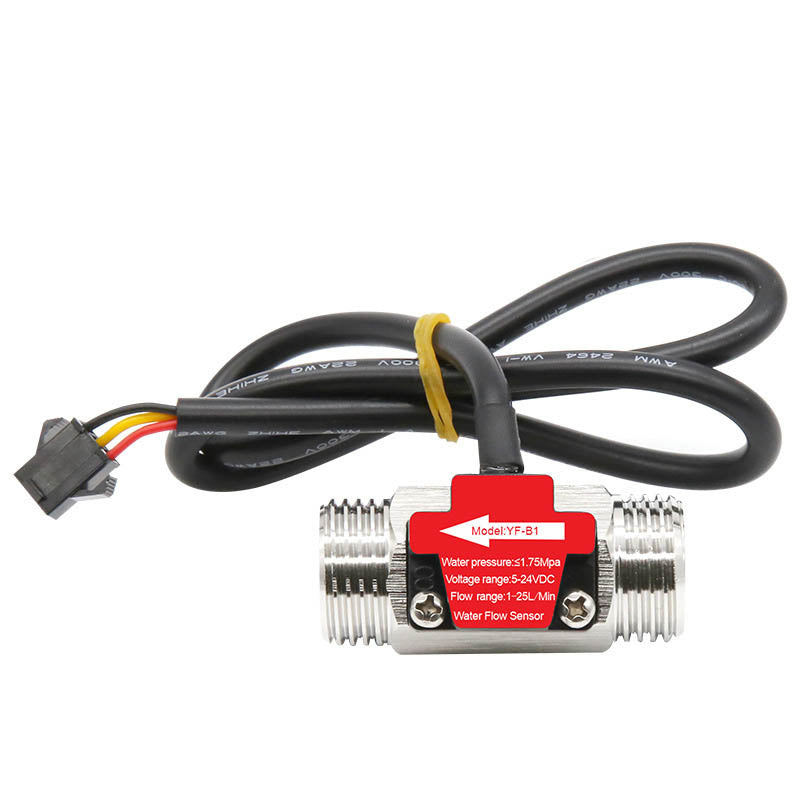

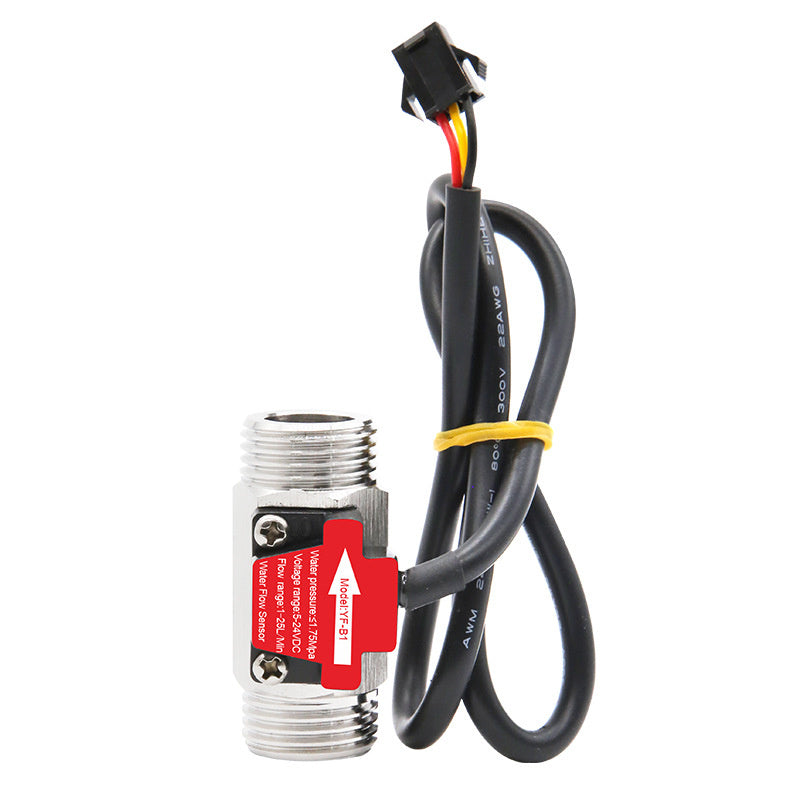

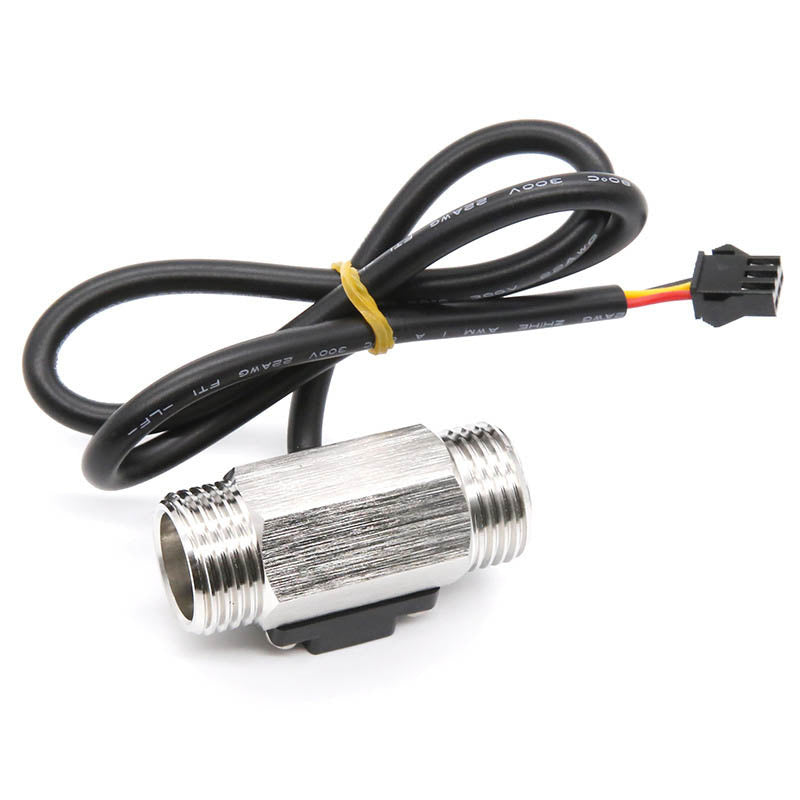

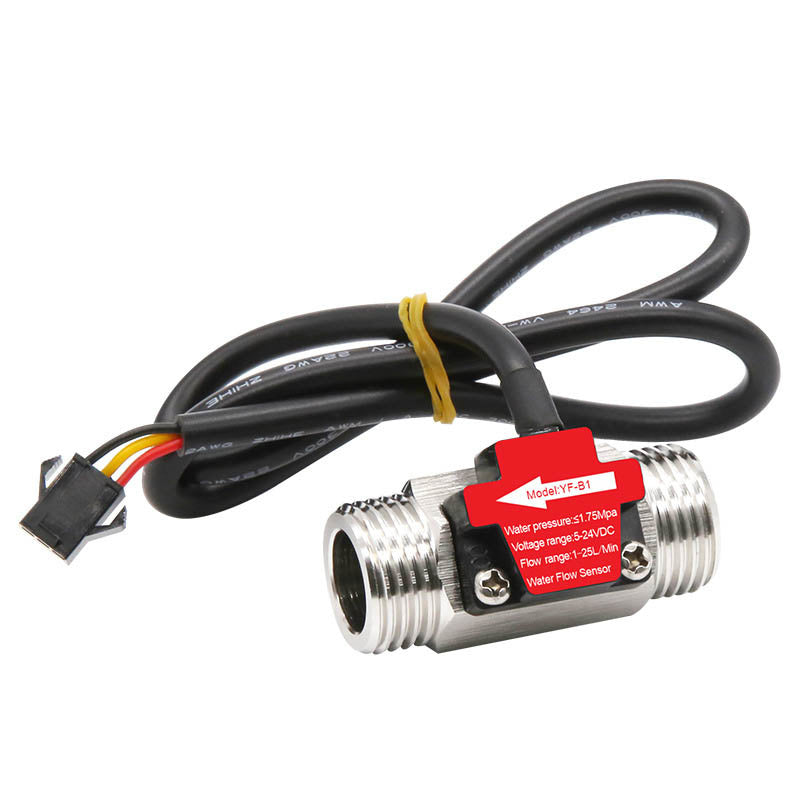

DC3.5-24V DN15 Flowmeter G1/2 Stainless Steel Sensor Water Flow Sensor Heater Flow Sensor Turbine 1-25L/min
Model: YF-B1-S

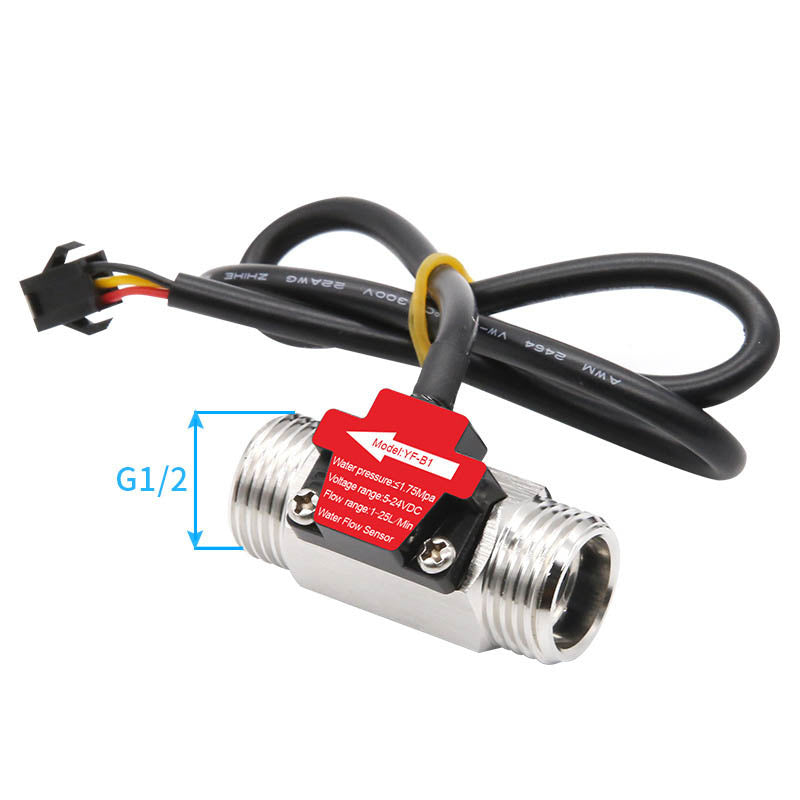

Interface size: 4 points (G1/2)
Operating voltage range: DC3.5~ 24V

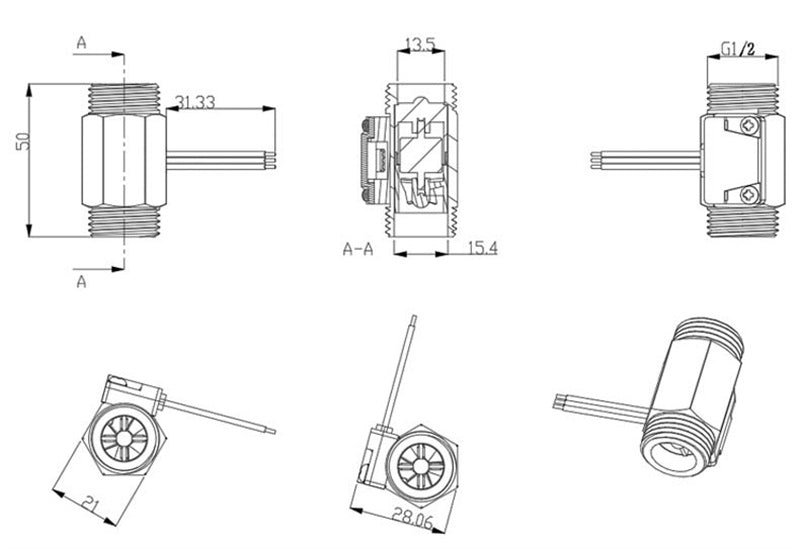

Inner diameter/outer diameter: inner diameter 15.4 water outlet 13.5mm/outer diameter 20.5mm: thread length
9.3mm
Material: stainless steel shell
Water pressure resistance: ≤1.75M Pa
Output pulse high level:>DC 4.5 V (input voltage DC 5V)
Output pulse duty cycle: 50%±10%
Insulation resistance:>100Mn
Flow range: 1~ 25L/min3%
Flow pulse characteristics: (Hz)=[ 18*Q-3] ± 5%
i.e. 1077 pulses - liters of water
Overall length of valve body: 66MM,50MM(optional)
Maximum operating current: 15mA (DC5V)
Load capacity: ≤10mA (DC5V)
Use temperature: ≤80C
Storage temperature/humidity: -25~ +80"C/25%-~95%6RH
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
