Feature:

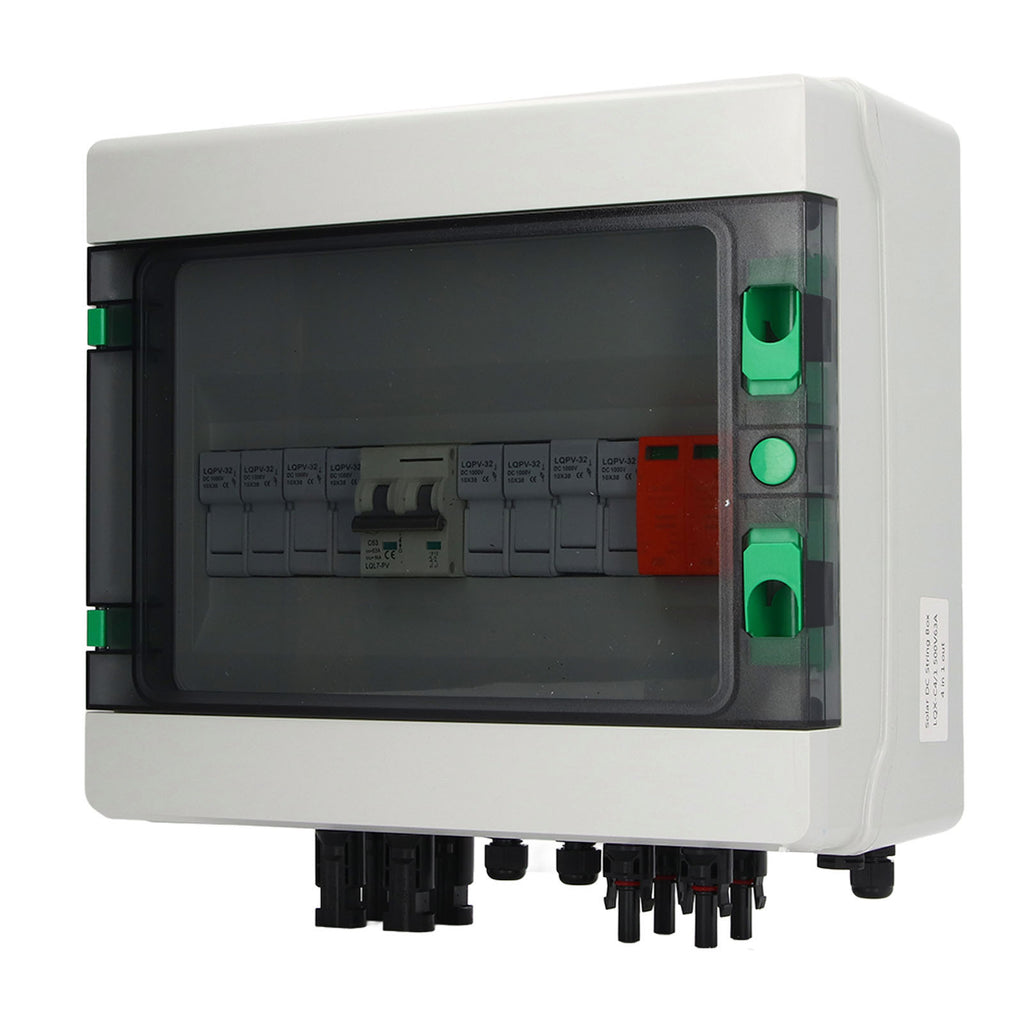

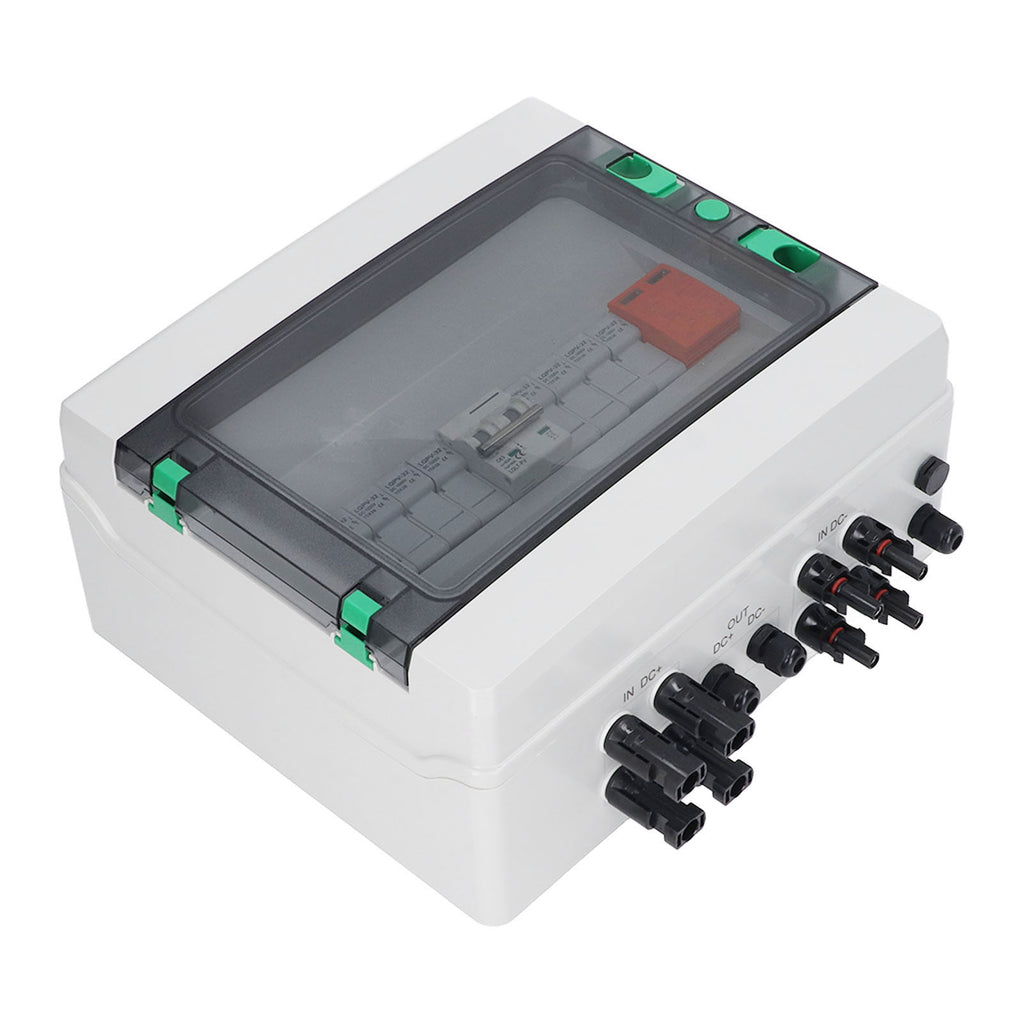

1. Multi Function: The photovoltaic combiner box is applicable to your photovoltaic grid connected or off grid solar power generation system. This makes your solar panel system work reliably and safely.

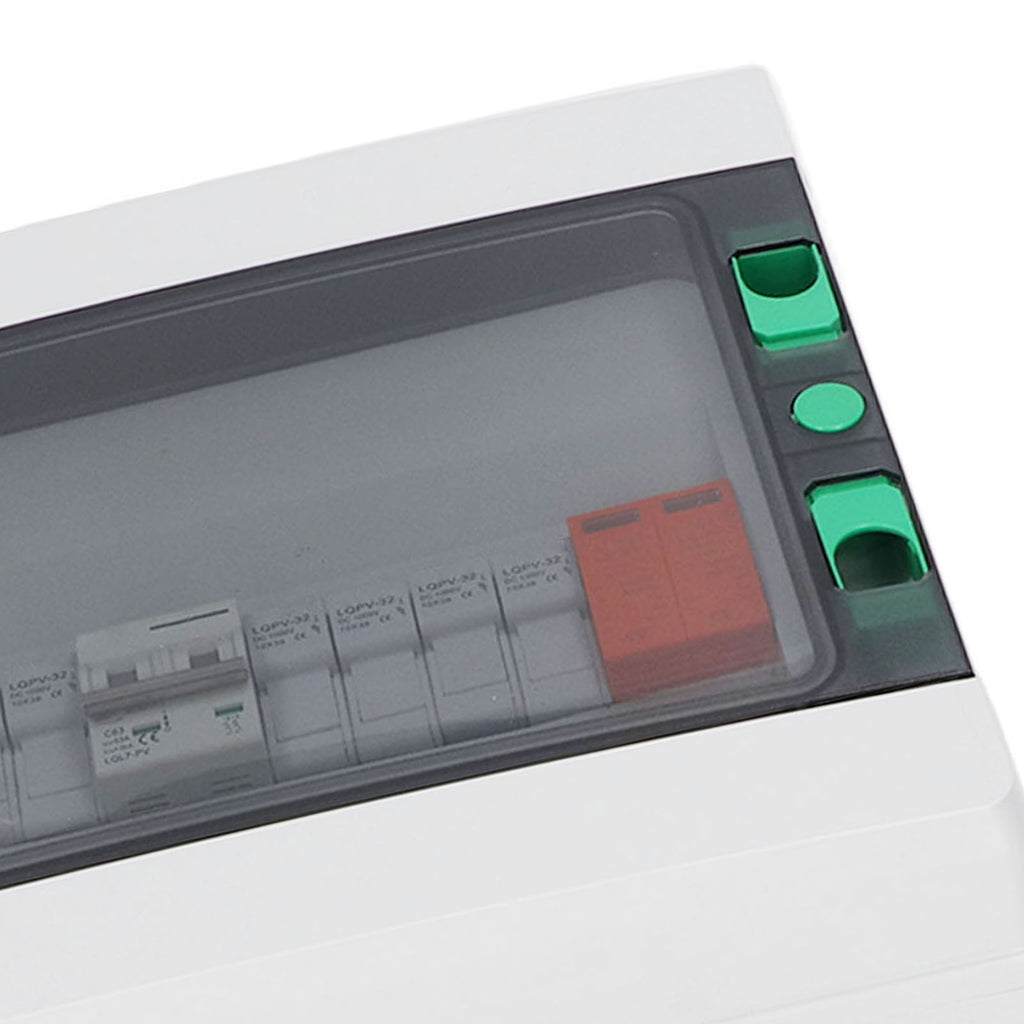

2. 63A Circuit Breaker: Comes with a 63A circuit breaker, a surge protection device, it can provide short circuit protection and control the output of combiner box.
3. 15A Fuse: Built in 8 separate 15A fuses. The maximum current of a single photovoltaic input array is 15A. Their function is overload protection.
4. Easy Wiring: The internal wiring is safe, simple, easy to use and install, and the lock catch can defend your equipment.
5. Scope of Application: This combiner box is the perfect equipment for outdoor installation and use, which is suitable for RV solar system, 12V, 24V, 36V, 48VDC photovoltaic solar energy, etc.
Specification:
Item Type: PV Combiner Box
Material: Polycarbonate, ABS

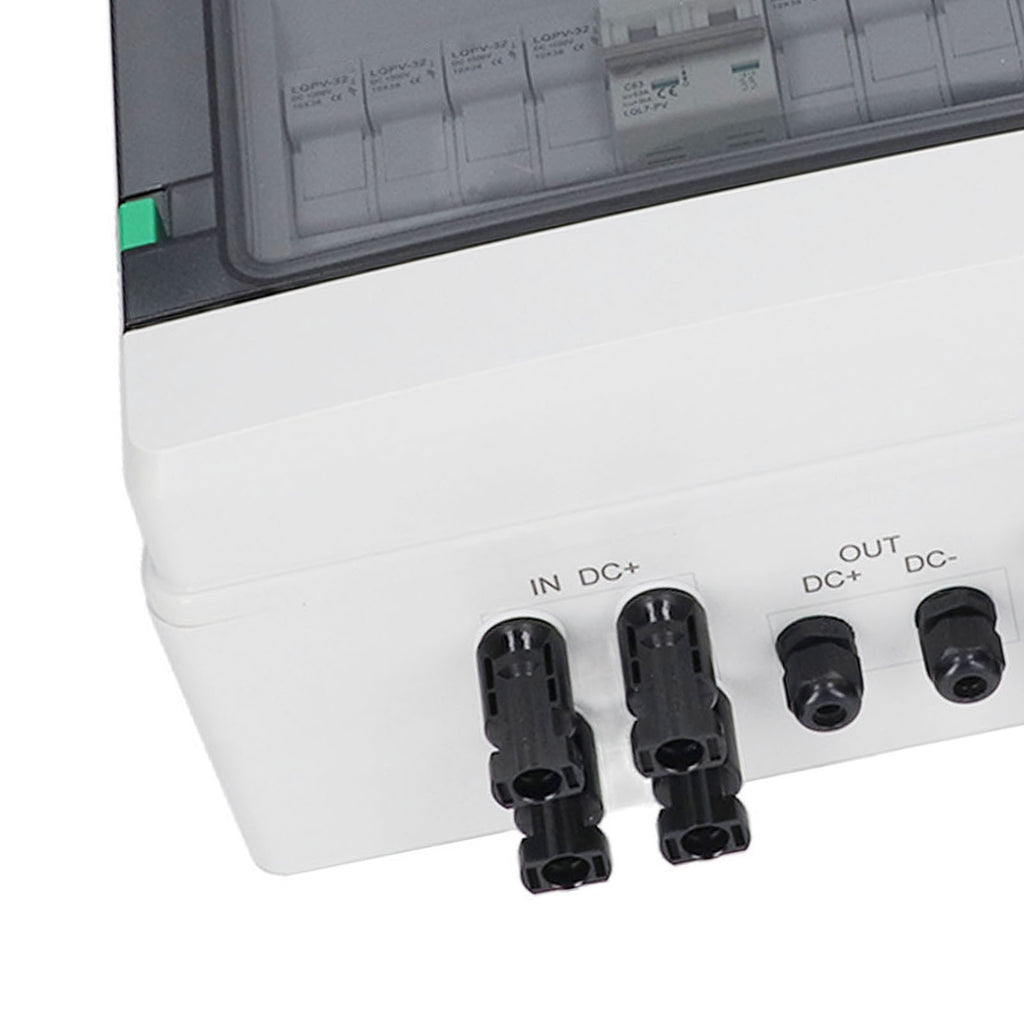

Input: 4 Strings
Output: 1 String
Maximum Voltage: 500V
Maximum Short Circuit Current (isc) of Each Input: 15A (replaceable)
Maximum Current Input: 63A
Protection Grade: IP65
Impact Resistance: IK10

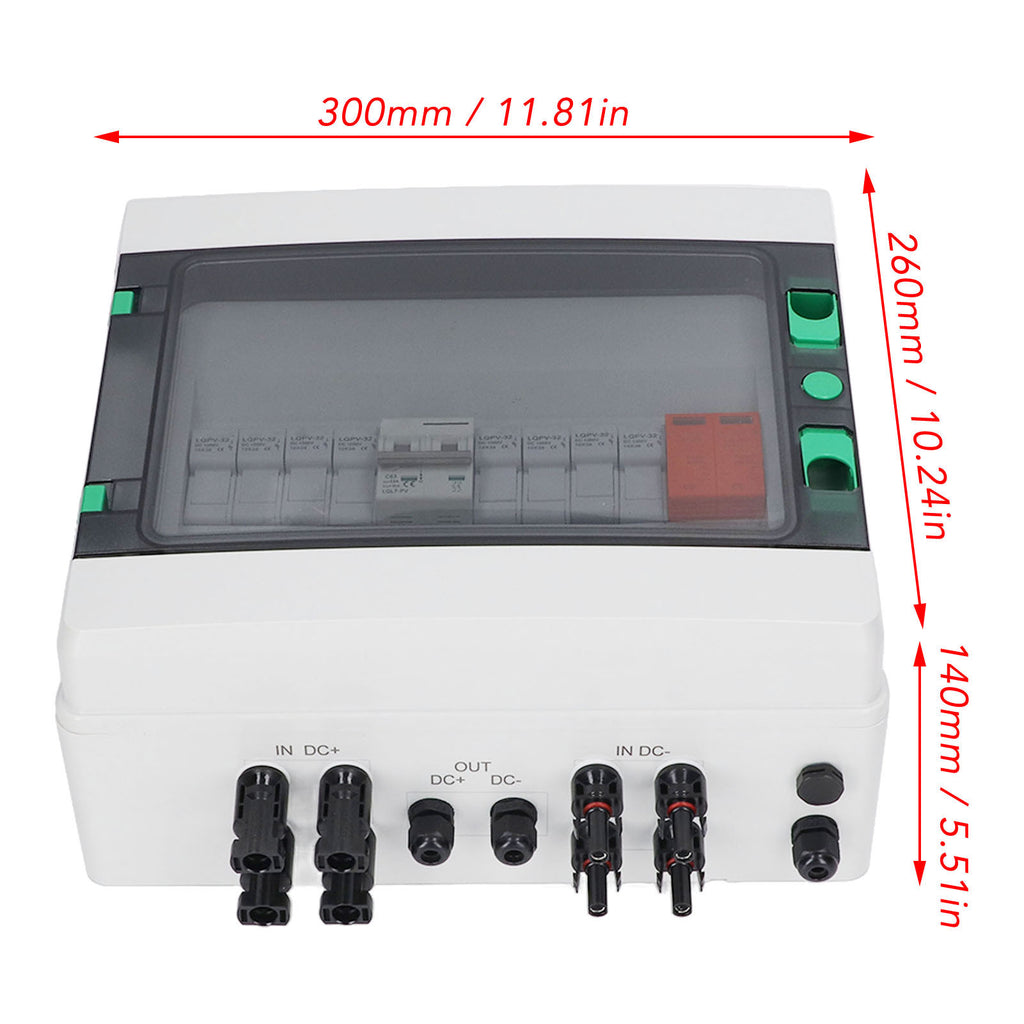

Product Size: About Approx. 300 x 260 x 140mm / 11.81 x 10.24 x 5.51in (excluding protruding parts)
Cable Inlet: PG09 2.5 to 6mm², 2.5 to 6mm²
Output Current Ring: PG21 2.5 to 6mm², 2.5 to 6mm²
DC Disconnector: LQL7 PV 63A
Rated Insulation Voltage (Ui): 500V
Rated Current (Le): 63A
DC Arrester: LD 40
Maximum Working Voltage (Ucpv): 500V
Maximum Discharge Current: 40KA
DC Fuse Holder: LQPV 1000VDC
Rated Working Voltage: 500V
Fuse: Approx. 10 x 38mm / 0.39 x 1.5in 15A

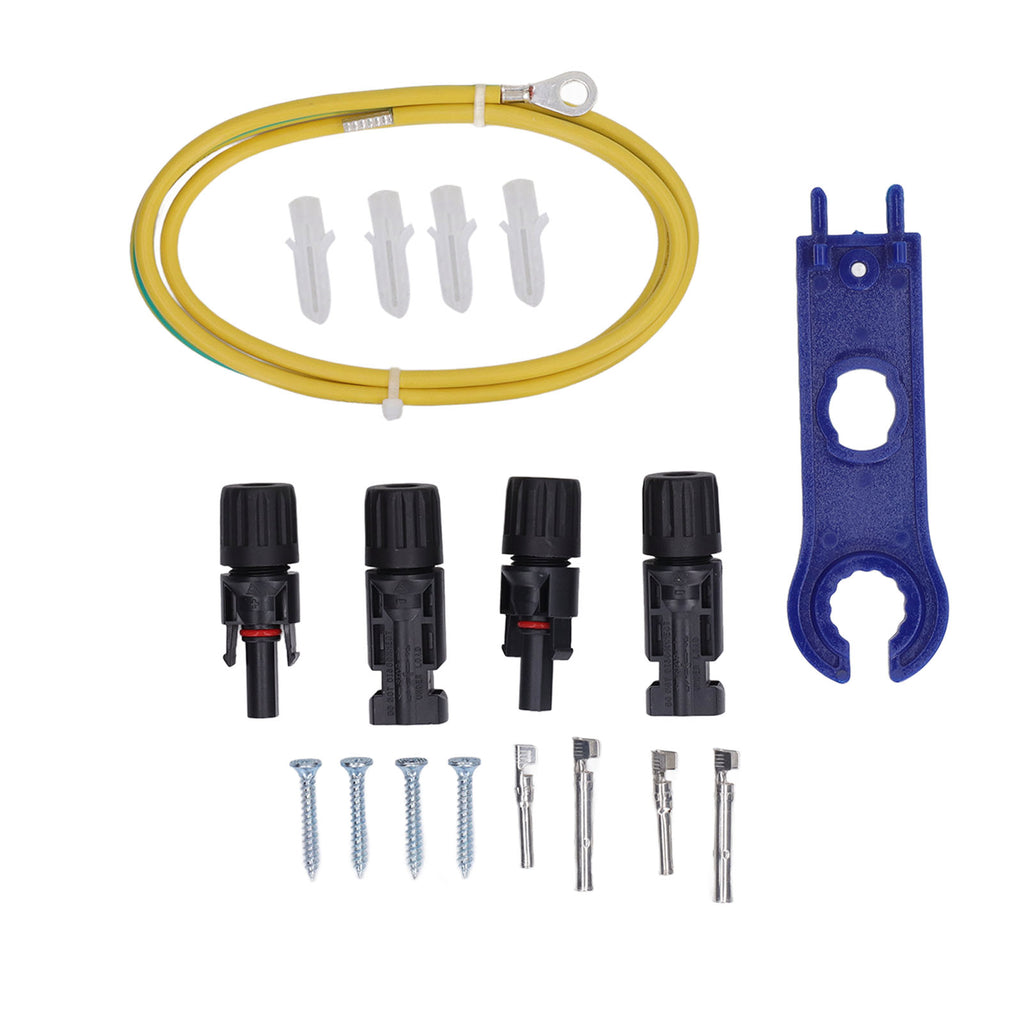

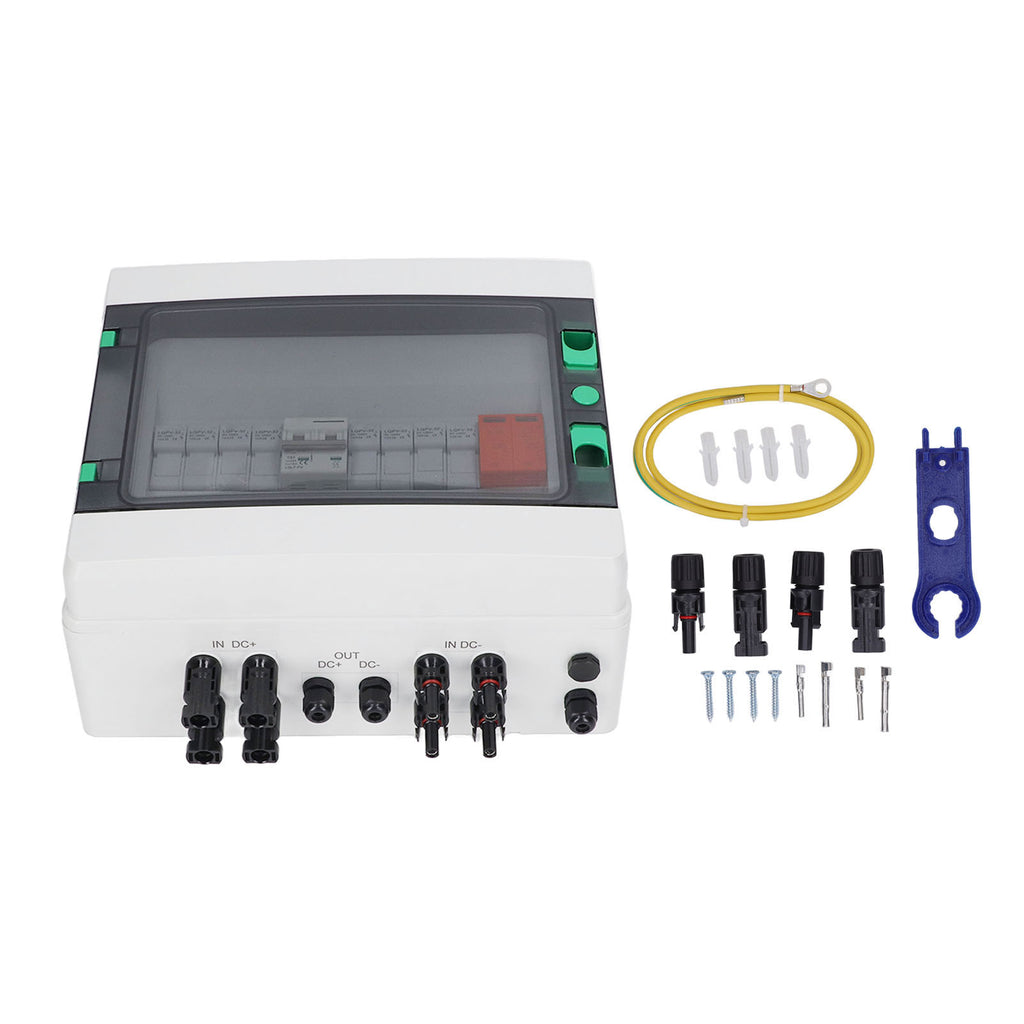

Package List:
1 x PV Combiner Box
1 x Manual
1 x Ground Wire
1 x Wrench
4 x Screw
4 x Expansion Tube
4 x Connector( Male x 2, Female x 2)
4 x Core
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
