Features:

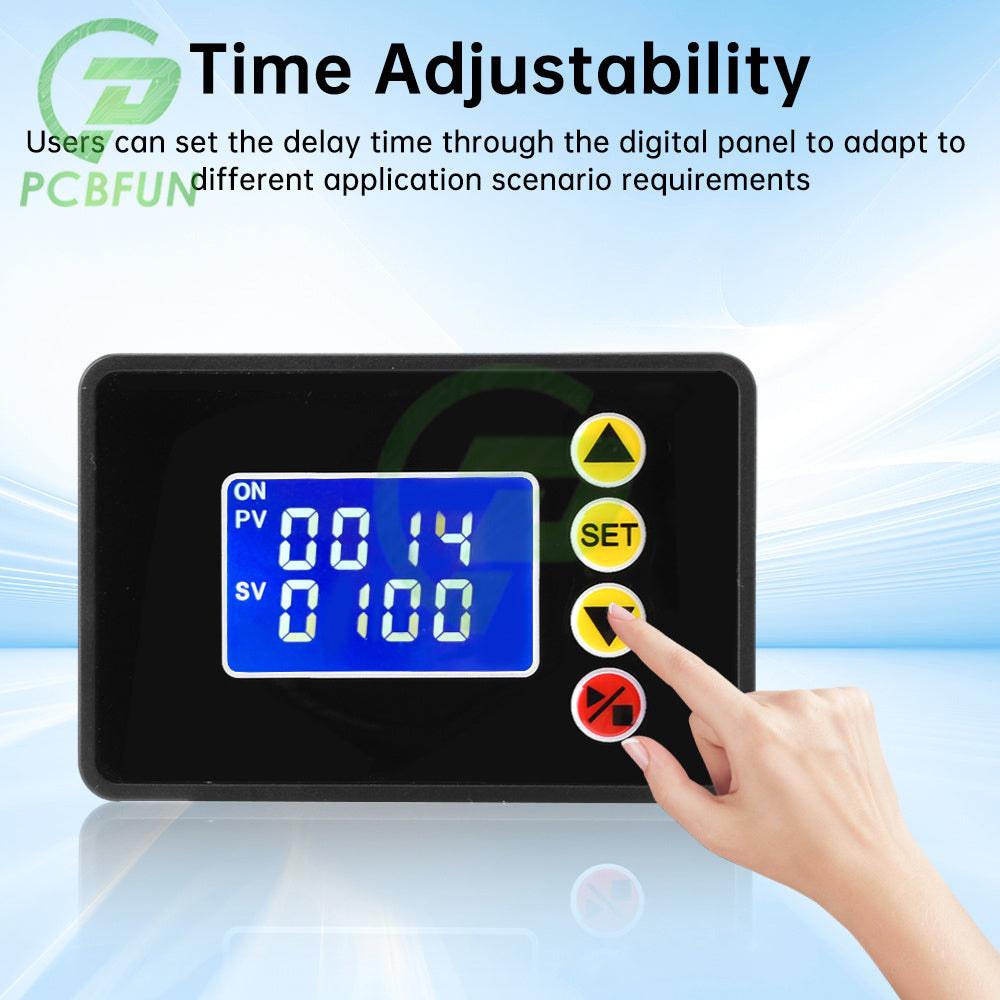

1.Time adjustability: Users can set the delay time through the digital panel to adapt to different application scenarios.

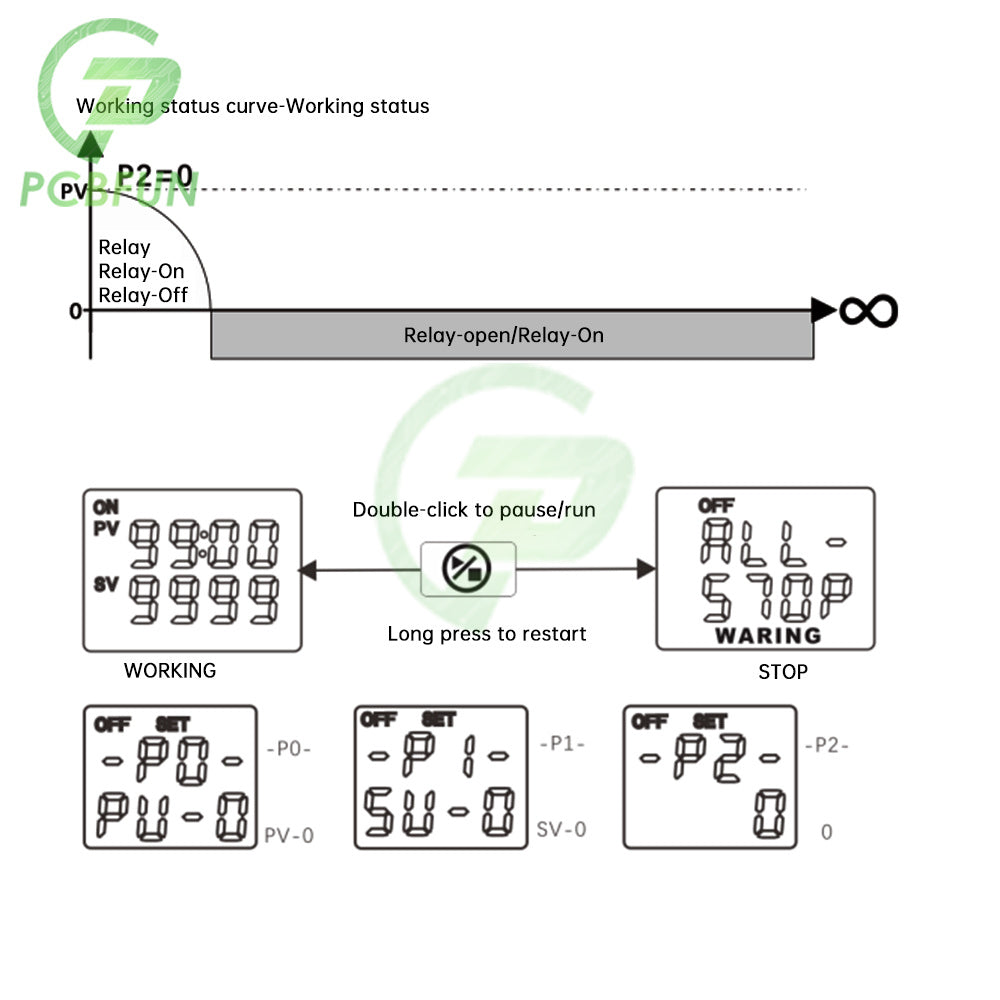

2.Delay mode: Supports two modes: Power on delay (i.e. Action after a certain delay when the power is turned on) and power off delay (i.e. Action after a certain delay when the power is cut off).

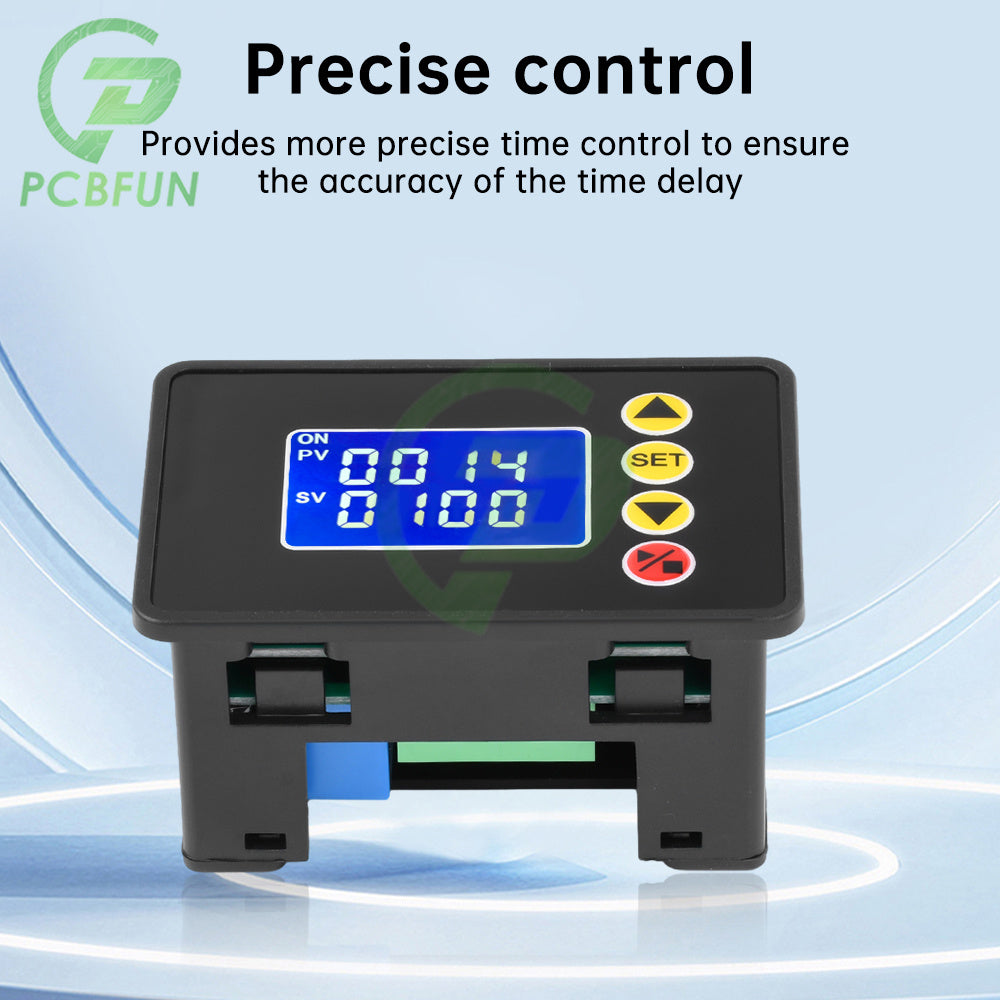

3.Precise control: It can provide more accurate time control to ensure the accuracy of delay.
5.Easy to install: The design is compact and easy to install inside the control panel or chassis.

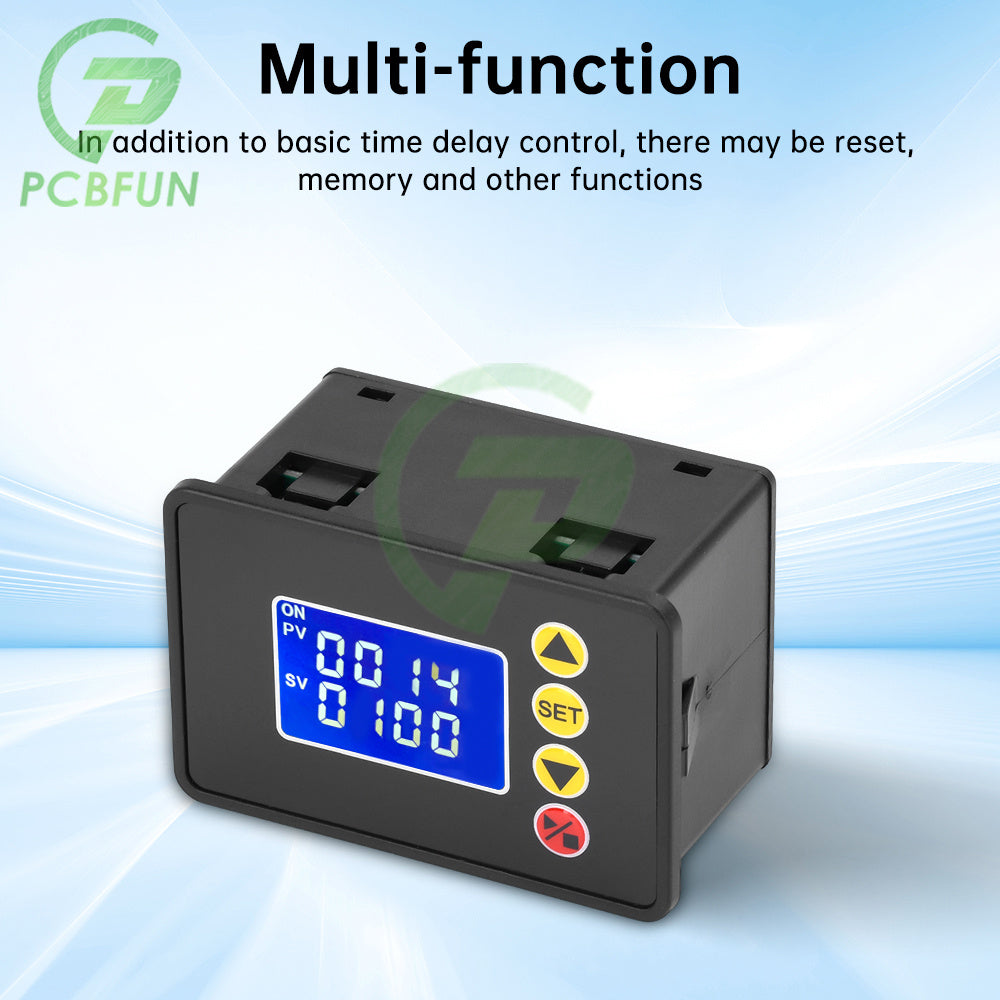

6.Multifunctionality: In addition to basic delay control, it may also have functions such as reset and memory.
7.Wide adaptability: It can work normally in a wide range of time and environment.
8.Interface compatibility: With standard wiring terminals, it is easy to integrate with other electrical equipment.
Parameters:
Product model:w3050
Product name:delay relay
Timing range:00:00~99:59 (hours, minutes) 0000~9999 (seconds)
Working voltage:dc12v/20a/240w (max) dc24v/20a/480w (max)/ac110v~220v/10a/2200w (max)
Timing unit:Seconds+hours; seconds+minutes; second+second; minutes+hours; minutes+minutes; minutes+seconds; hour+hour; hour+minute; hours+seconds (9 combinations)
Display module: 1.37lcd
Power supply mode:working power supply=control power supply in the same circuit, only one power supply is needed
Relay status indication:on/off (text indication)
Work trigger:automatic operation when powered on
Product size:67*45*34mm
Hole size:63*42mm
Package include:
Time relay*1
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
