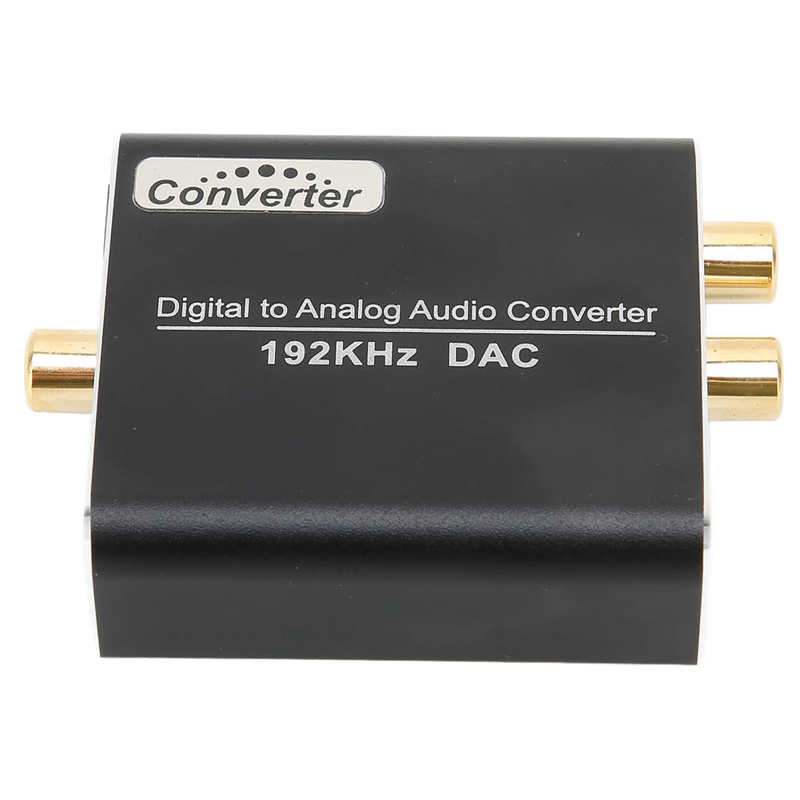

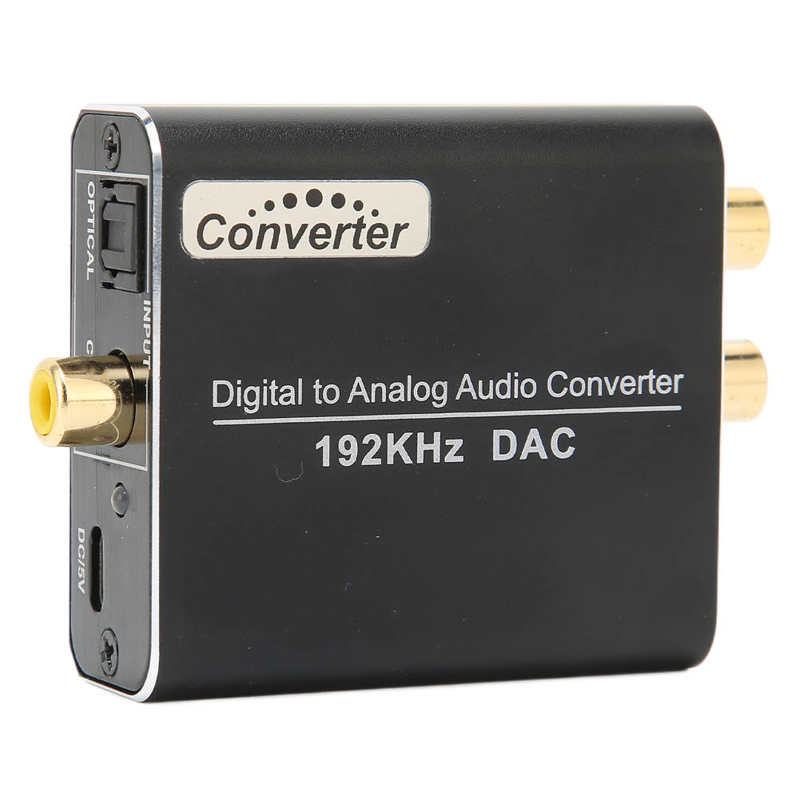

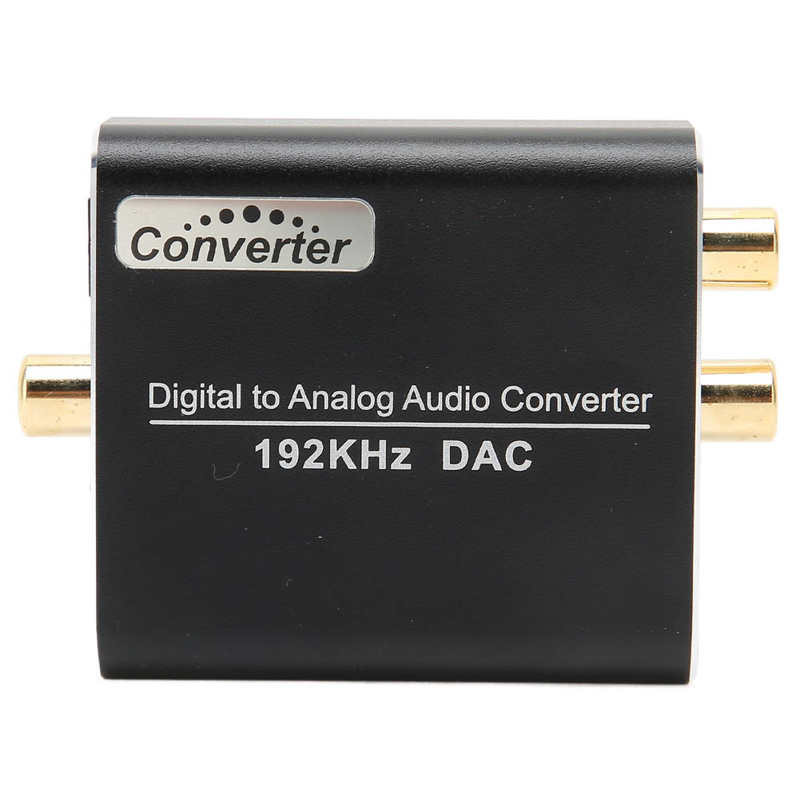

Digital to Analog Audio Converter Digital Optical Coax to Analog RCA Audio Adapter for TV for Box for PS3 for PS4

   Feature:

   1. Converts Coaxial or for Toslink digital PCM/ LPCM audio signals to analog Left Right RCA and 3.5mm Jack audio (Not capable of being reversed). Can be used for PS3, for PS4, for Xbox, HD DVD, home cinema systems, AV Amps, etc.

   2. Digital to analog signal converters actually Support sampling rate at 32KHz, 44.1KHz, 48KHz, 96KHz, and 192 KHz; 24‑bit S/PDIF incoming bit stream on left and right channels, provides crystal clear electromagnetic noise free transmission.

   3.   Simple installation and easy operation, needn't install extra driver. In addition, the DAC adapter comes with an optical cable and a power adapter for transmitting digital and providing power respectively. (Please set PCM/LPCM format when using)

   4. Input Audio Connector: 1 for Toslink, 1 x Coaxial (Coaxial Cable is not Included); Output Audio Connector: 2 x RCA (R/L, RCA Cable isn't Included), 1 x 3.5mm Jack. (NOTE: Not support for AC3, DTS, and any other SPDIF that is not in PCM format.)

    5. Aluminum alloy case, lightweight, durable and heat esisted; Gold Plated sockets, enhance HD sound signals over long distance broadcasting smoothly. Powered by 5V/1A Power Adapter.

    Specification:

    Item Type: Digital to Analog Audio Converter

 Material: Aluminum Alloy

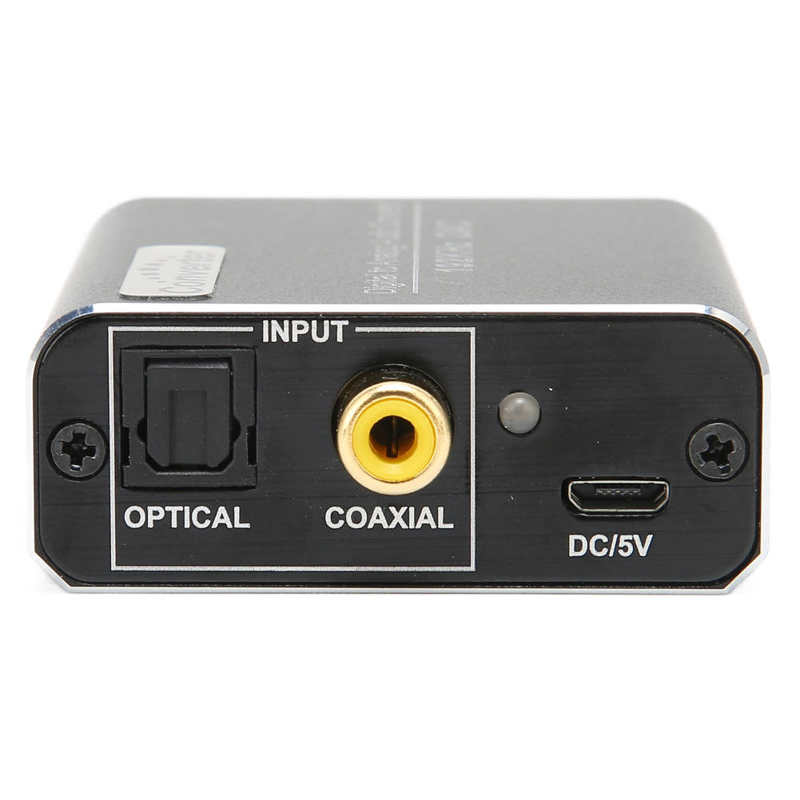

 Input Terminal: 1 × Coaxial Digital (Coaxial) Terminal, 1 × Optical Digital (SPDIF / for Toslink) Audio Terminal

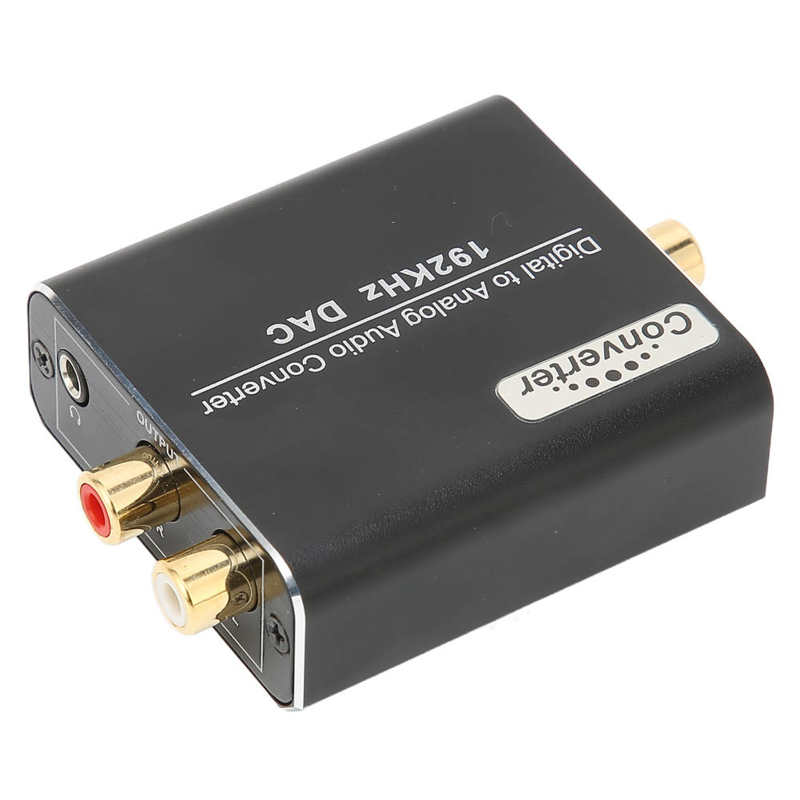

 Analog Output: 1 × RCA (L/R) Terminal, 1 × 3.5mm Earphone Terminal

 Digital Output: 1 x Coaxial Digital (Coaxial) Terminal, 1 x Optical Digital (SPDIF / for Toslink) Audio Terminal

 Sampling Rate: at 32kHz, 44.1KHz, 48KHz, 96KHz, 192KHz, 24 bits

 External Power Supply: 5VDC at 1A

 Energy Consumption (Maximum) 0.5 W

 Environmental Requirements

 Temperature (When in Use) 0℃to +70℃

 Humidity (When in Use) 10% to 85% RH (No Crystals)

 Temperature (When Stored) -10℃to +80℃

 Humidity (When Stored) 5% to 90% RH (No Crystals)

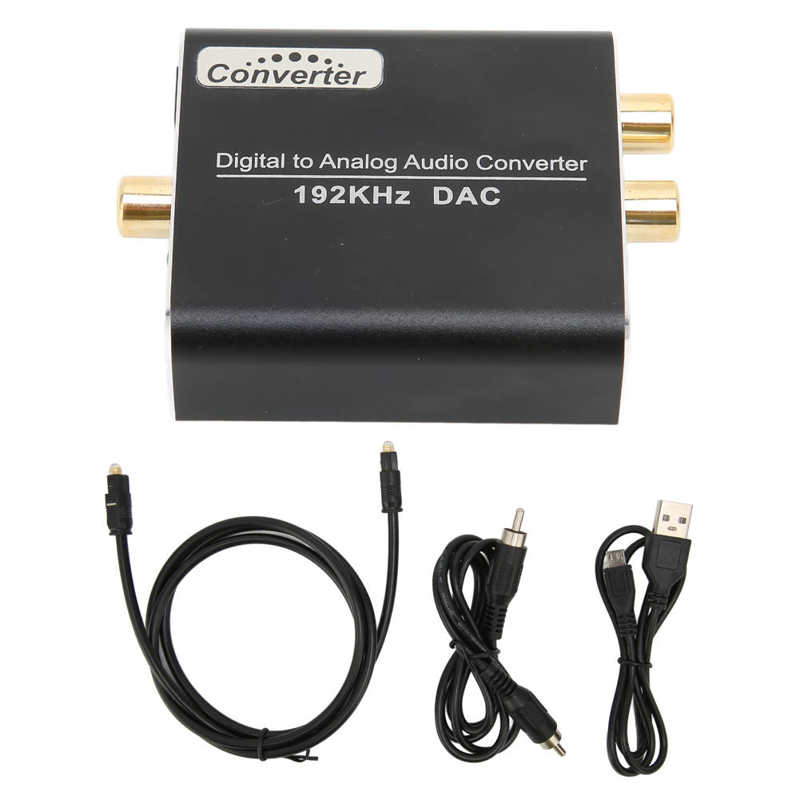

    Package List:

    1 x Converter

    1 x USB Cable

    1 x Fiber Optic Cable

    1 x Coaxial Line

    1 x Manual

    Note:

   Manual measurement has 1‑2cm error.
