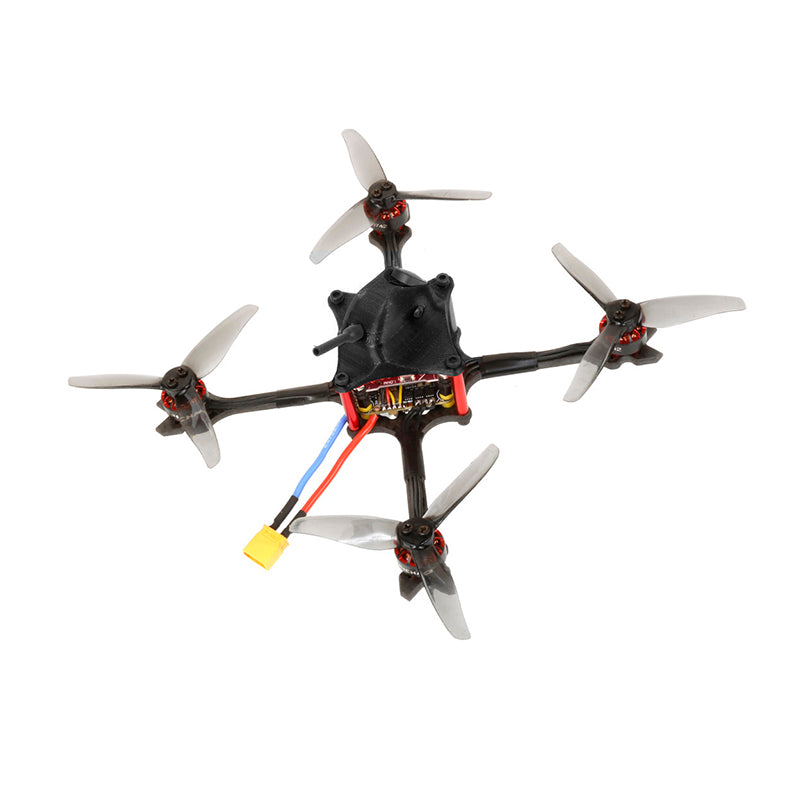

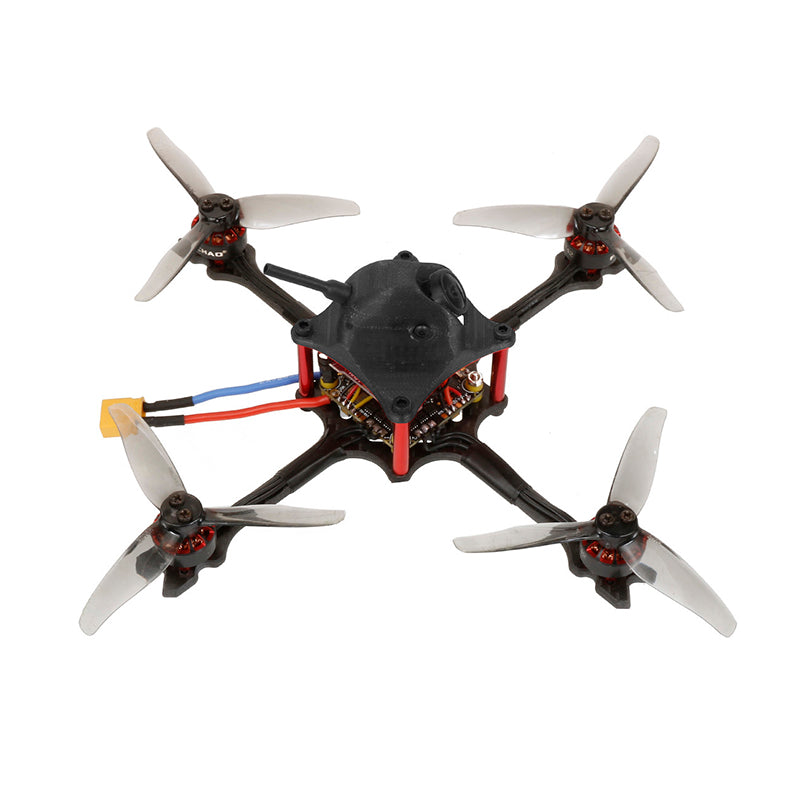

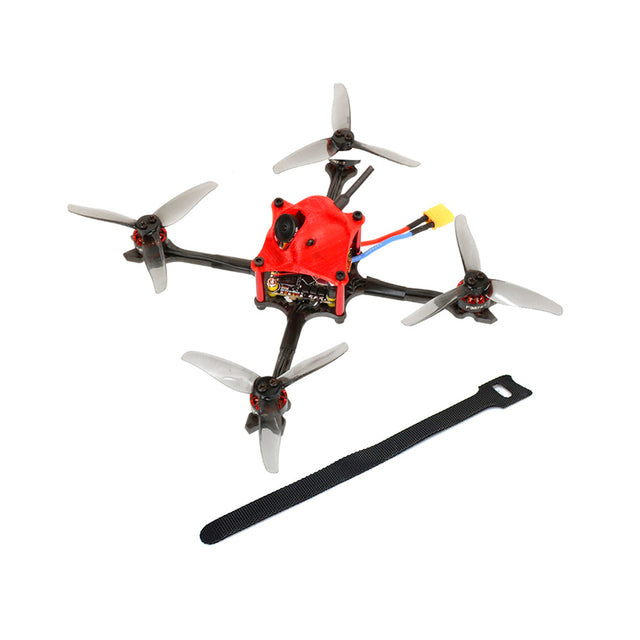

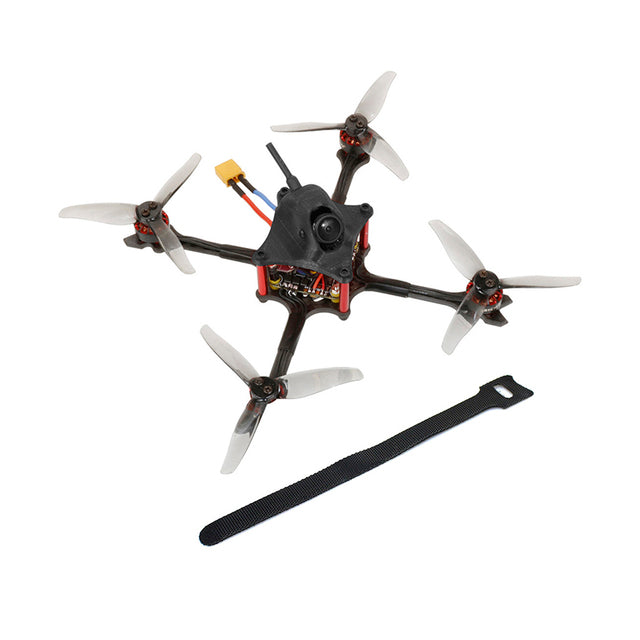

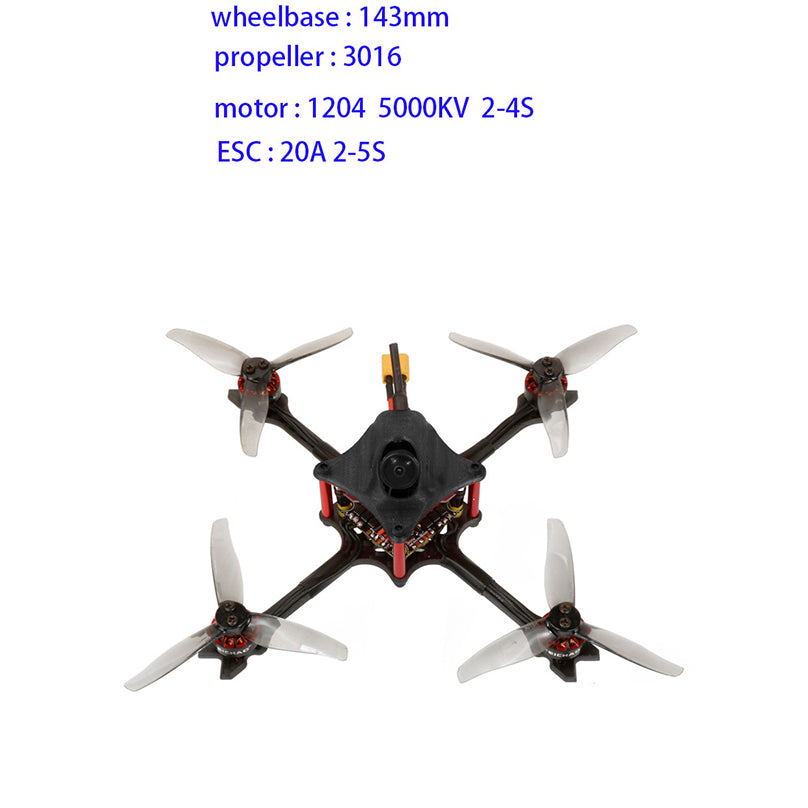

FEICHAO T143 Mini Drone with Camera FPV RC Racing Drone Quadcopter with 3in Propelles

         PNP：

    Airframe: T143 Traverse machine carbon fiber rack board carbon fiber twill matte finish without screws

Canopy: 3D Printed TPU 14mm Installation Width Camera Mount Bracket Holder Fixed Protective Seat

Motor: MT1204 1204 5000KV 2-4S Brushless Motor

Configu-ration:9N12P

Stator Diamter: 12mm

Stator Length: 4mm

Inner Shaft Diameter: Φ2mm

Outer Shaft Diameter: Φ1.5mm

Motor Dimension(Dia.*Len): Φ15mm*16.2mm

Flight controller: F411 20A/35A AIO 2S-6S BLHELI_ S Flight Controller MPU6000 Built in ESC

- Flight control parameters:

CPU: STM32F411CEU6

IMU: MPU6000

OSD: AT7456E

Barometer: BMP280

LED: Support WS2812 and other programmable

Sensor: Built-in current sensor

Firmware version: betaflight_4.1.1_MATEKF411

Compatible Receiver: Frsky/ Futaba/ Flysky/ TBS Crossfire/ DSM-X: DSM-2 receiver

- ESC parameters:

Firmware support: BLHELI_ S

Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Input voltage: 2S-5S Lipo

Continuous current: 20A/35A (optional)

Peak current: 25A

Firmware version: BLHELI _S (G- H-30)

VTX: 5.8G 40CH 25mW 100mW 200mW Switchable FPV Transmitter with Antenna

Input Voltage: 4.5-5.2V(DC)

Input Current: 500mA@200mW

Power: 25mW/ 100mW/ 200mW ( Switchable)

Channel: 40CH

Antenna Conenctor: IPEX

Size: 37x24x5mm

Mounting Hole: 25x25mm

Weight: 2g

    Motor: 1204 KV5000 Brushless motor

    Specification: 1204

    KV option: KV5000

    Configuration: 9N12P

    Stator diameter: 12mm

    Stator length: 4mm

    Inner shaft diameter: Φ2mm

    Outer shaft diameter: Φ1.5mm

    Motor size (diameter * lens): Φ15mm* 16.2mm

    Weight (g): 5.9g

    Support voltage: 2-4S

Propellers: 3016 Propeller 1.5m 2mm Hole 3 inch 3-Paddle CW CCW Propellers Mini Props

Buzzer: 5V Buzzer Alarm Beeper

Camera: 1200TVL 2.1mm 1/3 CMOS 16:9 4:3 Mini FPV Camera Micro Cam NTSC

Optional Parts:

Battery & Charger: PFV 650mAh 3S 80C 11.4V lithium battery XT30 plug with B3 PRO Compact 2S 3S Lipo Balance Battery Charger

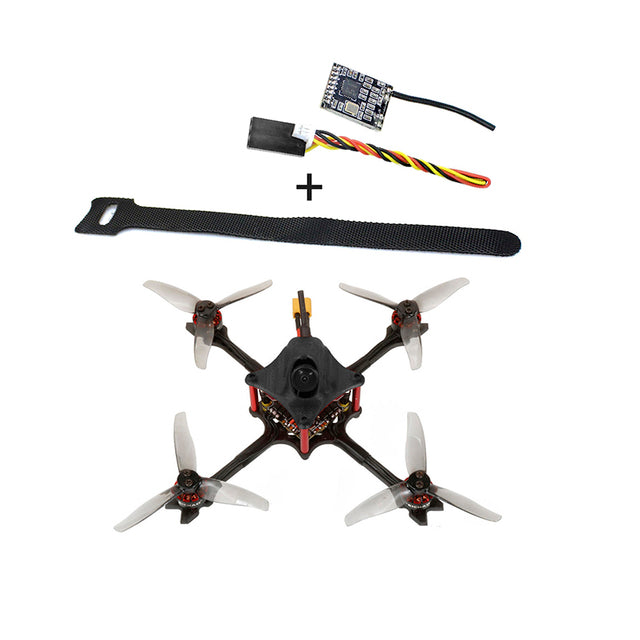

Receiver for Flysky: RX2A IBUS PPM FS-RX2A Pro Receiver Mini Receiver Compatible with Flysky FS-TM8 FS-TM10 FS-I10 FS-I6 FS-I6X FS-I6S Transmitter Accessory

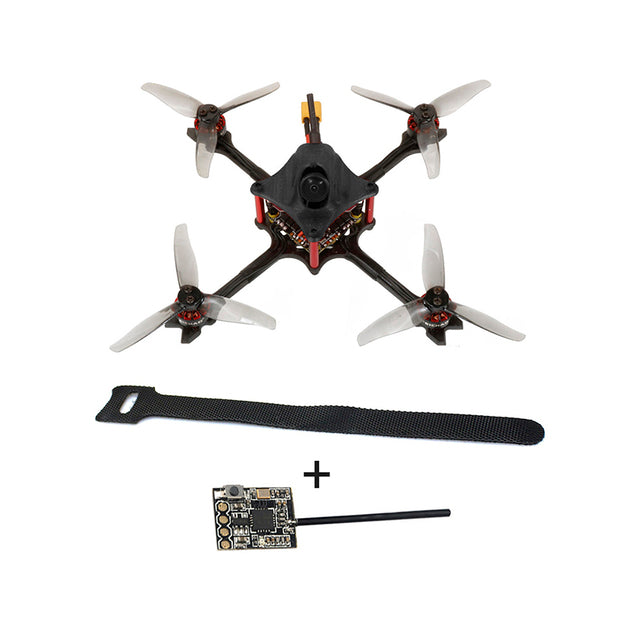

Receiver for FRSKY D8: D800 Tiny 8CH SBUS / PPM Receiver Compatible with FRSKY ACCST D8 and X9D(Plus)

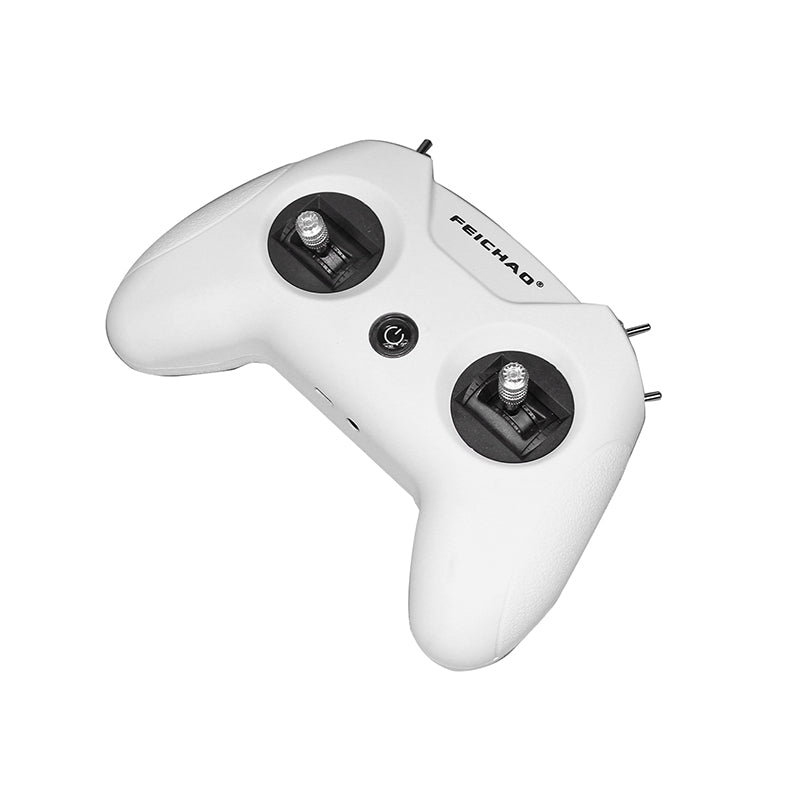

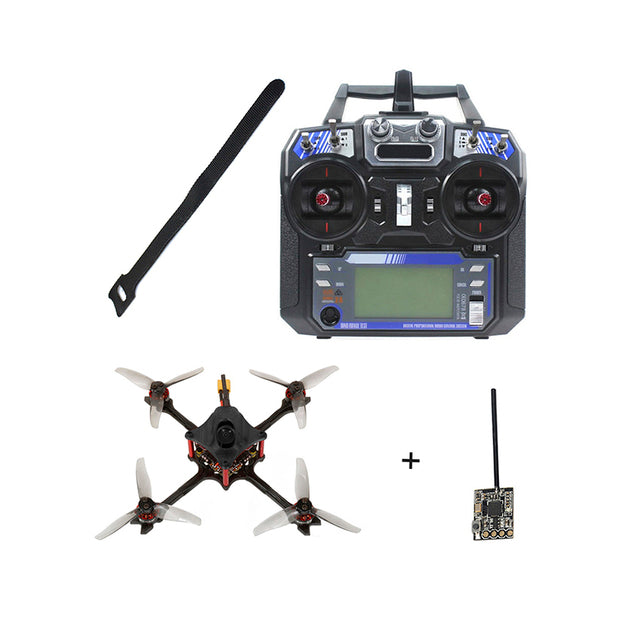

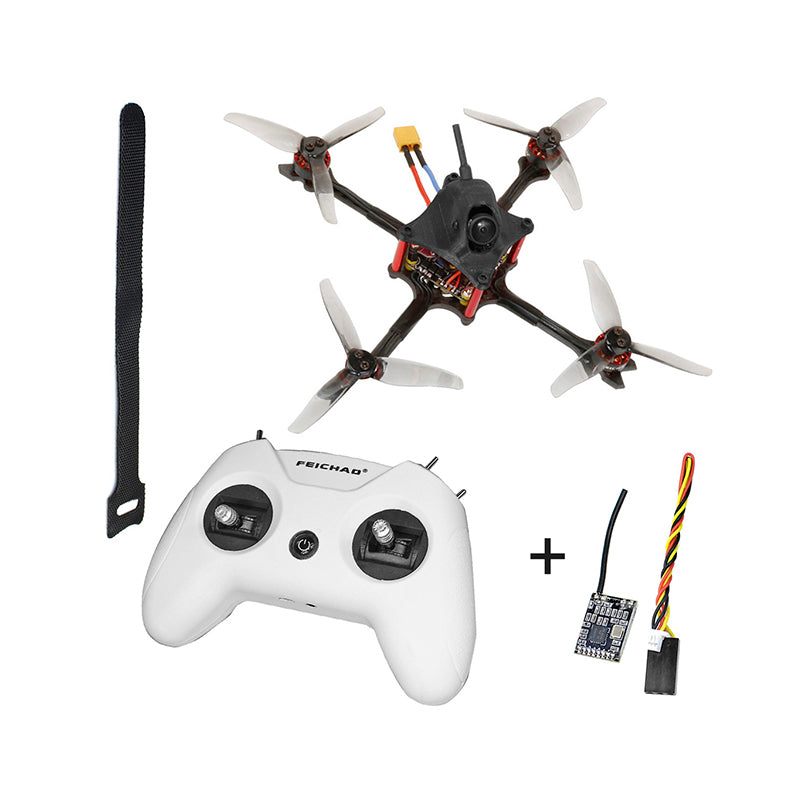

with RX&TX for Flysky

with RX&TX for FRSKY
