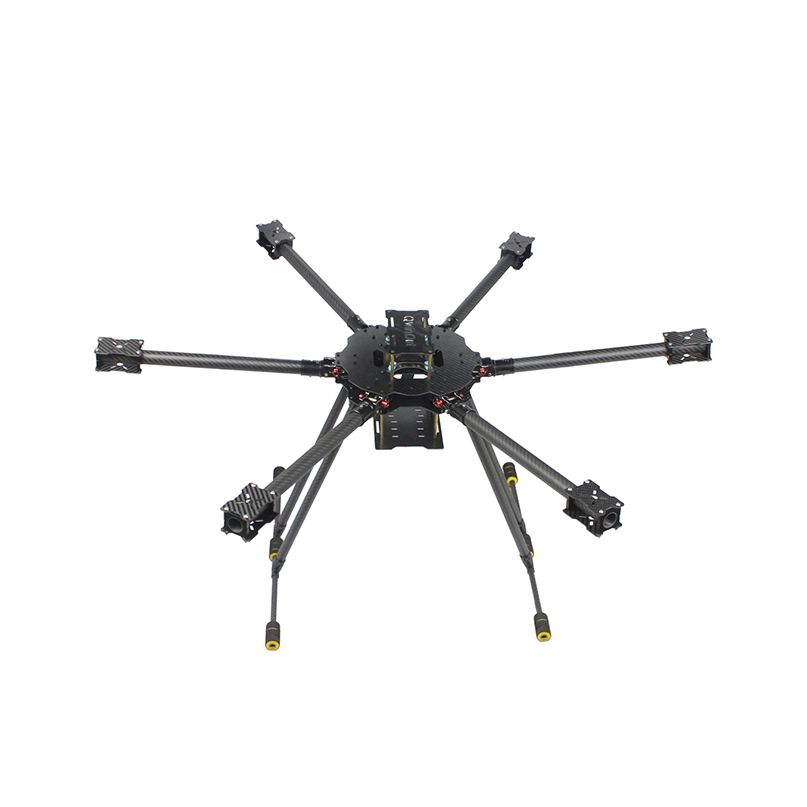

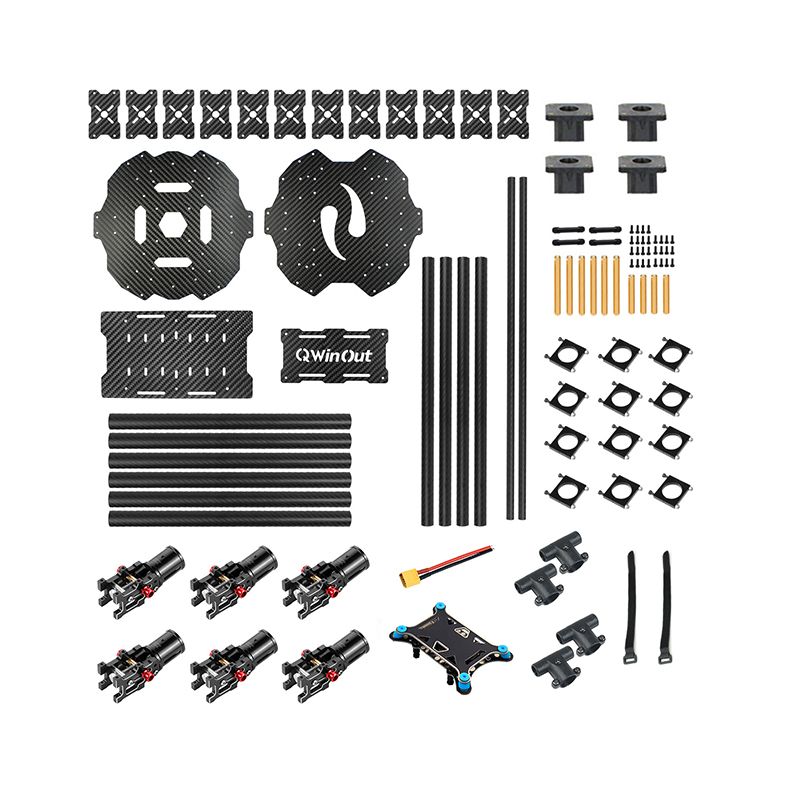

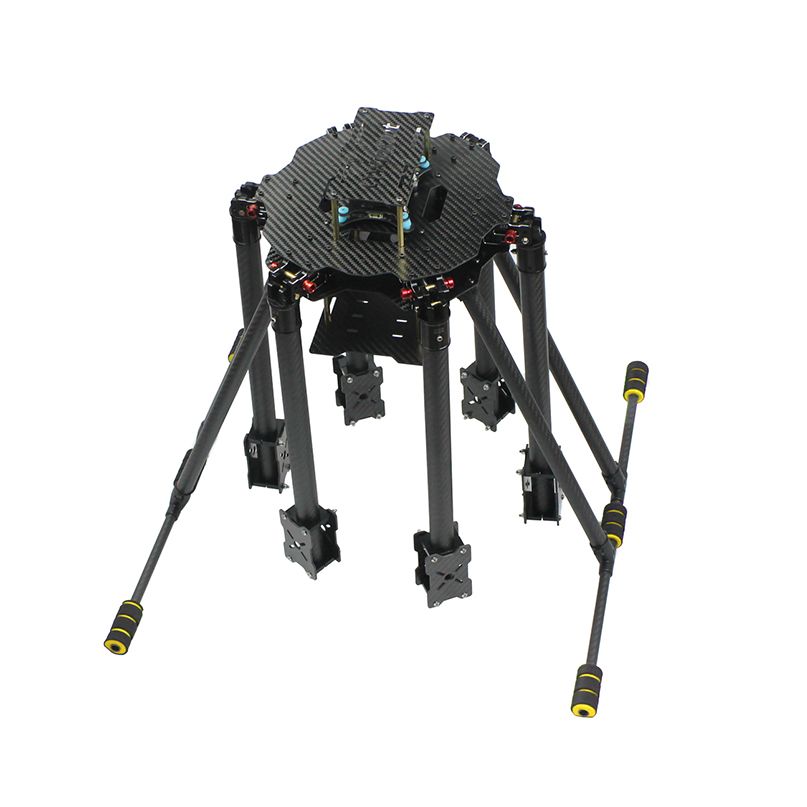

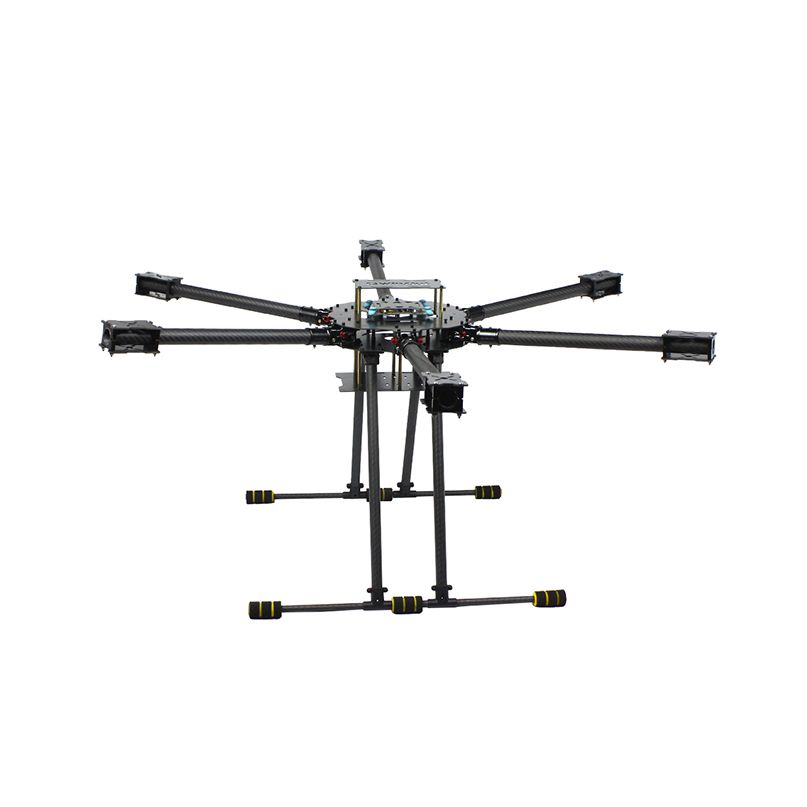

T850 six-axls UAV aerial carbon fiber frame
Material: Carbon fiber
Wheelbase: 850mm
Net weight: 1.4KG
Arm tube diameter: 22MM
Center plate diameter: 220MM
Support voltage 3-6S, recommended 6S 10000mah battery （Battery is not include）
Maximum load under 6S battery is 1.5kg
APM2.8 Flight control (optional)
1555 Carbon Fiber Propeller CW CCW
Type: 1555
Main hole diameter: 4mm
Side hole diameter: 3mm
Center distance: 12mm
Material: carbon fiber
40A ESC:
Current: 40A
Peak current (10s): 60A
BEC: None
Support voltage: 2-6s
Weight: 45g
Size: 73 * 21 * 10"

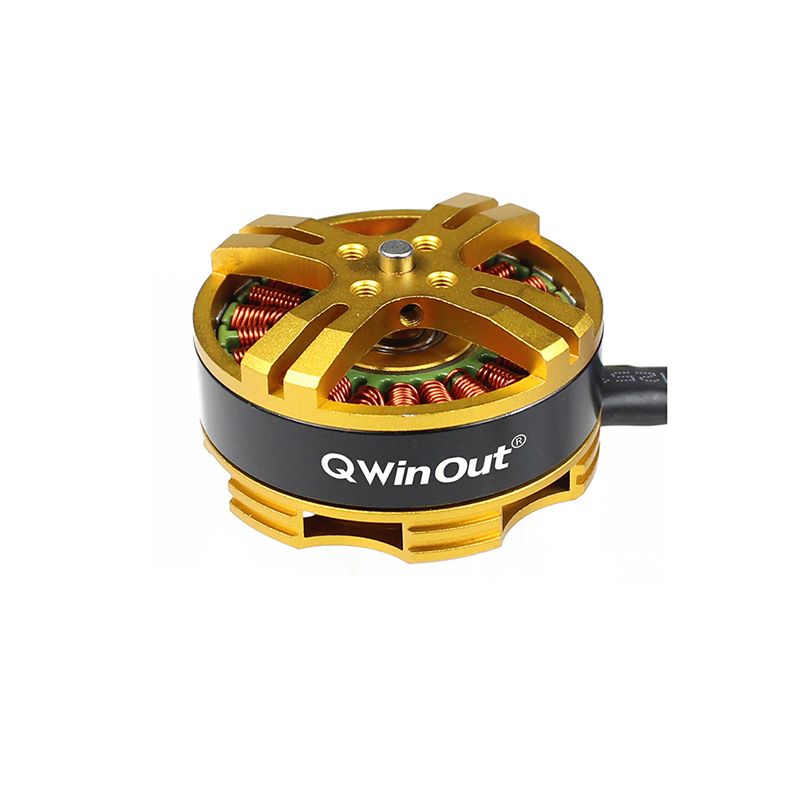

4108 380KV Brushless Motor
Specification: 4108
KV: 380
Stator diameter: 41mm
Stator length: 8mm
Shaft diameter: 4.0mm
Propeller mounting hole diameter: 3mm
Propeller installation distance: 12mm
Motor mounting hole diameter: 2.5mm
Motor installation: 32mm equilateral triangle, 19/25mm straight line
Motor size (Dia.* Len): D46x25mm
Weight (g): 113 g
Support voltage: 3-6s
Maximum continuous current (A): 17.2A
Maximum continuous power (W): 381W"

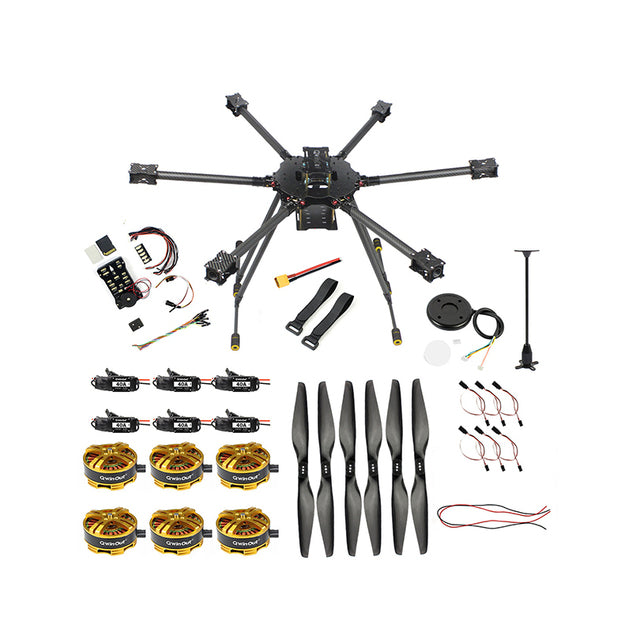

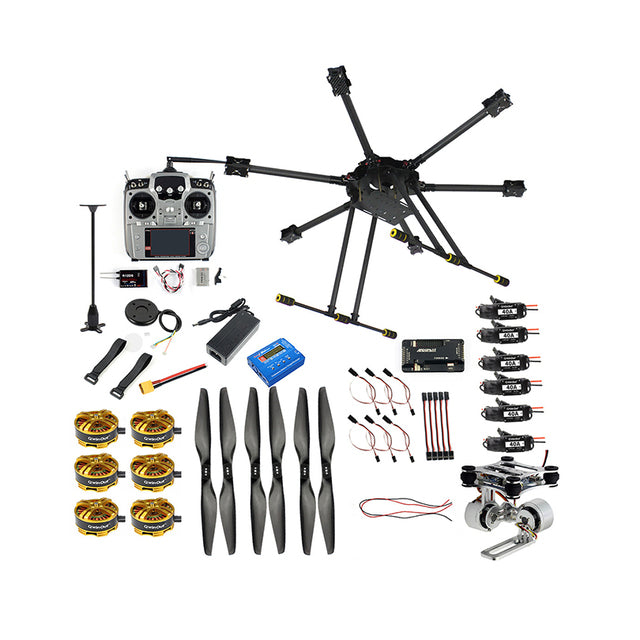

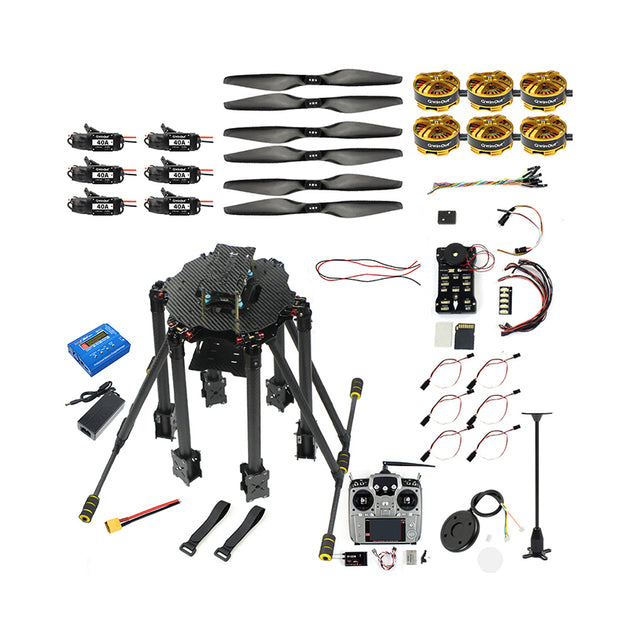

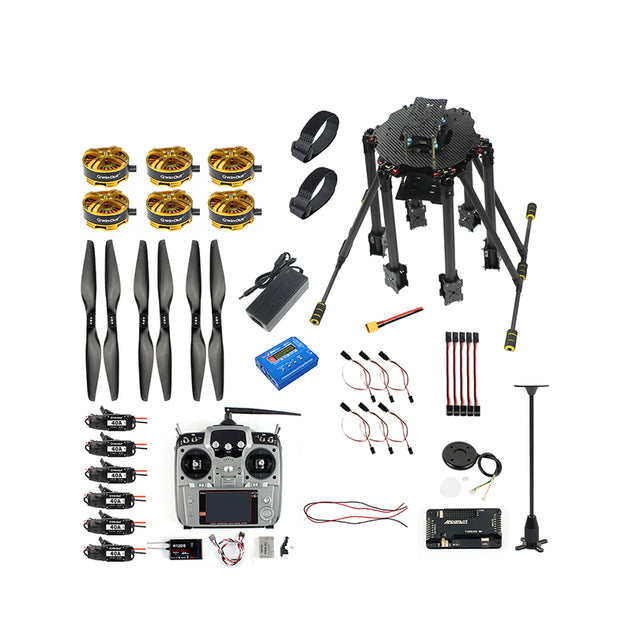

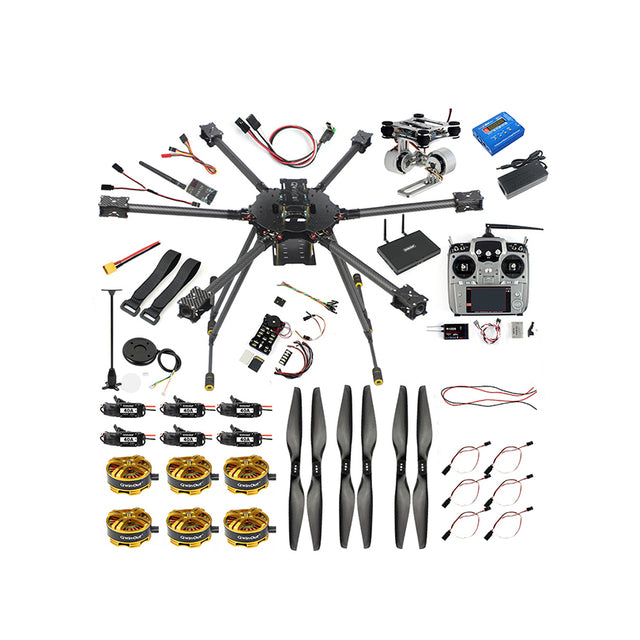

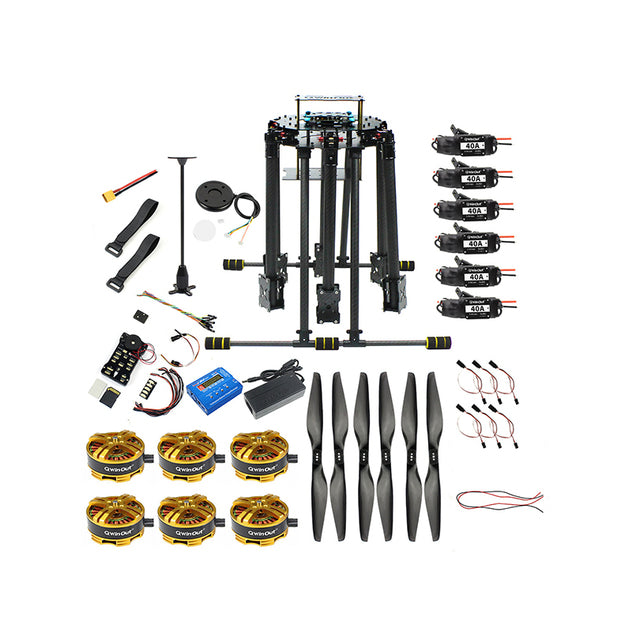

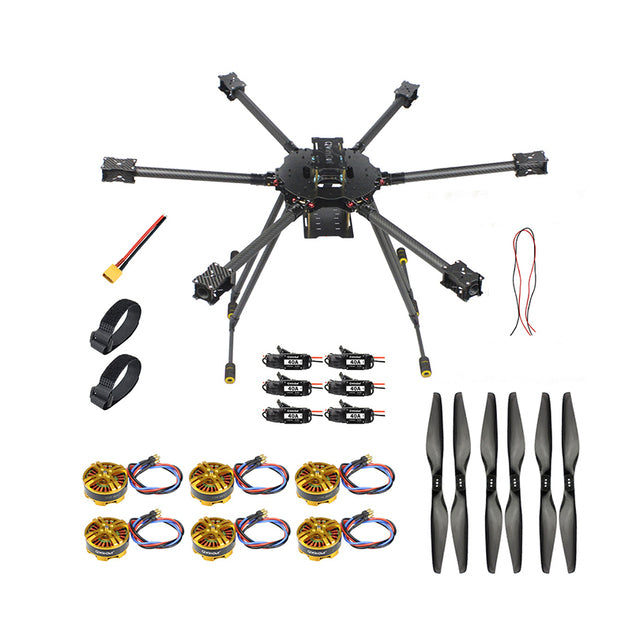

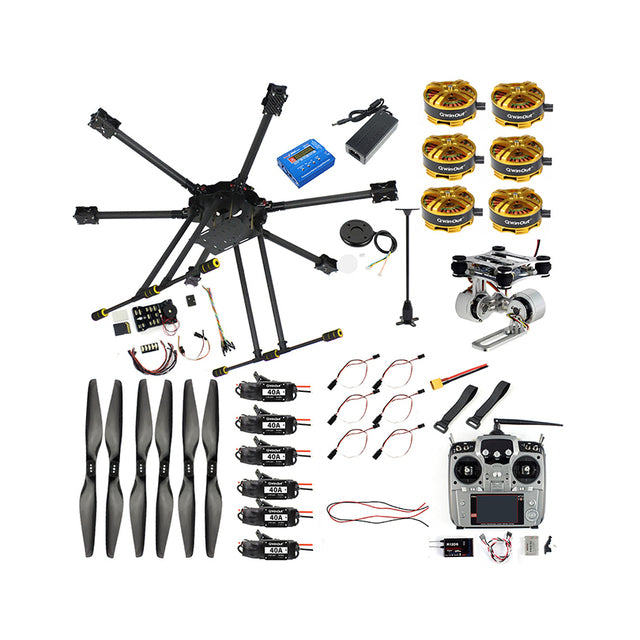

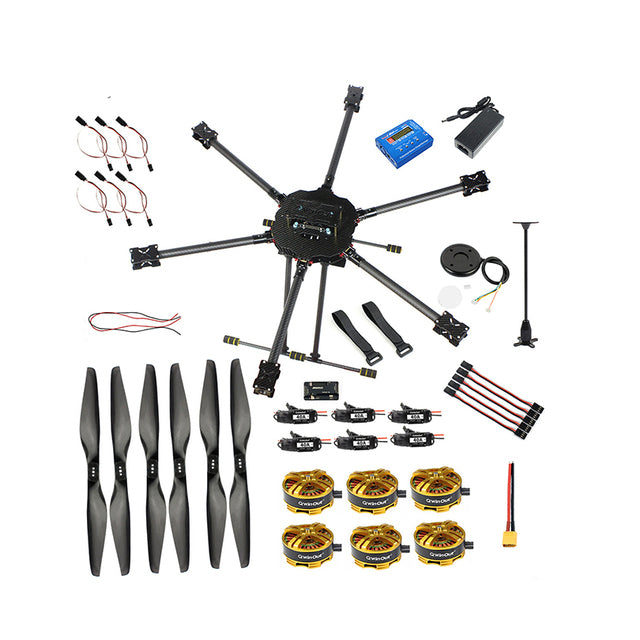

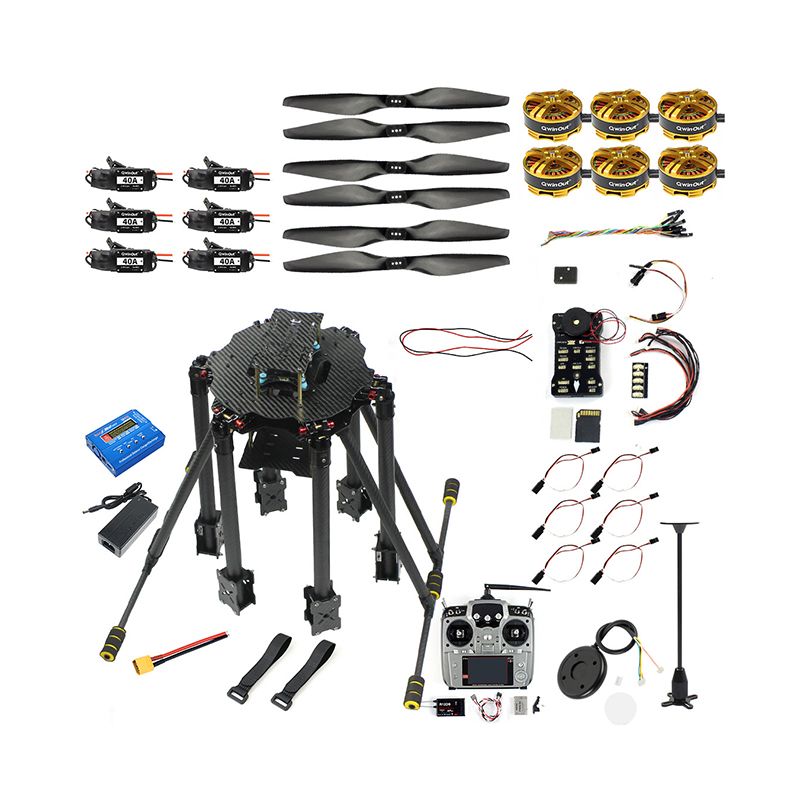

Package including: (Without APM Flight control Version)
1*T850 six-axls UAV aerial carbon fiber frame
6* 4108 380KV 3-6S Brushless Motor
6* 40A ESC
3 Pair *1555 Carbon Fiber Propeller CW CCW
1* XT60 Connector

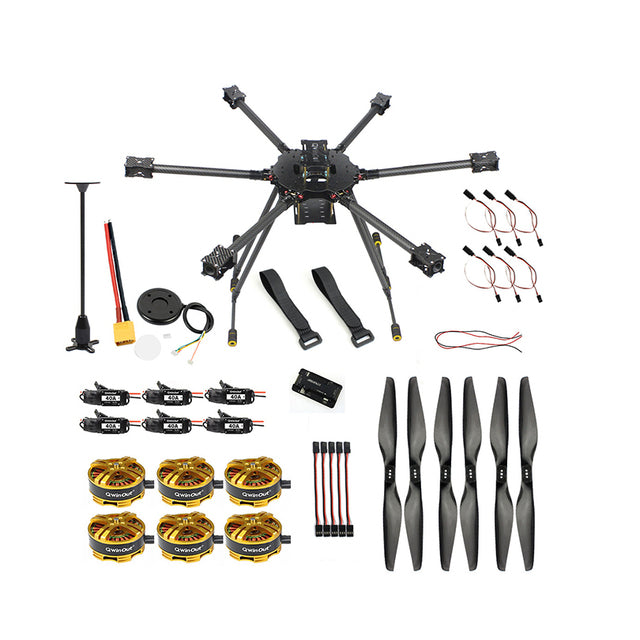

With APM Flight control Version add:
1* APM2.8 Flight control
1* GPS Antenna Mount Holder Metal
1* GPS Module with Compass
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
