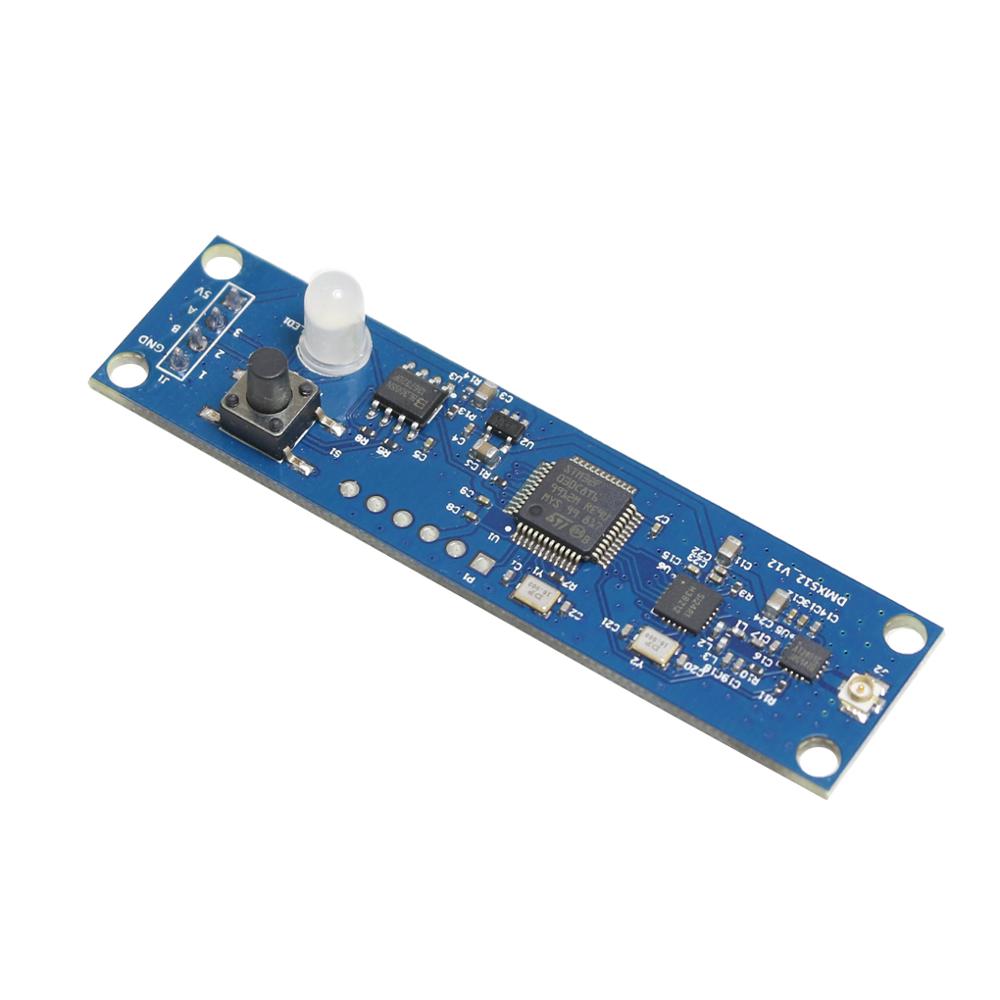

DJ Disco Light DMX Controller Wireless DMX PCB Module DMX512 Transmitter Receiver 2 in 1 Led Par Party Lights Led Stage Lights
Small in size, easy to suit for interior of accessed lighting.
Single key to operate, tricolor LED displaying.
Transmitting standard DMX512 protocol data of controller, also can transmit lighting and lighting DMX512 protocol data.
126 channels automatically jumping frequency, high anti-jamming ability to ensure working reliability.
7 groups ID code settable, user can use 7 groups individual wireless system without any interference with each other in the same place.
Input voltage: 5VDC
Work frequency section: 2.4GHz ISM band, 126 channels frequency section
Max transmitting power rate: 20dBm
Receiver sensitive: -94dBm
Signal port: RS485 or CPU series port AURT.
Operating manual
ID code and LED color corresponding correlation:
1:RED
2:GREEN
3:RED+GREEN = YELLOW
4:BLUE
5:RED+BLUE = PURPLE
6:GREEN+BLUE = CYAN
7:RED+GREEN+BLUE = WHITE
Press key 1 time to indicate ID setting, press again to set ID, then ID value adding 1 each time by press.
Size:

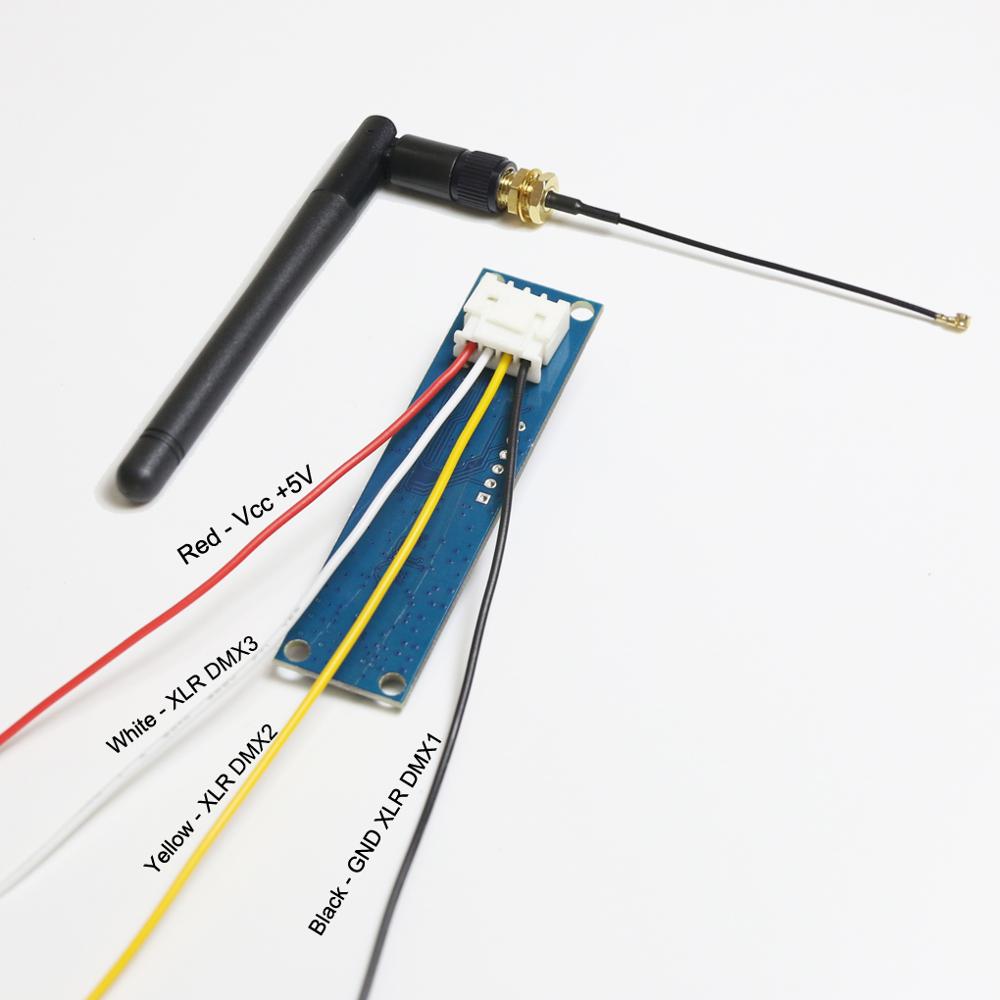

Connection Wire :
RED --- Vcc +5V
BLACK ---Gnd XLR DMX1
YELLOW --- XLR DMX2
WHITE --- XLR DMX3
