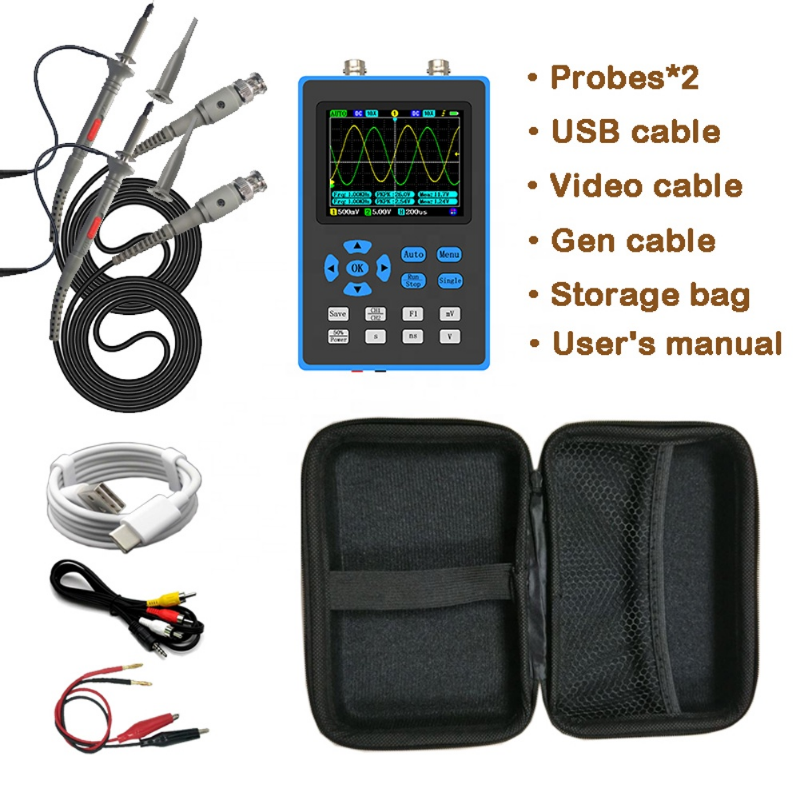

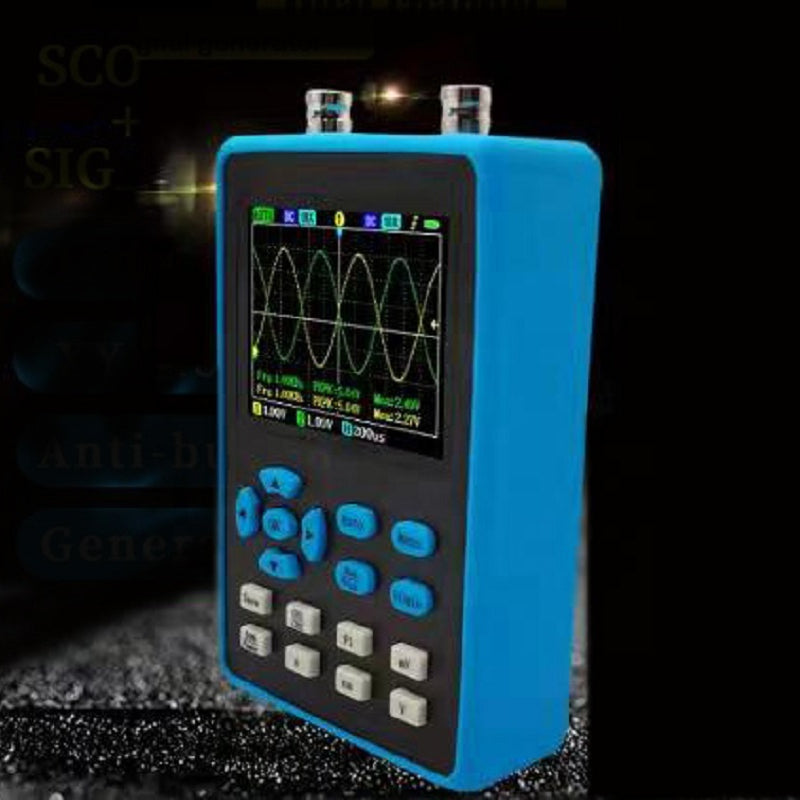

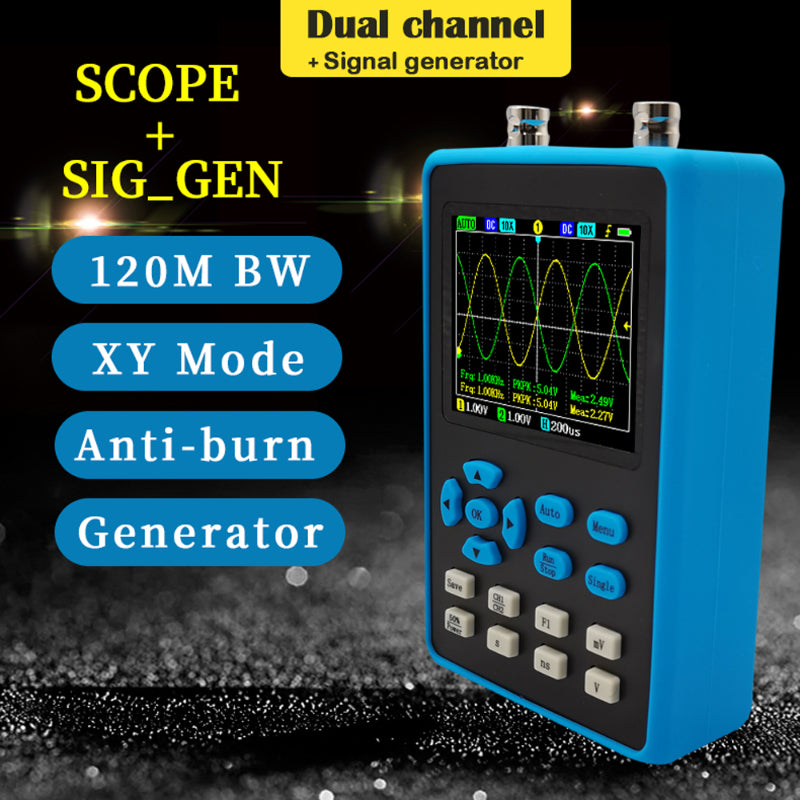

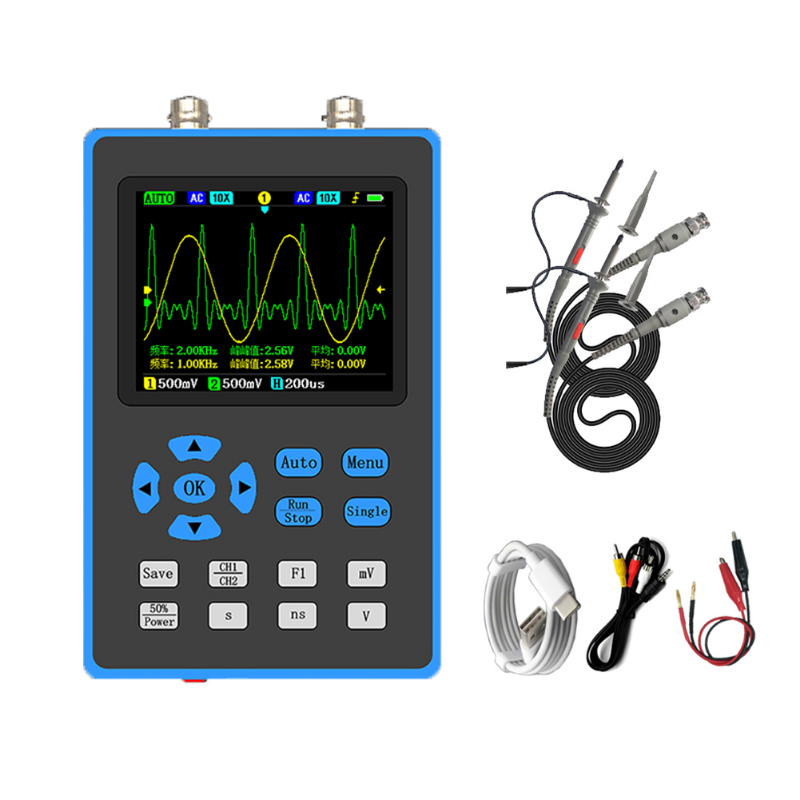

Features: This DSO2512G 120M bandwidth oscilloscope with powerful functions, like adopt ARM and FPGA chip collocation, also can output Various waveforms of 2.5V amplitude such as sine waves, half waves and so on There are three types of trigger mode: auto, normal and sin-gle Through USB cable connection, the waveform map can be exported to the com-puter (up to 50 at a time)? for you re others to use.

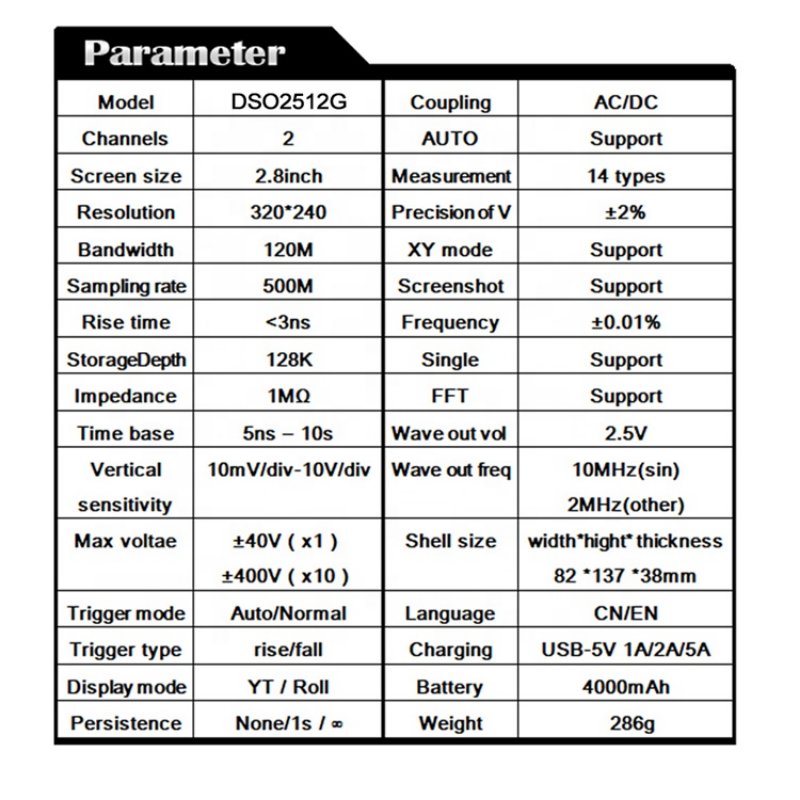

Specifications:
- Channels: 2
- Coupling: AC/DC
- Precision of V: ±2%
- Bandwidth 120M

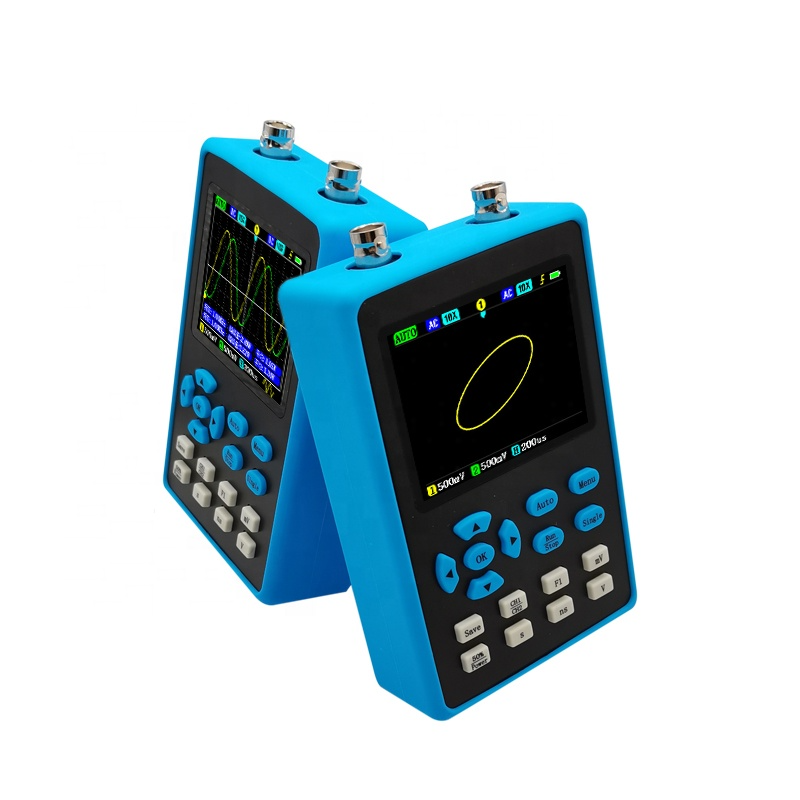

- XY mode: support
- Sampling rate: 500M
- Screenshot: support
- Rise time: <3ns
- Frequency: ±0.01%
- Storage depth: 128Kbit
- Single: support
- Impedance: 1MΩ
- FFT: support
- Time base: 5ns~10s
- Wave out amp: 2.5V
- Vertical sensitivity: 10mV/div~10V/div
- Waves out freq: 10MHz(sin) 2MHz(other)
- Max voltage ±40V (x1), ±400V (x10)
- Trigger type: rise/fall
- Display mode: YT/Roll
- Persistence: None/1s /∞
- Battery: lithium battery, 4000mAh
