![EAK006 K-head dual needle coiled wire air guided earphones [voice controlled VOX]](http://mickcara.myshopify.com/cdn/shop/files/2384e6817ce925f105c3ca48b5ce6c12_1024x1024.jpg?v=1726040853)
![EAK006 K-head dual needle coiled wire air guided earphones [voice controlled VOX]](http://mickcara.myshopify.com/cdn/shop/files/2772777d107b3e69e7678525d02e9b9f_1024x1024.jpg?v=1726040858)
![EAK006 K-head dual needle coiled wire air guided earphones [voice controlled VOX]](http://mickcara.myshopify.com/cdn/shop/files/56ac8c05098521d9c5743f07982cf50f_1024x1024.jpg?v=1726040862)
![EAK006 K-head dual needle coiled wire air guided earphones [voice controlled VOX]](http://mickcara.myshopify.com/cdn/shop/files/0c3b7704f2ef81a127c16b5630c9a099_1024x1024.jpg?v=1726040870)
![EAK006 K-head dual needle coiled wire air guided earphones [voice controlled VOX]](http://mickcara.myshopify.com/cdn/shop/files/491f38a43e9609b48ee98da3ca8aedf2_1024x1024.jpg?v=1726040875)
![EAK006 K-head dual needle coiled wire air guided earphones [voice controlled VOX]](http://mickcara.myshopify.com/cdn/shop/files/2384e6817ce925f105c3ca48b5ce6c12_compact.jpg?v=1726040853)
![EAK006 K-head dual needle coiled wire air guided earphones [voice controlled VOX]](http://mickcara.myshopify.com/cdn/shop/files/2772777d107b3e69e7678525d02e9b9f_compact.jpg?v=1726040858)
![EAK006 K-head dual needle coiled wire air guided earphones [voice controlled VOX]](http://mickcara.myshopify.com/cdn/shop/files/56ac8c05098521d9c5743f07982cf50f_compact.jpg?v=1726040862)
![EAK006 K-head dual needle coiled wire air guided earphones [voice controlled VOX]](http://mickcara.myshopify.com/cdn/shop/files/0c3b7704f2ef81a127c16b5630c9a099_compact.jpg?v=1726040870)
![EAK006 K-head dual needle coiled wire air guided earphones [voice controlled VOX]](http://mickcara.myshopify.com/cdn/shop/files/491f38a43e9609b48ee98da3ca8aedf2_compact.jpg?v=1726040875)
VOX or PTT mode optional switch. In applications that require the release of both hands, the PTT/VOX switch on the earpiece can be easily pushed.

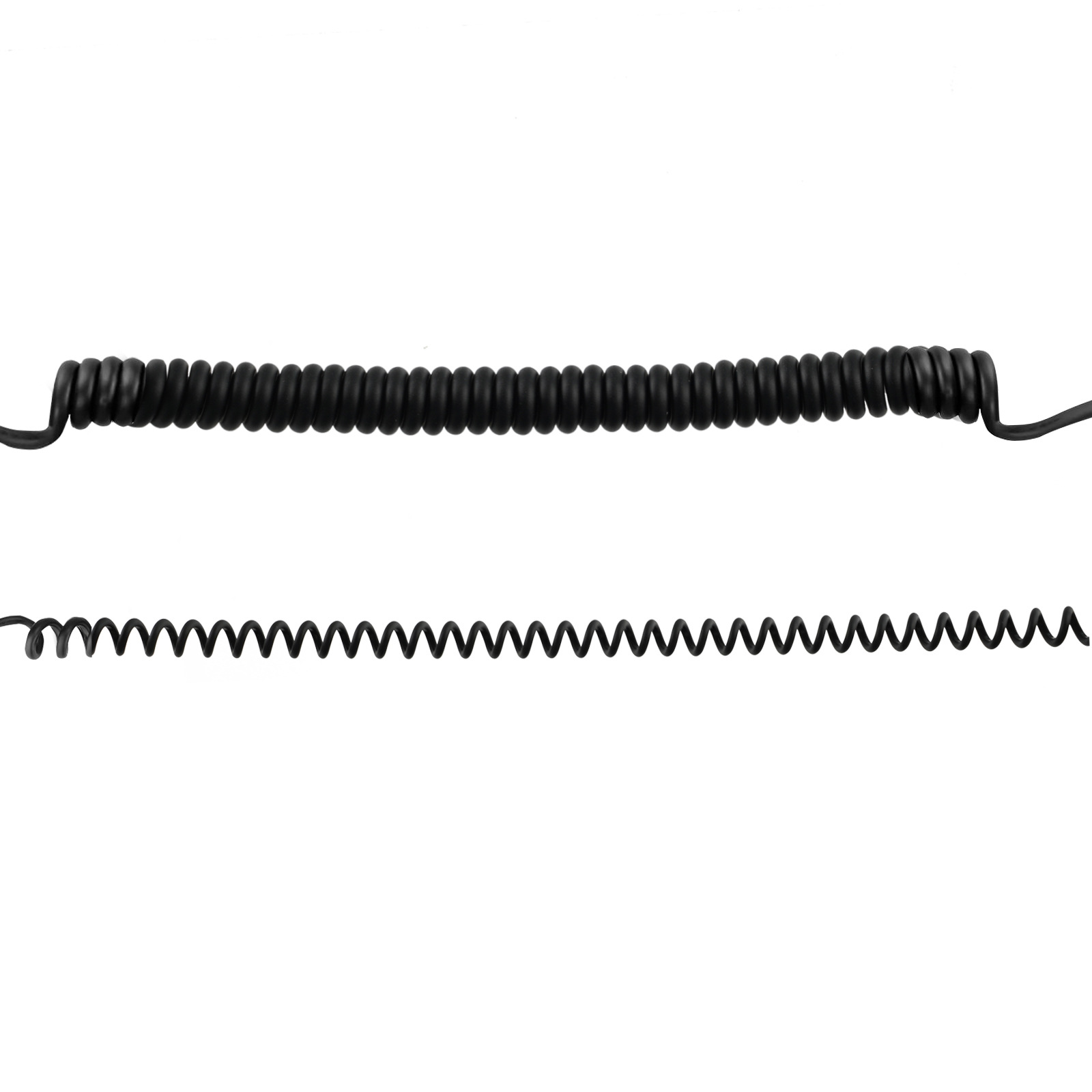

Stretchable winding increases flexibility and movement.

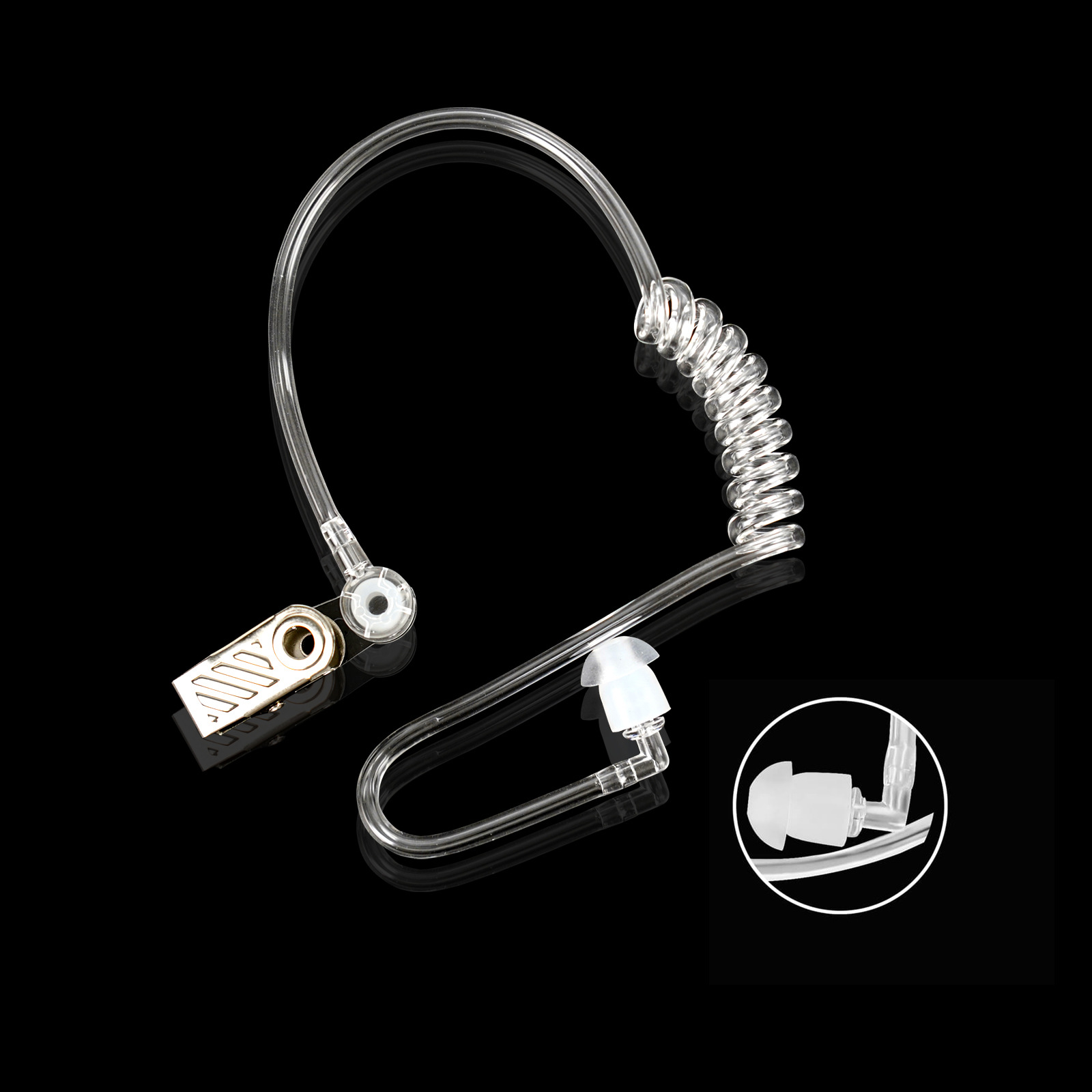

Quickly disconnect the sound tube receiver.
Comfortable mushroom earplugs can be worn on either ear.

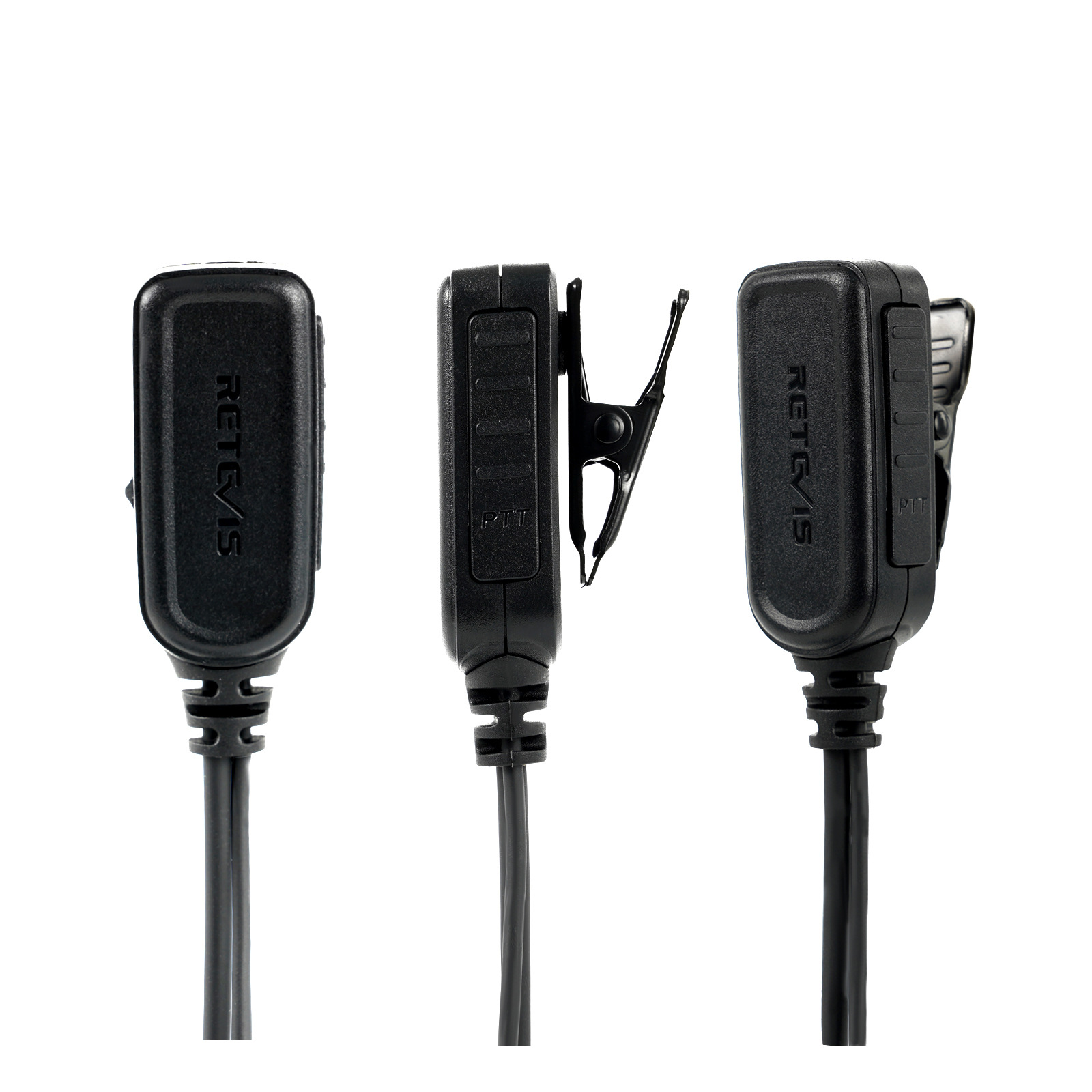

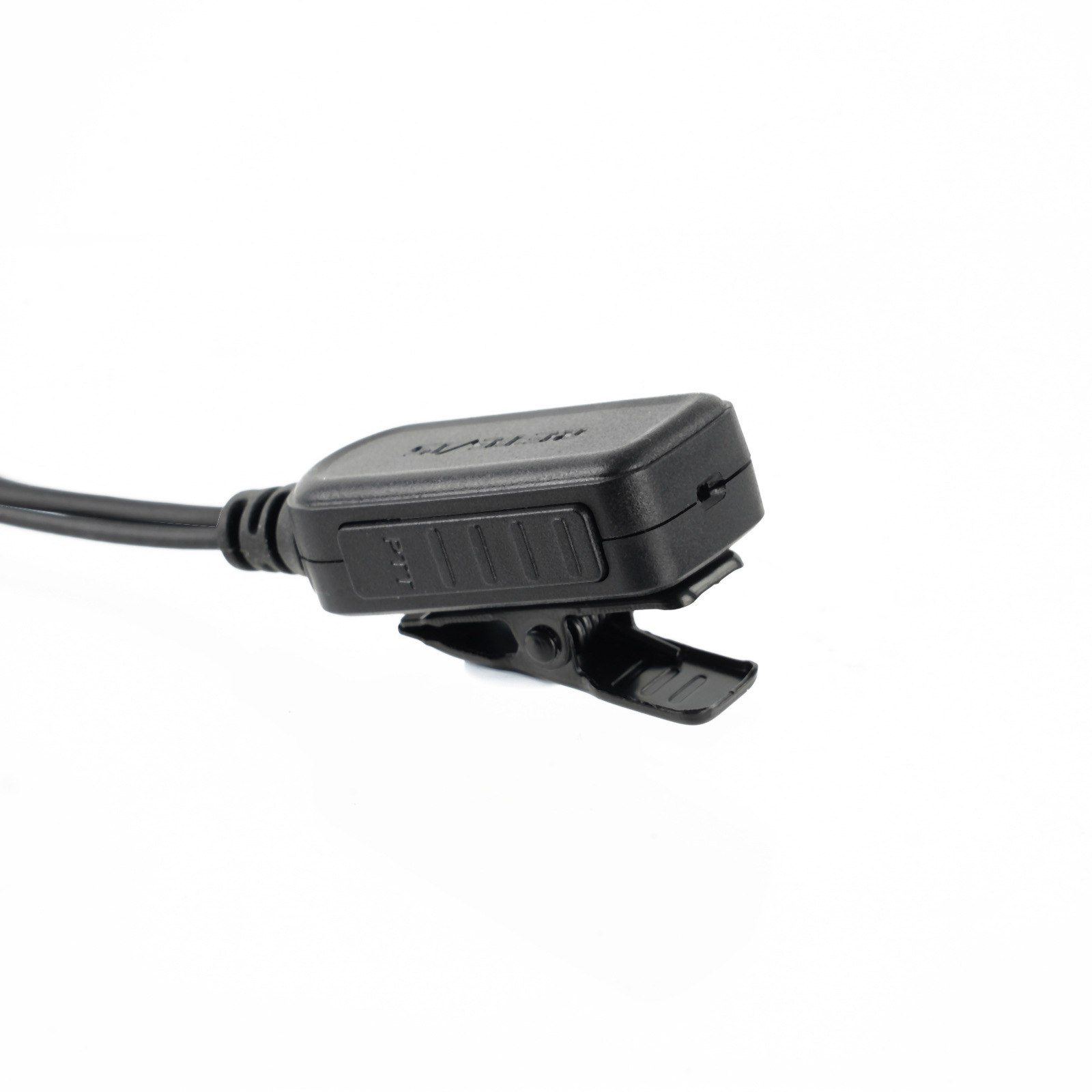

Full size PTT button, can be operated with gloves.
| Microphone section | Speaker section | ||||
| Serial number | specifications | parameter | Serial number | specifications | parameter |
| 1 | Microphone type | Capacitive Electret Microphone | 1 | Speaker type | Speaker |
| 2 | Microphone material | Metal shell | 2 | Drive Unit | Φ13.6mm*6.5 mm |
| 3 | 2.2k ohm | 3 | Horn material | Iron/Internal Magnetism | |
| 4 | microphone sensitivity | -40±3dB at1Khz0Db=1V/Pa | 4 | Horn sound pressure level | 116±3dB at 0.179V/0.1mW/1kHz |
| 5 | working voltage | 1.5-10V DC | 5 | Speaker Impedance | 32Ω±15% at 1 kHz |
| 6 | 6 | Rated power | 2W | ||
| 7 | 7 | 3W | |||
| 8 | 8 | Distortion rate | <5%@1khz | ||
| Other parts | |||||
| Serial number | specifications | parameter | Serial number | specifications | parameter |
| 1 | Size of plug wire and cable | Φ 3.0mm PU 4core straight line 1.0m | 10 | Insulation impedance | ≥100MΩDC500V |
| 2 | Ear hanging wire size | 1.95mm PU 2core winding wire with a diameter of 1.3 meters | 11 | Contact impedance | ≤30MΩ |
| 3 | Wire material | PU | 12 | Bending force | bear3.2kgfThe force without bending |
| 4 | Product size | 39.5*92cm | 13 | Breaking force | bear6.8kgfThe force will not break |
| 5 | Pin type | Jianwu Double Needles | 14 | Pullout force | Insertion and extraction force standard0.3Kg~3Kg, plug and unplug3000second |
| 6 | Shell material | ABS black | 15 | ||
| 7 | working temperature | -15 ℃~55 ℃ | 16 | ||
| 8 | DC pin | Φ 3.5 * 4.5 * 23.5mm dual channel | 17 | ||
| 9 | DC pin | Φ 2.5 * 4.5 * 19.5mm dual channel | 18 | ||
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
