EBC-A20 Battery Capacity Tester 30V 85W Lithium Lead-acid Batteries Test Support PC Software Control 5A Charge 20A Discharge

            EBC-A20

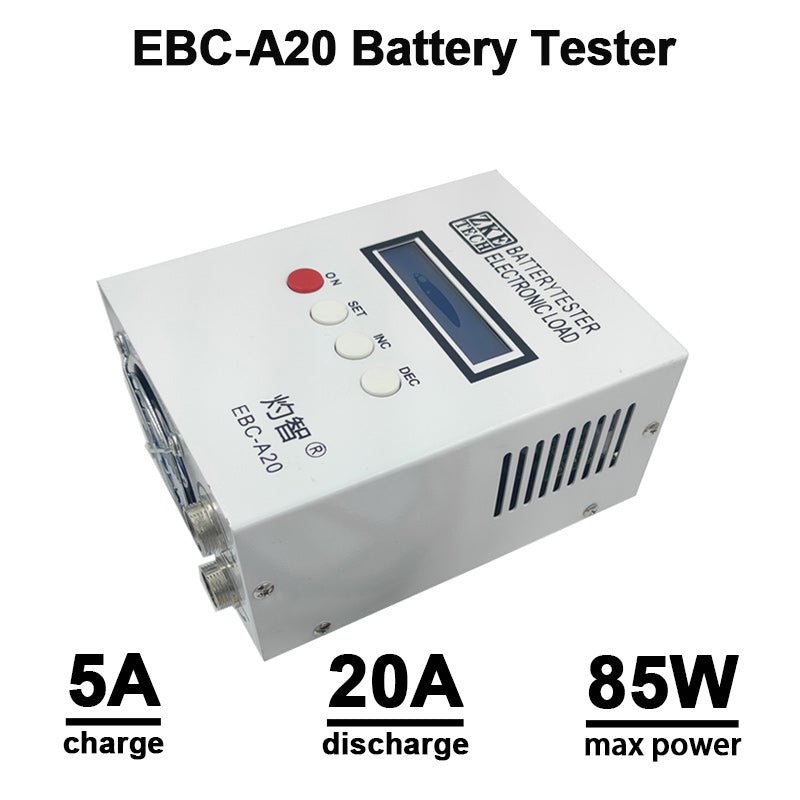

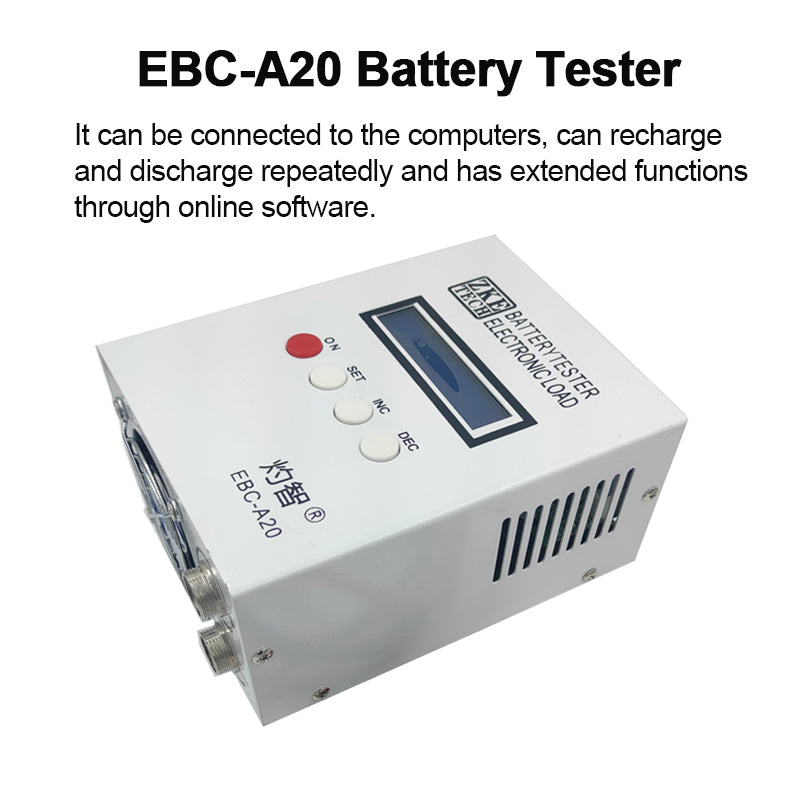

     EBC-A20 is a battery tester with recharge and discharge function, it can be used to test the capacity of lithium battery and leadacid battery (5A recharging, 20A discharge, the maximum power is 85W), support separate recharge and discharge and recharge-discharge-recharge test. It can be connected to the computers, can recharge and discharge repeatedly and has extended functions through online software.

            Features:

     1. Compact size, light weight and portable, wear resistant and can provide long sercive time.

2. Large LCD display, you can see the voltage, current, capacity, time, power, energy and other test data clearly.

3. 5A recharging, 20A discharge, the maximum power is 85W.

4. 3 working modes settable design, you can set DSC-CC, DSC-CP, CHG-C V according to your demands.

5. Multifunctional, it can be used to test the battery capacity, simulate constant power equipment, and test lithium and leadacid battery.

6. Support separate recharge and discharge and recharge-discharge-recharge test.

7. Support c-omputer online control, curve plotting, calibration benchmarking, firmware upgrade, cycle recharge/discharge etc..

8. Two configurations optional, you can choose according to your demands.

            Specifications:

     ●Name: Battery Tester

●Model: EBC-A20

●Material: aluminum alloy

●Configuration: simple configuration, standard configuration EU-Plug, standard configuration US-Plug (optional)

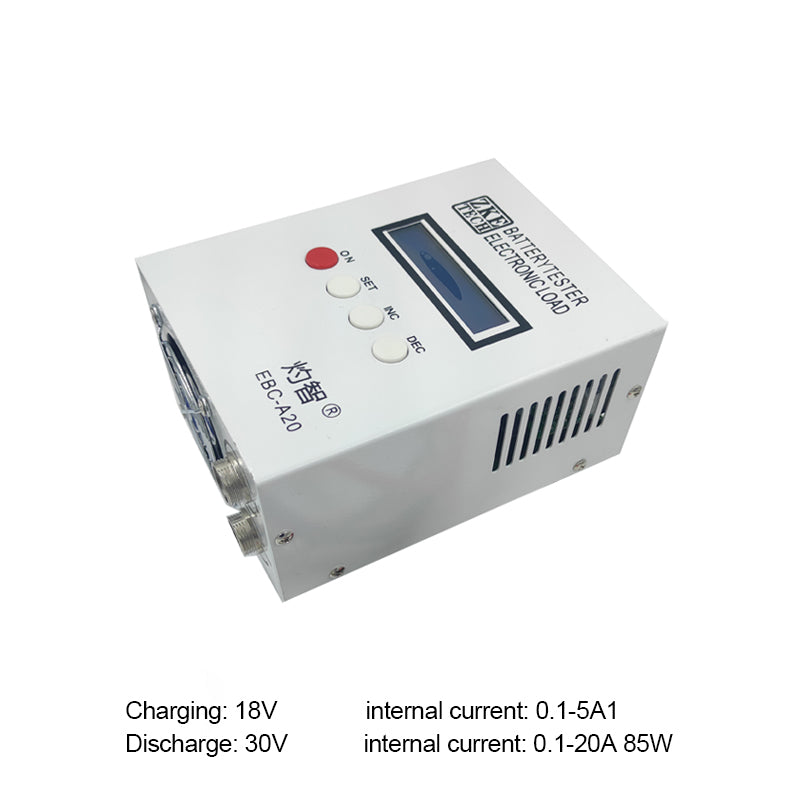

●Voltage setting:

Discharge: 0.00-30.00V, the minimum step 0.01V

Recharge: 0.00-18.00V, the minimum step 0.01V

●Current setting: Discharge: 0.10-20.00A Minimum step 0.01A (automatic limit current when power is overrun)

●Recharge: 0.10-5.00A Minimum step 0.01A (the maximum current is less than the s-upply current when the voltage is above 10V )

●Mode setting:

DSC-CC: discharge current is constant, it can be used to test the battery capacity

DSC-CP discharge power is c onstant, used to simulate constant power equipment

CHG-C V: constant current constant voltage recharging, applicable to test lithium and leadacid battery

●Automatic recharging and discharging: support ''automatic recharging - discharge - recharging mode'', it can be used to test battery capacity

●Voltage test: 0.000-4.500V (low pressure gear) accuracy to 0.003V, error ±0.5%

4.50V-30.00V (high presure gear) accuracy to 0.01V, error ± 0.5%

●Current test: 0.10-20.00A, accuracy to 0.01A, error ± 0.5%

●Capacity test:

10Ah, the resolution is 0.001Ah

10Ah-100Ah, the resolution is 0.01Ah

Above 100Ah, the resolution is 0.1Ah

●Connection: four-wire detection, voltage test and current channel are separate wiring, to ensure measurement accuracy

●LCD display: voltage, current, capacity, time, power, energy and other test data

●C-omputer Online: dedicated USB to TTL serial port (Mini USB port, not an ordinary USB cable) c-omputer control, curve plotting, calibration benchmarking, firmware upgrade, cycle recharge/discharge etc

●Package size: 280 * 240 * 150mm / 11.02 * 9.45 * 5.91in

Package weight:

Simple configuration: 1200g / 2.65lb

Standard configuration: 1800g / 3.97lb

            Packing List:

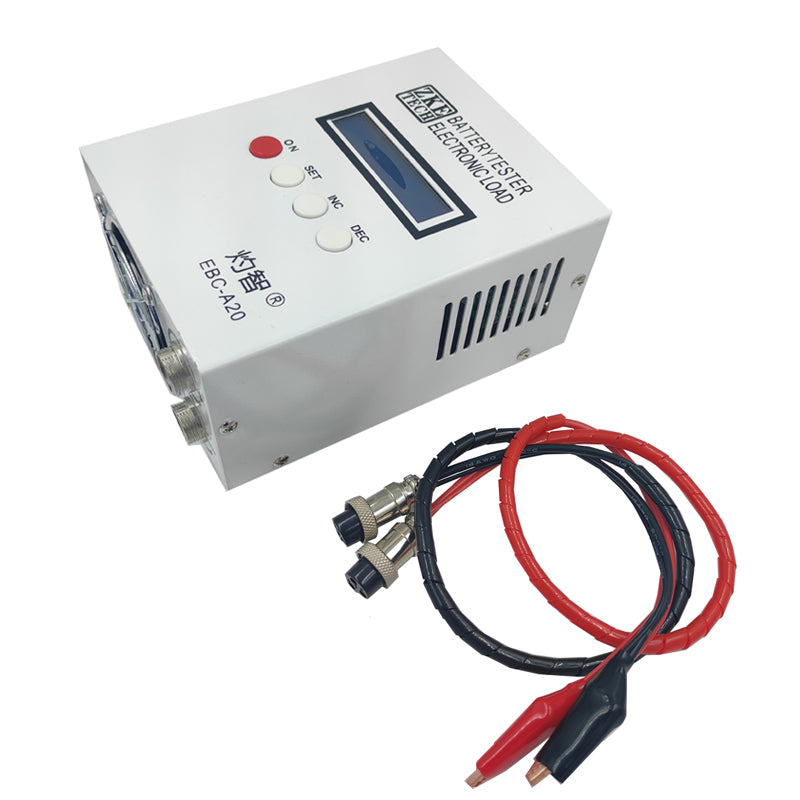

     Simple configuration:

1 * Battery Tester

1 * Test Lines

OR

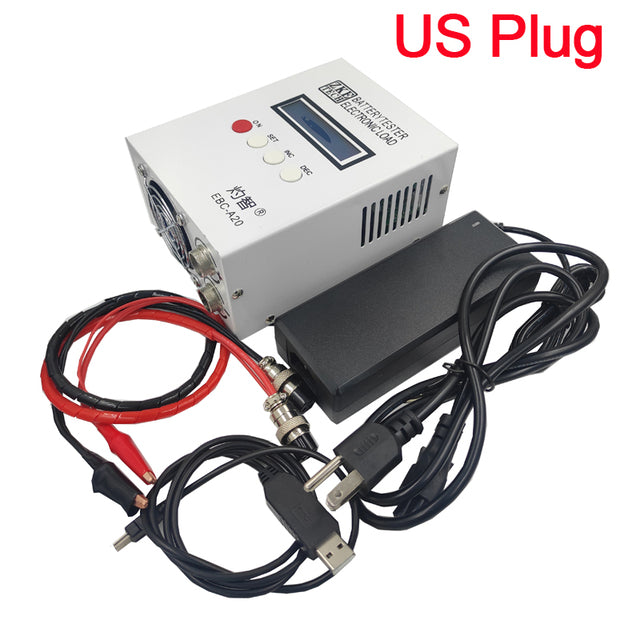

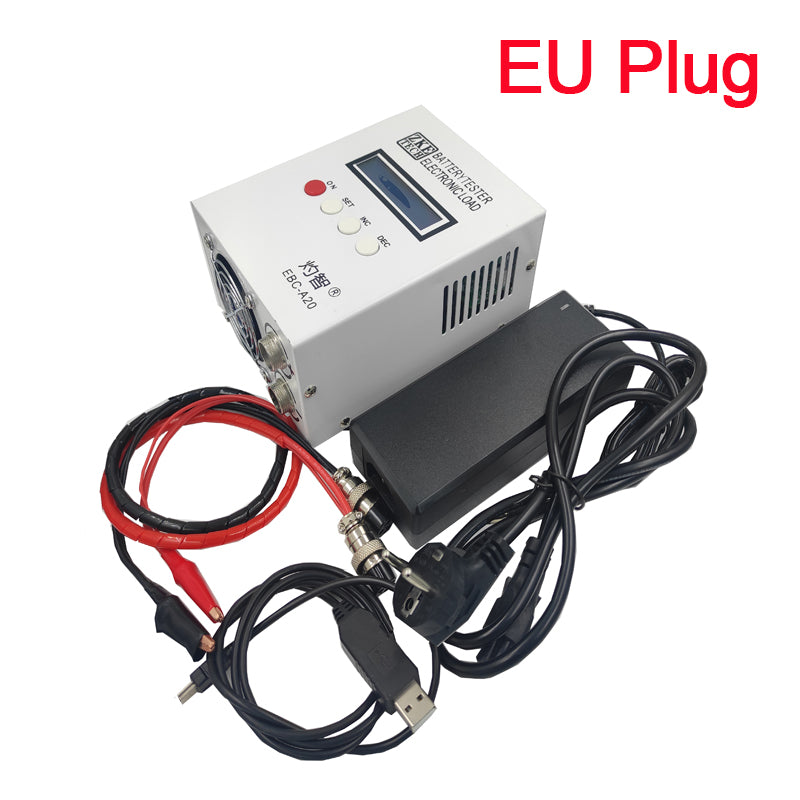

Standard configuration:

1 * Battery Tester

1 * Test Lines

1 * USB to TTL Serial Port Line

1 * 19V 4A Power S-upply

            EBD-A20H

     EBD-A20H is a quality electric load with multiple discharge mode, suitable for all kinds of battery capacity test and powersupply test. Large LCD display, you can see the voltage, current, capacity, time, power, energy and other test data clearly. It can be connected to the computers and has extended functions through online software.

            Features:

     1. Compact size, light weight and portable, wear resistant and can provide long sercive time.

2. Large LCD display, you can see the voltage, current, capacity, time, power, energy and other test data clearly.

3. 20A discharge, the maximum discharge power is 200W.

4. Four-wire detection, voltage test and current channel are separate wiring, to ensure measurement accuracy.

5. 3 working modes settable design, you can set DSC-CC, DSC-CP according to your demands.

6. With multiple discharge mode, suitable for all kinds of battery capacity test and powersupply test.

7. Support c-omputer online control, curve plotting, calibration benchmarking, firmware upgrade, cycle discharge etc.

            Specifications:

     ●Name: Battery Tester

●Model: EBD-A20H

●Material: aluminum alloy

●Configuration: simple configuration

●Voltage setting: Discaharge: 0.00-30.00V, the minimum step 0.01V

●Current setting: Discharge: 0.10-20.00A Minimum step 0.01A (automatic limit current when power is overrun)

●Mode setting: DSC-CC: the discharge current is constant, it can be used to test the battery capacity or powersupply current

●DSC-CP: the discharge power is constant, it can be used to simulate constant power equipment or test the power of powersupply

●Voltage test:

0.000-4.500V (low pressure gear) accuracy to 0.003V, error ±0.5%

4.50V-30.00V (high presure gear) accuracy to 0.01V, error ± 0.5%

●Current test: 0.10-20.00A, accuracy to 0.01A, error ± 0.5%

●Capacity test:

10Ah, the resolution is 0.001Ah

10Ah-100Ah, the resolution is 0.01Ah

Above 100Ah, the resolution is 0.1Ah

●Discharge power: max 200W

●Connection: four-wire detection, voltage test and current channel are separate wiring, to ensure measurement accuracy

●LCD display: voltage, current, capacity, time, power, energy and other test data

●C-omputer Online: dedicated USB to TTL serial port (not an ordinary USB cable) support c-omputer control, curve plotting, calibration benchmarking, firmware upgrade, cycle discharge etc..

●Package size: 380 * 290 * 150mm / 14.96 * 11.42 * 5.91in

●Package weight:1800g / 3.97lb

            Note:

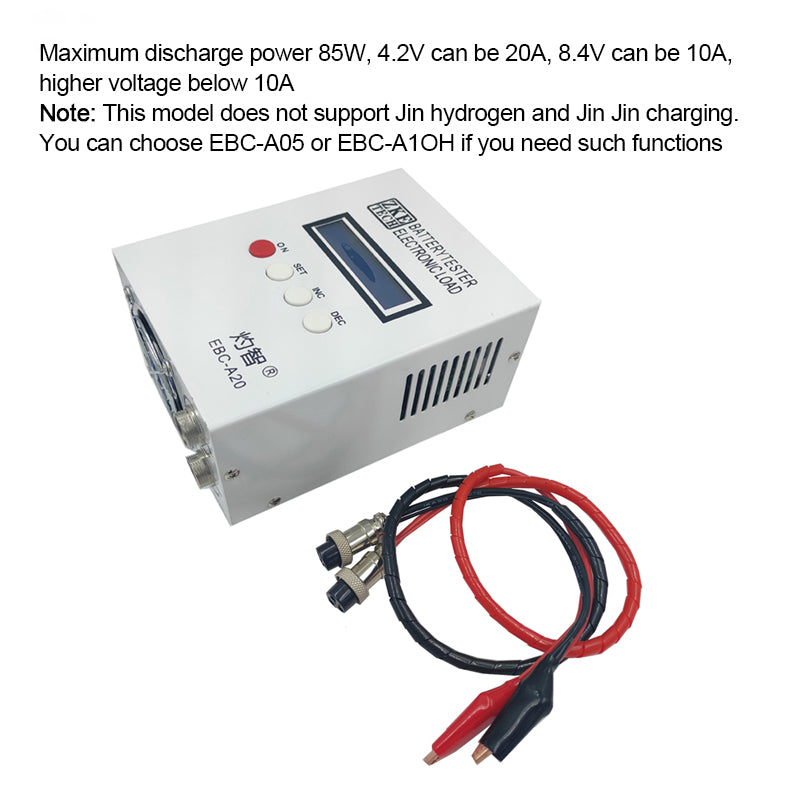

     The discharge current is limited by max power, less than 20A when above 10V, less than 10A when above 20V.If you need charging function, you can choose EBC-A20.

            Packing List:

     1 * Battery Tester

1 * Test Lines
