Key Features:
ØUser-friendly Design:
uIt adopts3.5-inch TFT LCD screen with rich display contents and supports Chinese and English display;
uThe operation process is simple and convenient, and with visual interface display system, it is easy to get started.
uKey lock function to prevent misoperation;
ØHigh-performance load:
uIt provides CC, CV, CR, CP and CC+CV, CR+CV several basic measurement modes;
uIt provides professional battery test;
uIt providesprofessional LED test;
uThe Tran test mode can test the dynamic output performance of the power supply;
uThe scan test mode can test the continuity of power output within a certain range;
uSupport4-wiremeasurement;
uThe list test mode can simulatea variety of loading status changes;
uThe short circuit test can be used to simulate load short circuit;
uSupport external trigger input;
uBuilt-in buzzer alarm;
uMaintain data storage in case of power failure;

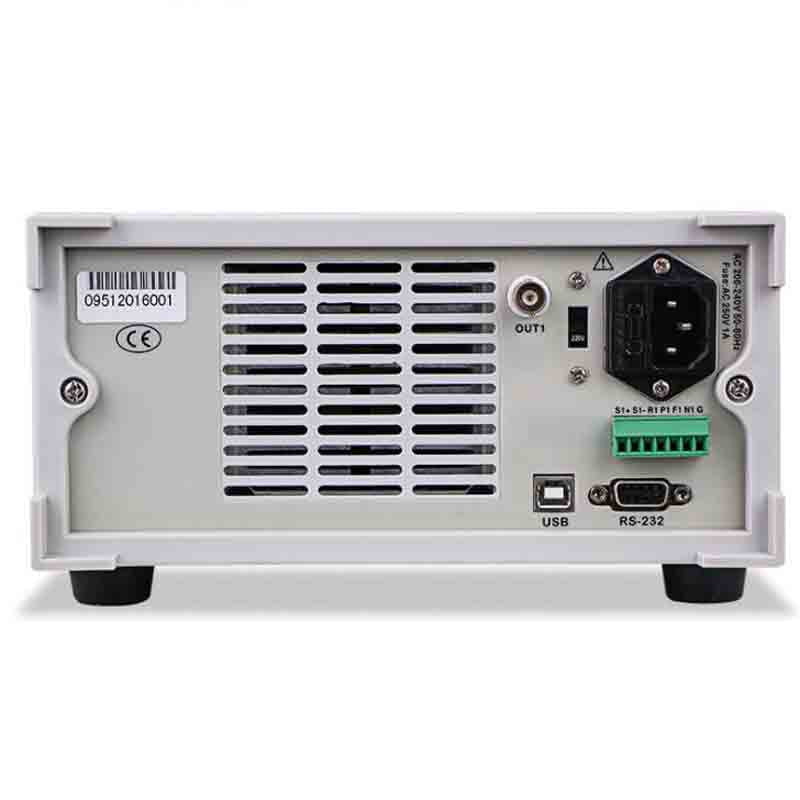

uRemote operation via USB, RS-232or 485 (optional) interfaces;
ØMultiple safety protection:
uIt provides overcurrent, overvoltage, overpower, over temperature protection. The overvoltage and overcurrent parameters can be set flexibly, so as to effectively protect the load;
uIt has intelligent fan speed control function, which can effectively reduce the fan noise when it is working.
uWith input polarity reverse prompt;
General technical specifications:
uPower supply voltage: 220Vac±10%, 110Vac±10%, 45-65Hz
uDisplay:3.5-inch TFT LCD screen with resolution of480×320
uOperating temperature: 0℃ to 40℃
uStorage temperature: -10℃ to 70℃
uRelative humidity: < 80%
uInterface: standard USB, RS232or 485(optional)
uSize:320mm×220mm×100mm (width × height × depth)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
