1.Features:

 Measuring range: 0~360°; 0~200mA/2A/10A; 0~20V/200V/500V

 Clamp mouth: φ7.5mm (φ40mm )

 LCD: 3-1/2 LCD display

 Resolution:1°; 0.1mA; 0.01V

 Double channel, multifunction digital, hand-hold

 11 years of specialized meters

 OEM services available

 ISO,Patent and CE certificate

2.Specifications:

      Technical Specifications

       Function

   Ground resistance test, Loop resistance test

       Power Supply

   6VDC 4 PCS of AA Alkaline batteries(not included package)

       Resistance Range

   0.01-1200Ω

       Resistance Resolution

   0.001Ω

       Highest Resistance Accuracy

   ±1%±0.01Ω

       Current Range

   0.00mA-40.0A

       Current Resolution

   0.05mA

       Highest Current Accuracy

   ±2.5%±1mA

       Data memory

   99 Sets

       Alarm Threshold Setting Range

   Resistance: 1-199Ω

       Alarm Sound and Light

   “Beep-beep-beep” alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold.

       Interference Signal Recognition

       “Beep-beep-beep” tone, NOISE symbol blinking

       Working Temperature and Humidity

   -20c-55c;20%RH-90%RH

       LCD Screen

   4 Digits LCD display, Screen L×W: 47mm×28.5mm

       Clamp Size

   65mm×32mm

       Clamp Opening Extent

   32mm

       Tester Weight

   1160g (With batteries)

       Clamp Dimension

   L×W×T: 285mm×85mm×56mm

       Protection Level

   Dual Insulation

       Structural Feature

   Clamp CT

       Shifting

   Automatic shifting

       External magnetic field

   <40A/m

       External electrical field

   <1V/m

       Single measurement time

   0.5 second

       Resistance measurement frequency

   >1KHz

       Measured current frequency

   50/60Hz Automatic measurement

       Low Battery Indication

   Low battery symbol displays when battery is lower then 5.3V

       Memory Full Indication

   MEM symbol blinks when all 99 sets memory is full

       Over Range Indication

   Out of range indication “OLΩ”, “L0.01” or “OL A”

       Auto Power-off

   5 minutes after Boot up

       Power Consumption

   Max 50mA either in booting up or normally working, Continuously working for 30 hours

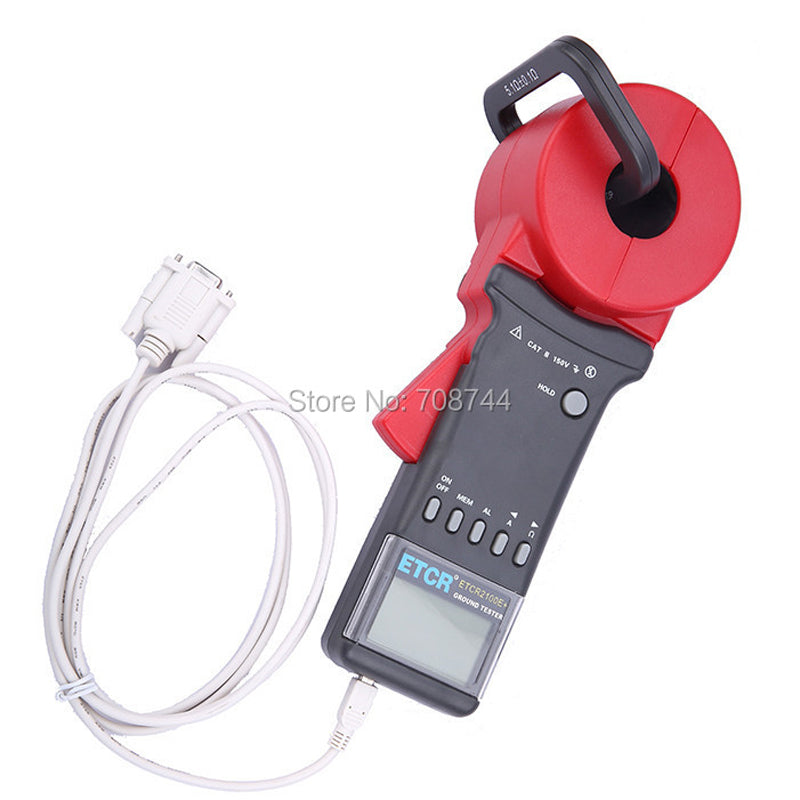

       RS232 Interface (Optional)

   The data stored in the meter are uploaded to the computer through RS232 interface and data wire, Then generate report files

       Safety Provisions

   IEC1010-1  IEC1010-2-032 Pollution level 2  CAT iii(600V)

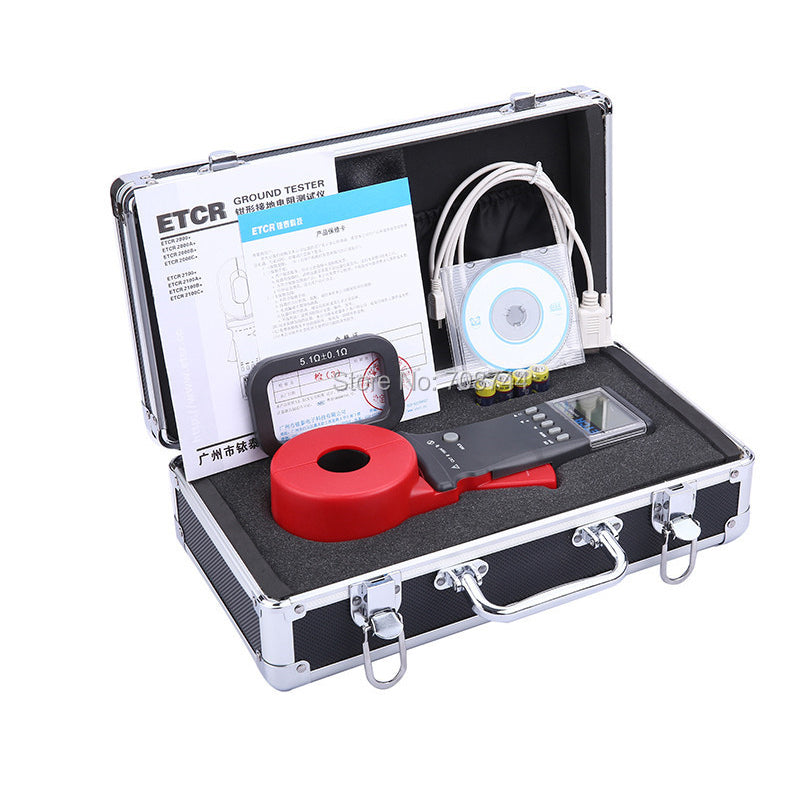

       Accessories

   Meter: 1 piece, Test ring: 1 Piece, Meter Suitcase: 1 Piece

      Ranges and Accuracy of Measurement

       Mode

   Range

   Resolution

   Accuracy

       Resistance

   0.010Ω-0.099Ω

   0.001Ω

   ±(1%+0.01Ω)

       0.10Ω-0.99Ω

   0.01Ω

   ±(1%+0.01Ω)

       1.0Ω-49.9Ω

   0.1Ω

   ±(1%+0.1Ω)

       50.0Ω-99.5Ω

   0.5Ω

   ±(1.5%+0.5Ω)

       100Ω-199Ω

   1Ω

   ±(2%+1Ω)

       200Ω-395Ω

   5Ω

   ±(5%+5Ω)

       400-590Ω

   10Ω

   ±(10%+10Ω)

       600Ω-880Ω

   20Ω

   ±(20%+20Ω)

       900Ω-1200Ω

   30Ω

   ±(25%+30Ω)

       *Current

(True-RMS)

   0.00mA -9.00mA

   0.05mA

   ±(2.5%+2mA)

         10.0mA -99.0mA

   0.1mA

   ±(2.5%+10mA)

       100mA -300mA

   1mA

   ±(2.5%+20mA)

       0.30A-2.99A

   0.01A

   ±(2.5%+0.1A)

       3.0A-9.9A

   0.1A

   ±(2.5%+0.5A)

       10.0A-20.0A

   0.1 A

   ±(2.5%+1 A)
