ETCR3200 Double Clamp Grounding Resistance Tester is specially design for the measurement of earth resistance, soil resistivity, earth voltage, leakage current of grounding line, AC current, DC resistance. Adopting the latest digital technology, precise 4-pole, 3-pole and simple 2-pole method, selection method, double clamp method to measure grounding resistance, for earth resistance measurement; large caliber clamp design, can use to measure the grounding system which adopt large-scale down conductor; can flexibly and precisely measure the value of grounding resistance in every complicated situation like single point grounding, grounding mesh; it is not need to disconnect any parallel connection pole when measuring parallel-grounding, and massively improve the convenience when measuring. Importing FFT and AFC technology, with a unique function of anti-interference capability and the ability to adapt to the environment, consistency of repeat testing, to ensure high precision, high stability and reliability for prolonged measure, which is widely used in electric power, telecommunications, meteorology, oil field, construction, lightning protection, industrial electrical equipment and other earth resistance, soil resistivity, earth voltage, AC voltage measurement.

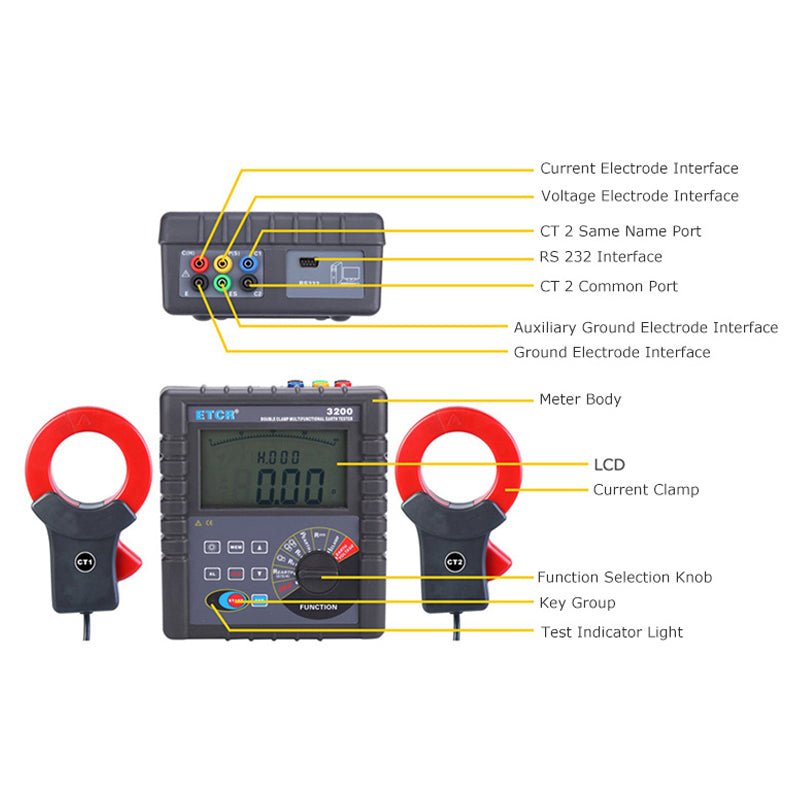

 ETCR3200 Double Clamp Grounding Resistance Tester is composed of host machine, monitoring software, testing wires, auxiliary ground pillars, communication wires and others. The large LCD display of host machine is with blue backlight and bar graph indicating that can be seen clearly. At the same time it can store 2000 sets of data, fulfilling historical inquiry and online real-time monitoring through monitoring software, dynamic display, and alarm indicator, auto-shut down and with the functions like historical data access, reading, preservation, report forms, printing and so on.

 Specifications:

 Base Conditions and Working Conditions

               Influence Quantity

            Base Condition

            Working Conditions

            Remark

                Ambient Temp

            23C±1C

            -10C-40C

            ----

                Ambient Humidity

            40%-60%

            <80%

            ----

                Working Voltage

            9V±0.1V

            9V±1.5V

            rC.rP

                Auxiliary Earth Resistance

            <100Ω

            <30kΩ

            ----

                Interference Voltage

            None

            <20V

            ----

                Interference Current

            none

            <2A

                Electrode Distance when measuring R

            a>5d

            a>5d

            ----

                Electrode Distance when measuring ρ

            a>20h

            a>20h

            ----

               Function

   4-pole, 3-pole and simple 2-pole, selection, double clamp method measure grounding resistance, soil resistivity; Measurement of earth voltage, AC voltage, leakage current of AC current

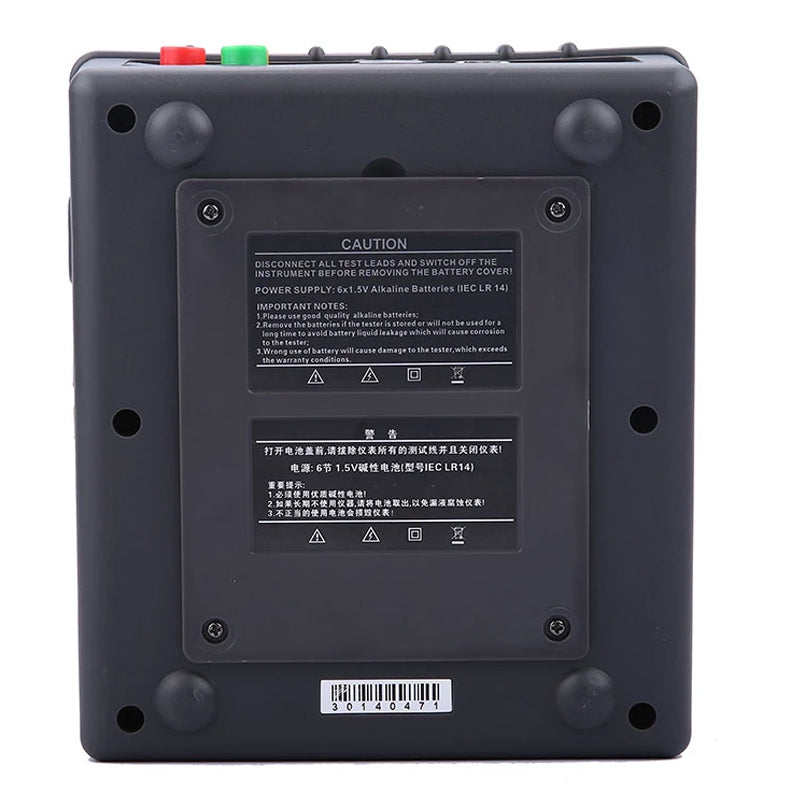

                Power Supply

   DC 9V(Zn-Mn dry battery R14S 1.5V 6 PCS, continuous standby for 300 hours )

                Caliber of clamp

   Φ68mm

                Measurement Range

   Selection method: 0.00Ω-3000Ω

       Double clamp method: 0.00Ω-9000kΩ

       2/3/4 pole method:0.00Ω~30.00kΩ

       Soil resistivity:0.00Ω~9000kΩ

       DC resistance:0.00Ω~30.00kΩ

       Earth voltage:0.0V~100.0V

       AC current:0.00mA~600A

                Measuring Mode

   Precise 4-pole measurement, 3-pole measurement, simple 2-pole measurement, selection method, double clamp method measure grounding resistance

                Measuring Method

            2/3/4 pole method: change-pole method, measurement current 20mA Max

         Selection method: change-pole method, measurement current 20mA Max

         Double clamp method: disconnect mutual inductance method, measurement current 1mA Max

         Soil Resistivity: 4-pole measurement (Wenner method)

         Earth Voltage: average rectification(between P(S)-ES)

         AC current: mutual inductance method

                Test Frequency

   128Hz/111Hz/105Hz/94Hz(AFC)

                Short-circuit Test Current

   AC 20mA max

                Open-circuit Test Current

   AC 40V max

                Test Voltage Wave

   Sine wave

                Electrode Distance Range

   Can be set 1m-100m

                Shift

   automatic shift

                Backlight

   Blue screen backlight, suitable for dim places

                Display Mode

   4-digital super-large LCD display, blue screen backlight

                Measuring Indicator

   During measurement, LED flash indicator, LCD countdown display, progress bar indicator

                LCD Frame Dimension

   128mm×75mm

                LCD Window Dimension

   124mm×67mm

                Dimension

   L×W×H: 215mm×190mm×95mm

                Standard Test Wire

   4 wires: each for red 20m, black 20m, yellow 10m, and green 10m

                Simple Test Wire

   2 wires: each for red 1.6m and black 1.6m

                Auxiliary Earthing Rod

   4 wires: Φ10mm×150mm Over 5000 times (Short-circuit test, interval time should be at least 30 seconds)

                Measuring Rate

   Voltage to ground: about 2 times/second

       Current to ground: about 2 times/second

       Earth resistance, soil resistivity: about 5 seconds/time

                Measuring Times

   Over 5000 times (Short-circuit test, interval time should be at least 30 seconds)

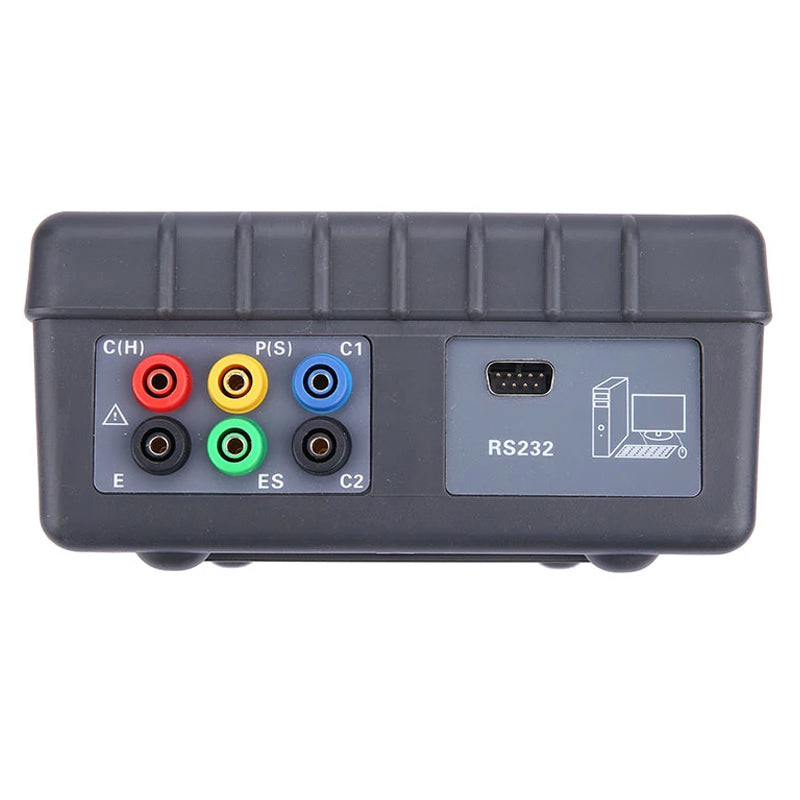

                RS232 Interface

   RS232 interface, software supervision, storage data can be uploaded to computer, saved or printed.

                Communication Wire

   One piece of RS232 communication wire, with length 1.5m

                Data Storage

   2000 sets, “MEM” icon storage indicator, flash display “FULL” icon to indicate storage is full

                Data Hold

   Data hold function: “HOLD” icon display

                Data Read

   Data read function: “READ” icon display

                Overflow Display

   Exceeding measuring range overflow function: “OL” icon display

                Interference Test

   Recognize interference signal automatically, “NOISE” icon display when interference voltage exceed 5V

                Auxiliary Earthing Test

   Can measure auxiliary earth resistance, 0.00KΩ-30kΩ(100R+rC<50kΩ, 100R+rP<50kΩ)

                Alarm Function

   When measuring value exceeds alarm setting value, there is “Toot-toot-toot” alarm hint

                Battery Voltage

   When battery voltage decreases to about 7.5V, battery voltage low icon     will display, reminding to replace battery.

                Auto-shut off

   Automaticlly shut down 15minutes after booting

                Power Consumption

   Standby: about 20mA (Backlight shut off)

       Boot and with backlight: about 45mA (25mA without backlight)

       Measurement: about 100mA (Backlight shut off)

                Weight

   Total weight: 8.0kg (including package)

       Tester: 1653g (including battery)

       Testing wires: 1560g

       Auxiliary earthing rods: 935g (4pcs)

                Working Temperature & Humidity

   -10C-40C, below 80%rh

                Storage temperature & humidity

   -20C-60C, below 70%rh

                Overload Protection

   Measuring earth resistance: between each interfaces of C(H)-E.P(S)-ES,AC 280V/3 seconds

                Insulation Resistance

   Over 20MΩ (between circuit and enclosure it is 500V)

                Withstanding Voltage

   AC 3700V/rms. (Between circuit and enclosure)

                Electromagnetic Features

   IEC61326(EMC)

                Protection Type

   IEC61010-1 (CAT III 300V. CAT IV 150V. Pollution 2), IEC61010-031, IEC61557-1 (Earth resistance), IEC61557-5 (Soil resistivity), JJG 366-2004

      Intrinsic error and performance indicators under base conditions

                           Function

                  Measurement Range

                  Intrinsic Error

                  Resolution

                          2/3/4 pole method measure earth resistance

             (R)

                  0.00Ω-30.00Ω

     ±2%rdg±3dgt

                  0.01Ω

                          30.0Ω-300.0Ω

     ±2%rdg±3dgt

                  0.1Ω

                          300Ω-3000Ω

     ±2%rdg±3dgt

                  1Ω

                          3.00kΩ-30.00kΩ

     ±4%rdg±3dgt

                  10Ω

                          Selection method to measure grounding resistance(R)

                  0.00Ω-30.00Ω

     ±2%rdg±3dgt

                  0.01Ω

                          30.0Ω-300.0Ω

     ±2%rdg±3dgt

                  0.1Ω

                          300Ω-3000Ω

     ±2%rdg±3dgt

                  1Ω

                          Double clamp method to measure grounding resistance(R)

                  0.01Ω-1.00Ω

     ±10%rdg±5dgt

                  0.1Ω

                          1.0Ω-10.0Ω

     ±10%rdg±5dgt

                  0.01Ω

                          10Ω-100Ω

     ±10%rdg±5dgt

                  1Ω

                          Soil Resistivity

             (ρ)

                  0.00Ωm-99.99Ωm

                  According to the precision of R

             (ρ=2πaR

             a:1 m-100m,

             π=3.14)

                  0.01Ωm

                          100.0Ωm-999.9Ωm

                  0.1Ωm

                          1000Ωm-9999Ωm

                  1Ωm

                          10.00kΩm-99.99kΩm

                  10Ωm

                          100.0kΩm-999.9kΩm

                  100Ωm

                          1000kΩm-9000kΩm

                  1kΩm

                          Earth Voltage(50Hz/60Hz)

                  AC 0.0-600V

                  ±2%rdg±3dgt

                  0.1V

                          AC current(50Hz/60Hz)

                  0.0mA-600.0A

                  ±2%rdg±3dgt

                  0.0mA

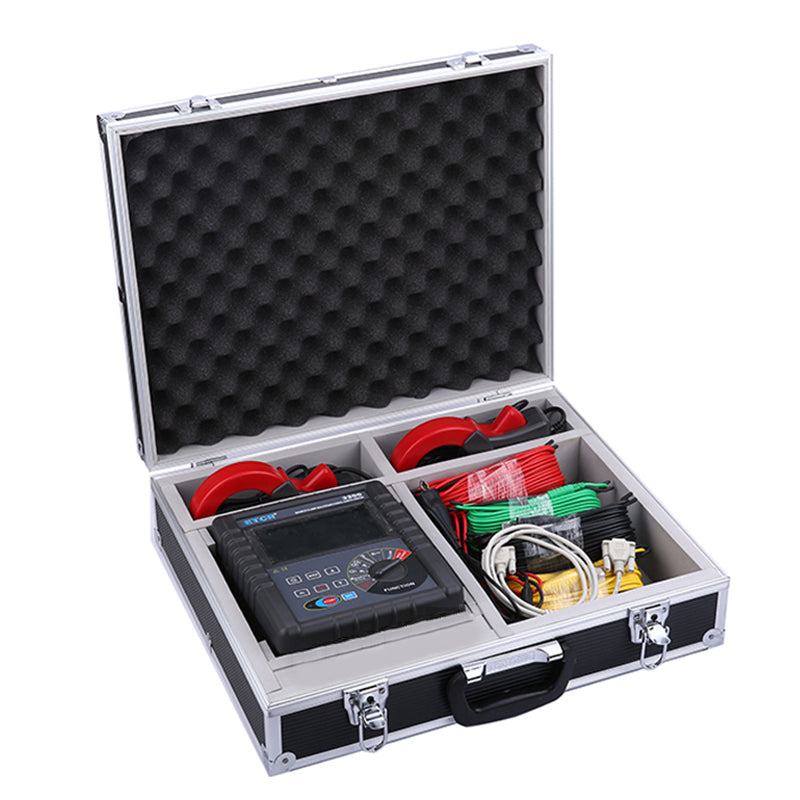

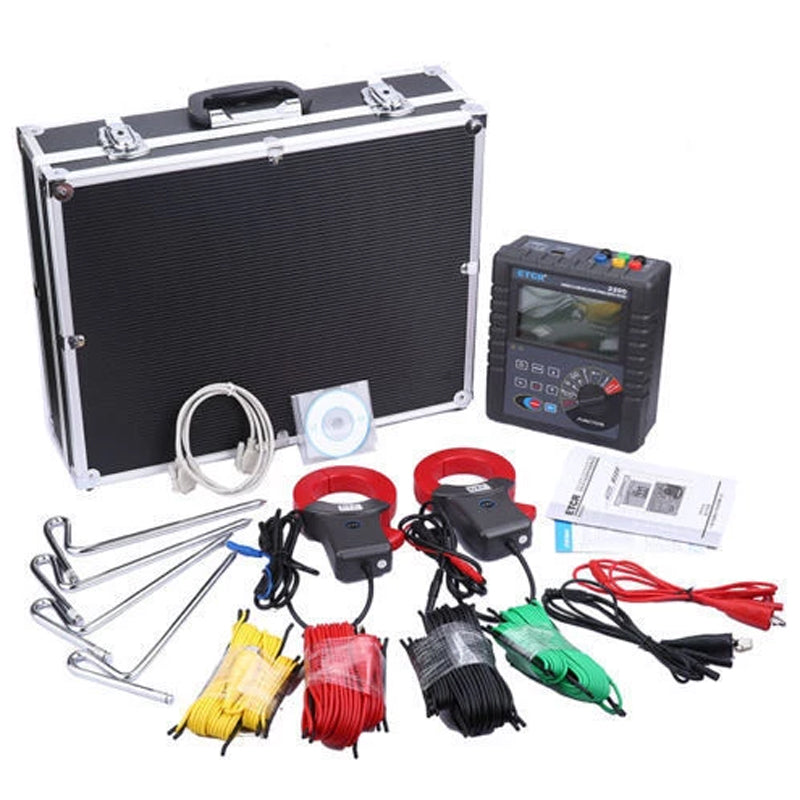

Accessory

      Tester

   1 PC

       Tester Bag

   1 PC

       clamp

   2PC

       Auxiliary Earthing Rod

   4 PCS

       Standard testing Wire

   4 wires: each for red 20m, black 20m, yellow 10m, and green 10m

       Simple testing Wire

   2 wires: each for red 1.6m and black 1.6m

       Zinc-manganese Dry Battery

   6 PCS(R14S 1.5V) (not included package)

       Monitoring Software Disk

   1 Copy

       RS232 Communication Cable

   1 PC

       Manual/Warranty Card/Qualification Certificate

   1 Copy
