1.Features:

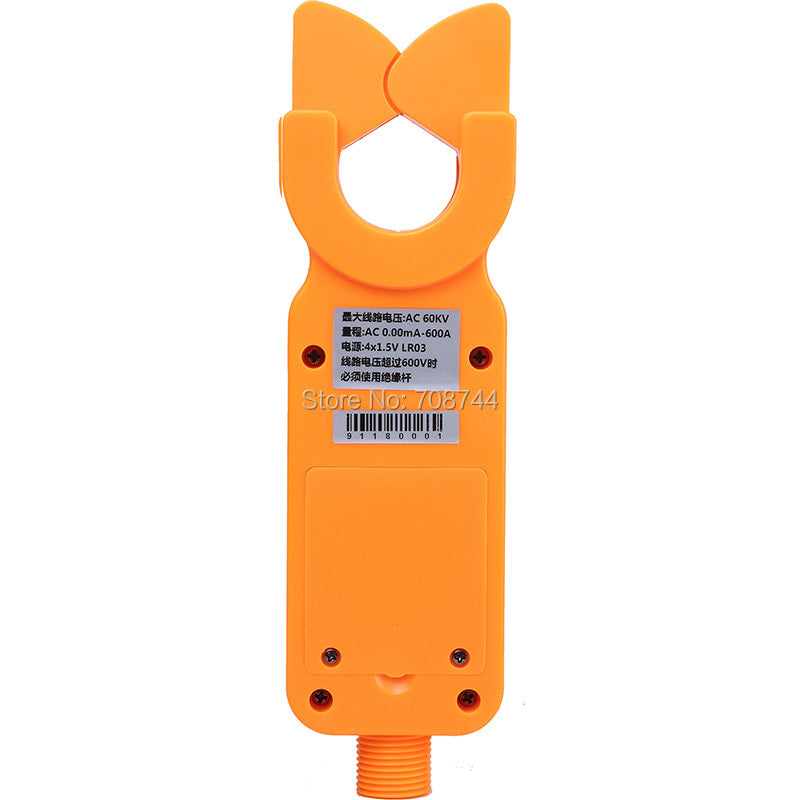

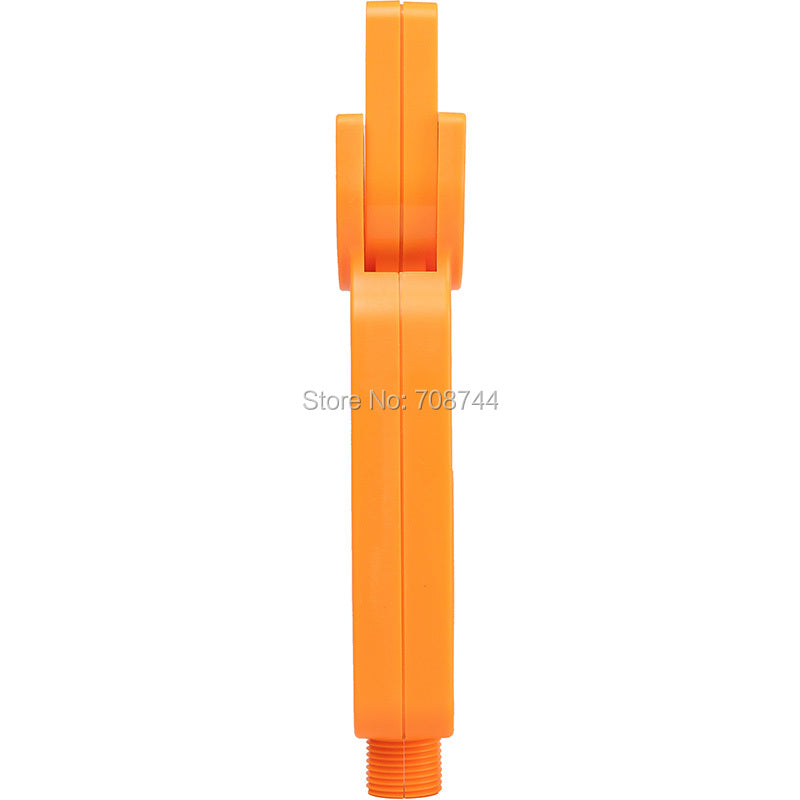

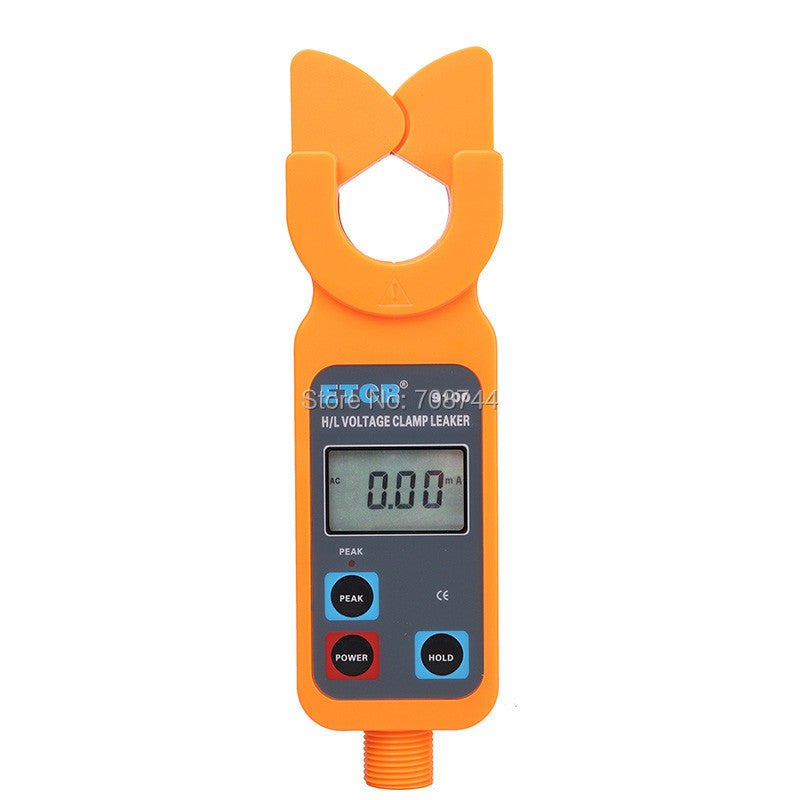

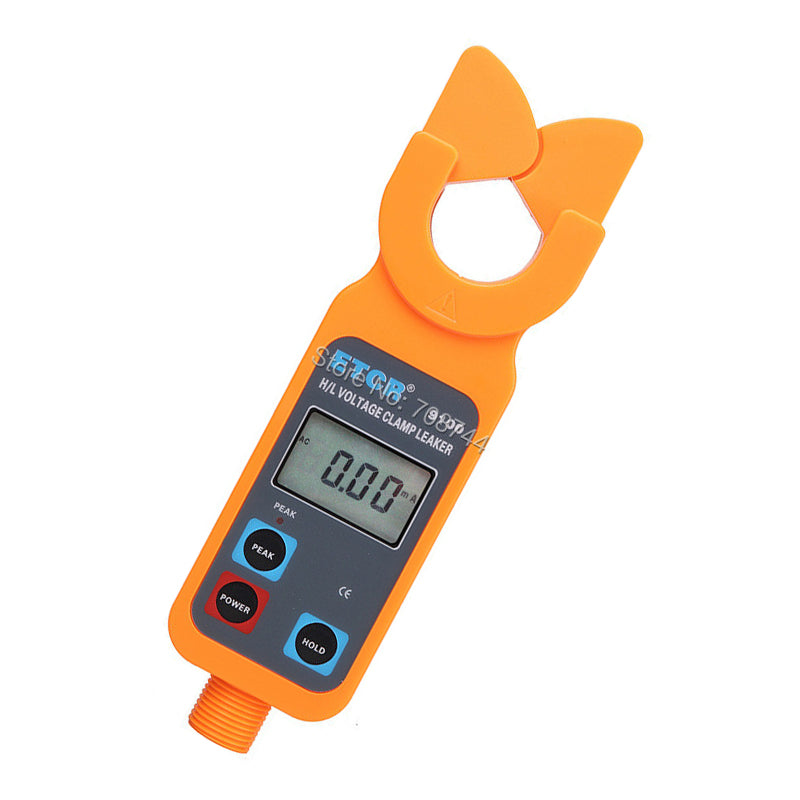

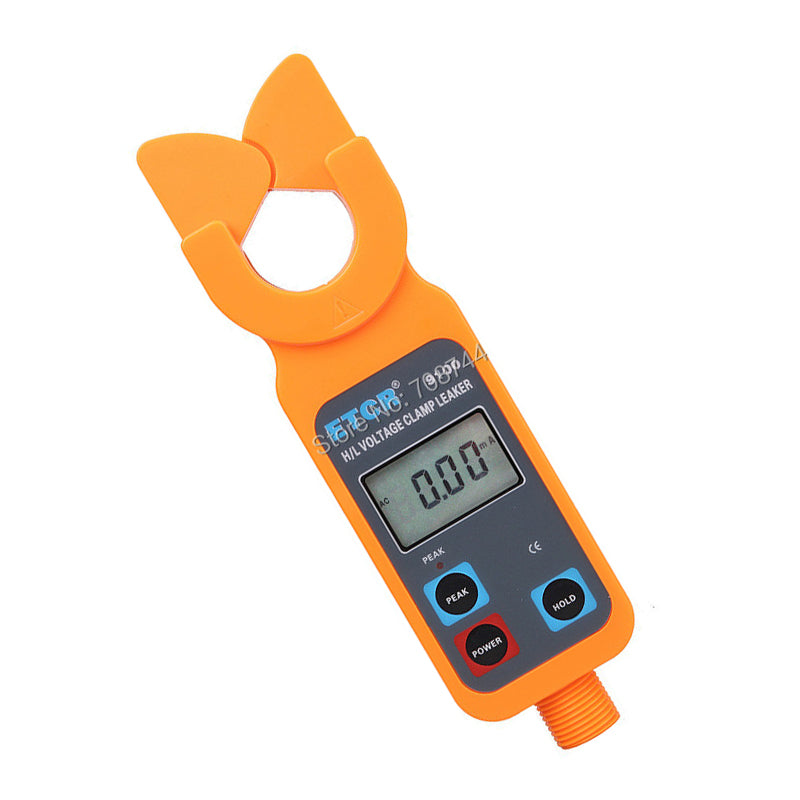

ETCR9100 Series H/L Voltage CLAMP LEAKER has broken through the traditional structure, which is specially well-designed for measuring high voltage current, adopting the latest CT technology and integrated mask digital technology, formed by composition of a special use clamp leaker with a high-voltage insulation rod, as to ETCR9100B type --- wireless transmission of test data, it is equipped with wireless receivers, which can receive measured data within 30 meters line. If not using an insulation rod, it can be also used as a high precision low-voltage clamp leaker, or an alternating current meter, which can accurately measure 0.01mA of current or leakage current.

 ETCR9100 Series H/L Voltage Clamp Leaker has an innovative integrated design between transducer clamp and transducer domain, ensuring the high-precision, high-reliability, and high-stability on constant test perennially.

 ETCR9100 Series H/L Voltage Clamp Leaker is connected with insulation rod, which can be used for measuring high voltage current that is below 69KV, on-line current measurement, also having peak maintenance, data preservation, data storage, wireless transmission and other functions, and its special Clamp Leaker can make it easier for clamping or evacuating the tested wire through pressing or pulling back the insulation rod, time-saving and fast, widely used in transformer substation, power plant, industrial and mining enterprises as well as the inspection station and electrician maintenance departments for electrical current detection and field electrical operations. It can also replace the H/L voltage transforming ratio tester, that is, to detect the high and low current for primary circuit and secondary circuit separately, and then calculate to conclude the change of high and low pressure. The insulation rod is light and convenient, with the advantages of anti-moisture, high temperature resistance, anti-impact, bending resistance, high insulation, flexibility and other characteristics.

 2.Specifications:

      Function

    High voltage AC current measurement, low voltage AC current, current leakage measurement, online AC current measurement

       Power Supply

   DC6V alkaline LR03×4)

       Test Mode

   Clamp CT, integral approach

        Display Mode

   4 bit LCD display, with backlight function

       LCD Dimension

   47mm×28.5mm

       Meter Dimension

   LWH: 68mm×245mm×40mm

       Clamp Dimension

   33mm

       Sampling Rate

   2 times/second

       Measurement Scope

   0.00mA~600A (50/60Hz automatic)

       Resolution

   0.01mA

       Shift

   0.00mA~600A automatic shift

                Accuracy

         (23℃±5℃, below 70%RH)

   0.00mA~100.0A:      ±1%±5dgt

       100.0A~600.0A:      ±2%±5dgt

       Line Voltage

   Below 60KV line test (with 5 insulation rods operation)

       Data Memory

   99 sets, memory process is shown by MEM , full storage is shown by blinking  FULL

       PEAK value maintaining

   Automatically maintain the high test value, in usual testing mode, press key HOLD till the lighting of PEAK, that is, start PEAK to maintain this function.

       Data Hold

   In usual testing mode, press HOLD key to keep data, shown by “HOLD”

       Data Access

    “MR” indication, can access to all data

       Overflow Display

   Over-range overflow function: shown in “OL  A”

       Automatic Shutdown

   15 minutes after boot

       Battery Voltage

   When battery voltage is lower than 4.8V, battery voltage is shown in low symbol to remind battery replacement

       Meter Weight

   Detector: 335g (with battery), the total mass of meter: 2.5kg (including insulation rod and battery)

       Working Temperature and Humidity

   -25℃~40℃; below 80%Rh

       Storage Temperature and Humidity

   -10℃~60℃; below 70%Rh

       Insulation Rod Dimension

   φ32mm, 1m/piece (5pieces)

       Insulation Strength

   AC 100kV/rms (between the 5th insulation rod and high voltage current clamp core)

       Structure

   Anti-drip type Ⅱ

       Safety Provisions

   IEC1010-1, IEC1010-2-032, Pollution Class 2, CAT Ⅲ(600V), IEC61326(EMC standard)

       Accessories

   Clamp Meter : 1 piece; meter box: 1 piece; insulation rod (1m): 5 pieces; battery (alkaline battery AAA): 4 pieces(not included package)
