Overview:
You can use this machine to convert VHS and all composite video to digital files, and save in TF card or USB flash drive. Convert analog audio to digital MP3 file. Play video and audio directly. Ezcap 180 video recorder records video directly, no computer required.

Features:
Convert your old video tapes or camcorder tapes to digital format with one click of REC button, plug and play, no computer required.

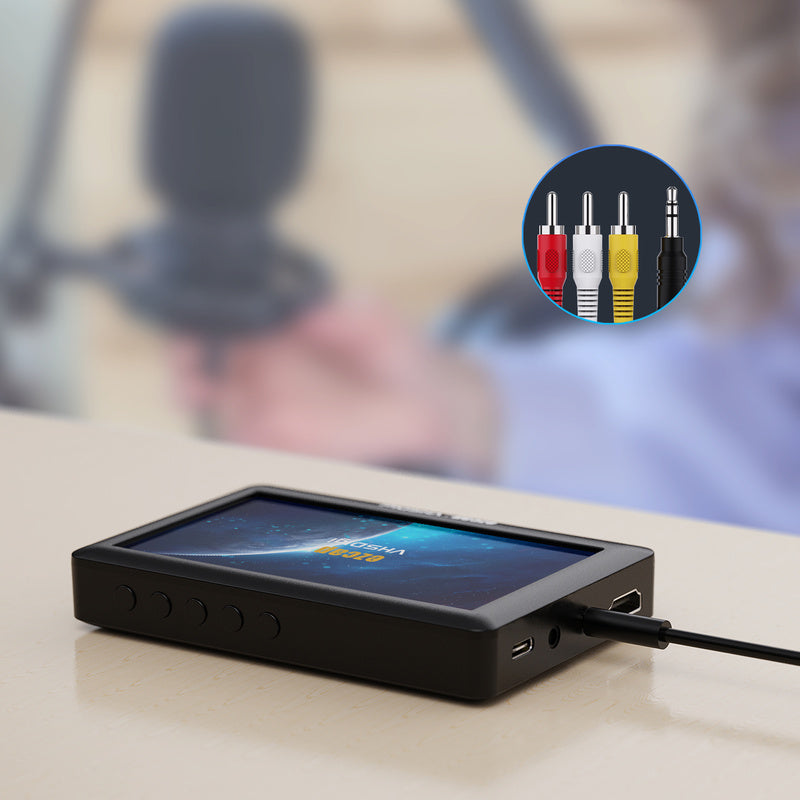

Use the 3RCA video audio cable to connect to the video source, such as VHS, VCR's, DVD players, camcorders, and gaming systems, etc.
Supports HD OUT. The screen of ezcap 180 and TV/monitor will show the video after Power DC, Video In and Out are ready.
The recorded video files can be saved in the TF Card or U Disk which should be empty and formatting before using for file safty.
The included USB C cable is for power or managing recorded files. 3.5mm to 3RCA cable is for AV input. No computer or software required.

Note:
1. It is not recommended to connect TF card and USB flash drive at the same time.
2. TF card and USB flash drive are not included.

Specifications:
Model Number: ezcap180
Interface: USB 2.0
Video Input: Composite video by 3.5mm to 3RCA cable
Audio Input: RCA analog L/R audio by 3.5mm to 3RCA cable
Video Output: HD, 480p60
Audio Output: HD, 3.5mm headphone port, built-in speaker
Video Source: Video Tape, Camcorder Tape, VHS, VCR, DVD Player, DVR, for Hi8, Game Player, etc.
Storage Media: Supports extra TF Card or USB flash drive, Max 32GB, doesn't support NTFS format. (Just support FAT32 and exFAT format.)
Record Format: .mp4 (Video); .mp3 (Audio)
Record Quality: 480p 30fps, PAL:720*576, NTSC: 720*480
Record File: About 4.2MB/Minute, 250MB/Hour (Video); About 1.2MB/Minute
Play Format: (Video) avi, mov, mkv, webm, mp4, m4v, flv, 3gp, 3g2, 3gpp, dat, vob, evo, mpg, asf, trp, ts, m2ts, mts. (Audio) mp3, ogg, ape, flac, wav, amr, aiff, mpc.
Battery Capacity: 1500mAh
Using Time: about 2 hours
Charging Time: about 2.5 hours
Power Supply: 5V 2A
Color: Black
Main Item Size: 11.5*7.8*1.8cm/4.52*3.07*0.70in
Main Item Weight: 135g/4.76oz
Package Size: 12.9*12.8*5.7cm/5.07*5.04*2.24in
Package Weight: 331g/11.67oz

Package List:
1 * AV Recorder
1 * Type-C Cable
1 * 3.5mm to 3RCA Cable
1 * User Manual (English/Chinese)
