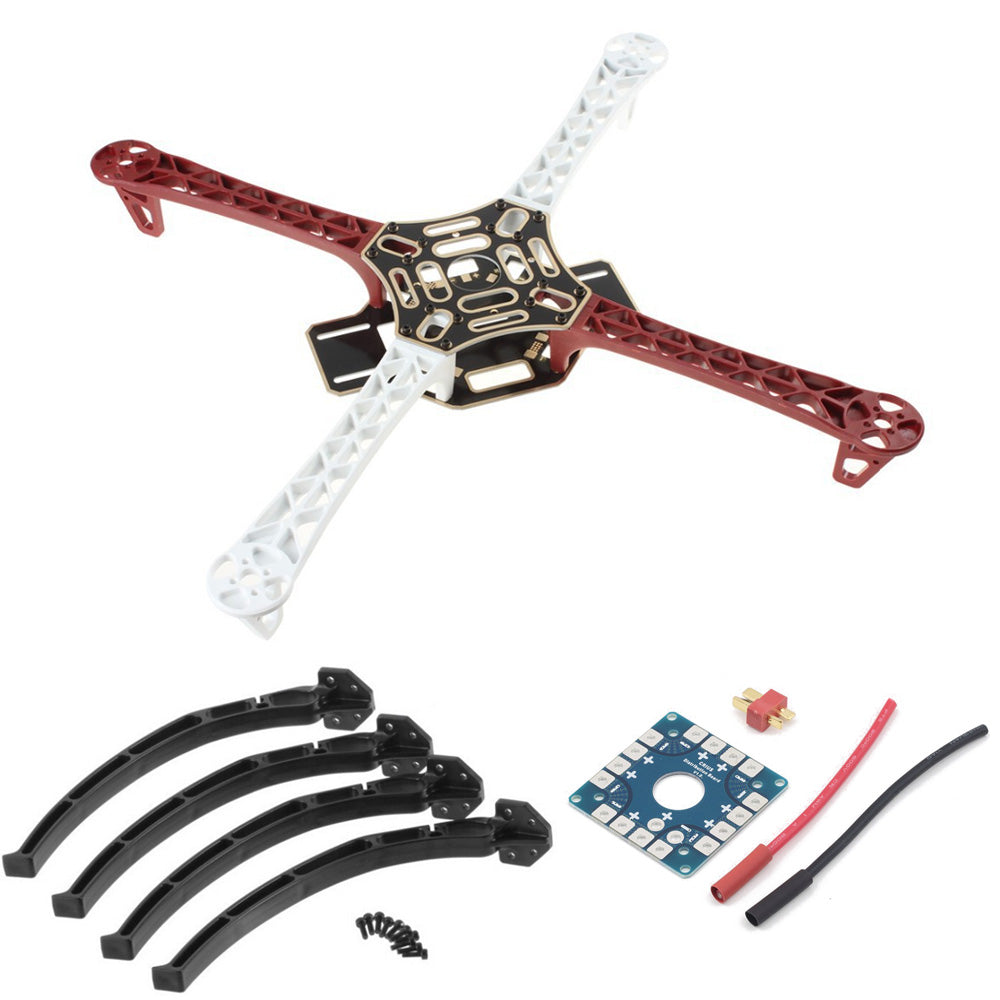

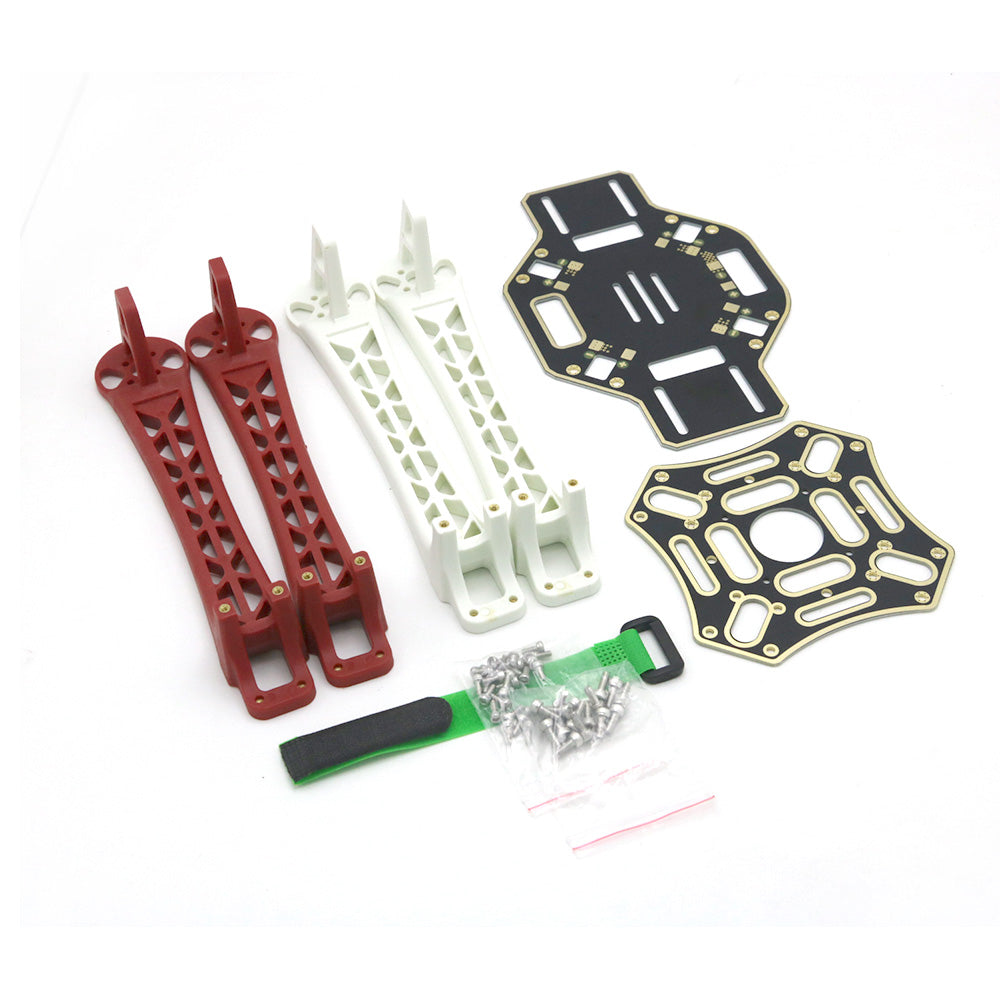

F450 PCB Frame Kit For  Quadcopter

Wheelbase: 17.7in/450mm

Made by advanced engineering material,super strong & smooth

Kit(need you assemble yourself)

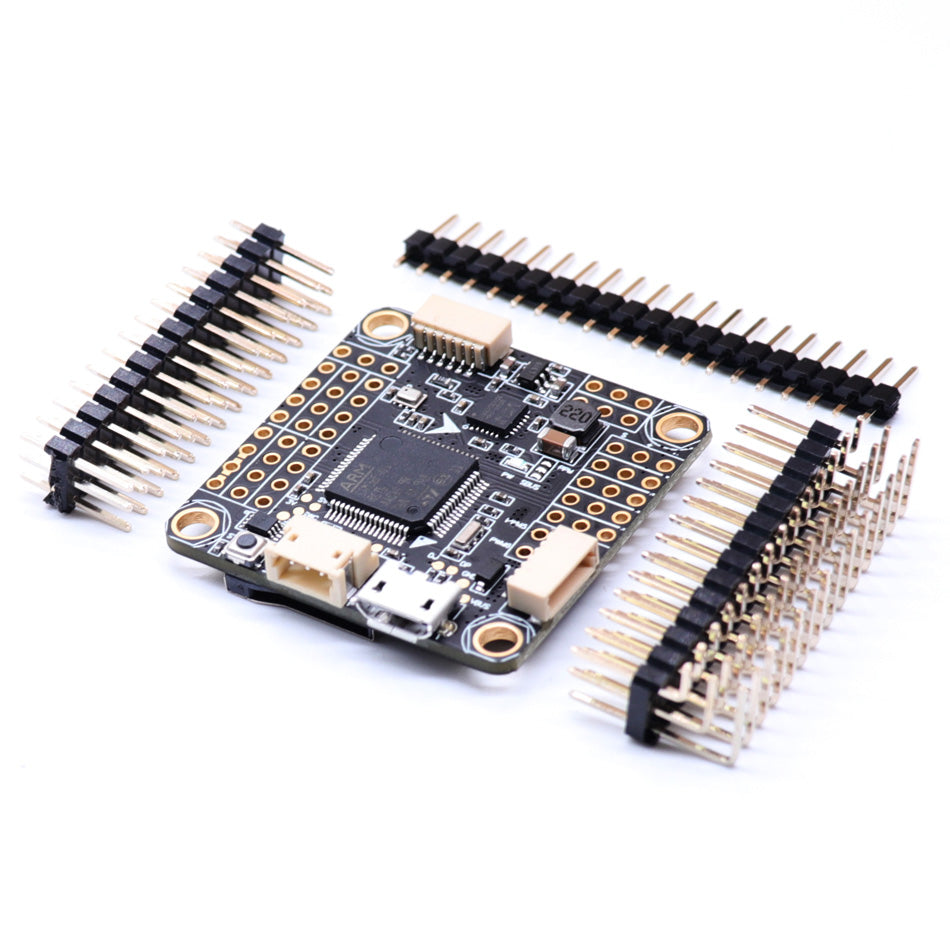

F4V3S flight controller Item Specifics:

Product Name: F4 Flight Controller Board

Material: Electronic component

Standard Board Size: about 36x36mm

Standard Size of Mount Hole: 30.5x30.5mm

Features:

-STM32 F405 MCU

-Dshot support

-Drag and Drop OSD configured via Betaflight Configurator

-Smartaudio v2 support  Tune your PID's and configure the omnibus F C from your Transmitter

-MPU6000 6 axis SPI Gyro & Accelerometer

-SBUS/PPM AND Spketrum dsm-x Ports

-SD card blackbox

-Baro(BMP280)

-5V 3A SBEC

-On-board Video Filter(only can supply 5V to VTX and Camera)

-SmartAudio V2 via tx6 on J10

-4×3 pin ESC pin layout

-IR pins for lap timing transponder

Sensors and Components

3-axis Gupports several common RC inputs: 6 PWM channels, combined PPM, for spektrum/JR DSM2,

Supports several common RC inputs: 6 PWM channels, combined PPM, for spektrum/JR DSM2, DSMJ, for satellites, and Futaba S.Bus receivers.

Simultaneous support for multiple receivers.

ReceiverPort functions (configurable): 6 PWM input channels or combined PPM stream, 4 PWM output channels

MainPort functions (configurable): serial telemetry (default), GPS, S.Bus, for spektrum/JR satellites

FlexiPort (configurable): serial telemetry, GPS, for spektrum/JR satellites, or I2C peripherals (under development)

10 PWM outputs to servos or ESC's, or for camera stabilization

Camera stabilization: supports up to 3-axis camera mounts with stabilization and manual control from any of configured receivers.

Onboard USB connectivity for easy configuration.

USB and serial telemetry and configuration

Supported by powerful OpenPilot GCS

4 Mbit onboard memory

3C Quaternion based complementary filter running at 500Hz

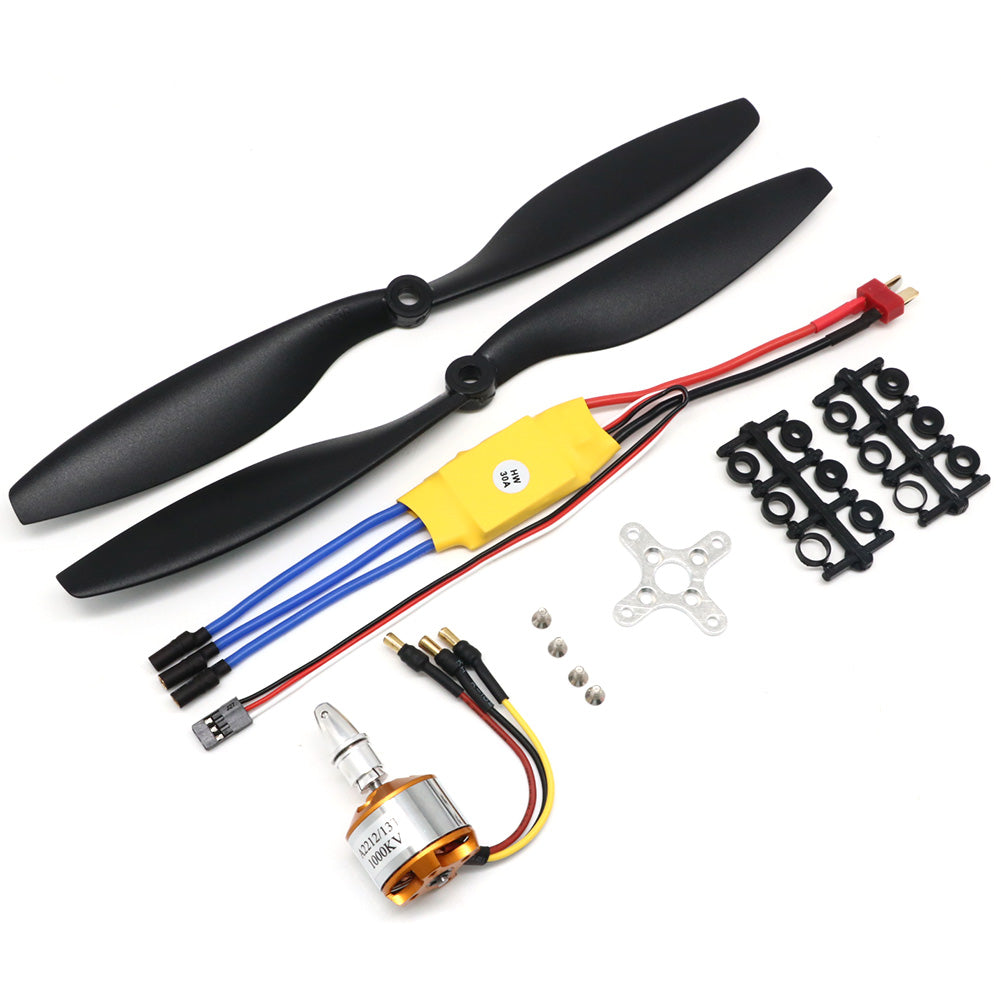

XXD A2212  KV1000 Brushless Motor

Description :

Name: A 2212 A2212 1000KV Brushless Outrunner Motor W/ Mount

For: RC Aircraft / KKmulticopter 4-Axis/6-AXIS Quadcopter UFO

KV: 1000

Max Efficiency: 80%

Max Efficiency Current: 4-10A (>75%)

Current Capacity: 12A/60s

No Load Current @ 10V: 0.5A

No. Of Cells: 2-3 Li-Poly

Motor Dimensions: Φ27.5 x 30mm

Shaft Diameter: Φ3.17mm

Weight: 47g/set

Including: 1 set 2212 1000KV Brushless Outrunner Motor with Mounts *4

Name : A(200200)608 - 4 x Brushless Motor A2212/13 KV1000.

No load Current : 10 V : 0.5 A.

Maximum current: 12A/60s.

Apply to the ESC : 30A.

Apply to the Lipo : 2 - 3S.

Apply to the NiCD / NiMH : 6 - 9S.

Apply to the Propeller : 8x4.5" 9x4.5" 10x4.5" 10x4.7".

Apply to the three Propeller : 7x4.5" 8x4.5" 9x4.5".

Does not contain Dimension : 28.0mm x 26.8mm .

Does not contain Dimension : 28.0mm x 40.0mm .

Shaft diameter : 3.175mm.

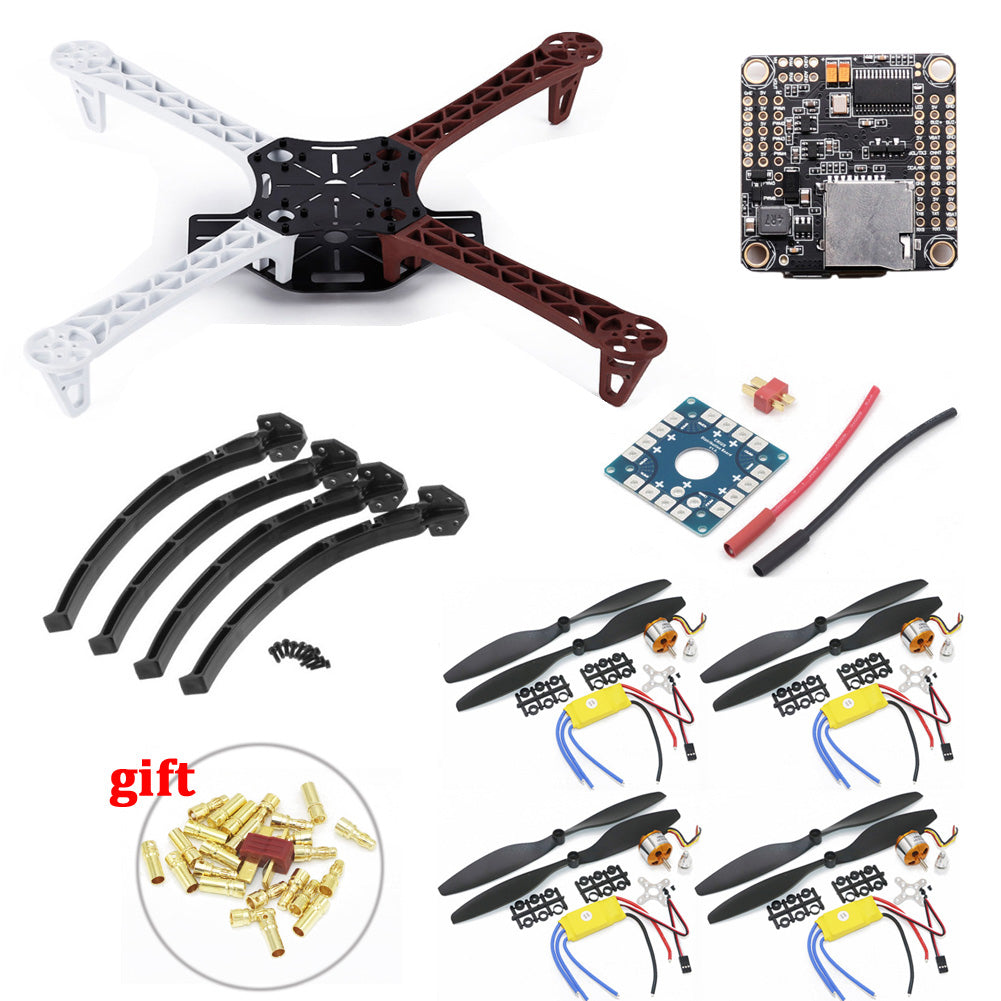

Package Including:

1 PCS  F450 Frame Kit

1 pcs black plastic landing gear

1 PCS CC3D Flight Controller Board

4 PCS 30A Brushless ESC

4 PCS  XXD A2212 1000Kv Motor

1 pcs distribution board

4 Pairs * 1045 Plastic Props
