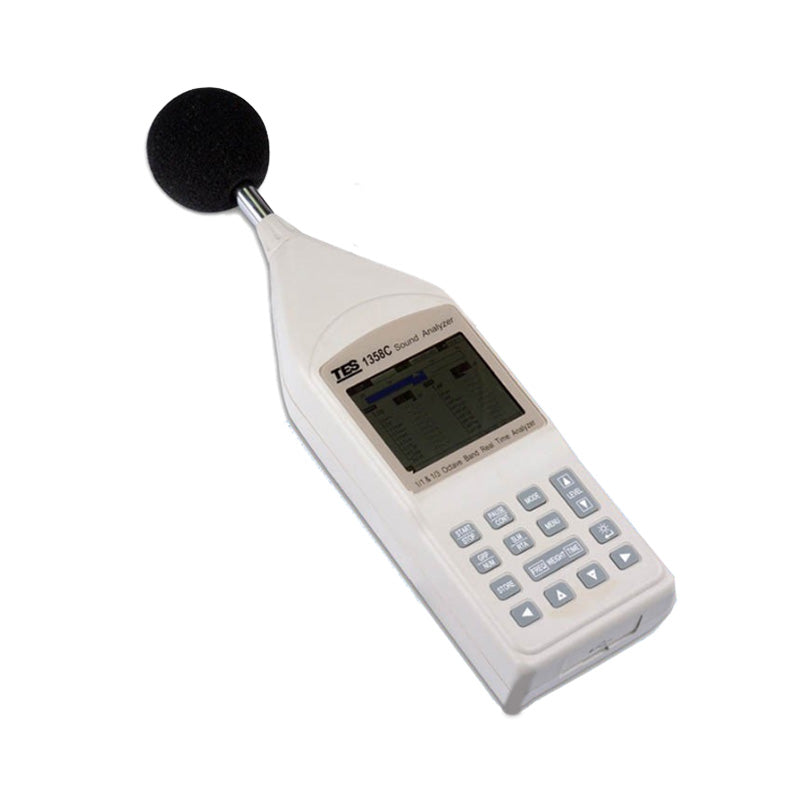

Fast Shipping TES-1358C Sound Analyzer Real Time 1/1 & 1/3 Octave Band Analysis

Product Features

 TES-1358C real-time 1 /1 octave and 1/ 3 octave analysis .

 Measuring the linear range of 90 dB .

 Large color display backlight attached .

 IEC 61672-1: Class 2 standard

 Attached to the clock and date display.

 10000 records can be recorded .

 Internal or external measurement initiation departure

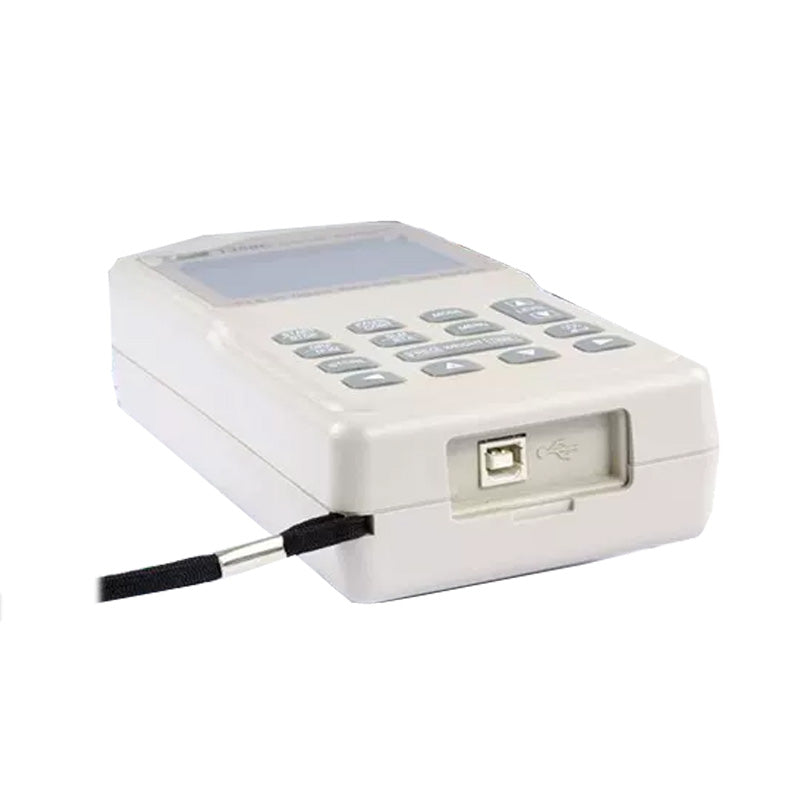

 Usb-PC interfaces including software .

 AC and DC analog output

 The comparator output can trigger external devices

 Key Features

            Applicable Standards

   IEC61672-1:2002 Class 2,ANSI s1.4:1983 Type 2

ANSI S1.11: 2004 Type 2,IEC61260:1995 Class 2ANSI S1.43:1997 Class 2

       Microphone

   1 / 2 inch polarized condenser microphone

       Measurement range

   30dB to 130dB

       Measurement function

   Lp,Leq,LE,Lmax,Lmin

       Frequency Range

   12.5Hz~20KHz

       Frequency weighting

   A.C&Z-weighted

       Time Weighted

   Fast Fast , Slow Slow

       Monitor

   3.5 inches 320x240 dot matrix color TFTLCD

       1/1- 1/ 3Frequency analysismod

   A total of five stalls each stall interval 10dB,o90dB/10-100dB/20-110dB/30-120dB/40-130dB

       1 /1Octave 1 / 3 octave band pass filter

   1 /1 octave band center frequency : ( 11 bands )

31.5Hz,63Hz,125Hz,250Hz,500Hz,1KHz,2KHz,4KHz, and 8KHz.

1/ 3 octave band center frequency of analysis : ( 33 bands )

12.5Hz,16HZ,20Hz,25Hz,31.5Hz,40Hz,50Hz,63Hz,80Hz,10

OHz,125Hz,160Hz,200Hz,250Hz,315Hz,400Hz,500Hz,

630Hz,800Hz,1KHz,1.25KHz,1.6KHz,2KHz,2.5KHz,

3.15KHz,4KHz,5KHz,6.3KHz,8KHz10KHz,12.5KHz,16KHz.20KHz

       Microphone extension cable ( optional )

   5 m long(TL-F47/5M) and 10 meters 1ong (TL-F47/10M)

       Memory Capacity

   10ooo ( noise meter mode )

       Signal output

   AC output : 1Vms ( full scale degrees )DC output : 3.0V 25mVDC/ dB ( full scale degrees )

       Power supply

   4 1.5Valkaline batteries 2

       External DC power supply

   6,1A

       Battery Life

   About 2 hours

       Operating temperature and humidity range

   -10 to 50 , 10 to 90%RH

       Dimensions / Weight

   34.5 (L ) × 10 ( W ) × 6 ( H) cm & about 950g (without battery )

       Attachment

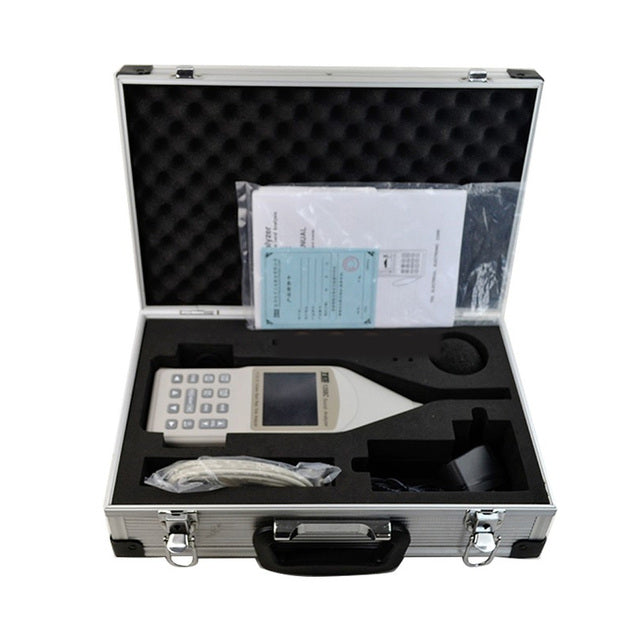

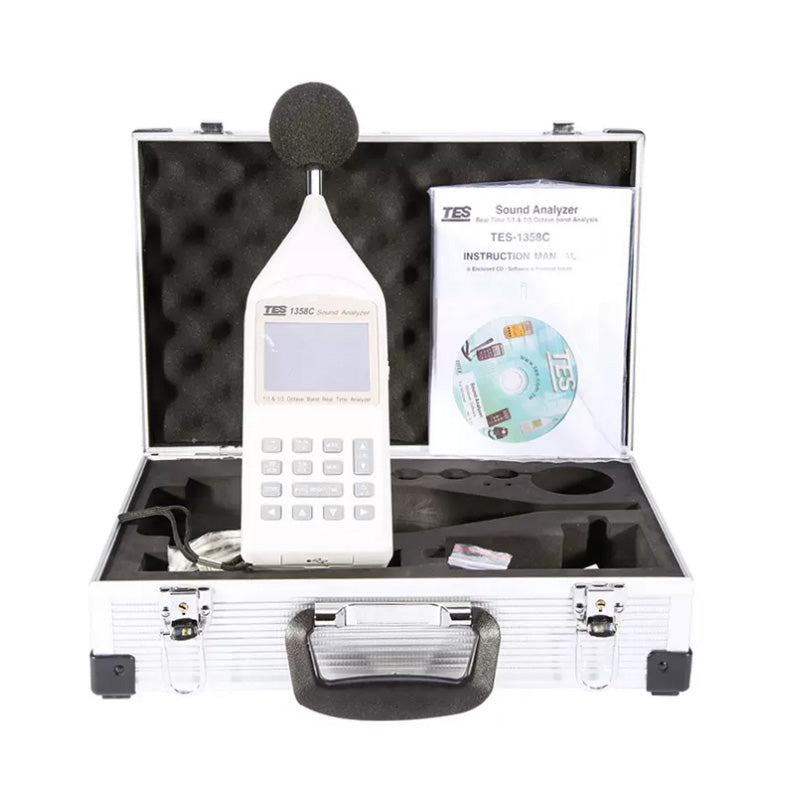

   Chinese manual,  carrying case , CD-ROM software , usb cable, windscreen , 3.5 f headphone plug , AC / DC power converter
