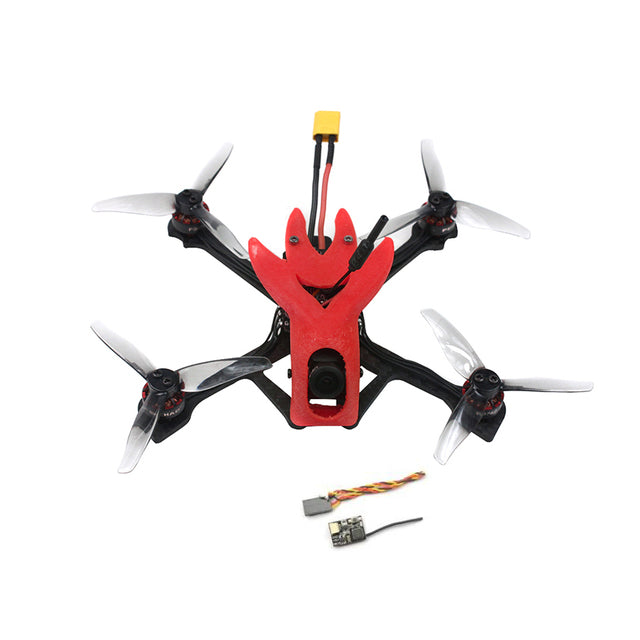

Seastar138mm Indoor Mini FPV Racing RC Drone 2-4S with F405 DM Flight Controller Micro 1200TVL FPV Camera 3inch Props

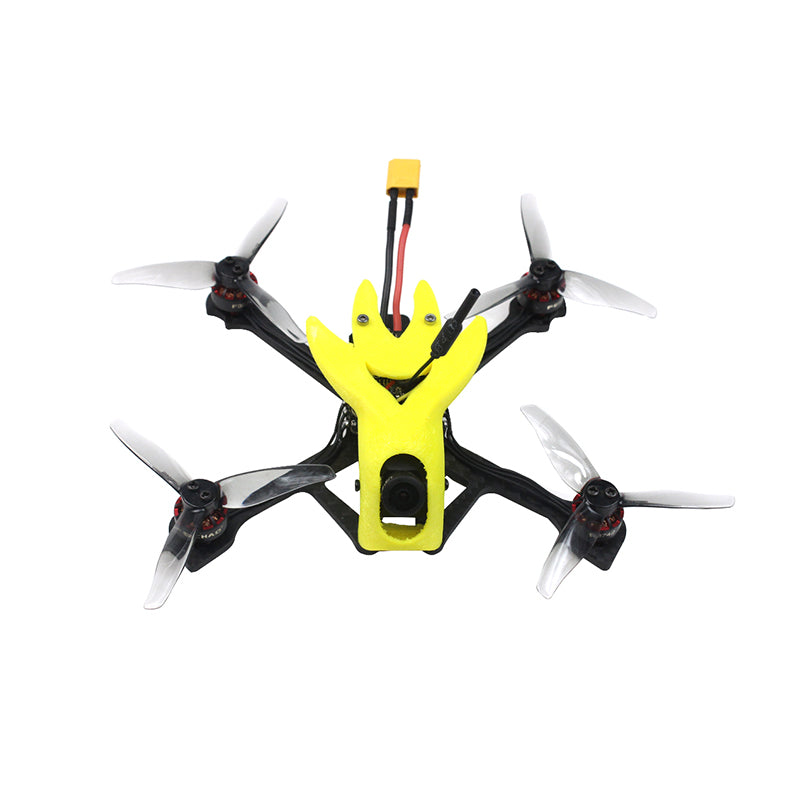

  NOTICE: this drone has 2 color： Red and Yellow, any other confused, pls contact us.

  Packing list:

  1 x super small buzzer

  1 x FSD-252VTX

  1 x 1200TVL 2.1mm PAL camera

  2 x XT30 plug

  1 x 20A 4 in 1 ESC BLHELI_S

  1 x 3D printed TPU material camera mount

  1 x 12*150mm strap

  4 x 3016 three-blade PC propeller

  4 x MT1204-5000kv motor

  1 x F405 DM Mini flight controller

  1 x Seastar 138 138mm rack

  (Some kits include the following products:)

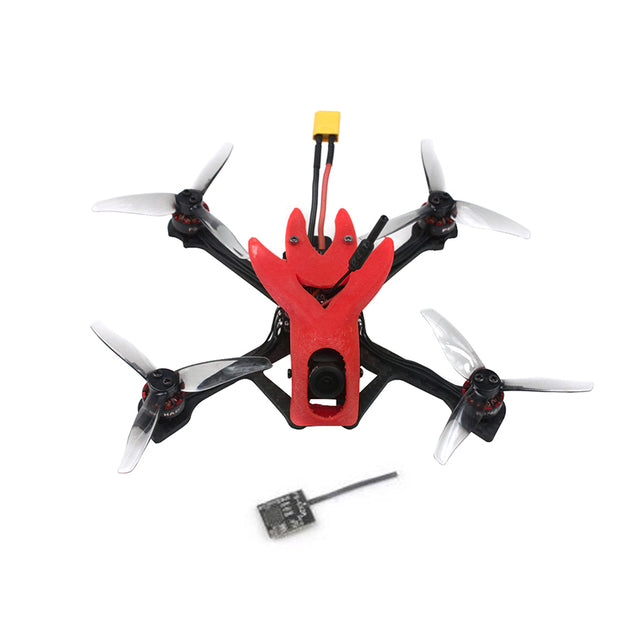

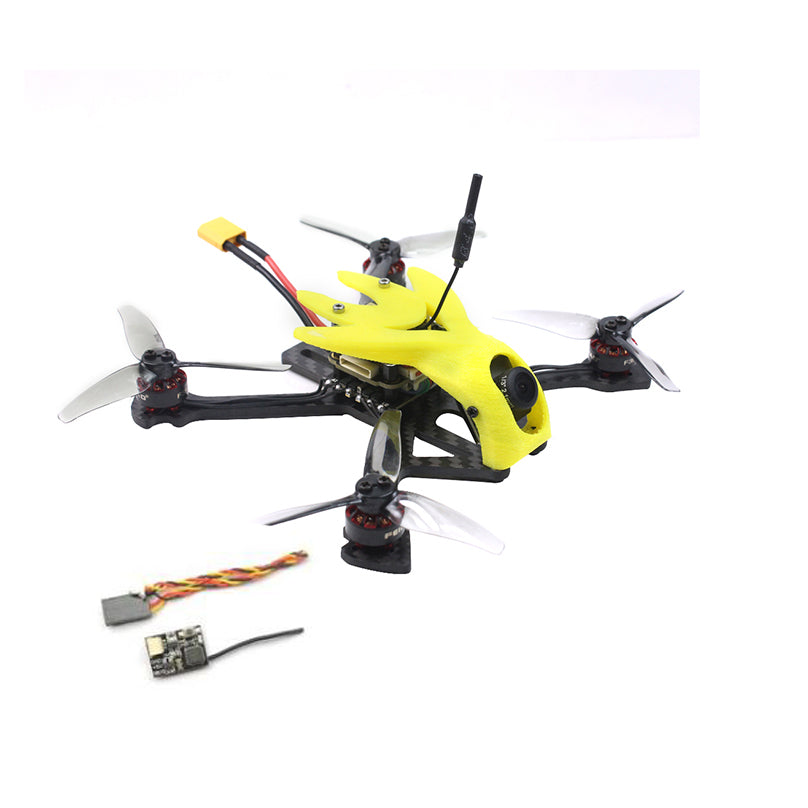

  1 x FS-RX2A Pro or FD800 receiver（optional）

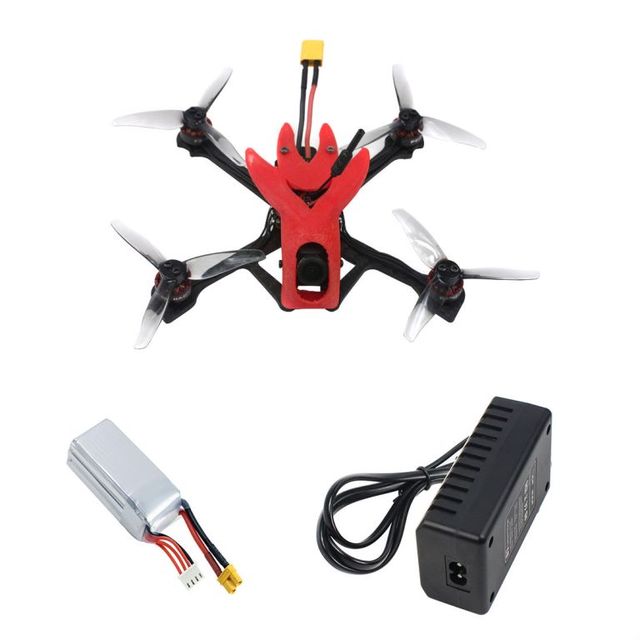

  1 x 650mAh 3S 80C high-voltage 11.4V lithium battery XT30 plug (optional)

  Precautions:

  1. Do not charge the battery when you are away from home, do not charge the battery immediately after flying, do not over-discharge the battery (over-discharge may cause the battery to fail to charge and become useless). .

  2. Do not modify any parameters and wiring without knowing the flight control and remote control.

  3. Turn on the remote control before powering on the aircraft, unplug the power switch after the flight, and then close the remote control to prevent accidents.

  4. This aircraft is recommended to fly indoors. It can fly outdoors in open places when there is no wind, and avoid flying in crowds and places with interferences around.

  5. The product is assembled/welded in loose parts. If you have any technical and assembly questions, please feel free to contact us. We have a dedicated technical team to answer related questions.

  6. This product is not a toy and is not suitable for children under 14 years of age.

  7. Please read the instructions carefully before any use. If you are a beginner, it is recommended to be assisted by an experienced adult.

  8. Don't fly too high because the plane is relatively small, please fly within your sight.

  9. Novices should pay attention not to take the airplane by hand or let children take it when the airplane is turning, to prevent being scratched.

  10. Please turn off the start switch in time when the aircraft falls from a wall or hits other objects during flight. Otherwise, it may cause damage to the flight control motor. Check whether the aircraft is damaged or the screws are loose.

  Functions and features:

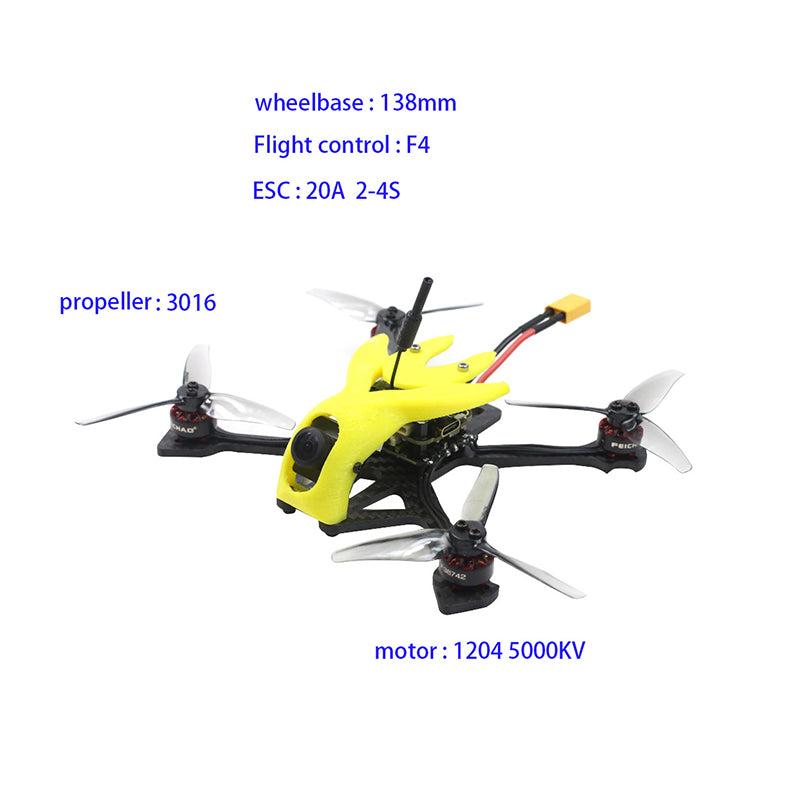

  138mm wheelbase carbon fiber frame

  Life time is about 7 minutes

  Betaflight version F4 flight control

  type-c data line interface

  Support voltage 2-4S

  Paddle:

  Type: 3016 2023

  Pitch: 1.6 inches

  Material: PC

  Weight/g: 1.18g

  Inner diameter of center hole: three holes / 1.5mm

  Maximum support width: 8.84 mm

  ESC:

  Product name: 20A Blheli_S 4 in 1 ESC

  Maximum current: 20A / 30A

  BEC: No

  Lipid: 2-4S

  Weight: 4.8 grams

  Size: 27x31mm (PCB)

  Mounting hole: 20x20mm

  Motor:

  Specification: 1204

  KV option: KV5000

  Configuration: 9N12P

  Stator diameter: 12mm

  Stator length: 4mm

  Inner shaft diameter: Φ2mm

  Outer shaft diameter: Φ1.5mm

  Motor size (diameter * lens): Φ15mm* 16.2mm

  Weight (g): 5.9g

  Support voltage: 2-4S

  Flight control:

  Project Name: F722 Mini 3~6S Flight Controller

  Size: 31 * 30 * 8mm

  Packing size: Φ62 * 33mm

  Installation hole distance: 20 * 20MM, φ4mm

  Weight: 6g

  Package weight: 20g

  Processor: stm32f722ret6

  Gyroscope: mpu6000

  B EC: 5V / 3A; 9V / 2.5A

  RAM: 16MB

  Input voltage: 3-6s

  Firmware: betaflight_ 4.1.0_ MATEK722

  Image transmission:

  1.40 channel

  2. Support touch switch and PWM/touch switch selection

  3. Support 25mW/200mW selection, five LED high power display

  4. LED display channel and status information

  5. With OSD input and output interface

  6. Directional rod antenna

  7. Working voltage (power input): 5V working current: 25mw-300ma, 200mw-500ma

  8. Small and lightweight design: outer size 27 * 27mm, weight 4g

  camera:

  Model: FPV camera

  Image sensor: 1/3" COMS

  Horizontal resolution: 1200TVL

  Lens: 2.1 mm

  Signal system: PAL / NTSC

  Automatic gain control (AGC): yes

  Backlight compensation (BLC): Yes

  Minimum illumination: 0.01Lux / 1.2F

  Voltage: DC 5 to 40V

  Net weight: 5.0g

  Dimensions: 19mm*19mm*19mm
