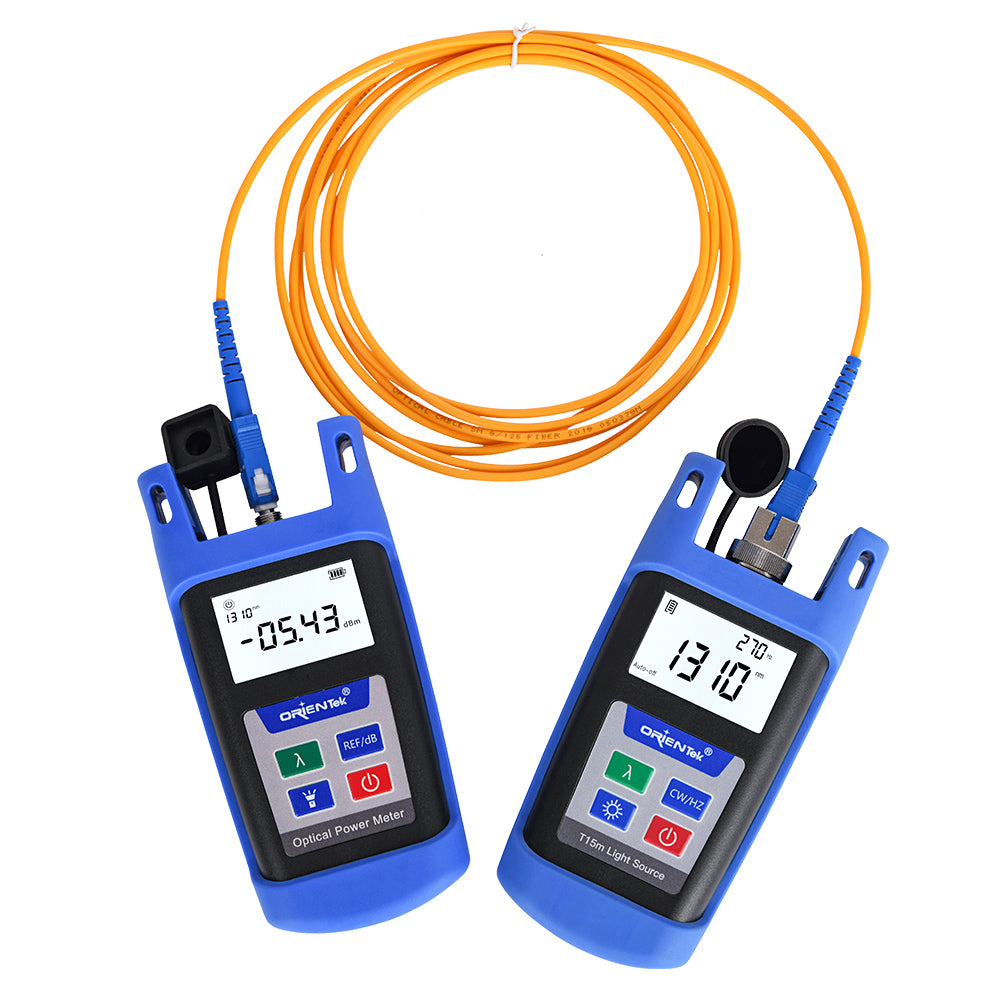

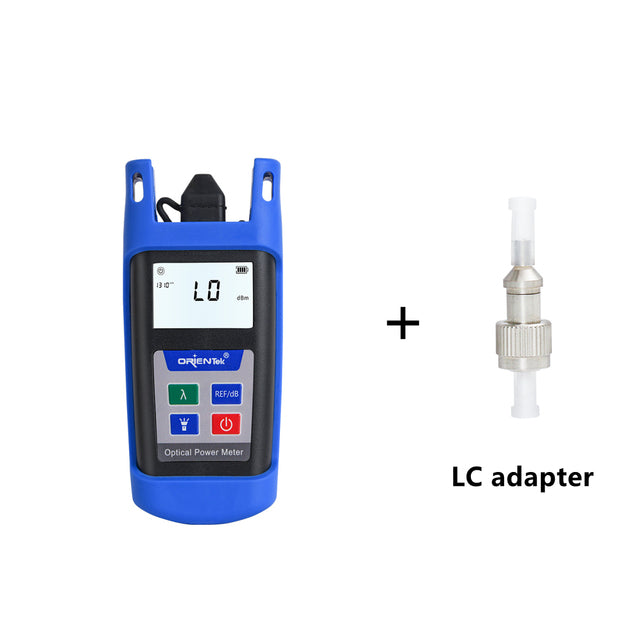

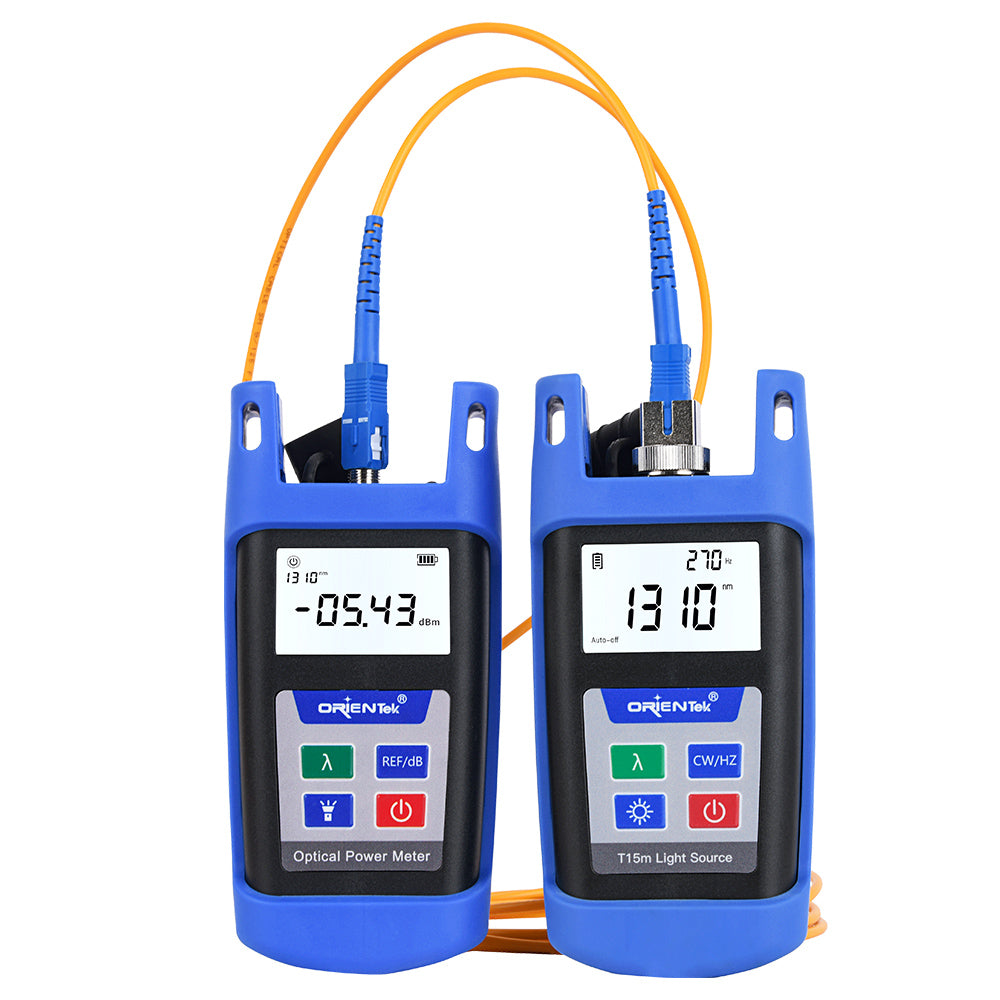

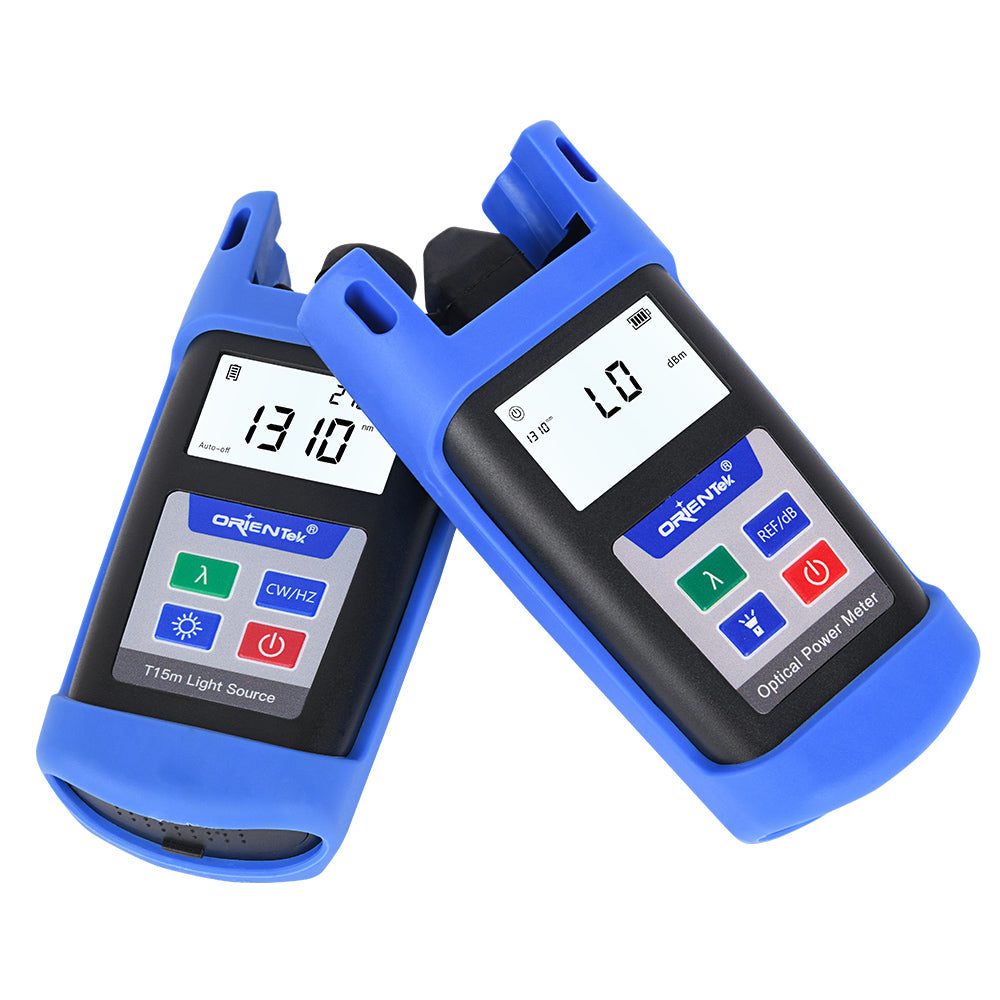

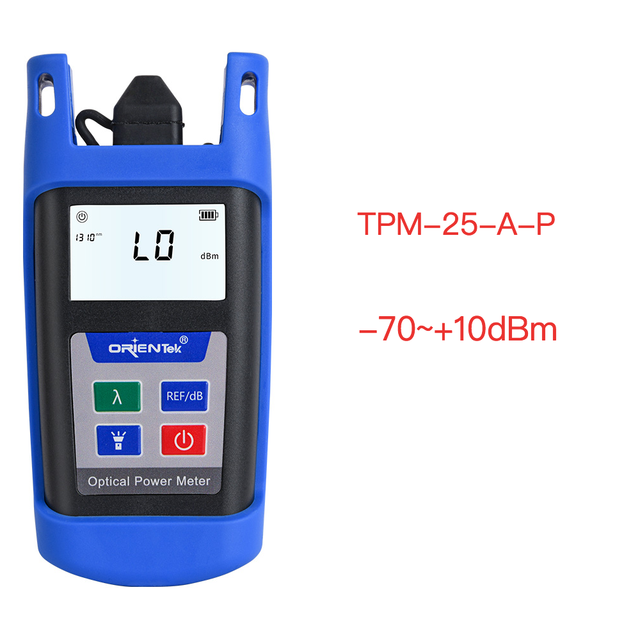

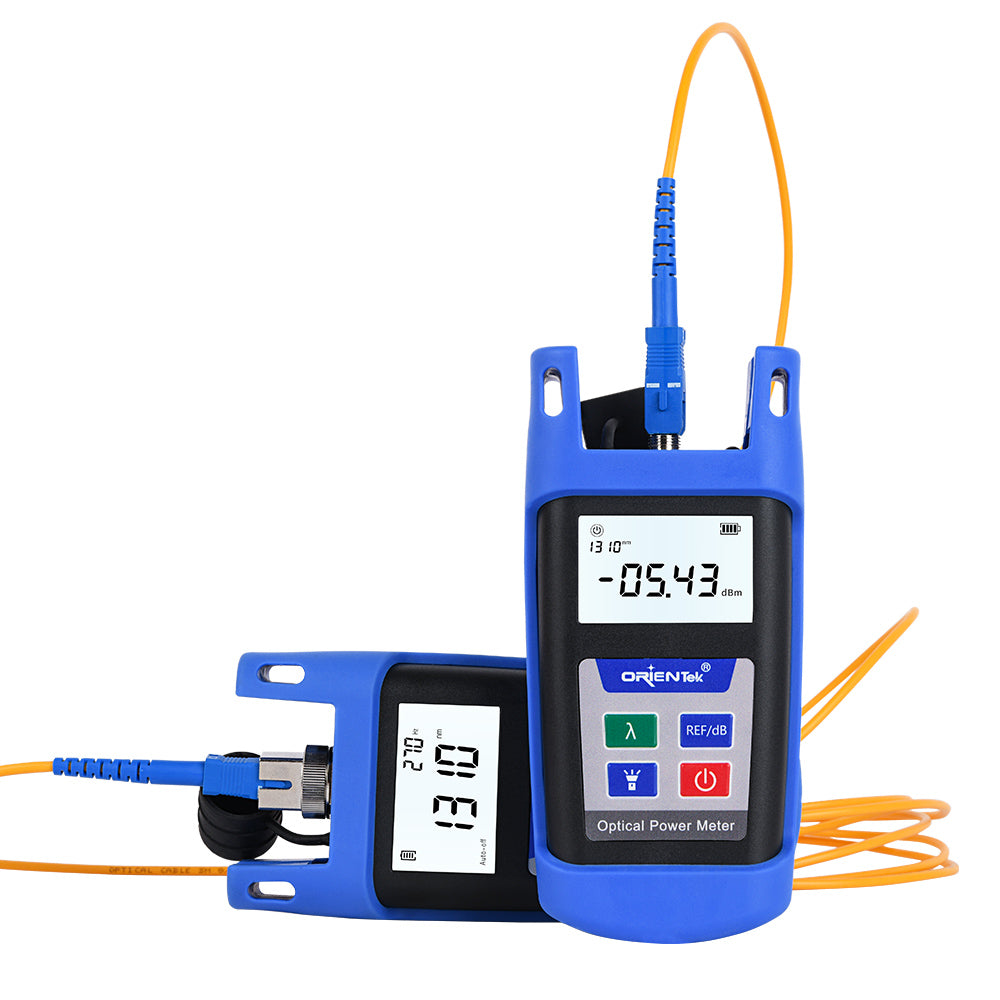

1. Fibra Optica ORIENTEK T25M Optical Power Meter Price
Features :
Wave ID—Automatic Wavelength Identification and switching (when used with T15M handheld light source)
Frequency ID/Tone detection---Automatic frequency identification
Pocketsize, large easy to read LCD display, easy to use
Long battery life with 2 x AAA alkaline
Specifications
Type
Orientek T25M
Wavelength
800 ~1700 nm
Detector
InGaAs
Measurement Range
-70~+3 dBm
Uncertainty
±5% (-10 dBm,20±3 grade)
Calibrated Wavelength
850,980,1300,1310,1490,1550 nm
Resolution
0.01 dBm
Power Supply
Alkaline Battery(3 AA 1.5V)
Battery Operating Time
240 h
Operating Temperatrue
-10~+60 grade
Storage Temperatrue
-25~+70grade
Relative Humidity
0~95% (non-condensing)
Dimension
82mm(W)×33 mm(D)×175 mm(H)
Weight
310 g

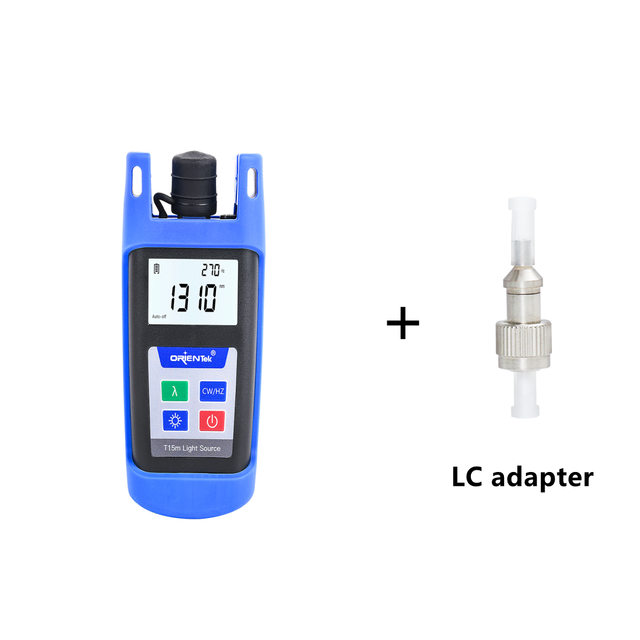

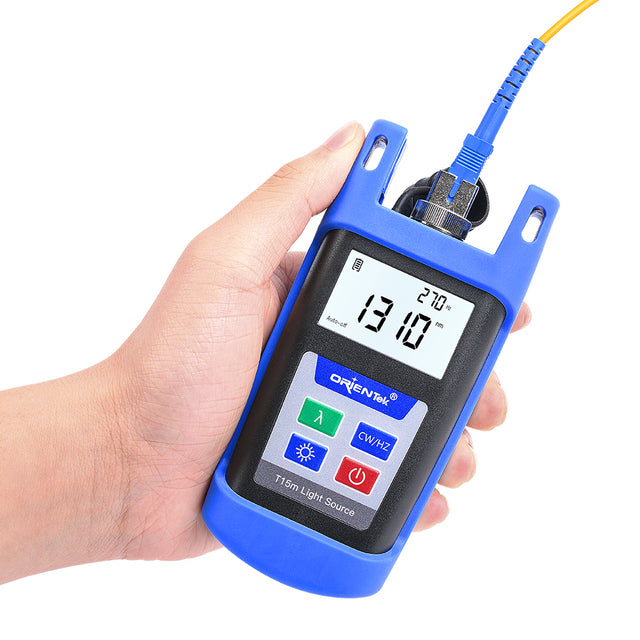

2.Orientek T15M Optical Light Source
Specification:
Type
Orientek T15MS
Wavelength(nm)
1310/1550nm
Typical Output Power
-5dBm
Output Stability
±0.05dB/15mins; ±0.1dB/ 8hours
Optical Connector
SC+ 2.5mm universal
Power Supply
Alkaline Battery(2 AAA 1.5V batteries)
Modulation Frequencies
CW,270Hz,1KHz,2KHz
Dimension(mm)/Weight(g)
130x65x35mm / 180g
Standard accessories
User Guide
certificate of qualified
FC connector
SC connector
Guarantee card
Soft carry bag
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
