OSD Chip: AT7456
Flash: 8MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Mount pattern: 20x20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Dimensions: 30.5x27 mm
Weight: 5g
Wiring suggestion:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry
Tips:
1. F722 MCU has an inner inverter.
2. SBUS,CRSF,ELRS,IBUS,DSM ETC... can be connected to any unused UART_RX,we suggest you connect to Uart_RX2
3. Frsky SmartPort,Tramp & Smartaudio can be connected to any unused UART_TX,we suggest you connect to Uart_TX1
4. F.port can be connected to any unused UART_TX,we suggest you connect to Uart_TX2

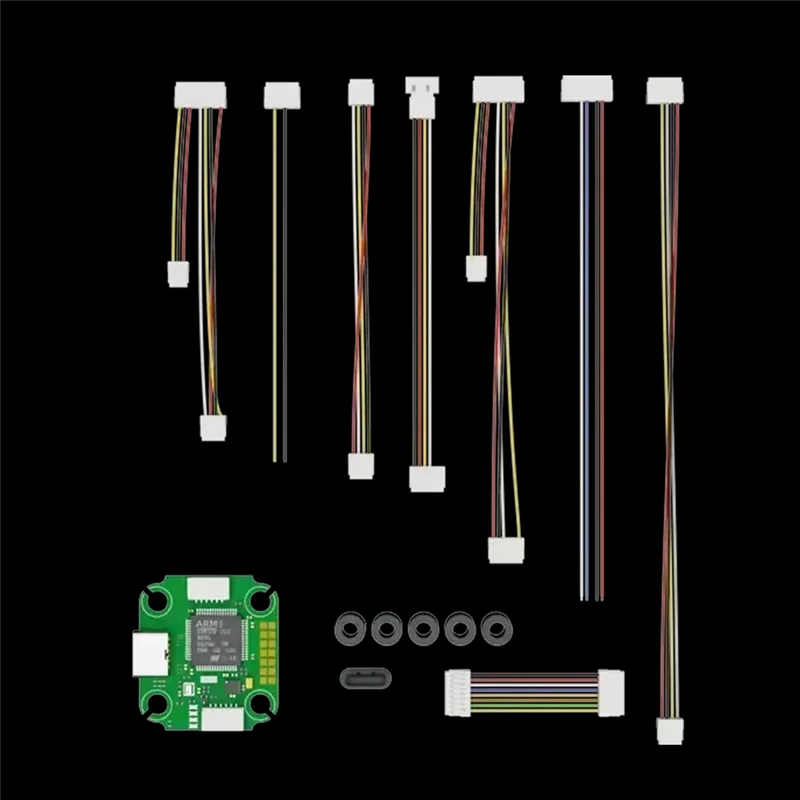

Included Connectors (Plug-and-Play wire harness):
1x SH1.0 - 9pin connector for HD VTX/Analog VTX&CAM (5V/BAT/G/VO/T1/R1/5V/G/VI)
1x SH1.0 - 8pin connector for ESC(R6/CUR//M3/M2/M1/BAT/G)
1x SH1.0 - 6pin connector for any Receiver or DJI(3V3/R2i/5V/G/R2/T2)
1x SH1.0 - 4Pin connector GPS (T4/R4/G/5V)
1x SH1.0 - 4Pin connector LED & Beeper (BUZ/LED/G/5V)
Color: Green
Material: PCB
Package Contents:

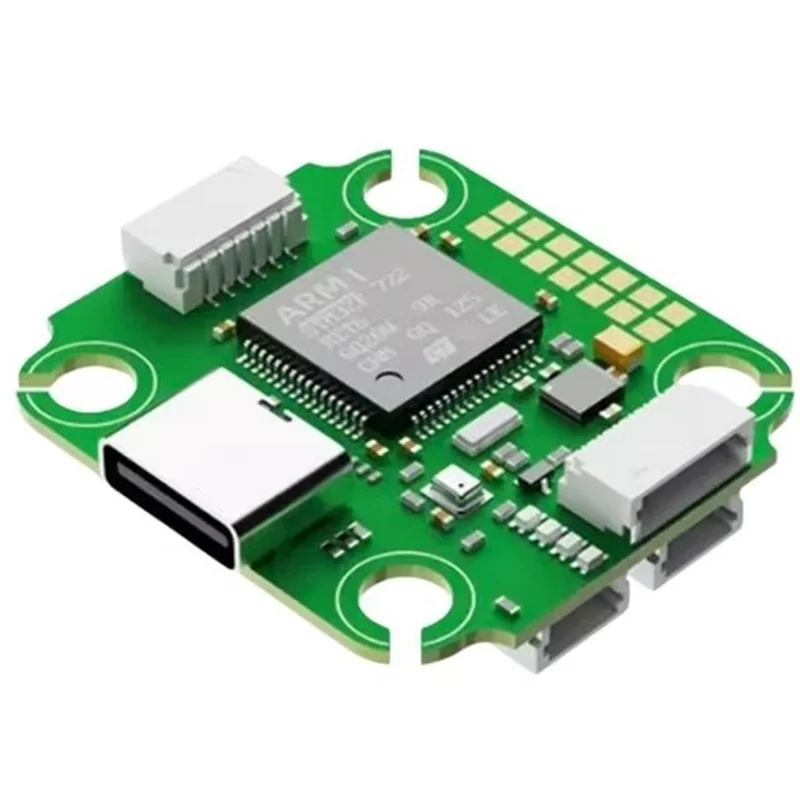

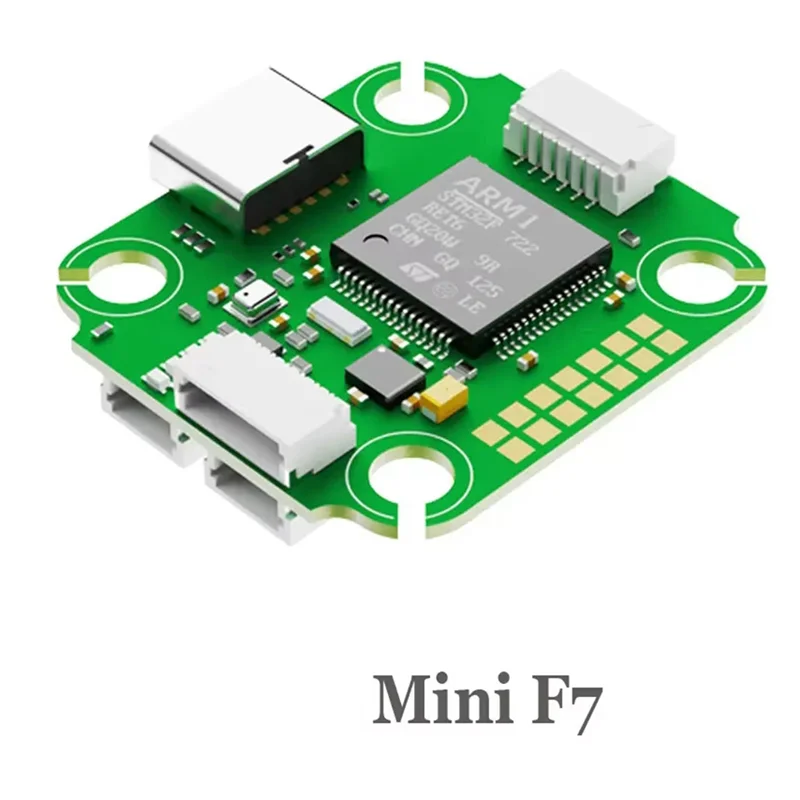

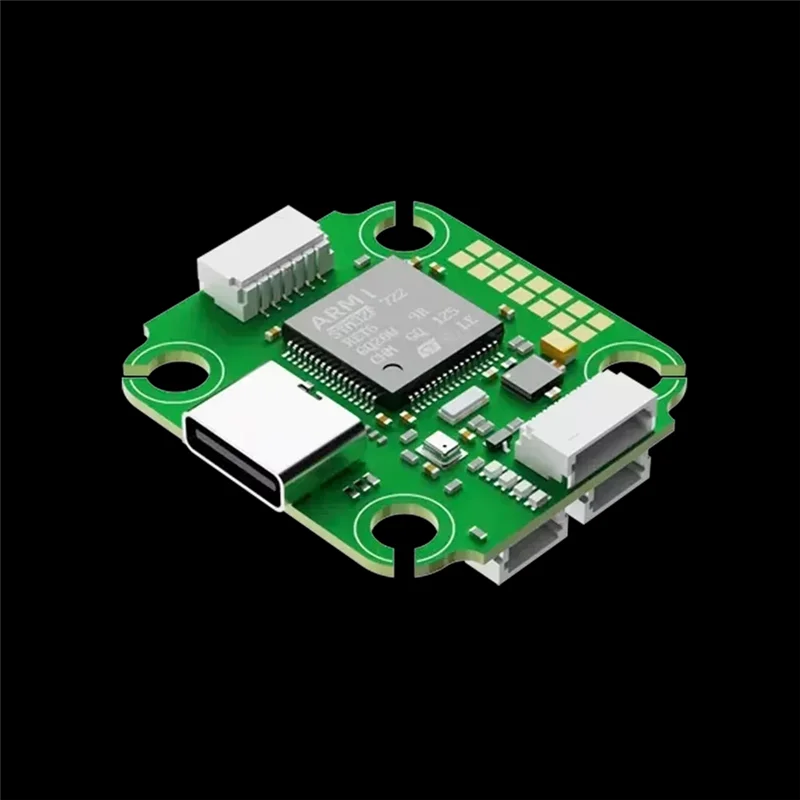

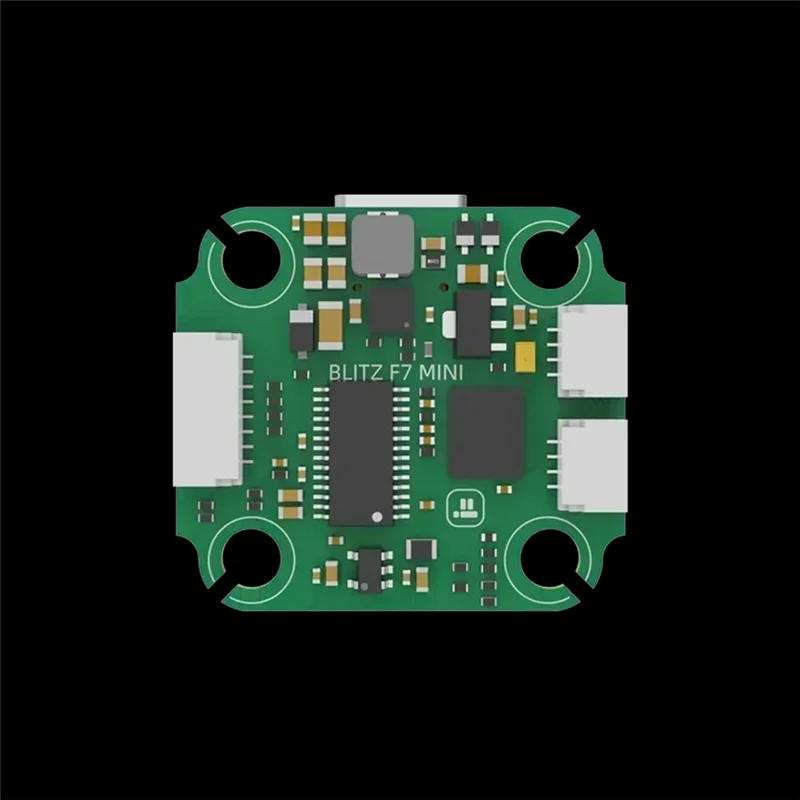

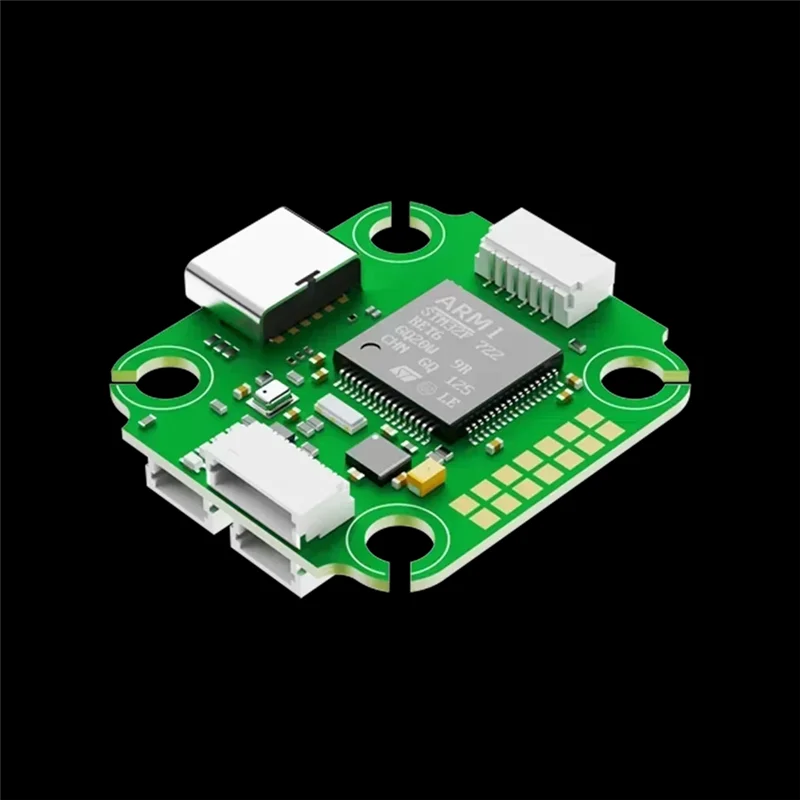

1 * Mini F7 flight controller
