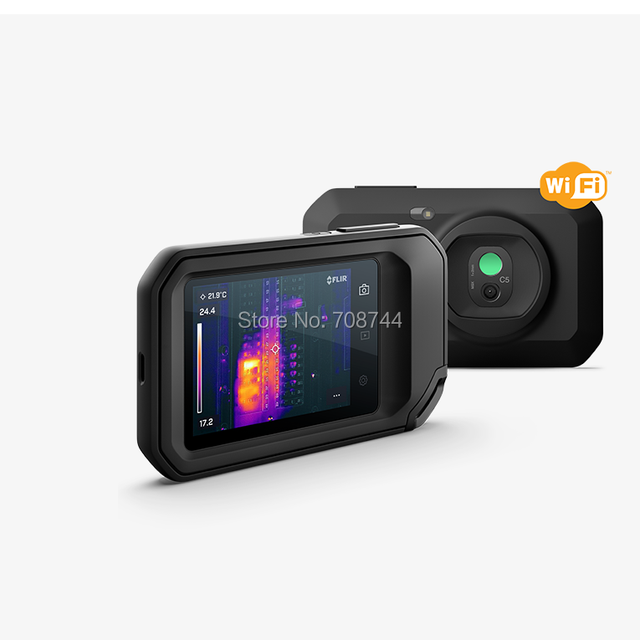

FLIR C5 Wi-Fi and Cloud Connection Function Infrared Thermal
Imager Thermal Camera Pocket Size IR Camera Heat Sensor 160
* 120(19,200 pixels) -20 to 400°C
FLIR C5 Specifications
Camera size (L x W x H):138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in)
FLIR Screen-EST Mode: No
IR Sensor:160 x 120 (19,200 pixels)
Screen Rotation: Yes
Touchscreen: Capacitive touch
Bluetooth: PAN
Image Upload: Directly upload images to FLIR Ignite cloud library and services
Storage Media: Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
USB: USB 2.0, Type-C connector
WiFi: 802.11 a/ac/b/g/n (2.4 and 5 GHz)
Drop test: 2 m (6.6 ft)
Encapsulation: Camera housing and lens: IP54 (IEC 60529)
Operating Temperature Range: -10 to 50°C (14 to 122°F)
Storage Temperature Range: -40 to 70°C (-40 to 158°F)
Tripod Mounting: UNC ¼"-20 (built-in)
Color Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Digital Camera: 5 MP
Digital Camera Focus: Fixed
Focus: Focus free
Gallery: Thumbnails and custom folder structure
Image Adjustment: Automatic level and span, Manual level and span, 1-Touch Level/Span
Image Frequency: 8.7 Hz
Image Modes: Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
Minimum Focus Distance: Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in)
Spectral Range: 8 to 14 µm
Accuracy: At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%
Measurement Functions: Spot, Box with max./min.
Measurements correction: Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
Object Temperature Range: -20 to 400°C (-4 to 752°F)
Thermal Sensitivity: <70 mK
Screen Size: 3.5 in
Weight [including battery]: 0.19 kg (0.42 lb)
Battery operating time: 4 hours
Battery Type: Rechargeable built-in Lithium ion battery
Charging system: USB-C (1 A)
Charging Time: 2 hours
External Power Operation: 5 V, USB-C
File Formats: Standard JPEG, 14-bit measurement data included
Image Storage:>5000 images
