Android device compatibility

 In order to be compatible with FLIR ONE Pro, FLIR ONE Pro LT and FLIR ONE Generation 3, mobile devices must be equipped with USB-C or micro USB charging ports

                    Model

    Notes

          Samsung Galaxy A8、A52、A72、Note 9、Tabs4、S8*、S9*.S10、s20、S21

    In order to be compatible with the FLIR ONE series, mobile devices must meet the minimum requirements and belong to the devices listed in the list of compatible devices.

. Android version 9.0. 0 or above

·Features: GPS, location, OTG USB and microphone.

·Permission: location and microphone.

          Huawei P30 Pro/P20 Lite

          Xiaomi Redmi Note 10.

Redmi Note 9

          Motorola Z3 Play

          LG G6.V40 ThinQ

          Can it be used with my phone case?

    With OneFit, the FLIR ONE connector can be adjusted up to 4 mm in length. This length fits most cases, so you can kill two birds with one stone while protecting the device without affecting the thermal imaging vision. We didn't test all the cases, but we chose a variety of our favorite styles. After 4mm extension, it cannot be connected through Lifeproof and Otter Box Defender protective sleeves, so an OTG compatible adapter is required (not provided by FLIR).

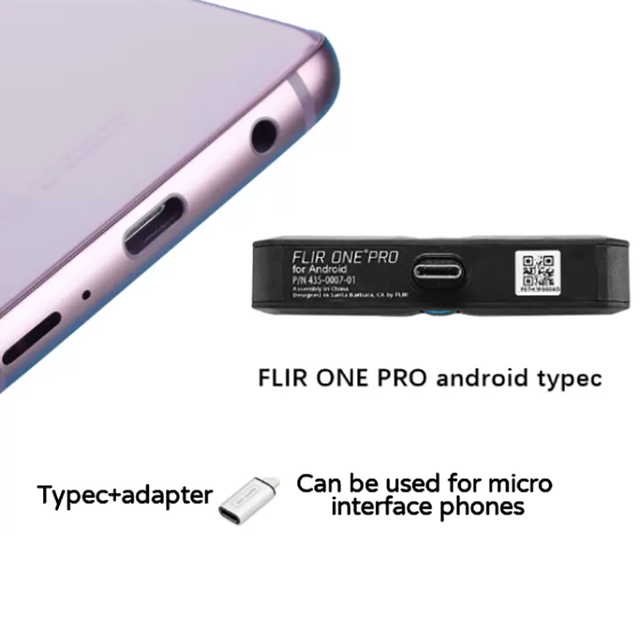

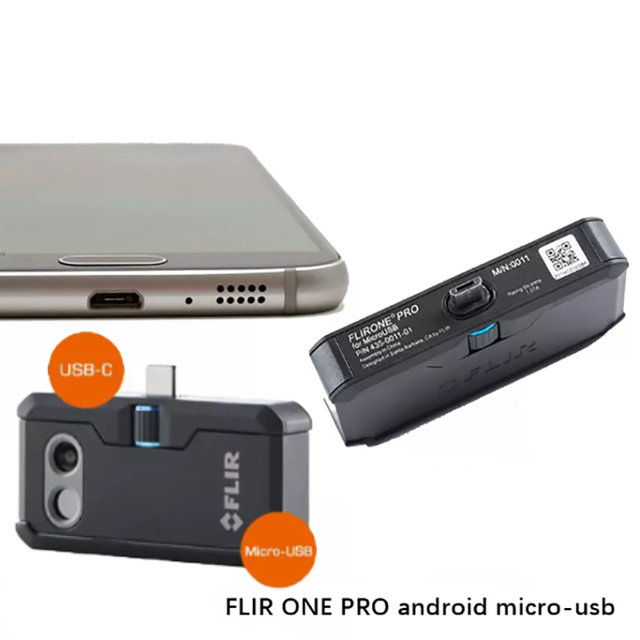

Android host with micro USB port

Your Android device is a micro USB port, but you want to use FLIR One with USB-C connector? Please be sure to add the Type C OTG adapter and USB C female to Micro USB male OTG (On the Go) connector to the shopping cart before purchasing.

IOS device compatibility

In order to be compatible with FLIR ONE Pro, FLIR ONE Pro LT and FLIR ONE Generation 3, the mobile device must be equipped with a Lightning charging port.

IOS device compatibility

In order to be compatible with FLIR ONE Pro, FLIR ONE Pro LT and FLIR ONE Generation 3, the mobile device must be equipped with a Lightning charging port.

            Model

   Notes

       IPhone 12 Series

   IPhone and iPad supporting iOS 14 or higher operating system. Enhancements are specifically designed to connect these phone models and are developer certified to meet Apple performance standards. Apple is not responsible for the operation of this device and its compliance with safety and regulatory standards. Please note that using this accessory may affect the wireless performance of iPod, iPhone or iPad.

       IPhone 11 Series

       IPhone X Series

       IPhone 8 Series

       IPhone 7 Series

       IPhone SE Generation 2

       All iPads with Lightning connector and required iOS.

       Can it be used with my phone case?

   With OneFit, the FLIR ONE connector can be adjusted up to 4 mm in length. This length fits most cases, so you can kill two birds with one stone while protecting the device without affecting the thermal imaging vision. We didn't test all the cases, but we chose many of our favorite models. After 4mm extension, it cannot be connected through Lifeproof and Otter Box Defender protective sleeves, so an OTG compatible adapter is required (not provided by FLIR).

Instructions for users of FLIR ONE 1st generation equipment

We regret to inform you that FLIR ONE Generation 1 is not compatible with the latest version of v4.2.0 application dedicated to iOS 13 and above for iPhone 6S and above. However, the first generation of FLIR ONE can be used normally on iPhone 5/5S with iOS 12.5.3

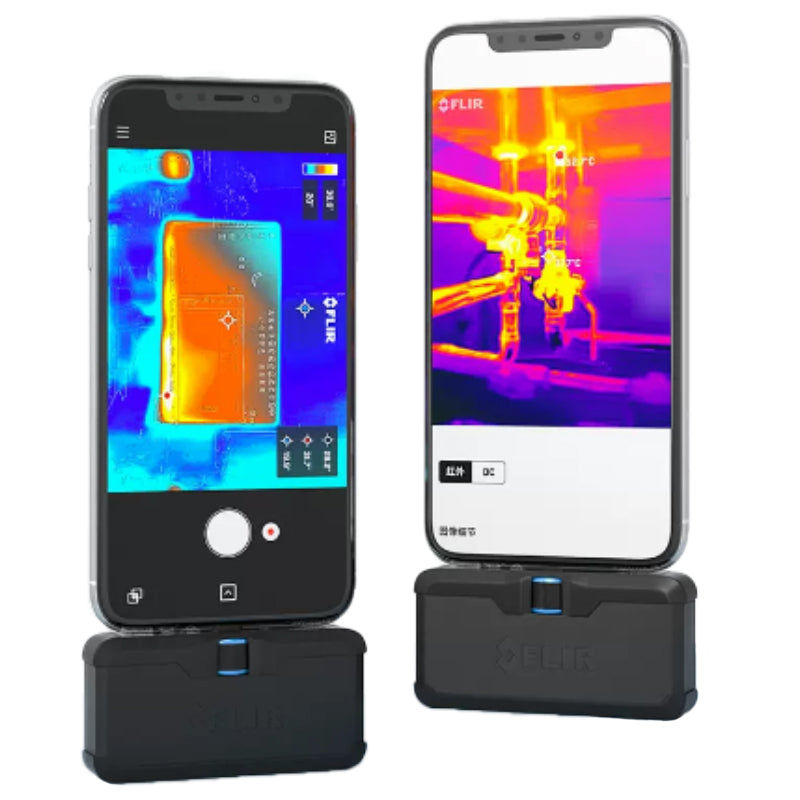

   #02：FLIR ONE PRO

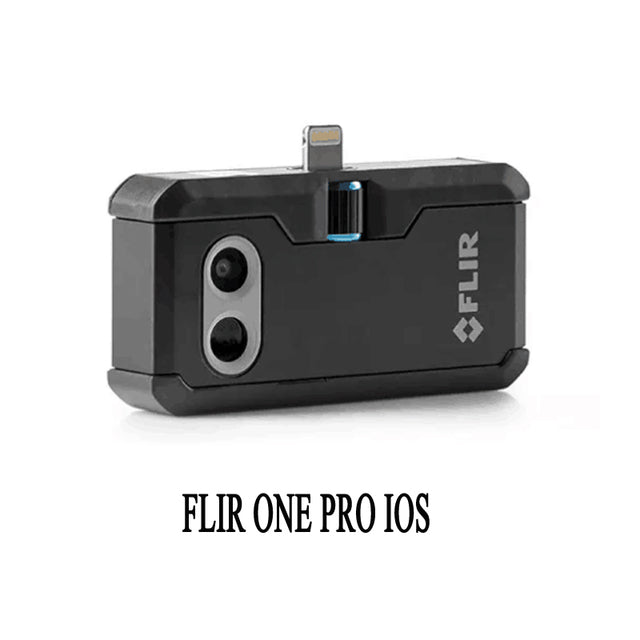

FLIR ONE Pro 3rd Generation - iOS

Image Detail and Clarity

The thermal resolution of FLIR ONE Pro is up to 19200, and the thermal resolution is increased by 4 times. VividIR is adopted ™ Image processing technology enables you to see more important details.

More powerful measurement function

It can measure the temperature between - 20 ° and 400 ° C, and supports up to 3 point thermometers and up to 6 temperature regions of interest.

Durable

FLIR One Pro can withstand the daily operation in the harsh working site and pass the 1.8 meter drop test, so it is durable.

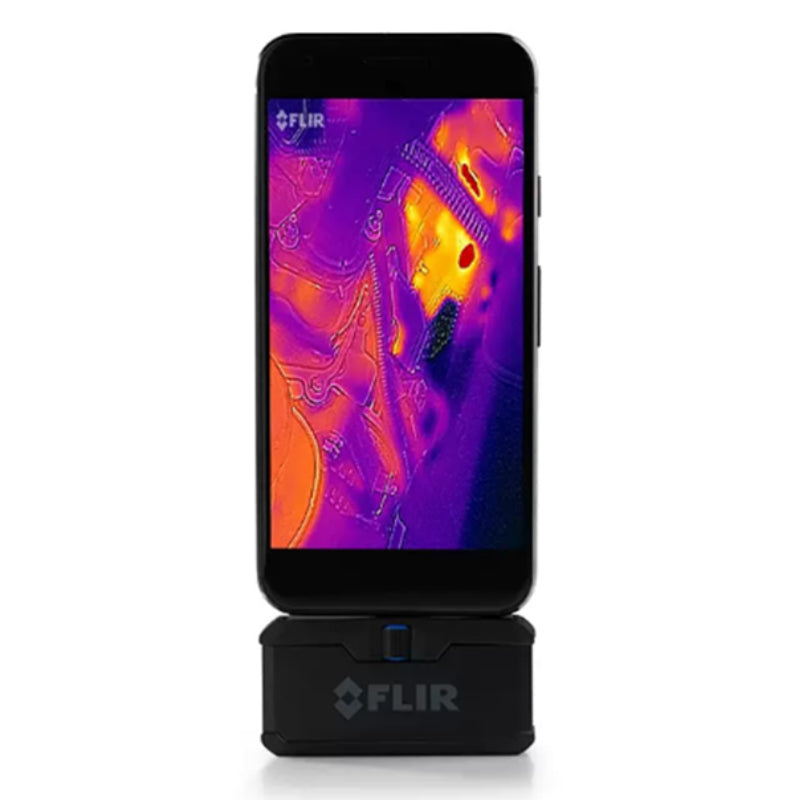

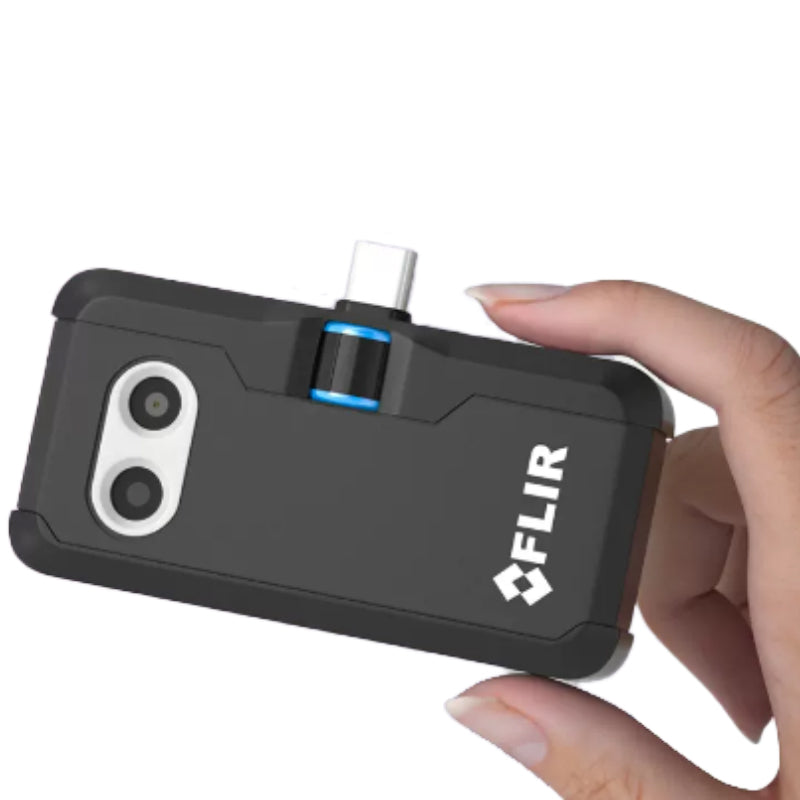

FLIR ONE Pro Generation 3 - Android (Type-C)

Whether you are checking the electrical panel or looking for HVAC or water loss problems, FLIR ONE PRO can help you quickly visualize the problem. FLIR ONE Pro has a 4x increase in thermal resolution, using VividIR ™ Image processing technology enables you to see more important details. The measurement temperature is more than 3 times higher than that of any other FLIR ONE model. The maximum measurement temperature is 400 ° C, and the thermal sensitivity can detect a temperature difference of 70mk.

   #03:FLIR One Pro LT

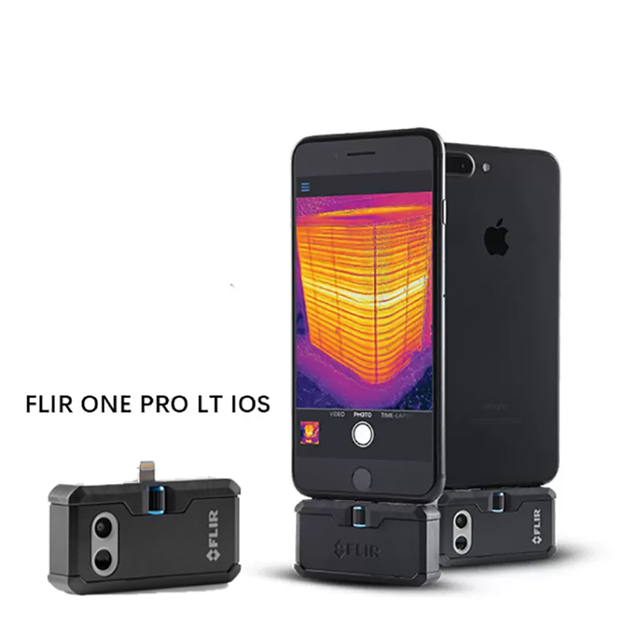

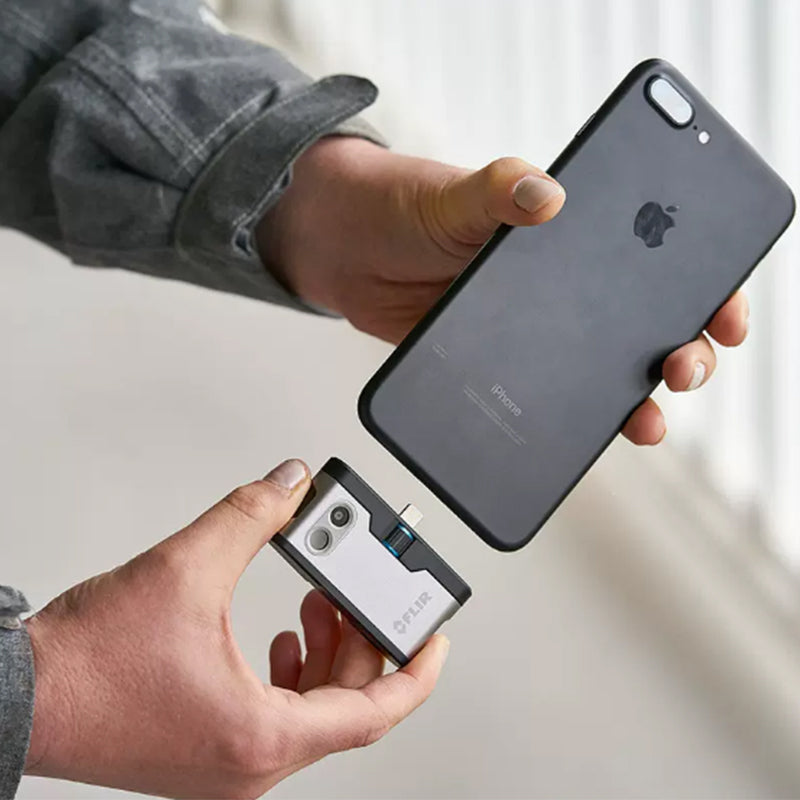

 FLIR ONE Pro LT iOS

 FLIR ONE Pro LT enables you to quickly discover hidden problems. With FLIR VividIR ™ Enhanced resolution in image processing, FLIR MSX ® (Patent No.: CN201380073584.9) and FLIR OneFit ™ The convenience of adjustable connector, FLIR ONE Pro Lt can do almost all the hard work for you. Whether you are a professional or focus on DIY projects, FLIR ONE Pro LT can provide you with the powerful functions you need at affordable prices.

 VIVIDIR ™ image processing

 Unique image processing techniques that enhance resolution and accuracy help you identify potential problems early and diagnose problems reliably.

 FLIR ONEFIT ™ Connector

 The adjustable connector can be extended up to 4 mm so that you can secure the FLIR ONE Pro LT to a mobile device with a protective sleeve.

 Powerful applications

 Work oriented features, such as multiple point thermometers, level/span control and reporting through FLIR Tools Mobile App, support more professional problem solving and functions.

 FLIR ONE PRO LT Android

FLIR ONE Pro LT enables you to quickly discover hidden problems. With FLIR VividIR ™ Enhanced resolution in image processing, FLIR MSX ® (Patent No.: CN201380073584.9) and FLIR OneFit ™ The convenience of adjustable connector, FLIR ONE Pro Lt can do almost all the hard work for you. Whether you are a professional or focus on DIY projects, FLIR ONE Pro LT can provide you with the powerful functions you need at affordable prices.

 VIVIDIR ™ image processing

 Unique image processing techniques that enhance resolution and accuracy help you identify potential problems early and diagnose problems reliably.

 FLIR ONEFIT ™ Connector

 The adjustable connector can be extended up to 4 mm so that you can secure the FLIR ONE Pro LT to a mobile device with a protective sleeve.

 Powerful applications

 Work oriented features, such as multiple point thermometers, level/span control and reporting through FLIR Tools Mobile App, support more professional problem solving and functions.
