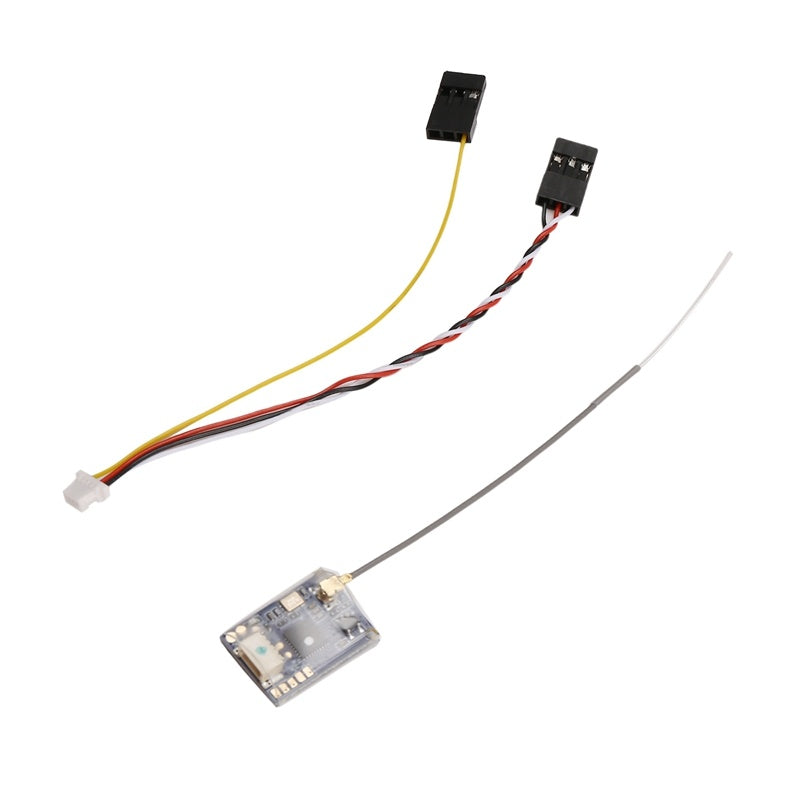

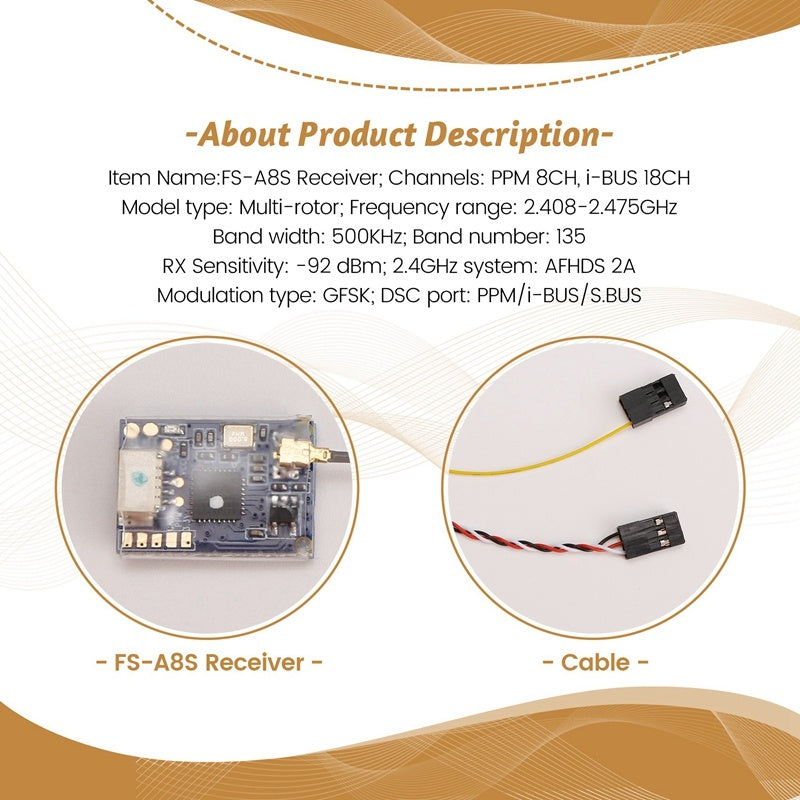

Item Name:FS-A8S Receiver
Channels: PPM 8CH, i-BUS 18CH
Model type: Multi-rotor
Frequency range: 2.408-2.475GHz
Band width: 500KHz
Band number: 135
RX Sensitivity: -92 dBm
2.4GHz system: AFHDS 2A
Modulation type: GFSK
DSC port: PPM/i-BUS/S.BUS
Transfer method: FHSS
Data output: 1.5mm x 3 Pin PPM/i-BUS/S.BUS
Input power supply: 4.0-8.4V
Display method: LED
No ground interference ( Transmitting and receiving 1 m from the ground): Greater than 300m
Working current: 40mA
Each channel data: depend on the transmitter
Channel delay: Less than 15mS
Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F
Change i-BUS/S.BUS mode
When turned on and bound, the transmitter and receiver can change output mode to i-BUS and S.BUS modes by pressing and holding the bind button for 2 seconds
LED truns off for 1 second when flashed twice:i-bus OURPUT MODE
led flashes twice then turns off for 1 second: S.BUS output mode active
Colour:As Shown
Material:Metal + Plastic
