Features:

 1. 192kHz DAC converter with Bluetooth:

This Bluetooth DAC converter converts PC-USB / optical fiber / coaxial / Bluetooth digital signals to L / R RCA and 6.35mm jack headphone analog signals. The sampling rate is up to 24Bit / 192kHz. It is powered by DC 12V and can be used for PS3、4, Xbox, player, phone, laptop, HD DVD, home theater system, AV amplifier, etc. It is very suitable for home theater, teaching, training structure, conference room, appliance store and other places

2. DAC ESS9018 chip:

Built-in high-performance ESS9018 decoder chip, support 16Bit -24Bit / 44.1kHz-192kHz sampling rate. BT module chip: OCC3008 (Bluetooth 5.0). Also equipped with CM6642 USB chip and OP275 + OPA2134. All these chips ensure stable operation of the digital-to-analog audio converter when transmitting digital signals to analog signals

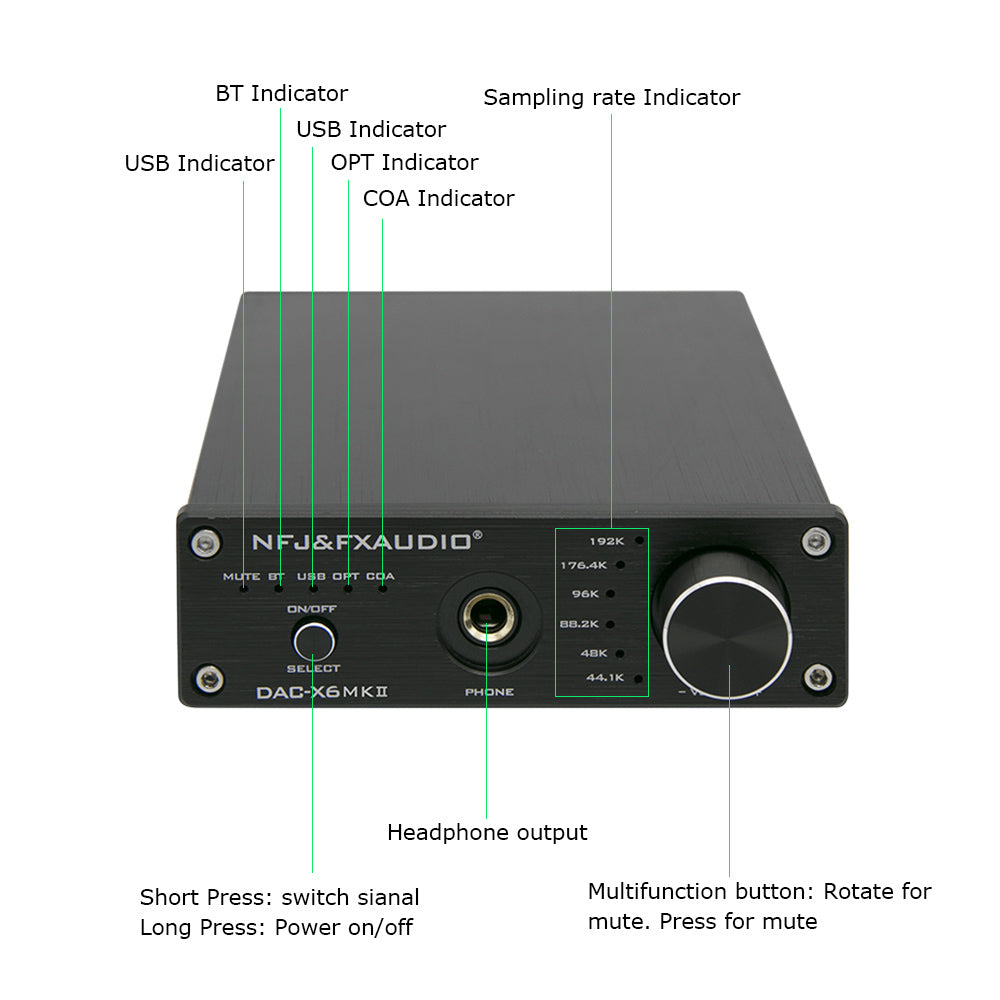

3. 6.35mm headphone & RCA speaker / amplifier:

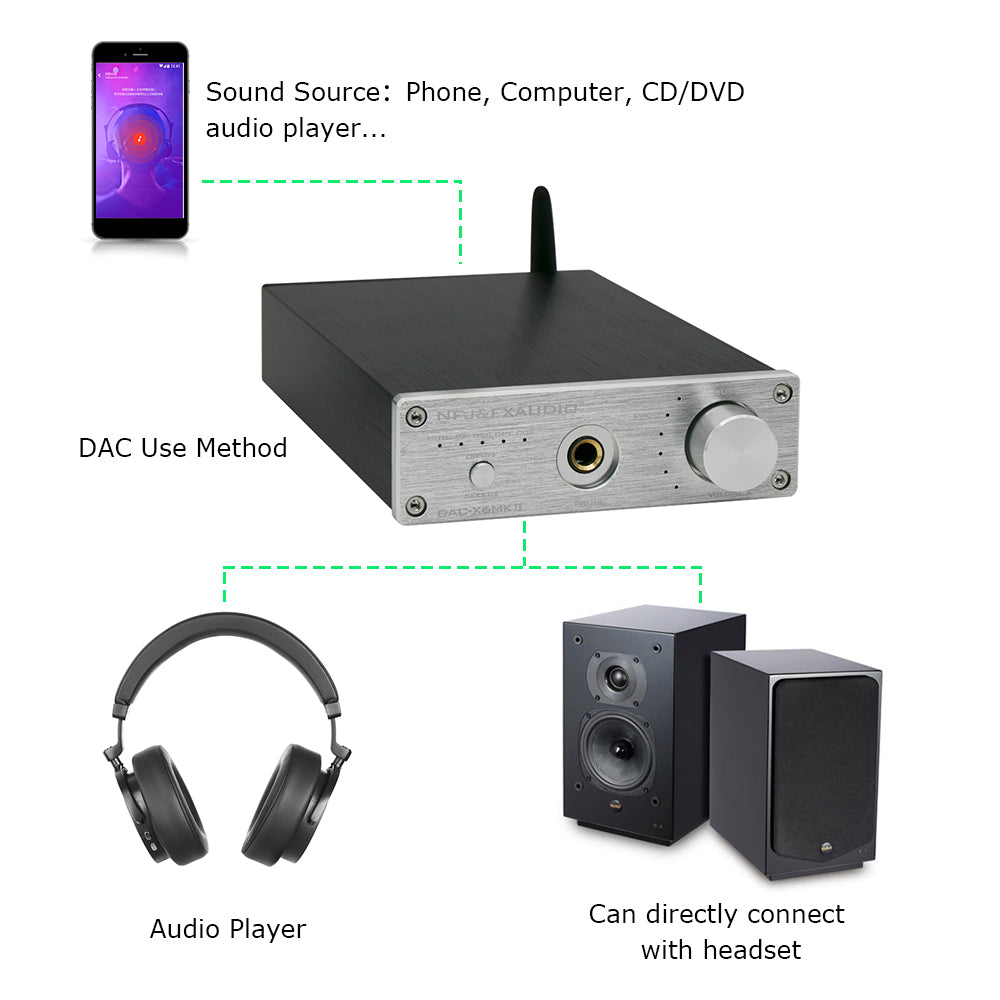

The DAC converter can be connected to L / R RCA amplifiers, speakers and 6.35mm jack headphones. We provide additional 6.35mm to 3.5mm headphone converters, so 3.5mm jack headphones are also available. Speakers and headphones can be connected and volume adjusted at the same time

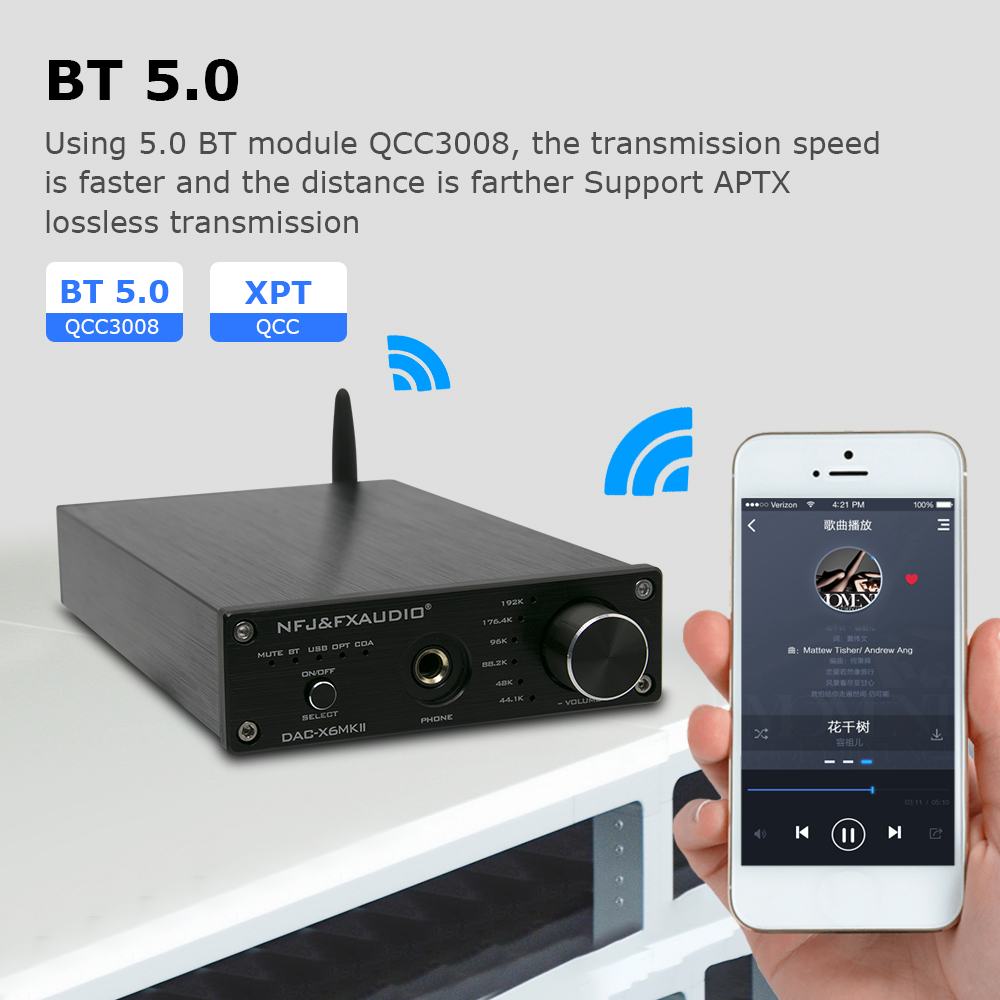

4. Bluetooth 5.0 DAC converter:

The DAC converter uses QC3008 Bluetooth version 5.0 with an antenna to ensure less signal loss and stable transmission. It supports most Bluetooth devices such as mobile phones, laptops and tablets. The wireless connection makes the device more convenient to use. Bluetooth 5.0 supports APT-Ｘ

5. Aluminum alloy DAC audio converter:

The aluminum alloy casing makes the DAC decoder lightweight, durable and heat-resistant. Gold-plated sockets can smoothly enhance high-definition sound signals in long-distance broadcasting.

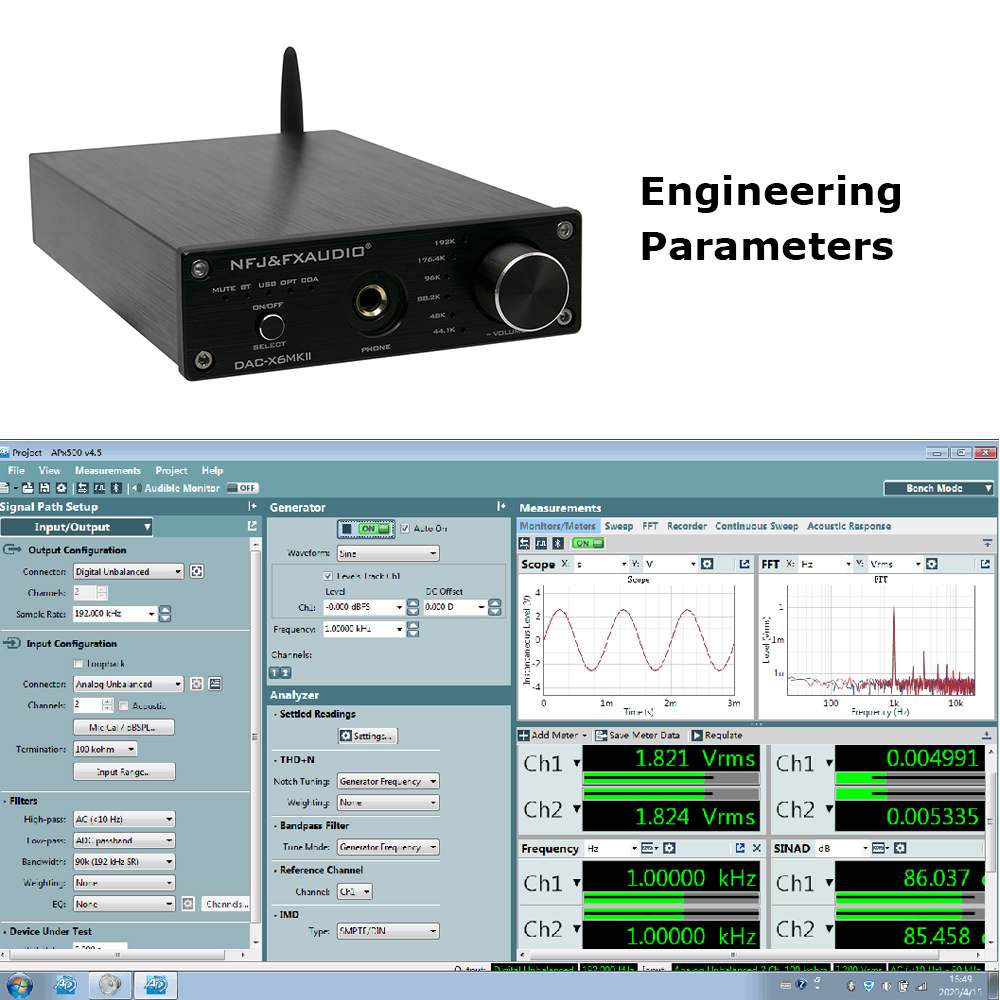

 Specifications:

 Name: Music Amplifier

 Model: X6MKII

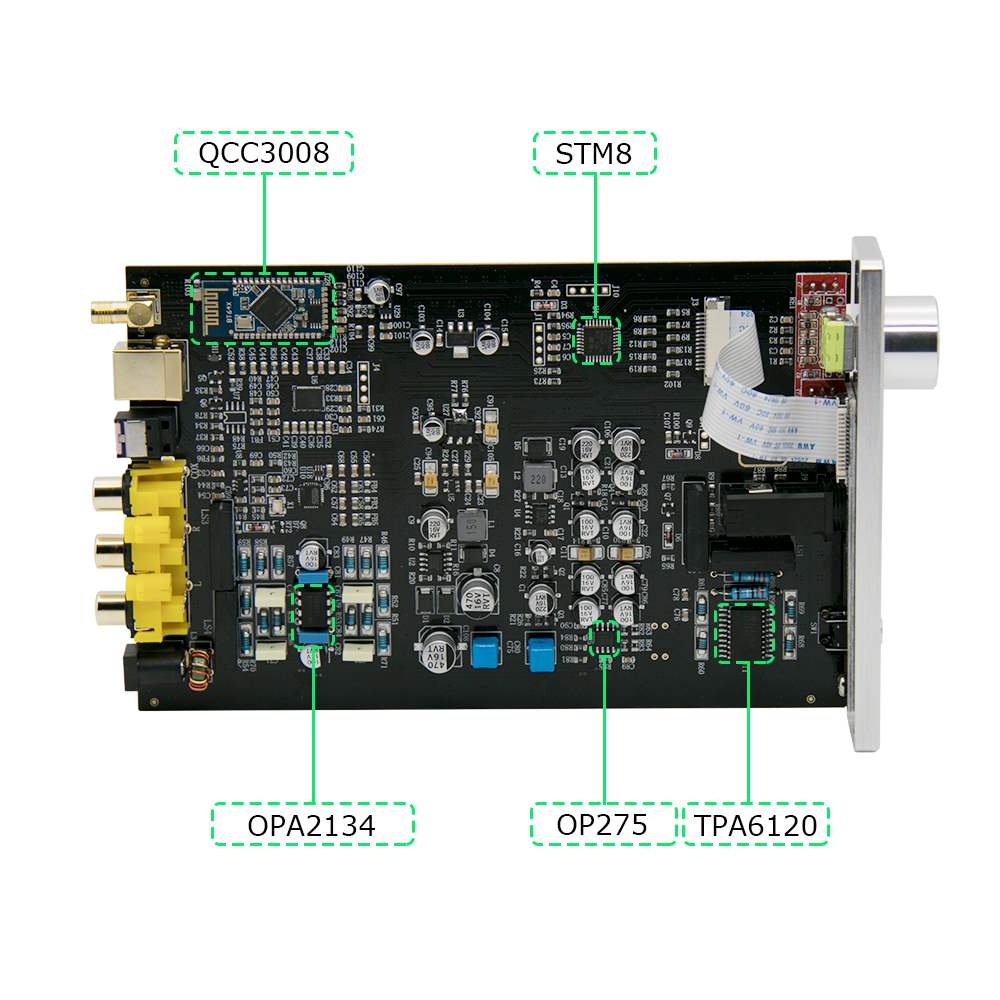

 Chipset: STM8+CM6642+ESS9018+TPA6120+OP275+OCC3008(bluetooth 5.0)

 Sampling Rate: 24Bit/ 192kHz

 RCA RMS level: 2Vrms

 Headphone Power Output: 940mW@16Ω, 900mW@32Ω, 700mW@64Ω, 450mW@120Ω

 Headphone THD: 0.006%

 Headphone SNR: 112dB

 Headphone Frequency Response: +0 / -0.5dB(20Hz-20kHz)

 Input: Optical, PC-USB, Coaxial, BT

 Output: RCA, 6.35mm Headphone

 DC power supply: 12V 1A

 Unit Size:11.7 x 17.8 x 3.6cm

 Package Size: 33 x 26 x 7cm / 12.99 x 10.23 x 2.75 inch

 Package Weight: 867g/30.58oz

 Plug：EU Plug/US Plug/UK Plug (Please note the plug specifications you need when placing an order）

 Package Included:

 1 x Digital Amplifier

 1 x Plug

 1 x USB Cable

 1 x Antenna

 1 x User Manual
