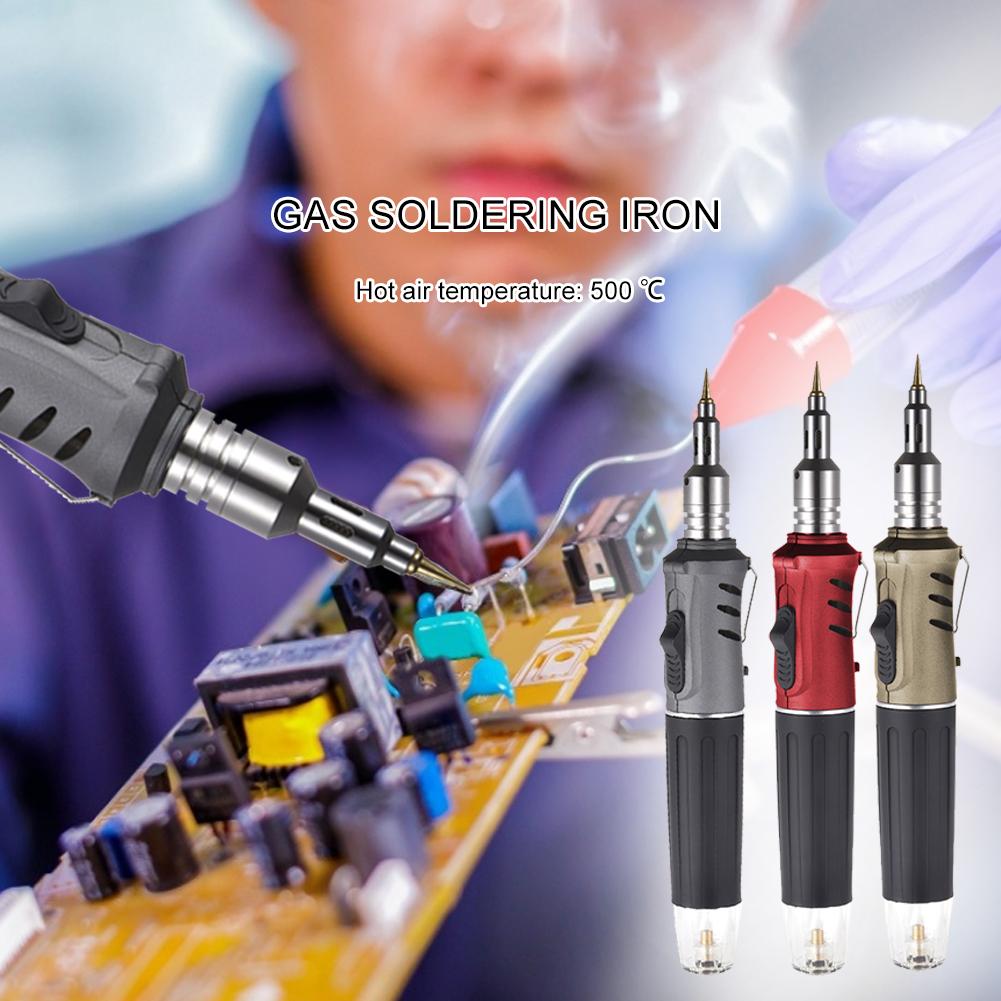

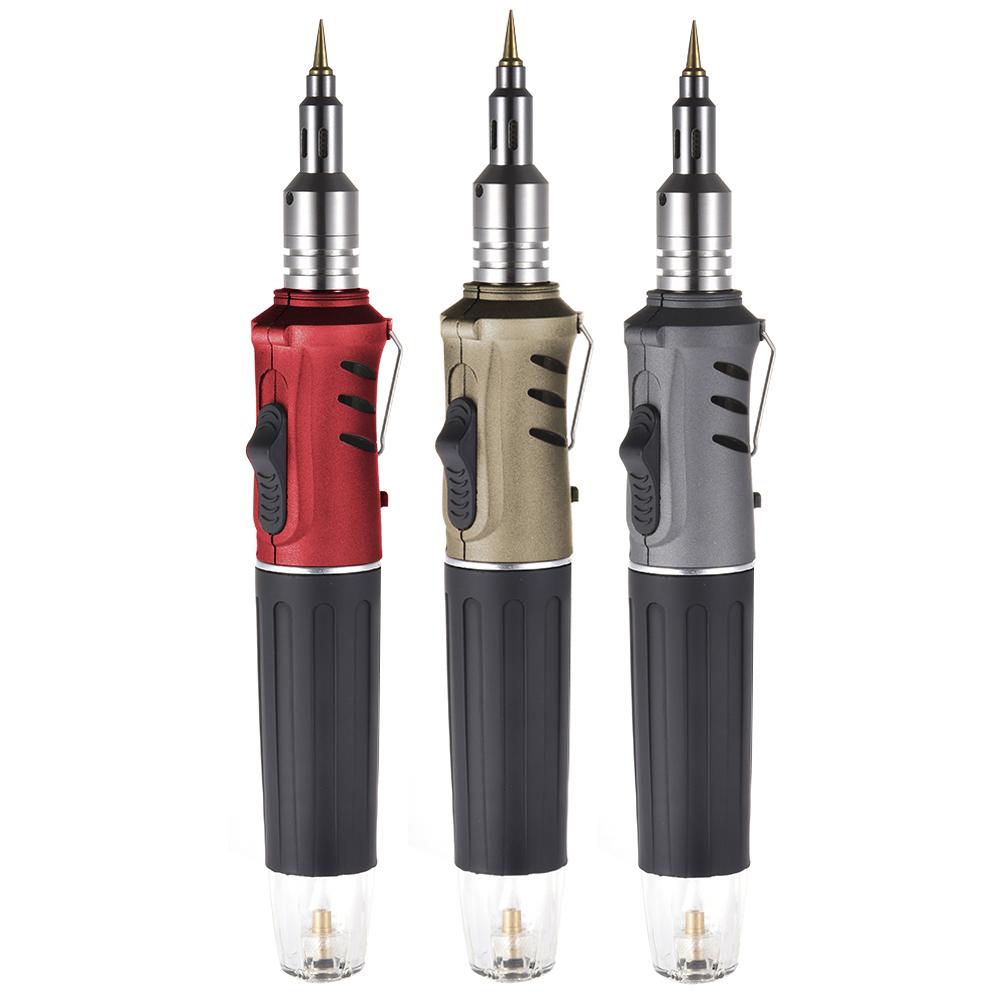

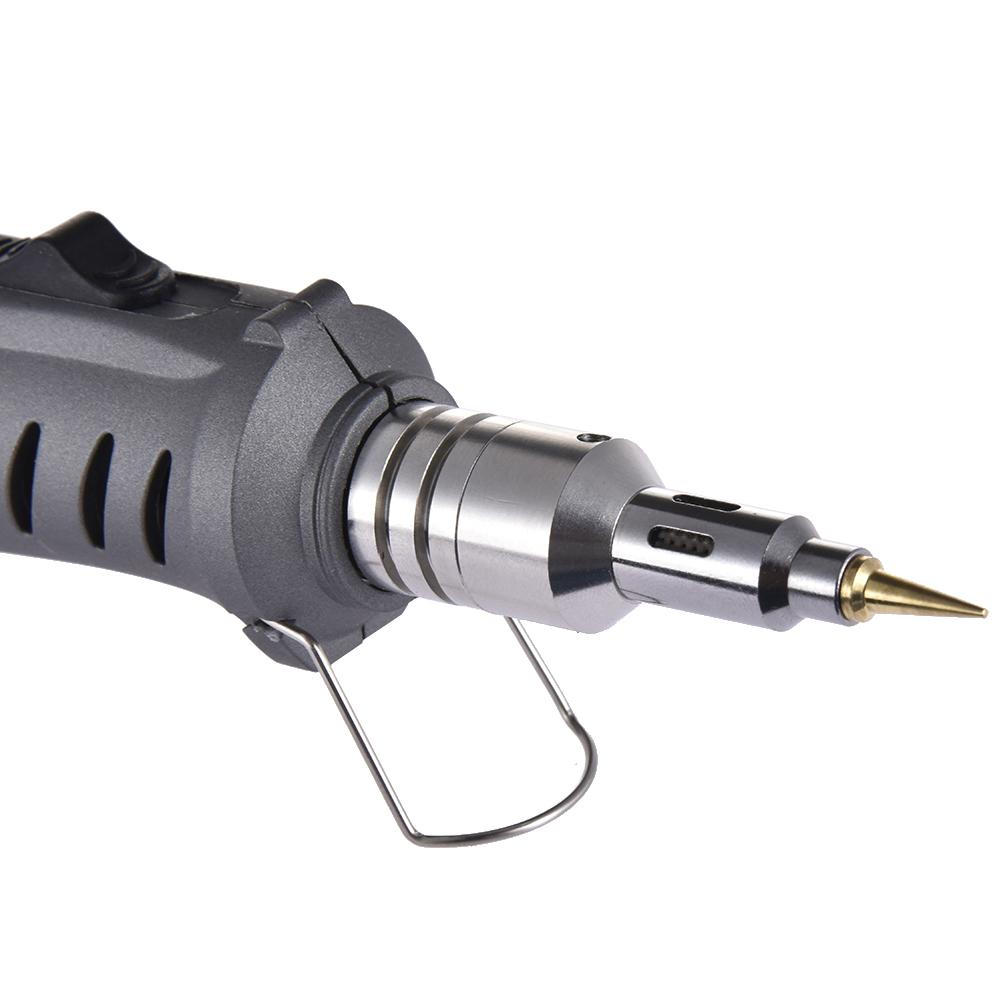

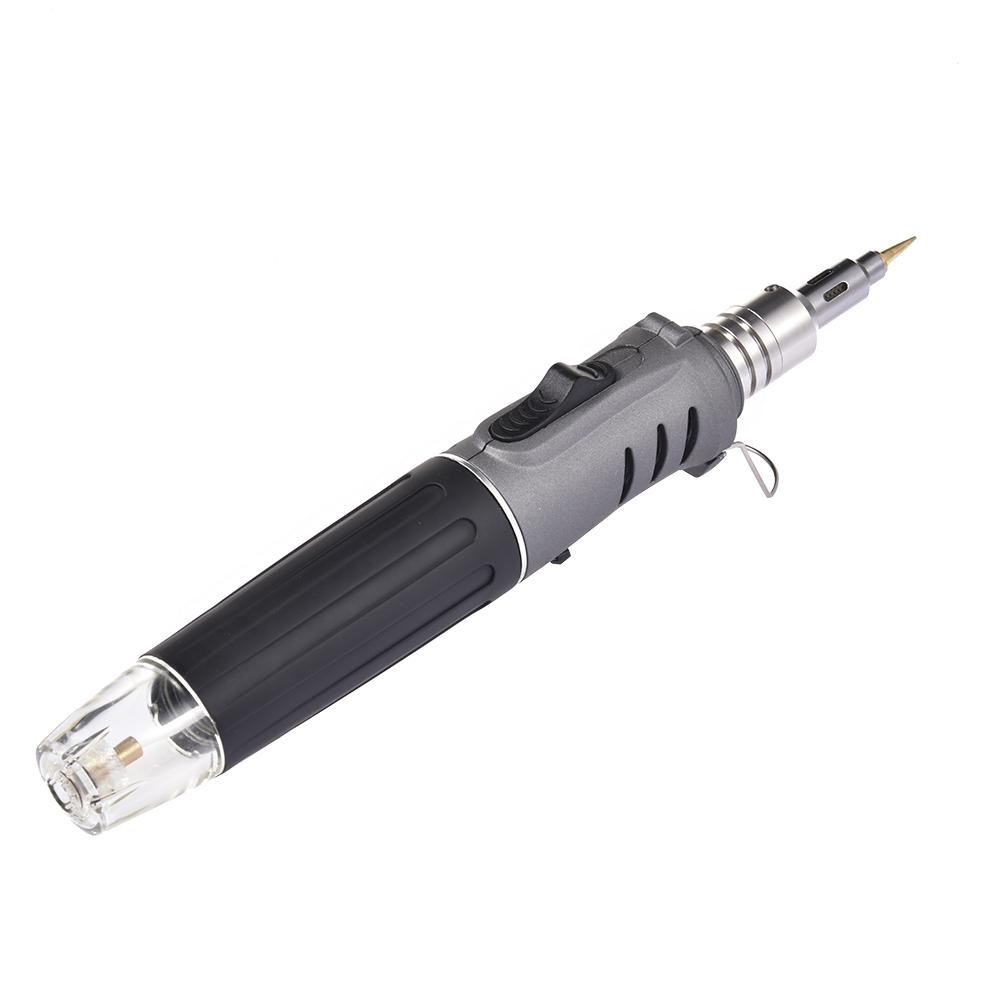

Gas Soldering Iron 3-In-1 Multifunctional Auto-ignition Adjustable Flame Butane Iron with Hot Air Gun Flamethrower for Jewelry Circuit Board

   Bullet Points:

  1、Multipurpose Soldering Kit: This soldering iron is ideal for electrical and jewelry repairs, circuit board, soldering and silver soldering, etc.

  2、Easy to Use: The soldering iron runs on butane gas and uses cordless operation. It is equipped with a self-ignition spark and its flame is adjustable that can be adjusted to 1/2 to 1 inch in length during use.

  3、Gas Container Capacity: The soldering iron with 26ml capacity, it can fast heating and heats faster than other iron with a plug. One inflation lasts about 50 to 100 minutes, which depends on use.

  4、Transparent Tail: The tail of soldering iron is transparent so that you can see the gas content directly.

  5、Auto-ignition Function: The feature of this soldering iron is auto-ignition and the player does not need to fire by a lighter, convenient to use!

   Description:

  Be sure to pay attention to the maintenance of the soldering iron head for the first time of use. Do not adjust the switch too large for the first time of use. At the beginning, it should be opened at a low temperature to tin. (The high quality tin wire has a high tin content and can be melted at a low capacity of 250-280 degrees. The cheaper tin wires have high melting points and generally can be melted at 350 degrees.) To tin is to evenly place the tin wire on the head of the soldering iron, that is, making its surface contains tin. Then adjust to 300-350 degrees to weld, but try to control welding at low temperature, that is to say, 350 degrees, 300 degrees and 280 degrees all can weld. Everyone knows that high-temperature welding will burn the tip of the soldering iron, which is oxidized and will be scrapped. After soldering, remember to apply tin to prevent the tip from oxidizing in the air. If the iron of the soldering iron is dark during soldering, it must be polished back and forth on the heat-resistant sponge and then tinned. It is necessary to develop such a habit. The heat-resistant sponge must be soaked in water and wrung out before use.

   Features:

  1. High capacity, 100-120 minutes for each full gas use.

  2. The transparent tail can directly see the gas content.

  3. High-end boxed storage box.

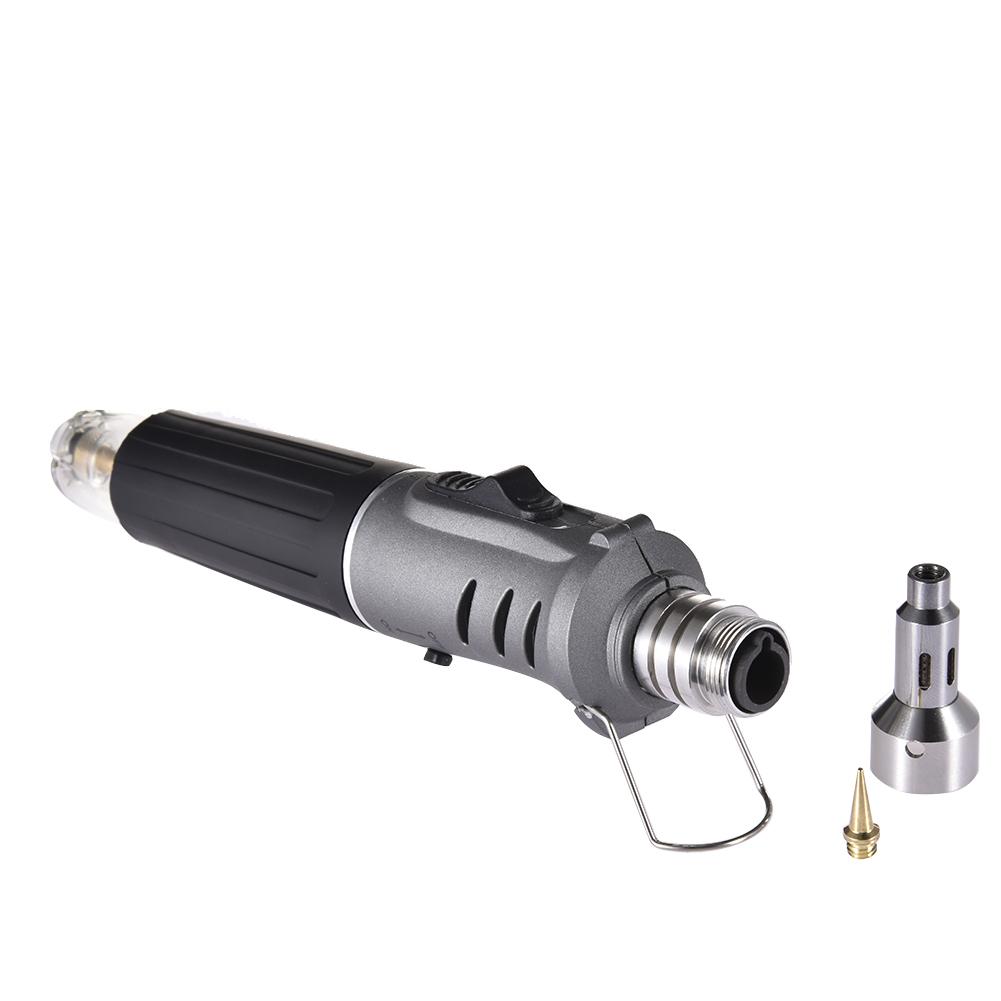

  4. Three functions: firstly can be used as a normal soldering iron, secondly can be used as a hot air gun (for heat shrink) when the soldering iron head is removed, thirdly removed the entire heating core then it can be used as a flamethrower, and the flame size can be adjusted.

   Specifications:

  Material: Engineering Plastic

  Weight: about 460g

  Outer packing: about 24.5*13*5.5cm/9.65*5.12*2.17in

  Flame temperature: 1300 ° C

  Tip temperature: 400 ℃

  Hot air temperature: 500 ℃

  Gas capacity: 26ML

  Use time: 50-120 minutes (depending on the use situation)

   Features: This product is equipped with an auto-ignition function, so players do not need to use a lighter to ignite. Easy to use! Lighting and use, the product is generous and beautiful. With safety switching device, the portable gas welding torch is compact and easy to carry. DIY production tools can be welded and repaired, using a lighter gas as energy, no voltage restrictions, no traditional soldering iron wires, which can be used anytime and anywhere. Changing different connectors can be converted to soldering, soldering iron and other functions!

   Wide Application:

  1. Slack corroded metal screw kit, laboratory heating research, kitchen baking tools, factory equipment maintenance

  2. Welding car, truck and aerial repair

  3. Electrical appliance, motor control box repair, welding, etc.

  4. Wire circuit board repair welding, IC board welding repair, home field circuit welding and  repair multi-purpose use

  5. Tin on components, soldering...

  6. Jewellery, eyewear repairs and plastic cutting

   Instructions:

  1. Tips for using the soldering iron: first turn the valve knob to the 4th position, and then push it upwards to the end and strike fire (after observing that the opening of the soldering iron core turns red), then slowly release the switch.

  2. Light a fire and observe carefully, the inside of the opening of the soldering iron head should turn red quickly. Actually, the temperature of the soldering iron tip is controlled by adjusting the gas volume. When adjusting the temperature, you can also judge the temperature by observing the brightness of the opening of the tip. Some customers are using the gas soldering iron for the first time, so there is a familiar and groping process. After lighting, it will burn for 5 seconds, and then return the flame adjustment ring to 2 or 2.5 gears, and the tip will continue to heat. Do not continuously increase the gear position during use the soldering iron function welding, as this will cause the plastic of the joint to melt due to the high temperature. When using a soldering iron, a low gear can be used, which is safe and saves energy.

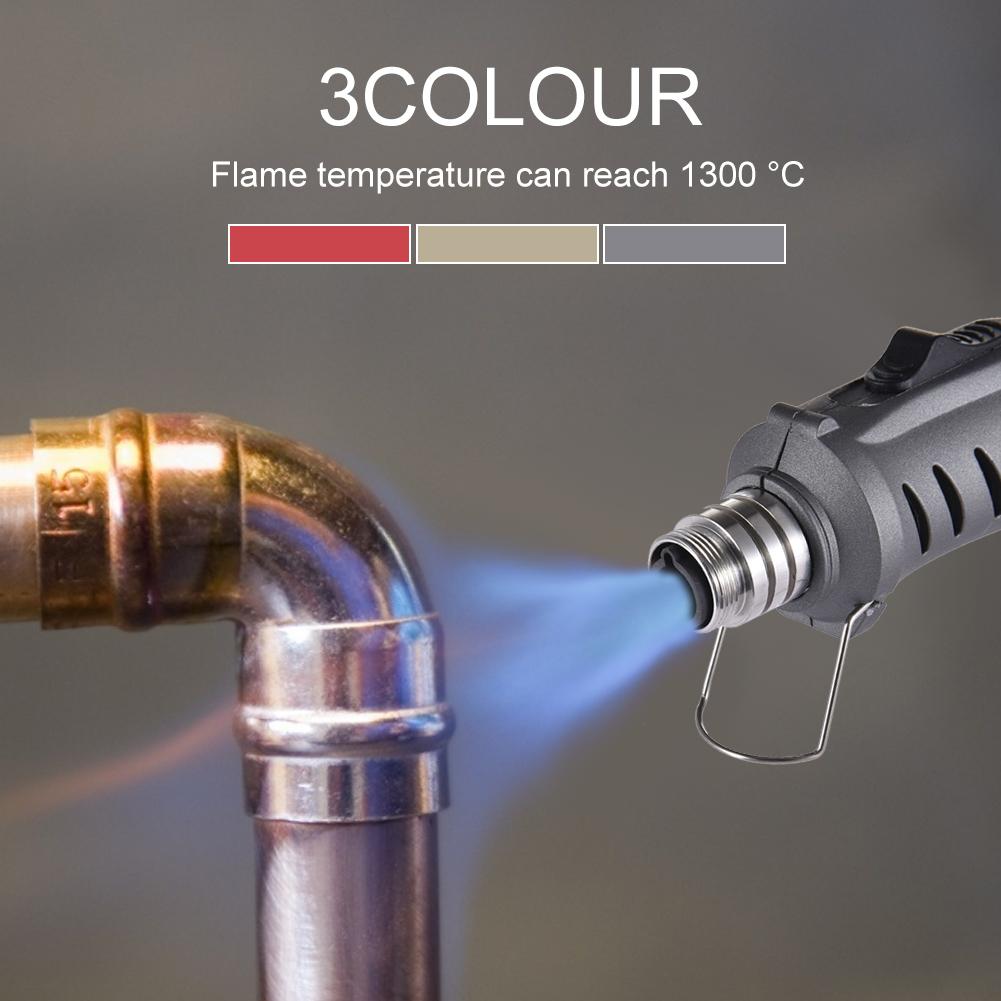

  3. When using a flamethrower, the temperature of this product is as high as 1300 °C (the temperature of the soldering iron is 400 °C). so please pay attention to your safety when using it.  When using the flamethrower and heat gun due to the high temperature and large air output, the size of the air output must be controlled to extend the service life of the soldering iron, and the correct technique should be determined according to the site. For example, if the flame at 1300 ℃ is continuously burning for 5 minutes, the plastic part on the side will be melted due to too long heat. At this time, the soldering iron should be turned off and examined whether it has the effect on work, and then reuse it after cooling down, turning off the switch after use.

  Packing List:

  1 * Gas Soldering Iron

  Note:

   This product excludes butane gas.
