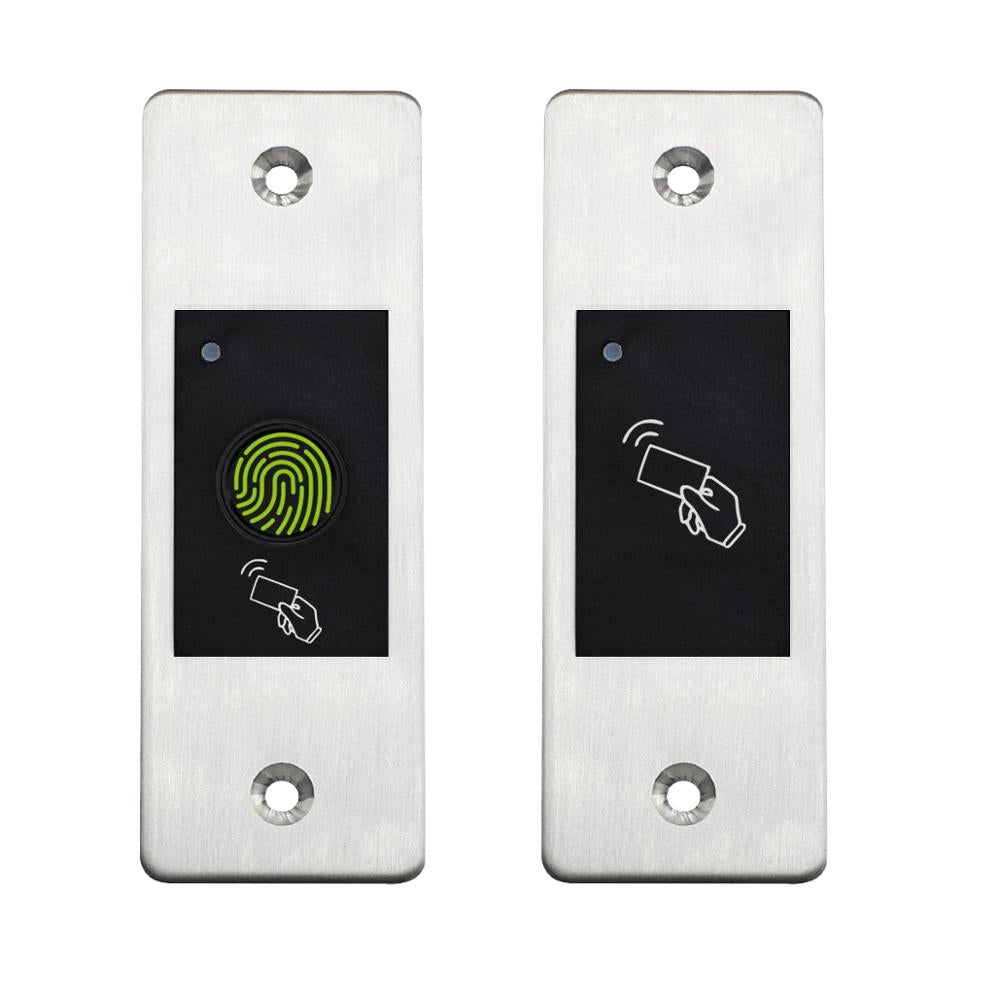

F99 is fingerprint RFID controller;
S99 is RFID controller, no fingerprint;
Choose it carefully! mounting Base is optional!!!!!!

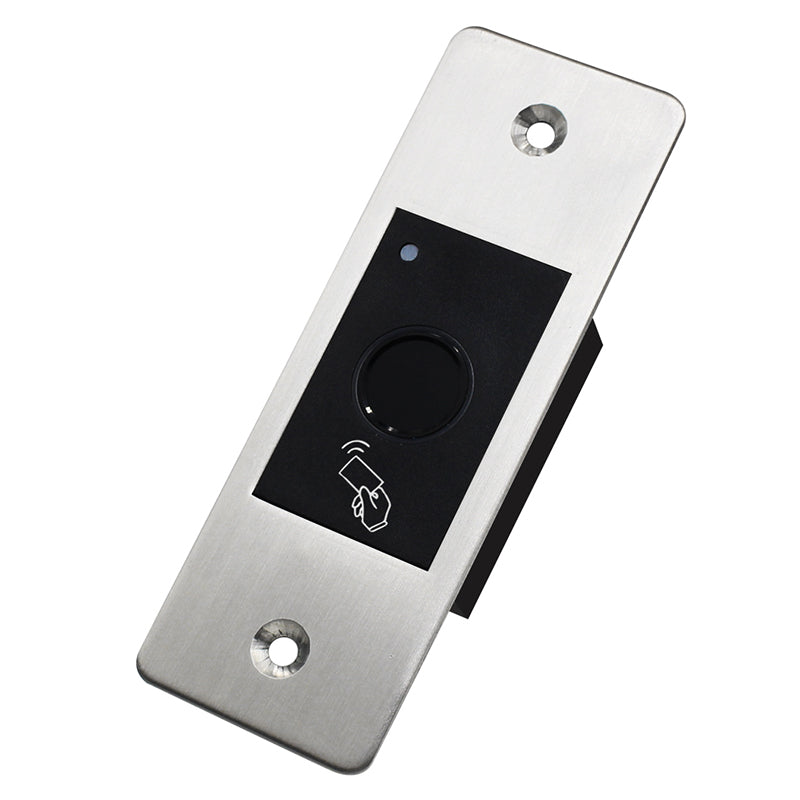

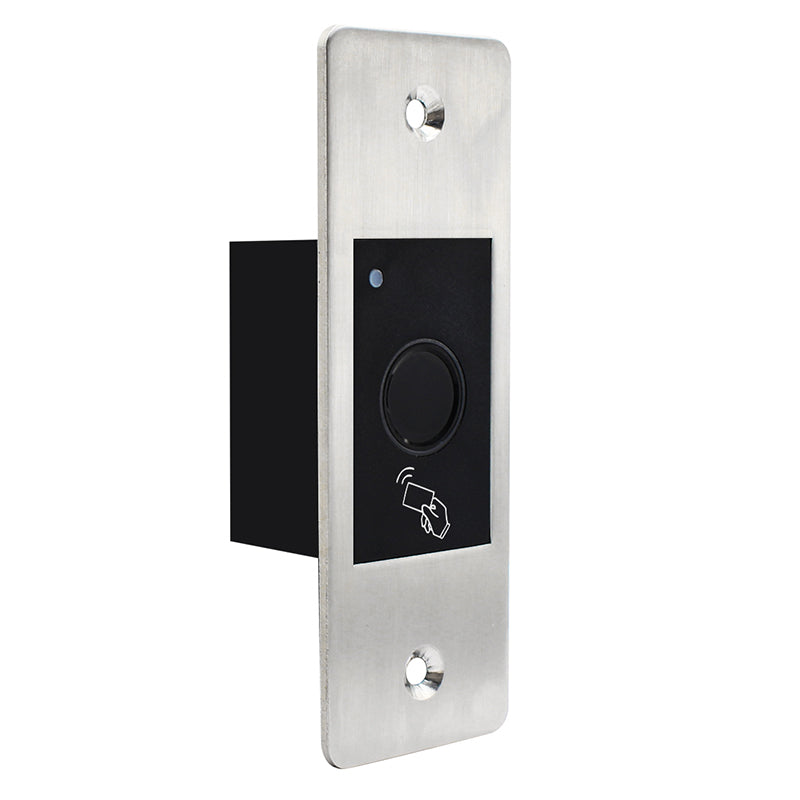

F99this is Mini Metal Case Standalone RFID/Fingerprint Access Control with Embedded Design.
Support Fingerprint and 125KHz EM Cards.
It is an ideal choice to install on door frame.
IP66 Waterproof is very sitable for outdoor use.
It support Master card and Master fingerprint for easy opeation.
Feature:
> Embedded Design with Mini size
> Metal case and IP66 Waterproof
> User capacity:800 Fingerprint and 3000 Cards
> One programmable relay operation
> Latch mode to hold door and gate open
> Tri-colour LED status display
Product Name
Mini Metal IP66 Waterproof Fingerprint Standalone Controller support 800 Finger and 3000 Cards
User Capacity
800 Fingerprints and 3000 Cards
Operating Voltage
DC9~24V
Idle Current
25mA
Active Current
100
Proximity Card Reader
EM
Radio Technology
125KHz Proximity Card
Read Range
50px
Wiring Connections
Relay Output, Exit Button
Relay
One (NO, NC, Common)
Adjustable Relay Output Time
o-99 seconds (5 seconds default)
Lock Output Load
2 Amp Maximum
Environment
Meets lP66
Operating Temperature
-25~60 (-13°F ~140°F)
Operating Humidity
20%RH-98%RH
Physical
Zinc-alloy plate
Colour
Silver
Dimensions
L115xW40xH30mm

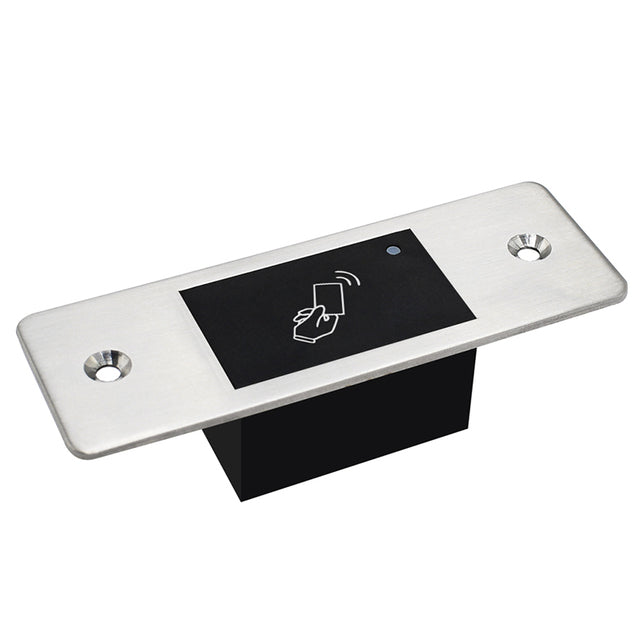

S99this is Mini Metal Case Standalone RFID Access Control with Embedded Design.
Support 125KHz EM Cards.
It is an ideal choice to install on door frame.
IP66 Waterproof is very sitable for outdoor use.
It support Master card for easy opeation.
Feature:
> Embedded Design with Mini size
> Metal case and IP66 Waterproof
> User capacity:support 3000 Cards
> One programmable relay operation
> Latch mode to hold door and gate open
> Tri-colour LED status display
User Capacity
3000 Cards
Operating Voltage
DC9~24V
Idle Current
25mA
Active Current
100
Proximity Card Reader
EM
Radio Technology
125KHz Proximity Card
Read Range
50px
Wiring Connections
Relay Output, Exit Button
Relay
One (NO, NC, Common)
Adjustable Relay Output Time
o-99 seconds (5 seconds default)
Lock Output Load
2 Amp Maximum
Environment
Meets lP66
Operating Temperature
-25~60 (-13°F ~140°F)
Operating Humidity
20%RH-98%RH
Physical
Zinc-alloy plate
Colour
Silver
Dimensions
L115xW40xH30mm
Explanation: some buyer may choose the reader with base,in some cases, there is a smaller gap from the base to the reader; the buyer needs to cut the redundant plastic part to fit the base;showing as the following pictures:
