Feature:

 1. Efficient Output: The output power of each solar panel has been optimized, which can obtain the highest power point tracking MPPT, and reduce the occlusion caused by obstacles such as shadows.

 2. Low Input Voltage: The input voltage and starting voltage are low, usually within 18‑60V DC voltage, which can better protect the use and safety of the inverter and system, and reduce the possibility of electric shock.

 3. Capacity Expansion: The use of this micro inverter can expand the installed capacity of the system on the basis of the original solar system without replacing the inverter.

 4. Multiple Protection: With over and under voltage protection, over and under frequency protection, anti islanding protection, over current, overload, over temperature protection, safe and reliable.

 5. WiFi Control: The inverter can be controlled by WIFI, the communication connection method is WiFi 2.4G, with working status LED light and Wifi signal light indication, more convenient for operation.

     Specification:

     Item Type: 600W Solar Grid Tie Inverter

 Material: Aluminum alloy, copper

 DC Input:

 Recommended Solar Panel Input Power (W): 200-300Wx2

 Number of DC Input Connections (Group): 2

 Maximum DC Input Voltage: 52V

 Operating Voltage Range: 20-50V

 Start Voltage: 18V

 MPPT Tracking Range: 22-48V

 MPPT Tracking Accuracy: >99.5%

 Maximum DC Input Current: 12Ax2

 AC Output:

 Maximum Output Power: 600W

 Rated Output Voltage: 230V

 Rated AC Current (at 230V): 2.6A

 Rated Output Frequency: 60Hz

 Output Frequency Range (Hz): 58.9-61.9Hz

 Total Harmonic Distortion Power Factor: <5%

 Maximum Number of Branch Connections: 10

 Maximum Conversion Efficiency: 95%

 CEC Efficiency: 92%

 Night Loss: <80MW

 Overvoltage Undervoltage Protection: Yes

 Over Under Frequency Protection: Yes

 Anti Islanding Protection: Yes

 Overcurrent Protection: Yes

 Overload Protection: Yes

 Over Temperature Protection: Yes

 Protection Class: IP65

 Working Ambient Temperature: -40°C to +65°C

 Number of Indicator Lights: 1 x LED light for working status, 1 x Wifi signal light

 Communication Connection: WiFi 2.4G

 Cooling Method: Natural cooling (no fan)

 Working Environment: Indoor and outdoor

 Certification Standard: ENG1000-3-2, EN61000-3-3. EN62109-2, ENS5032, EN55035, EN50438

     Package List:

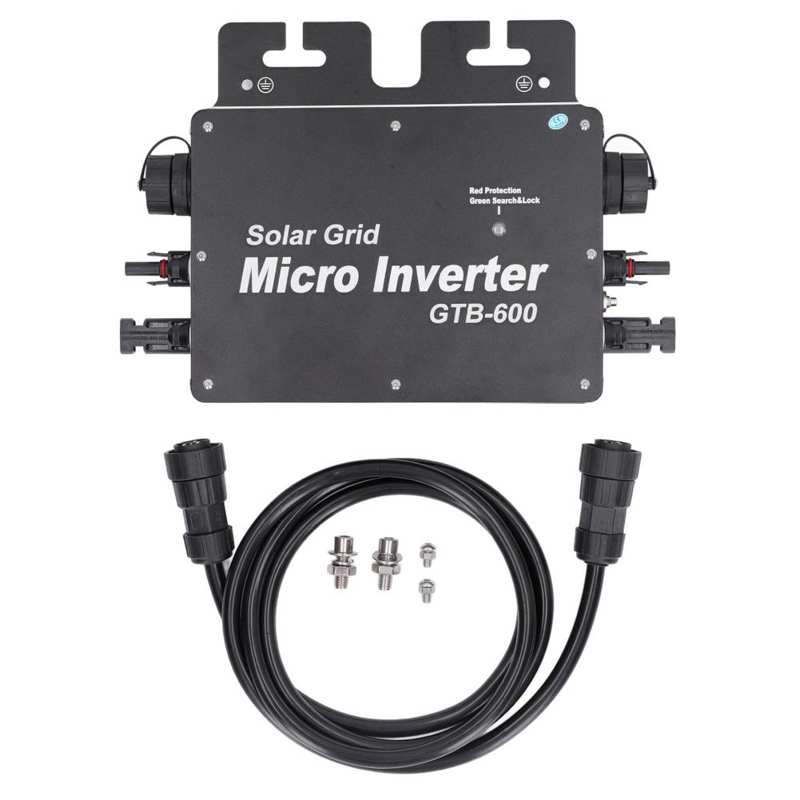

 1 x 600W Solar Grid Tie Inverter     1 x Manual

     1 x Connection Wire

     4 x Screw
