2. Buckle down the card slot cover, press it and lift it up
3. Another card slot cover, the connection belt is inserted into the card slot
4. Buckle down the card slot cover and press it tightly

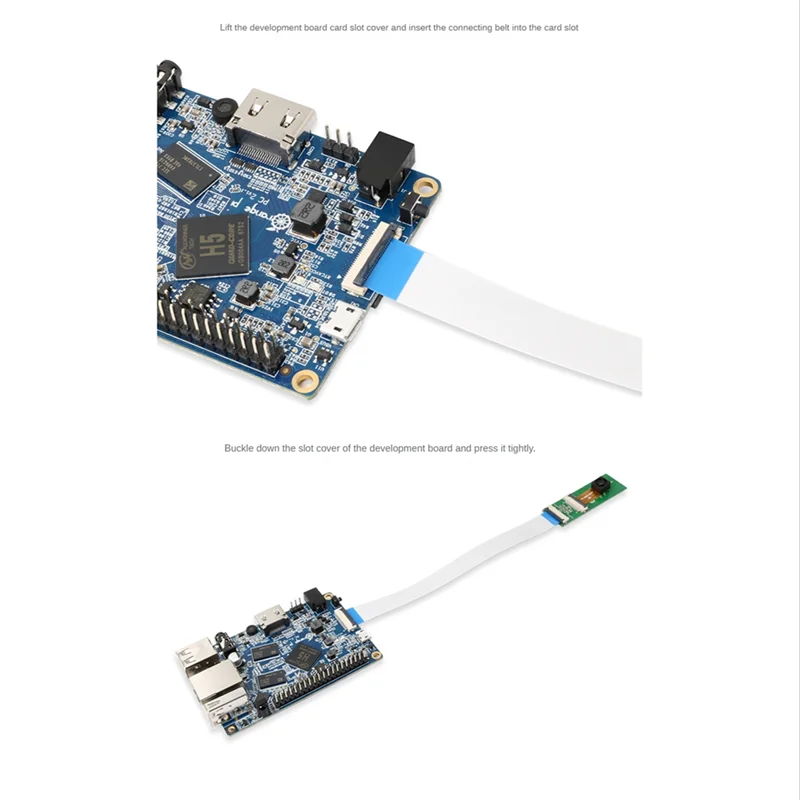

5. Lift the card slot cover of the development board, and insert the connection belt into the card slot

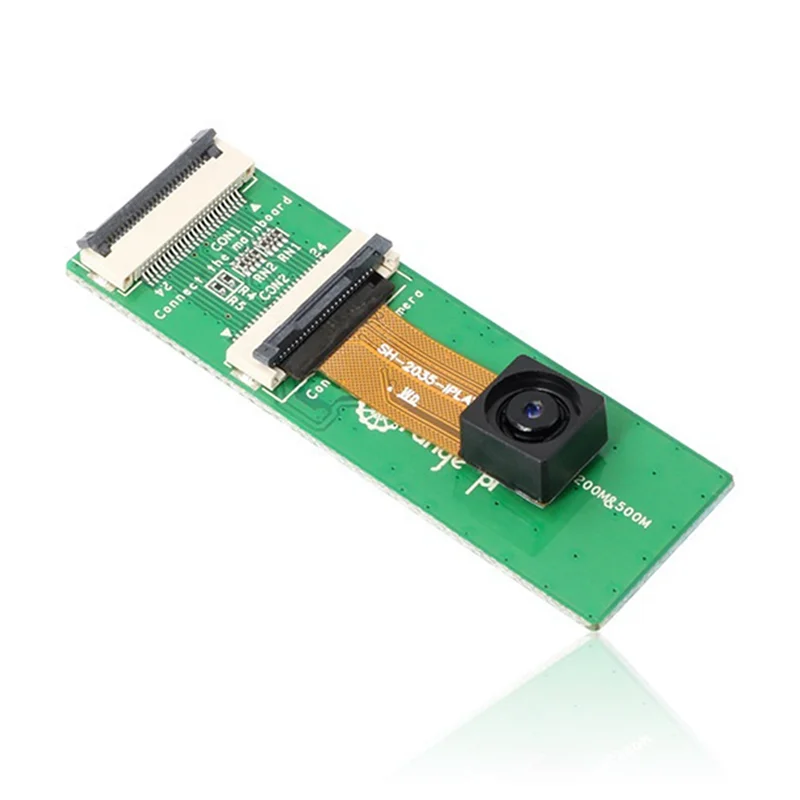

Product name: Camera module
Pixel: 200W /500W
Color number: 24bit True colo
Focal length: 2.8mm
Aperture number: 2.5
Shooting range: 0.15m to infinity
Field of view: 70°
Distortion: Less than 1%
Relative Illumination: Greater than 65%
Image transmission rate: 30 / 60fps
White balance: Automatic
Gain: Automatic
Exposure control: Automatic
Output signal: YUV Cbc/GRB 4 : 2.2/RGB565/555/444/RAWRGB
Coded output: Analog or digital video
Output pin: 24pin
Working voltage: 1.7V-3.0V
Consumption: Active: 60mw / Standb: Less than 20UA

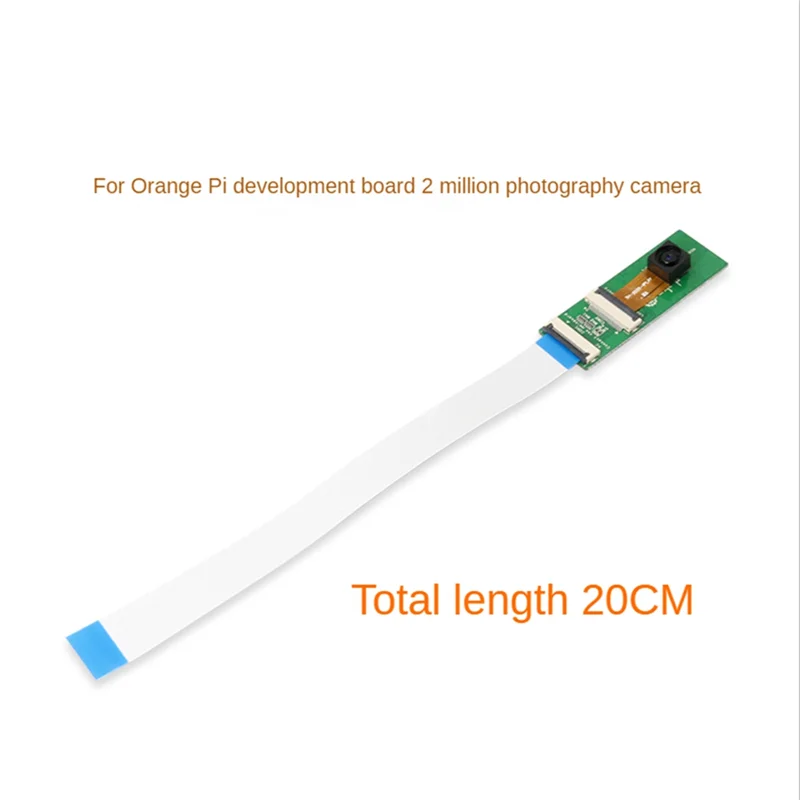

Length: 20cm
Note: 200W pixels, the camera can be used directly under the Android image, under the Linux image, please download the gc2035 driver first (the corresponding model of the Linux image contains the driver)
Material: PCB
colour: green

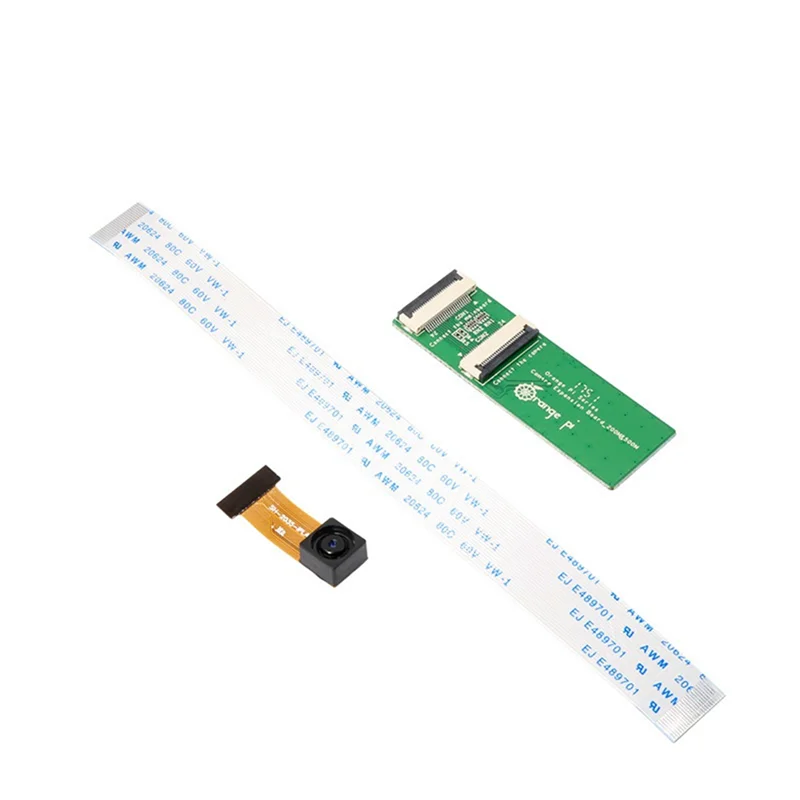

Package Contents:
1 x camera module
1 x cable
