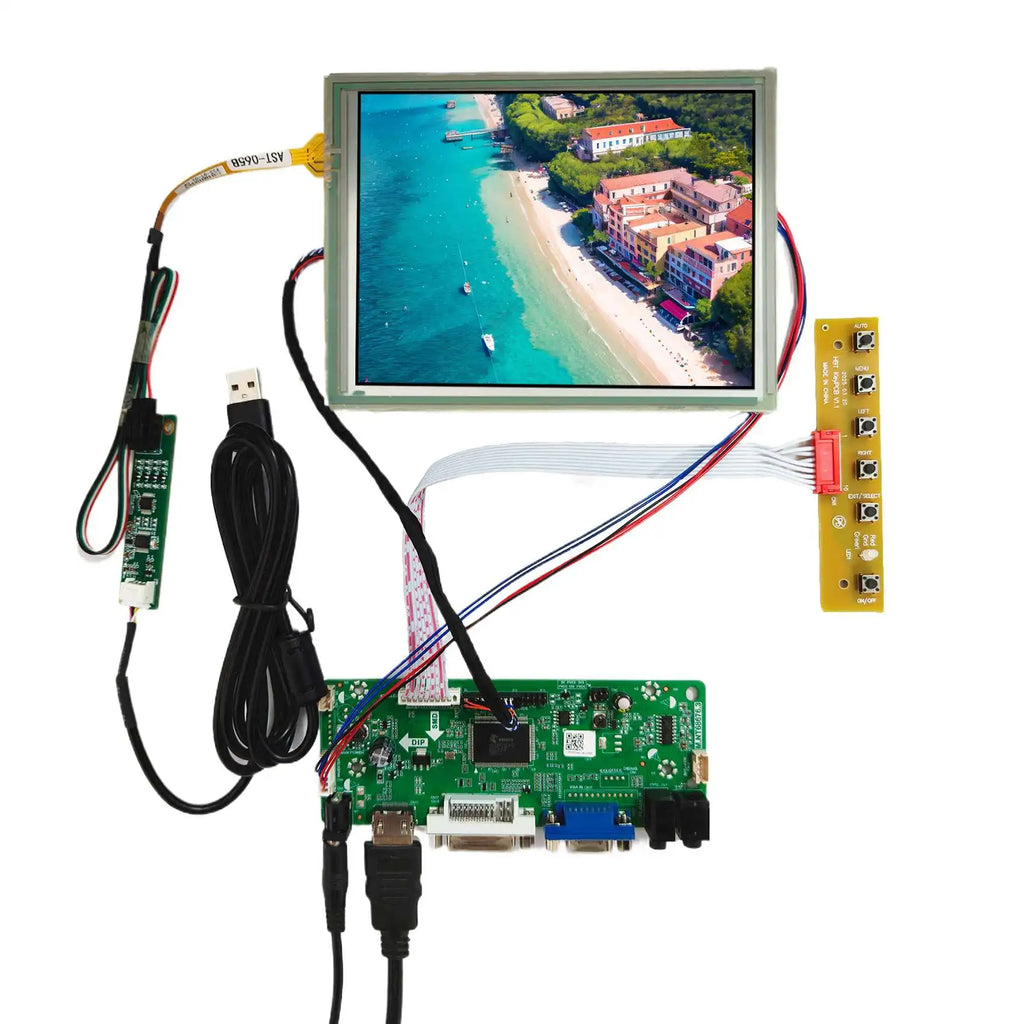

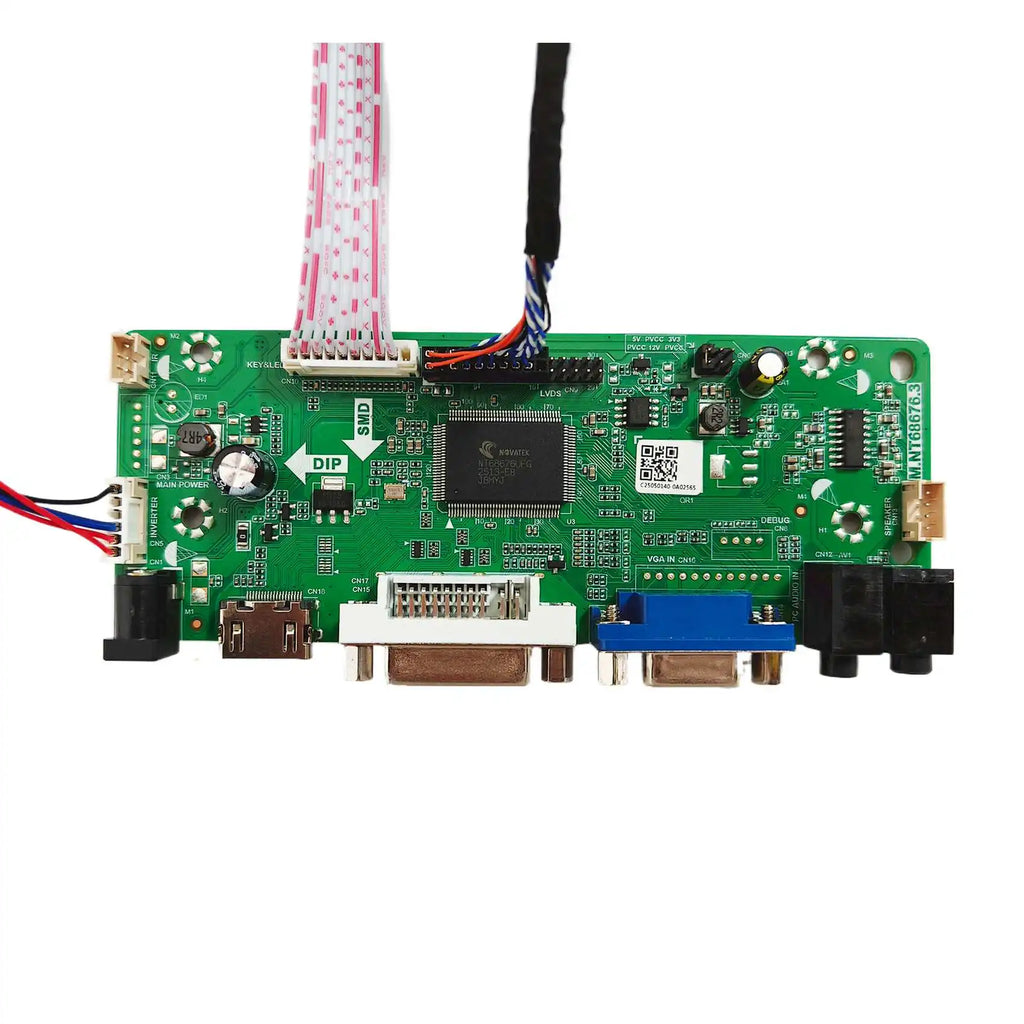

LCD Controller Board:
H/D DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: H/D DVI VGA
Audio Input: HD
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 53mm x 17mm

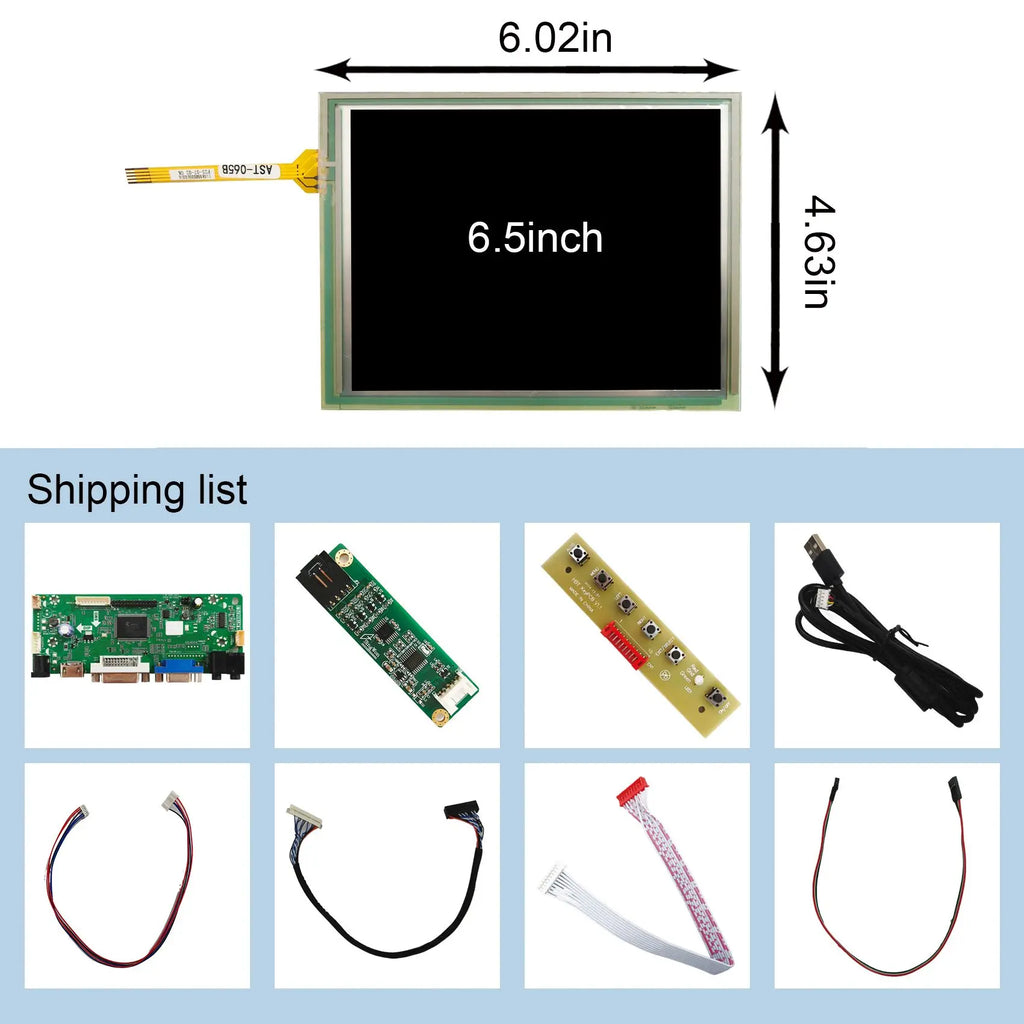

6.5" G065VN01 V2 640X480 LCD With Resistive Touch Sensor:
Display Mode TN, Normally White, Transmissive
Resolution 640RGB)×480
Outline Size 153 × 118×11.2 (H×V×D)
Display Area 132.48× 99.36 (H×V)
Brightness 800 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 80/80/70/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface 20 pins LVDS (1 ch, 6/8-bit) , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)
