Note: This item comes unassembled, soldering of headers is required. Lithium battery is not included.

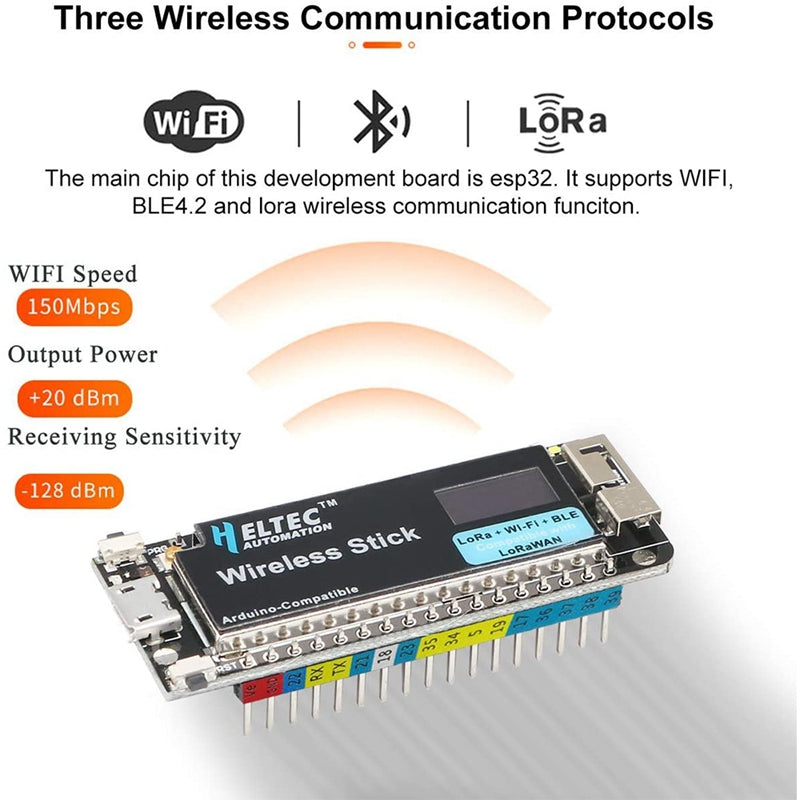

wireless online
802.11 b/g/n/e/i
802 802.11 n (2.4GHz), speed up to 150Mbps
802 802.11 e: Realize the QoS mechanism of wireless multimedia technology
WMM-PS, UAPSD
MPDU and A-MSDU frame aggregation technology
Block recovery, fragmentation and reorganization
Beacon automatic monitoring/scanning
802 802.11 i security features: pre-authentication and TSN
Support WPA/WPA2/WPA2-Enterprise/WPS encryption
Infrastructure BSS Station Mode / SoftAP Mode
Wi-Fi Direct (P2P), P2P discovery, P2P GO mode and P2P power management
Support IPv6
Bluetooth
Bluetooth v4.2 complete standard, including traditional Bluetooth (BR/EDR)
And Bluetooth Low Energy (BLE)
Support standard Class-1, Class-2, Class-3 without external power amplifier
Enhanced precision power control
Output power up to +10 dBm
NZIF receiver, BLE receiving sensitivity is -128 dBm
Adaptive Frequency Hopping (AFH)
Standard HCI based on SDIO/SPI/UART interface
High-speed UART HCI up to 4 Mbps
Support BT 4.2 controller and host protocol stack
Service Discovery Protocol (SDP)
Generic Access Application (GAP)
Safety Management Protocol (SMP)
Bluetooth Low Energy
ATT / General Agreement on Tariffs and Trade

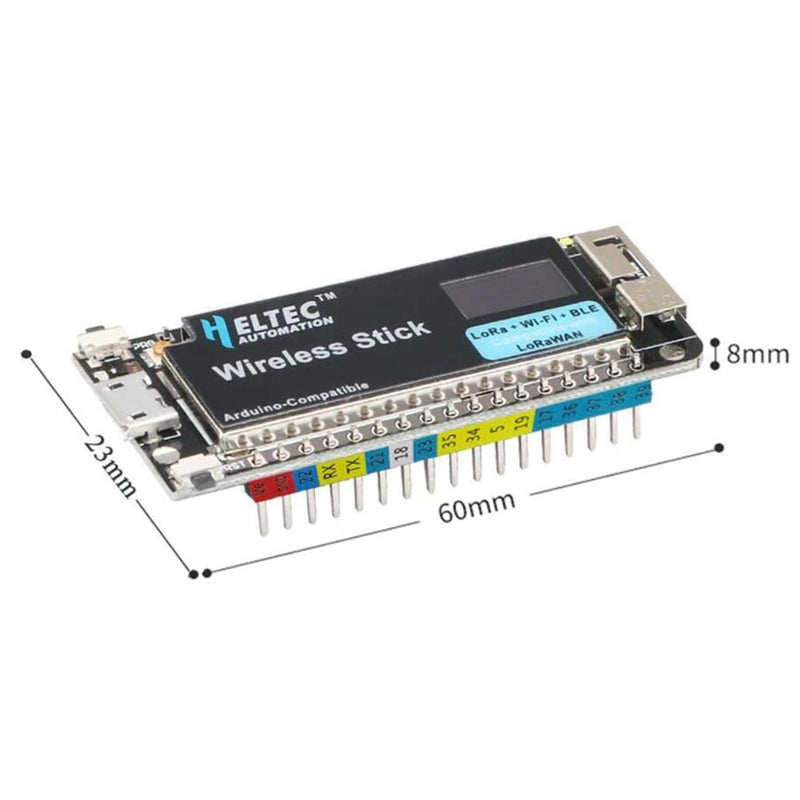

size: 60x23x8mm
Material:PCB+metal
colour:Black

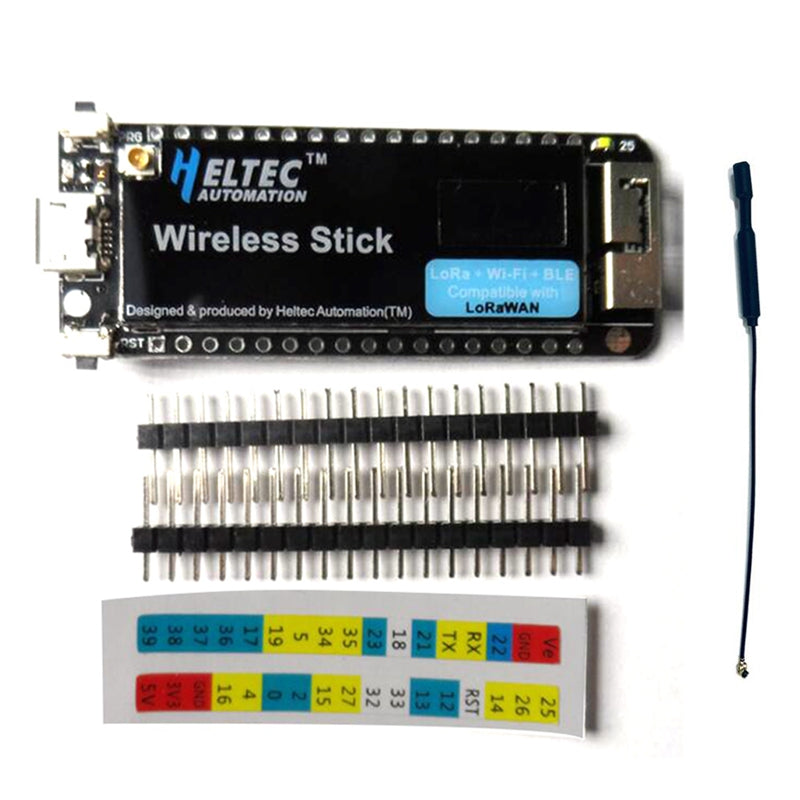

Package Contents:
1 x esp32 lora development board(Unsoldered)
1 x 868-915mHz Antenna
1 x Pin sticker
2 x Pin headers
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
