Specifications:
Power supply voltage: 12V
Size: 4.4cmx3.4cmx2.8cm

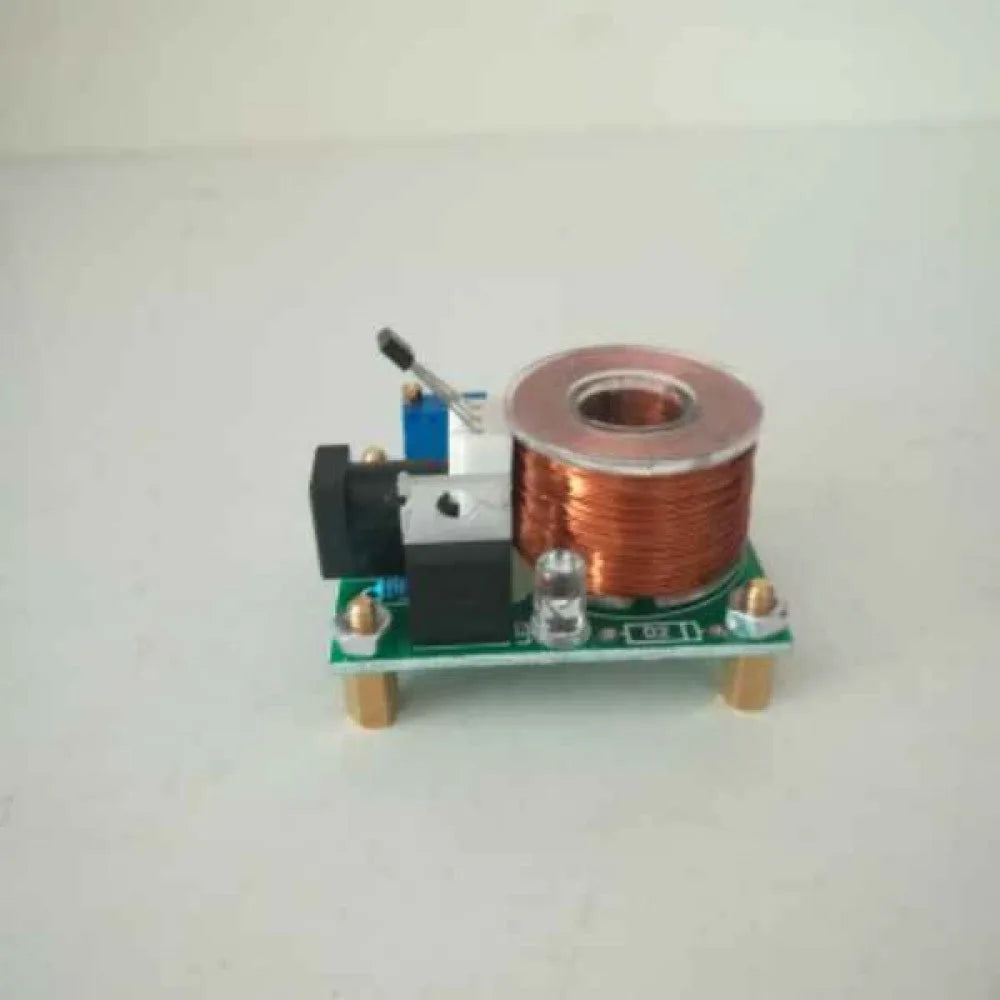

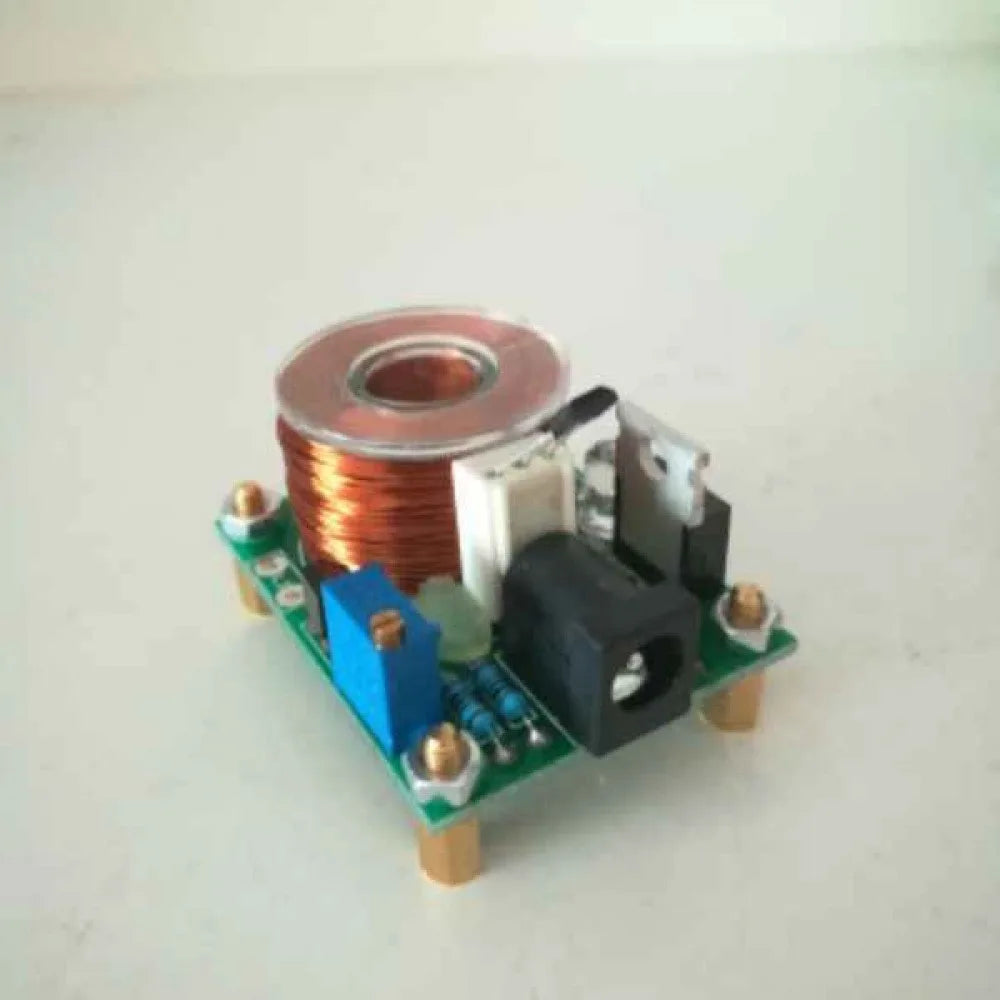

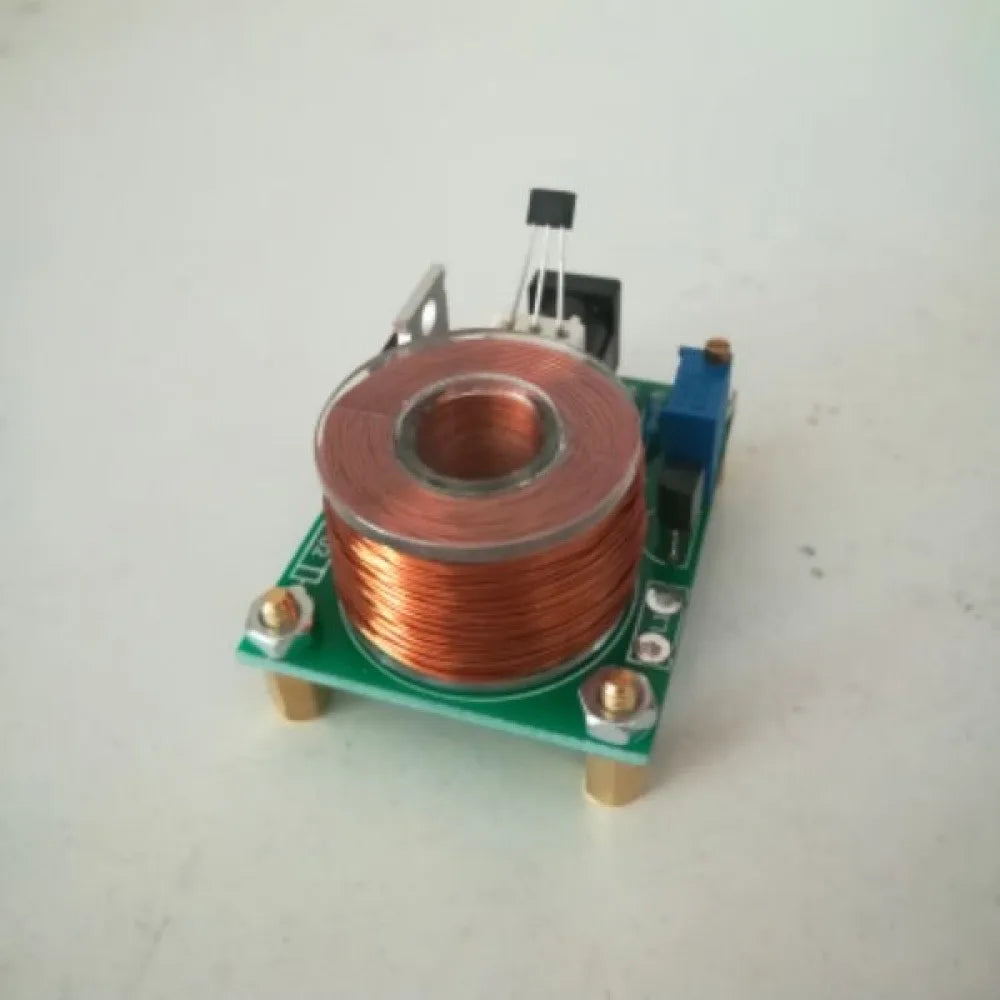

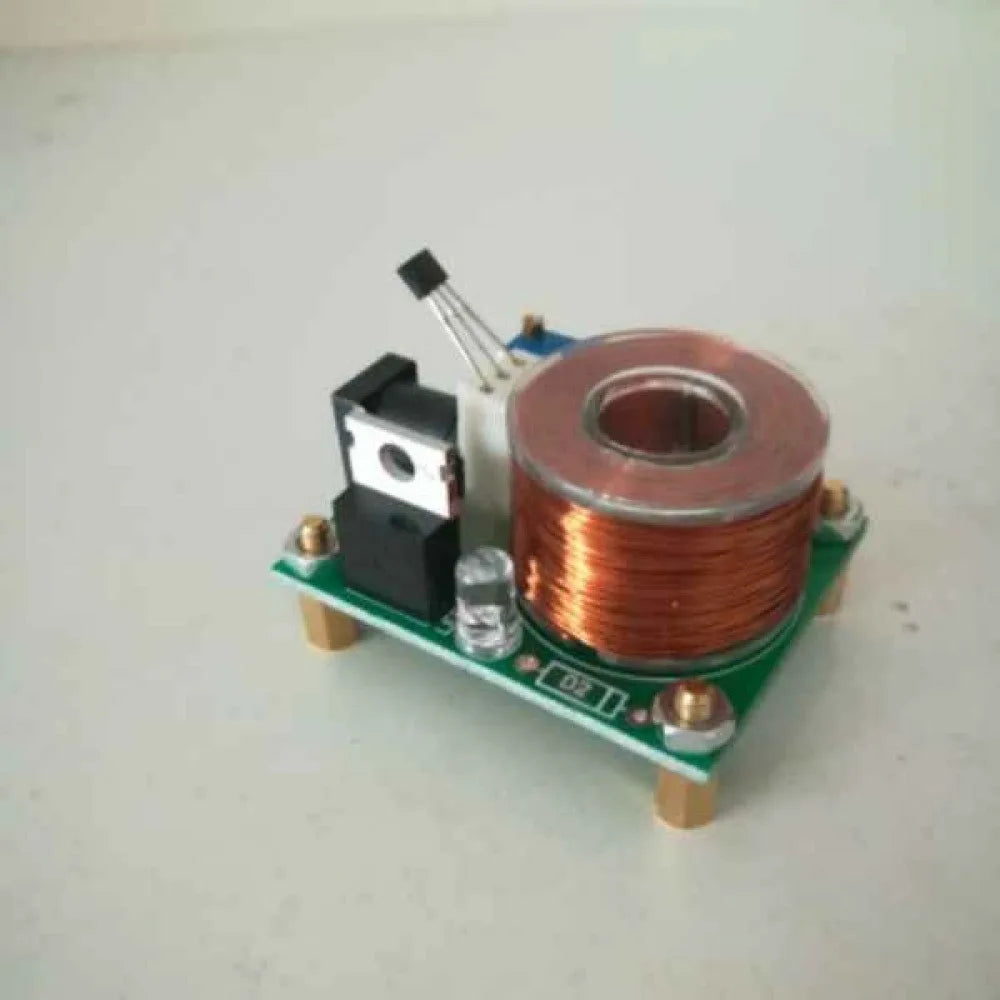

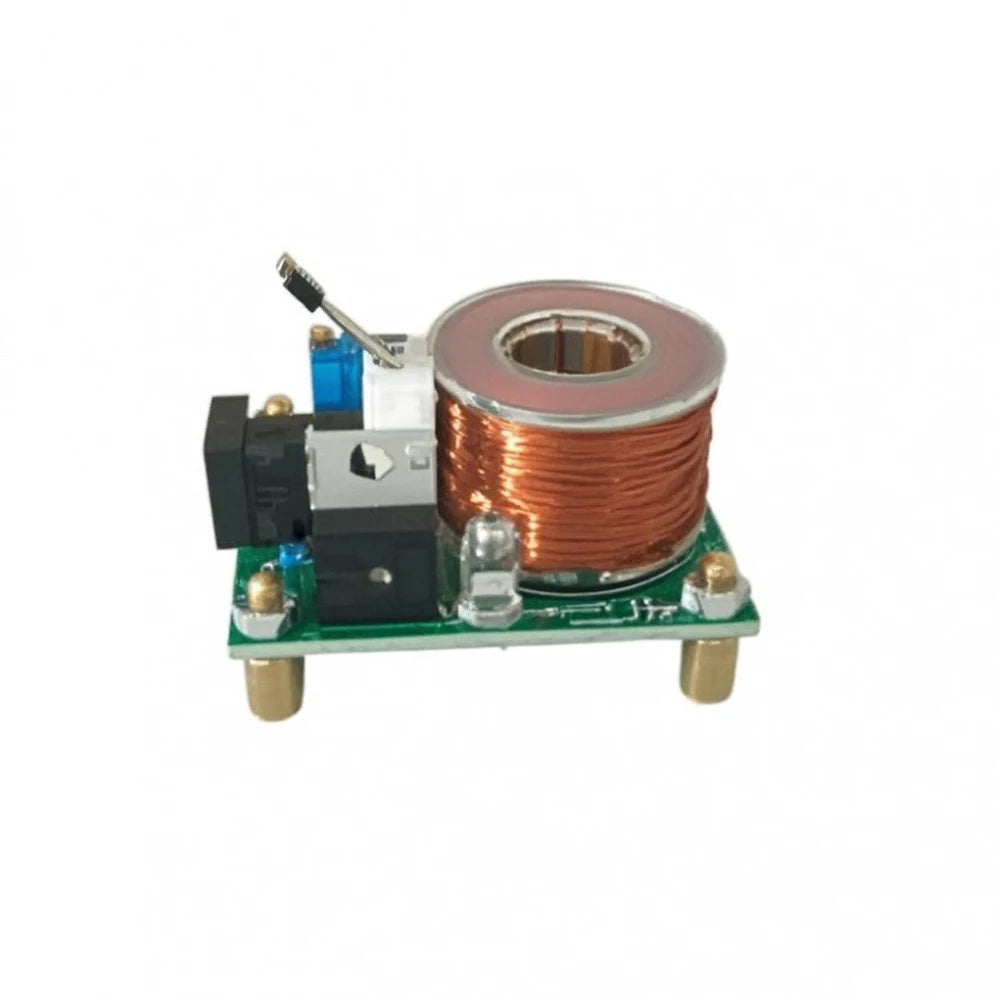

The modular design is adopted, and the drive circuit is integrated with the coil. The circuit structure was optimized and an efficient driving mode was adopted

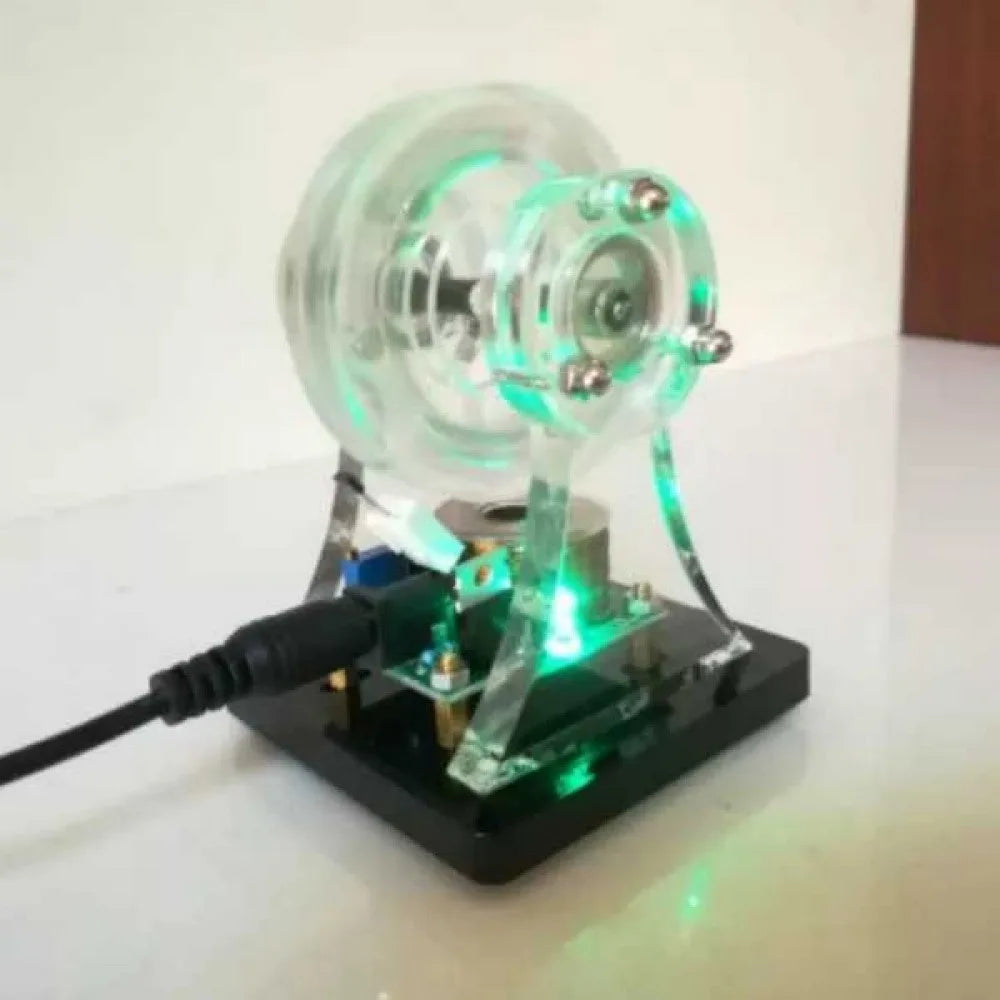

Hall sensor drive modules can be used to make: magnetic motors, brushless motors, Hall motors, or for teaching and experimental demonstrations.
Working principle: When the S pole of the magnet approaches the Hall sensor, the sensor is triggered and the coil is energized to generate a magnetic field. The polarity of the magnetic field generated by the coil is determined by the winding direction of the coil. In fact, the polarity of the generated magnetic field can be changed by switching the pins of the coil connected to the circuit board, making the upper end of the coil either the S pole or the N pole.
Note:
1.Due to the light and screen difference, the item's color may be slightly different from the pictures.
2.Please allow 1mm-1cm differences due to manual measurement.
Package Includes:
1x Motor Drive Module
