Handheld Electrostatic Tester Field Strength Meter Measuring Range To (+/-) 1.49Kv Digital Test Field Strength Fmx-003
Specification:
Measuring range: 0 to ±1.49KV (low range)
±1.0kV to ±20.00kV (high range)
(Hysteresis range: ±1.0kV to ±1.5kV)
0 to ±200V (low balance measurement range)
Measuring distance: 1''±1/64'' (25mm±0.5mm), LED guides correct distance (between object and field meter)
Response time: <1s
LCD display update rate: 5 times/second
Accuracy: ±10%
Environmental conditions: 50°-100°F, (10°-40°), 0-60%RH (non-condensing)

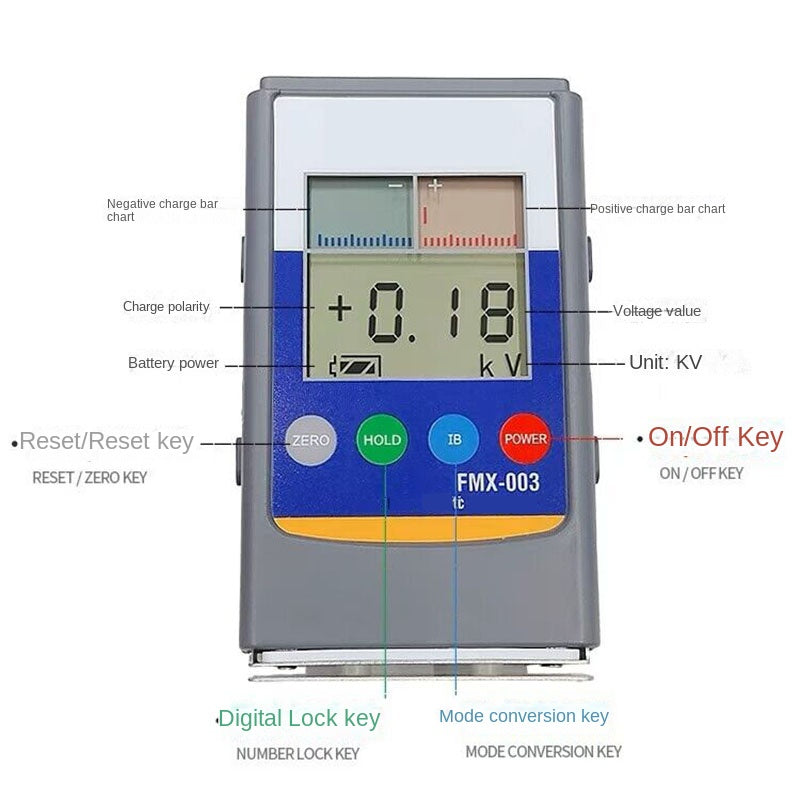

Display characteristics: bar graph, red LCD positive polarity voltage, blue LCD negative polarity voltage
Bar graph accuracy: low range ±0.1kV, high range ±1.5kV, ion balance range ±15V
Digital readout: auto range, three digits x.xx=0 to ±1.49kV
xx.x=±1.0kV to ±20.0kV(Hi)
xxx=0 to 200 (long term balance)
lon balance mode display: display (IB)
Battery capacity display indicator
HOLD switch to hold display after measurement
If the sensor is damaged, an error flag (ERR) will appear
Alarm function: a buzzer will sound during the following actions;
Power on: one beep
Power on with auto-shutdown disabled: {Press the power button
more than 3 seconds}Three beeps
Auto Power Off: Short beeps at 1 second intervals for 5 seconds
before power outage
Overrange: continuous sound
Auto Power Off: Automatically power off after five minutes, { A OFF} will be displayed when this function is disabled
Dimensions: 123mm (L) x 73mm (W) x 25mm (D)
Weight: 170 grams
Shell material: conductive resin (ABS)
feature:

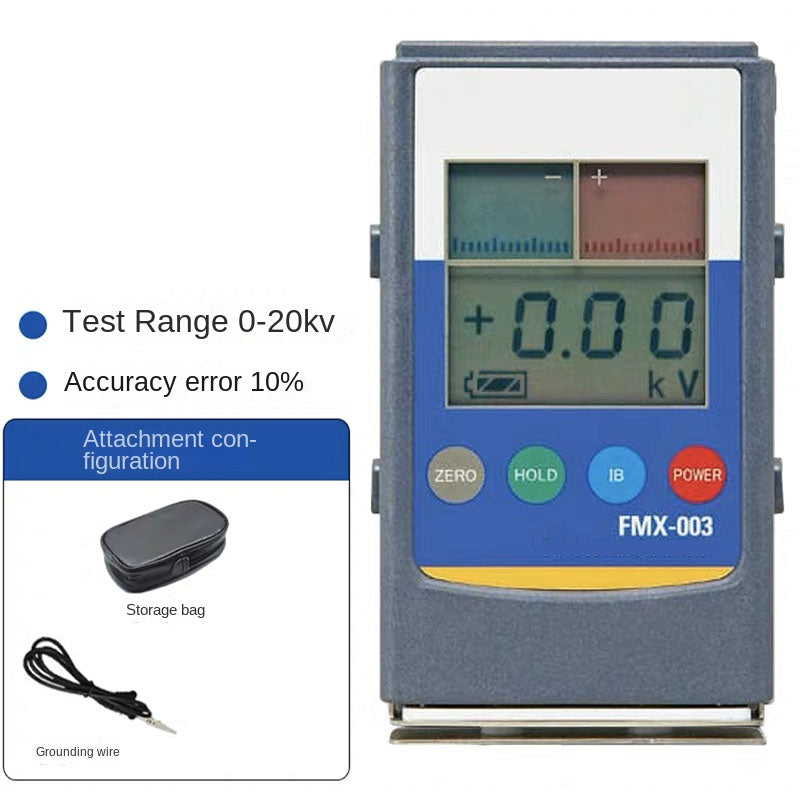

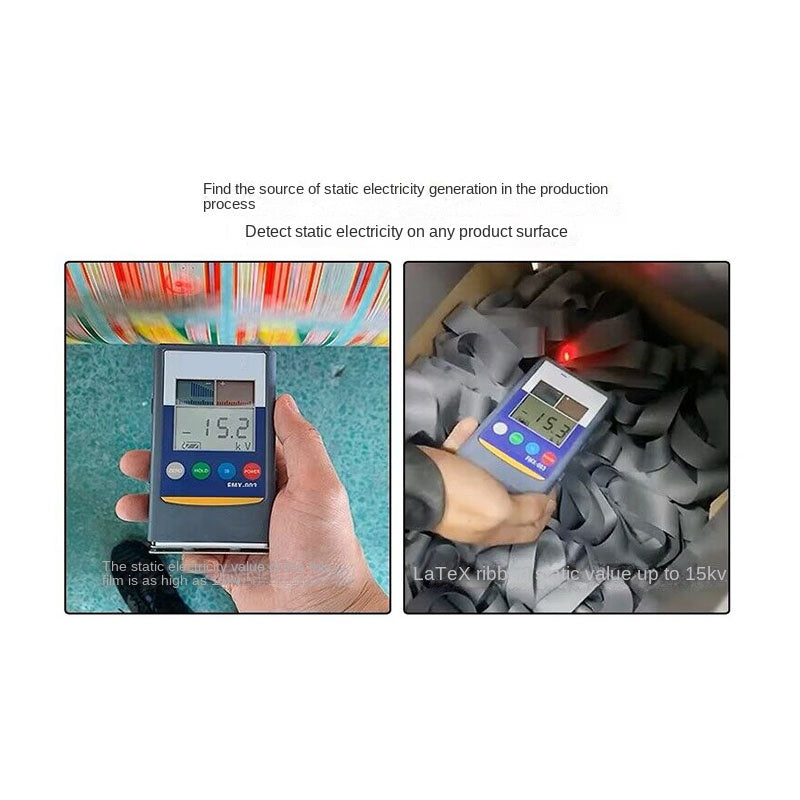

FMX-003 Electrostatic Field Mirror Reflectometer is a non-contact portable electrostatic field measuring instrument. It is the ion correction for measuring the electrostatic value of the surface of the object and measuring the static elimination equipment.
1. Easy to read, easy to use and operate
2. Light weight and compact design
3. Range light ensures accurate and repeatable measurements
4. Digital and bar graph display
5. Automatic shutdown after five minutes (can be disabled if you wish)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
