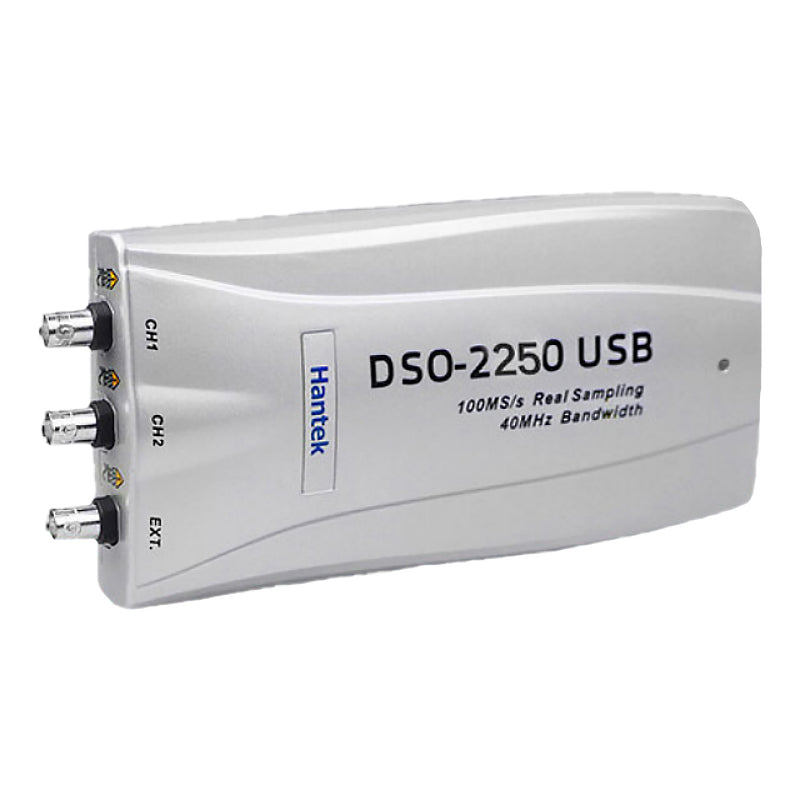

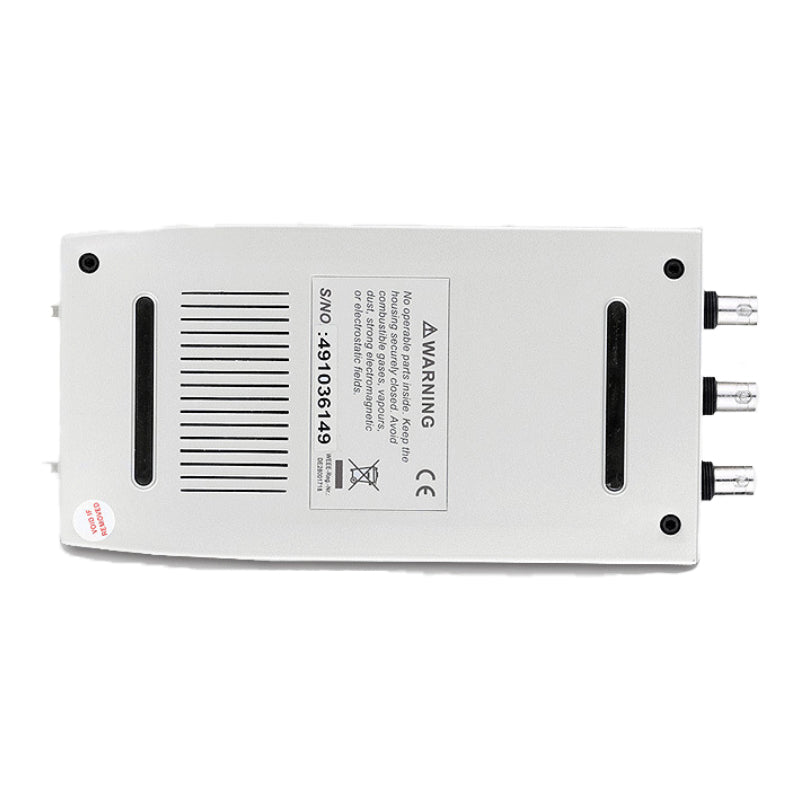

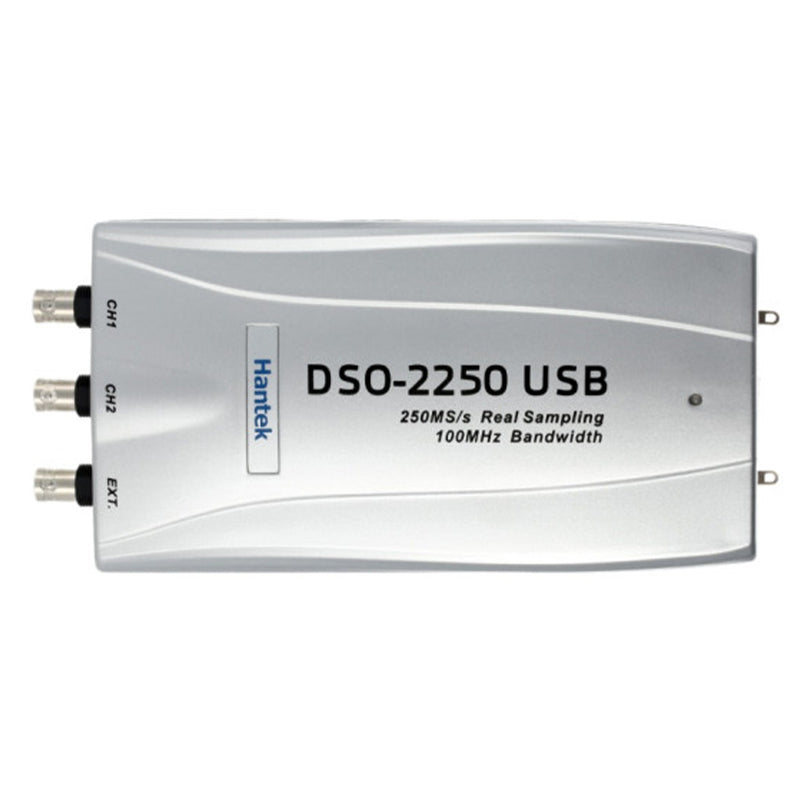

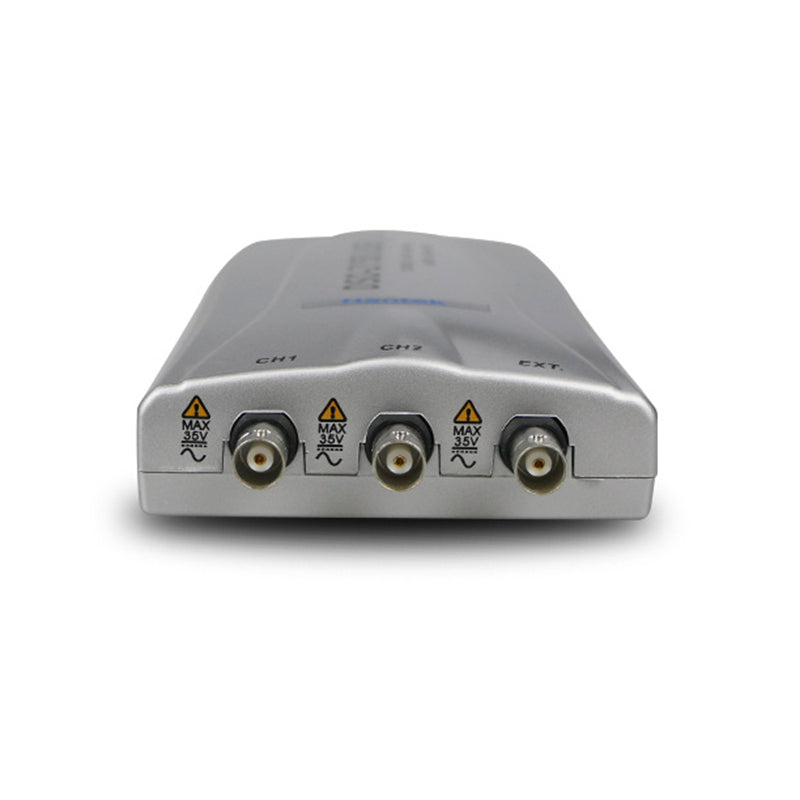

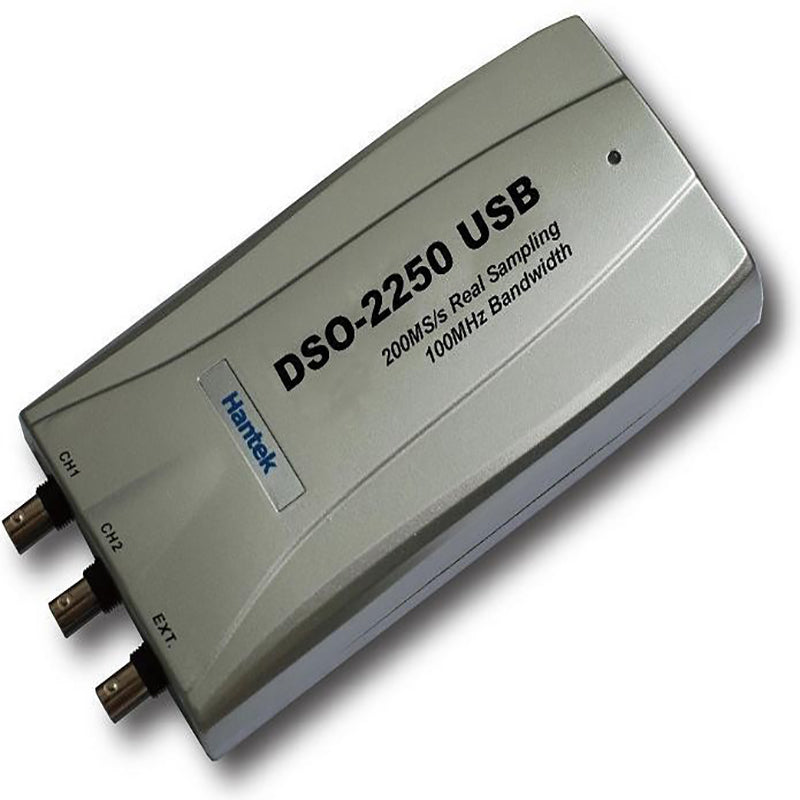

Hantek Digital Oscilloscope DSO2250 USB2.0 PC Based Oscilloscopes 100MHz 250MS/s 2 Channels DSO-2250
Features
USB2.0 interface, no external power source required, easy to use.
be suitable for notebook computer,product line maintenance,be used easily on business.
Dimensions (mm):190(L) x100(W) x35(H), be carried easily.
High performance, 250MS/s real-time sampling,100MHz Bandwidth.
Operating System: Windows7,Windows Me, Windows NT, Windows 2000, Windows XP ,VISTA
23 measurement functions, PASS/FAIL Check, be suitable for technical application.
Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
FFT
One computer can connect many DSO, extend channel easily.
Labview\VB\VC\Delphi\C++Builder Second Design instance.
Specification
Software:
Operating system: Windows Me, Windows NT, Windows 2000,
Windows XP, VISTA.
SecondDesign:
Supply DEMO code (VC/CVI/VB/LABVIEW) and technical support.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
