Features:

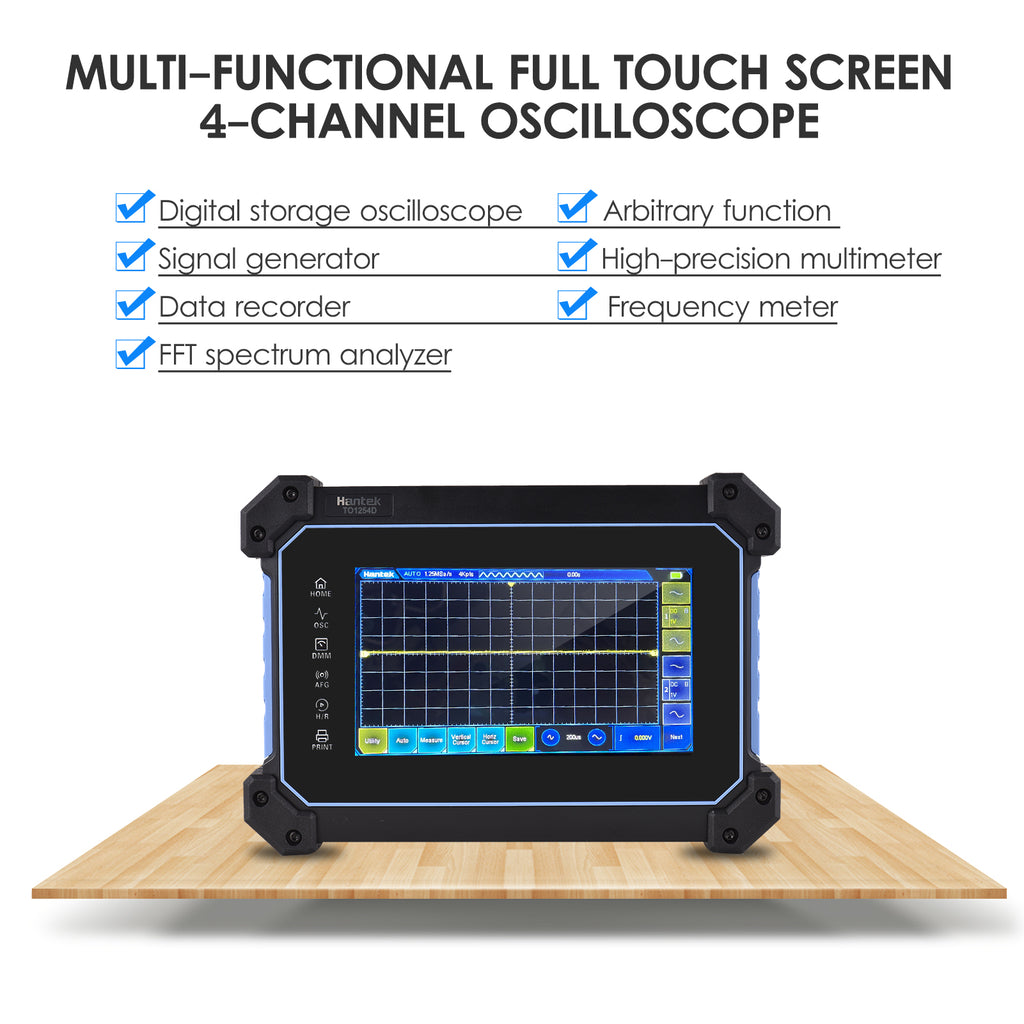

 Integrates Multiple Functions: digital storage oscilloscope, arbitrary function signal generator, high-precision multimeter, data recorder, frequency meter, FFT spectrum analyzer.

 4-channel Digital Storage Oscilloscope: 1GSa/s high sampling rate, 8M large storage depth, 25MHz signal source; Edge, slope, pulse width, video, timeout and other triggers; Up to 42 measurement functions.

 Function of Arbitrary Function Signal Generator: the highest output frequency reaches 25MHz, 12bit high resolution, 200Ms/s high sampling rate; Built in a variety of arbitrary waves, support AM/FM modulation, output high resistance and low resistance can be switched.

 Digital Multimeter Function: AC and DC voltage, current, resistance, capacitance, diode, on-off measurement. The multimeter has its own data recording function, which can monitor and record the changes of voltage, current, resistance and other data for a long time and generate a trend chart.

 Suspension Foot, Hands-free: unique suspension foot design, free hands; It can be used and put at any time. It is anti falling and anti-seismic, sturdy and durable.

 High Power and Long Endurance: built in high capacity detachable lithium battery, full power, which has long endurance and standby time.

 Support Multiple Fast Charging Protocols: standard 18W charger for fast charging; The type-C interface is compatible with mobile phones and can share a set of charging equipment.

 7 "TFT LCD Large Screen: super large touch screen, resolution up to 800*480, friendly and easy-to-use UI, good interaction experience.

 Specifications:

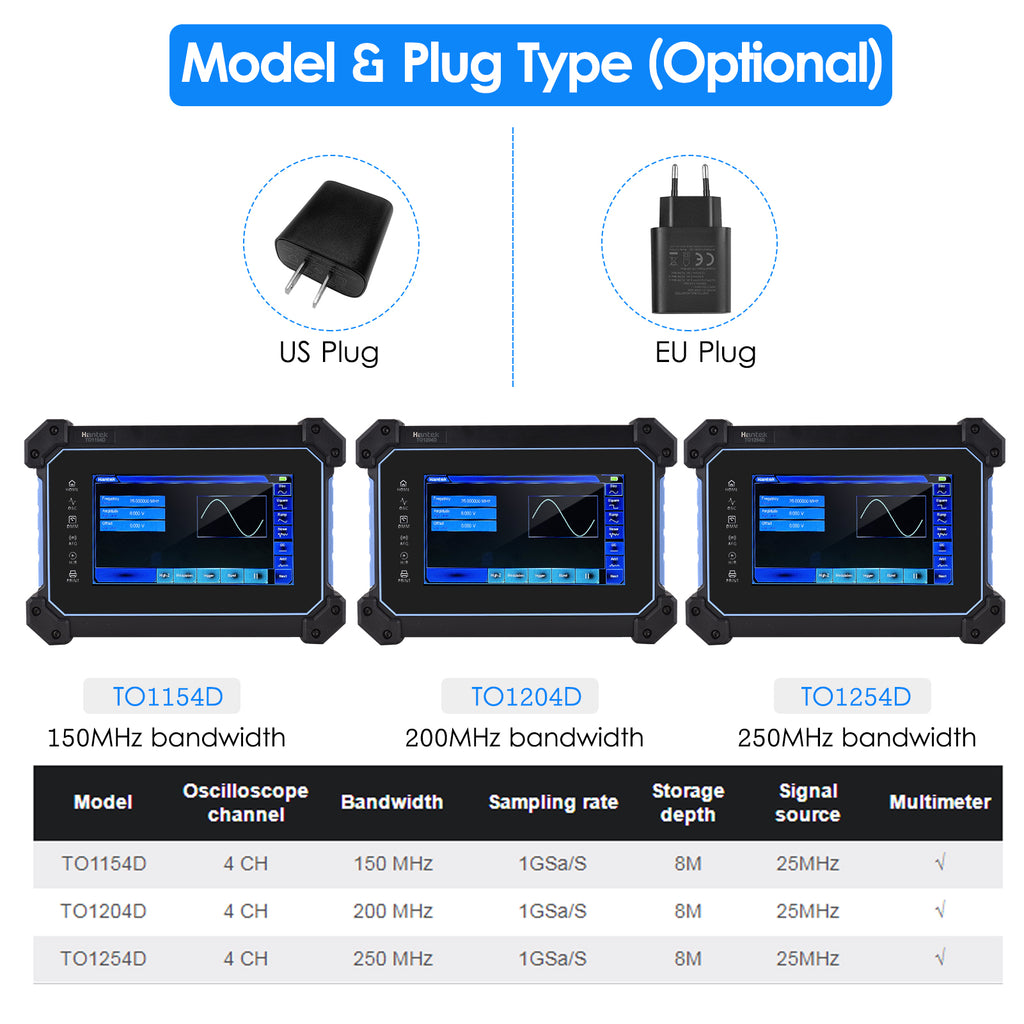

 Plug Type: EU / US (Optional)

 Model: TO1154D / TO1204D / TO1254D (Optional)

   TO1154D: 150MHz bandwidth

   TO1204D: 200MHz bandwidth

   TO1254D: 250MHz bandwidth

 OSCILLOSCOPE:

 Channel: 4 Analog channels

 Sampling Rate: 1GSa/S

 Storage Depth: 8Mpts

 Signal Source: 25MHz

 ARBITRARY WAVEFORM GENERATOR:

 Channel Number: 1

 Sampling Rate: 200MSa/s

 Vertical Resolution: 12bit

 The Highest Frequency: 25MHz

 Standard Waveform: Sine wave, Square wave, Triangle wave, Noise, DC

 Amplitude: 50Ω+2%

 Wavelength: 4KSa

 MULTIMETER:

 Maximum Resolution: 4000 points

 Measuring Method: Voltage, Current, resistance, capacitance, diode, on-off measurement

 Maximum Input Voltage: AC: 600V; DC: 600V

 Maximum Input Current: AC: 10A; DC: 10A

 Input Impedance: 10MΩ

 DC Voltage: 400mV/4V/40V/400V/600V

 AC Voltage: 4V/40V/400V/600V

 DC Current: 40mA/200mA/4A/10A

 AC Current: 40mA/400mA/4A/10A

 Resistance: 400Ω/4KΩ/60KΩ/400KΩ/4MΩ/40MΩ

 Capacitance: 40nF/400nF/4μF/40μF/100μF

 Diode: 0~1V

 On off Measurement: <50Ω

 GENERAL SPECIFICATIONS:

 Panel Type: 7 "TFT LCD

 Display Resolution: 800 (horizontal) *480 (vertical) pixels

 Display Type: Point, Vector

 Waveform Brightness: Adjustable

 Types: Solid line, Dotted line, None

 Brightness: Adjustable

 Screen Brightness: Adjustable

 Afterglow: 1s, 5s, 10s, 30s, Infinite, Off

 Standard Interface: USB Host, USB Device

 Power Supply: AC 100~240V, 50/60Hz; DC input: 5V3A/9V2A/12V1.5A

 Power Consumption: <8W

 Fast Charge: Support fast charging

 Battery: 3.7V 2600mAh * 4 in parallel

 ENVIRONMENTAL:

 Temperature: 0~50℃

 Storage Temperature: -20~60℃

 Humidity: ≤104℉(≤40°C): ≤90%RH; 106~122℉(41~50°C): ≤60%RH

 Cooling: Convection

 Material: ABS

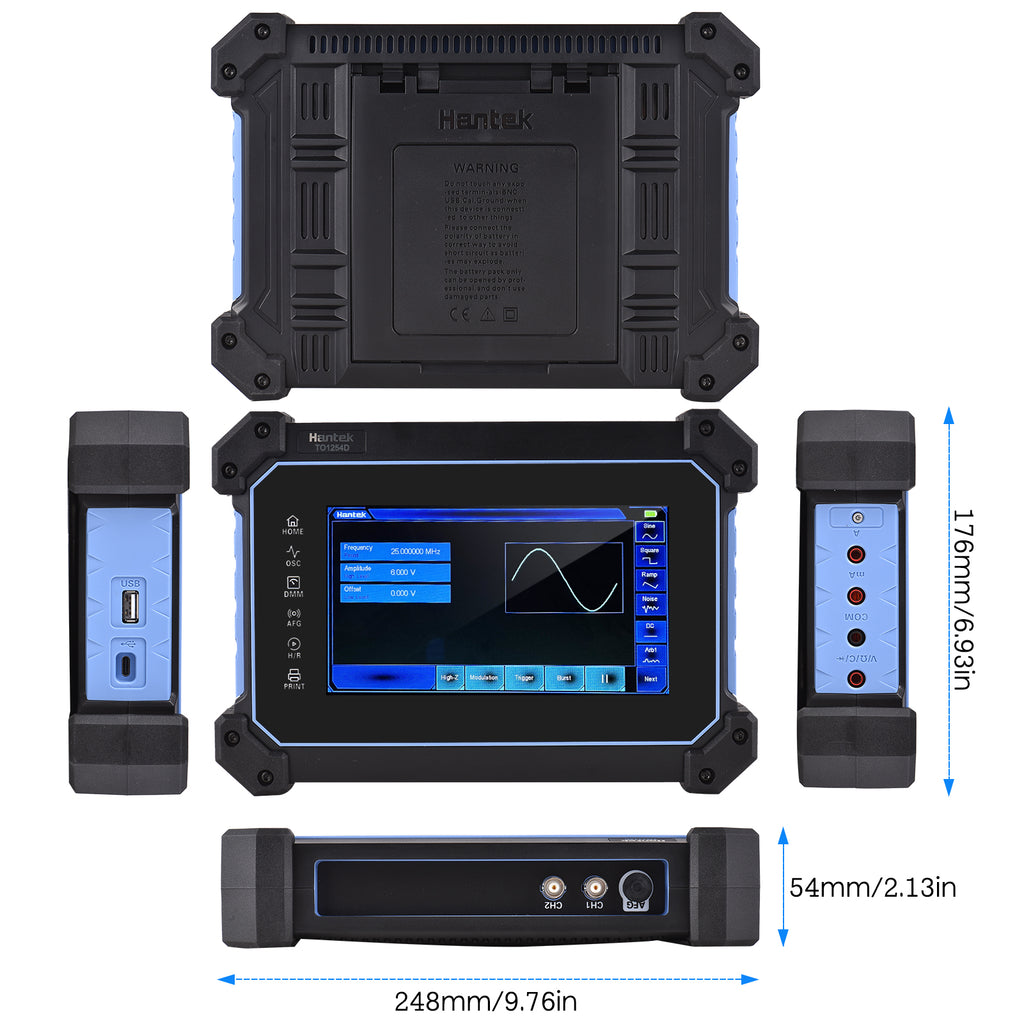

 Item Size: 248 * 176 * 54mm / 9.76 * 6.93 * 2.13in

 Item Weight: 1182g / 2.61lb

 Package Weight: 2193g / 4.84lb

 Package Size: 31.5 * 23.5 * 10.5cm / 12.40 * 9.25 * 4.13in

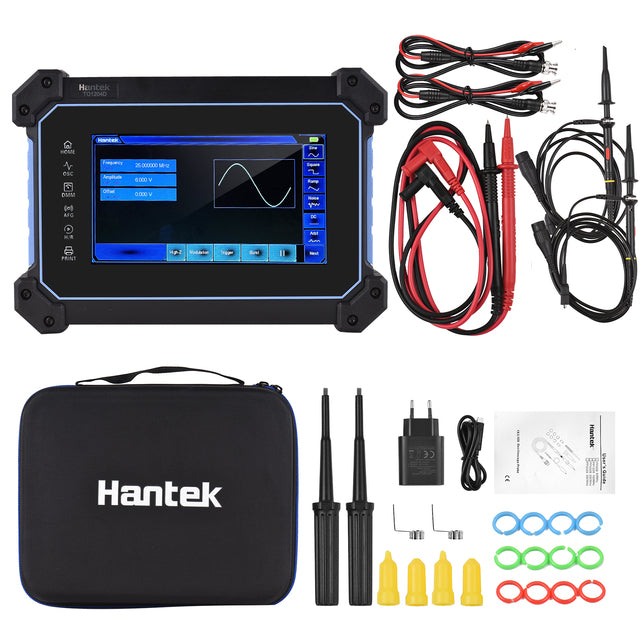

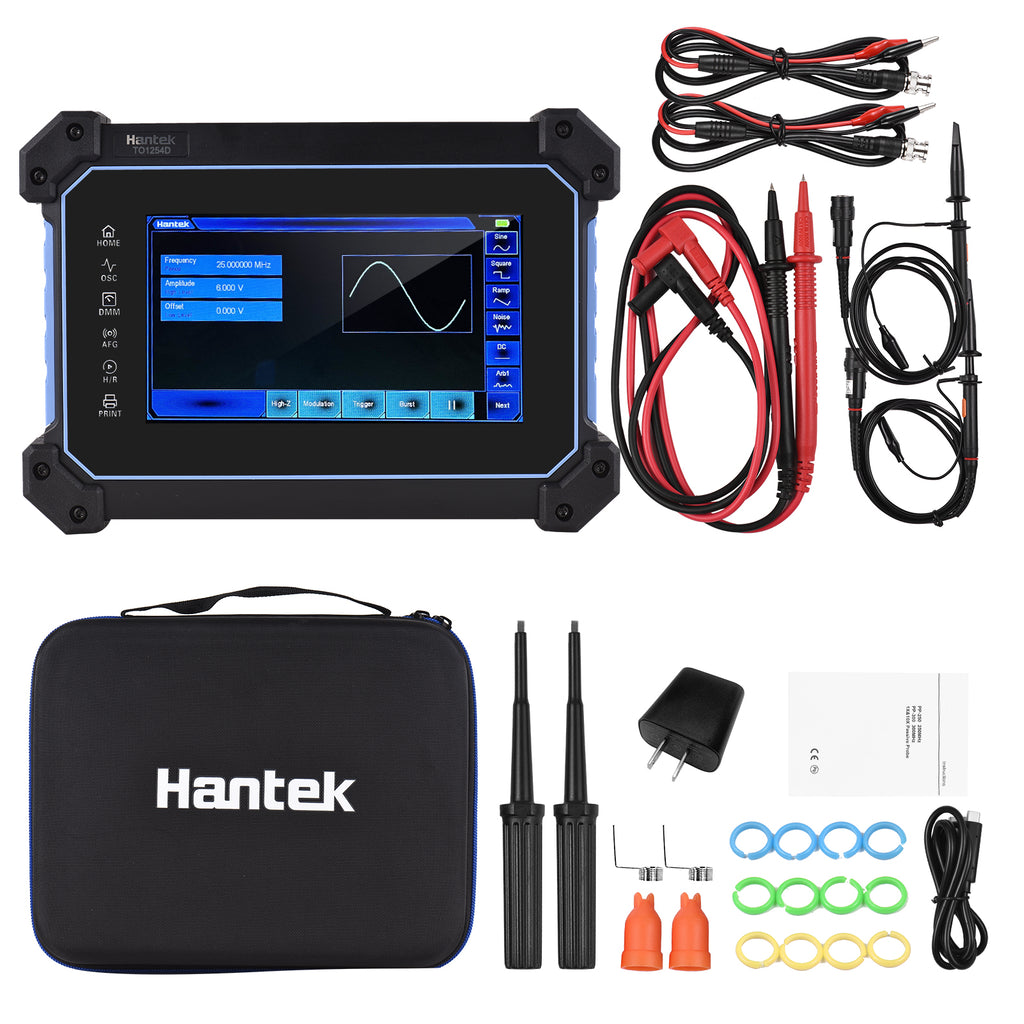

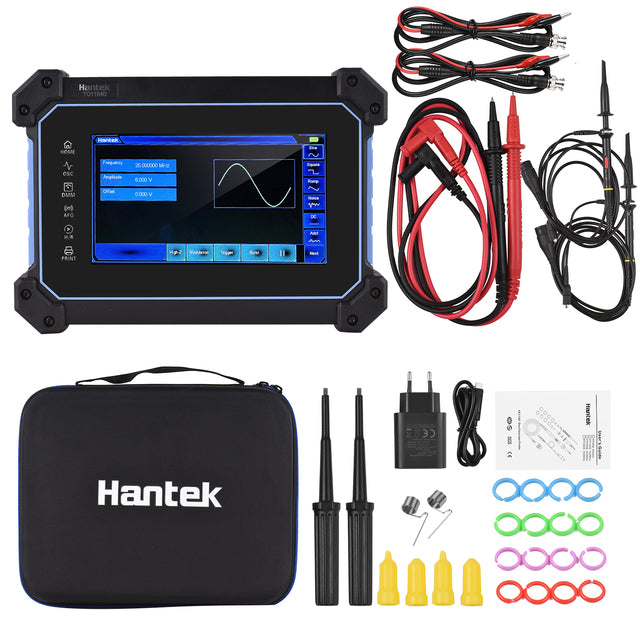

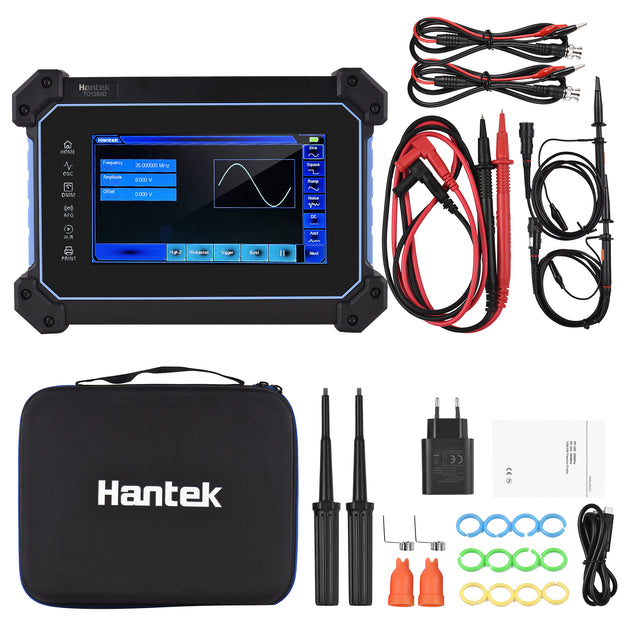

 Package List:

 1 * Digital Oscilloscope

 2 * 1X & 10X Oscilloscope Probe

 2 * Alligator Clip Line

 1 * Type-C Cable

 1 * Plug

 2 * Package of Accessory

 2 * Multimeter Probe

 1 * Zipper Case
