Specifications:

    Brand: Happymodel

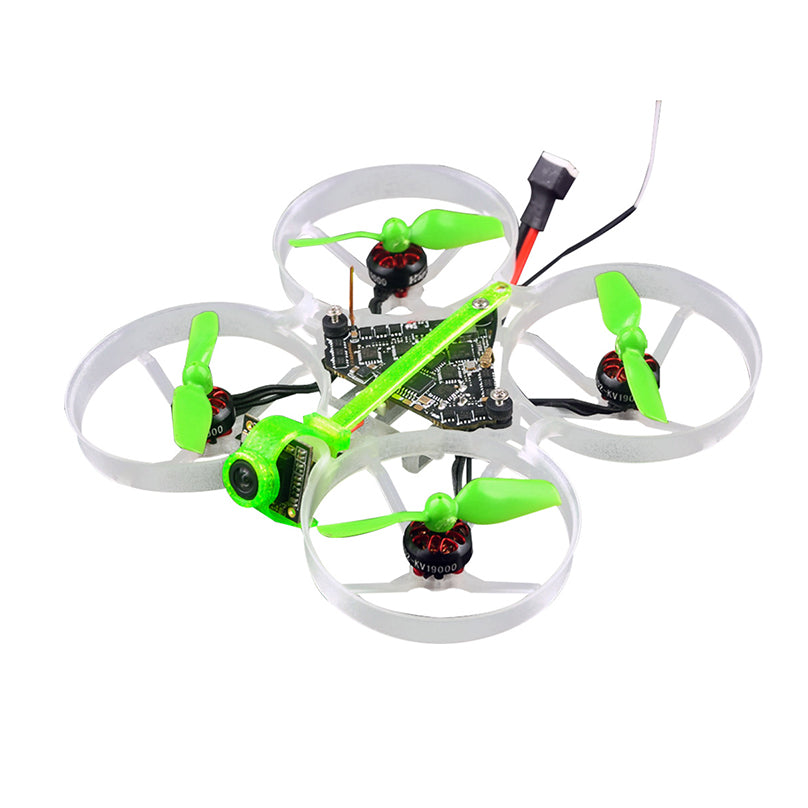

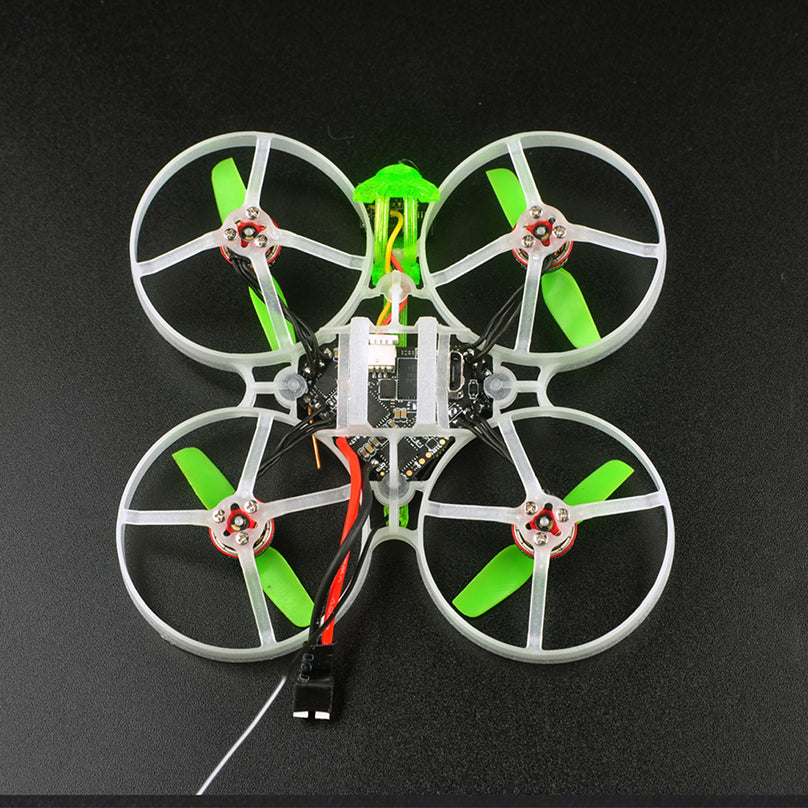

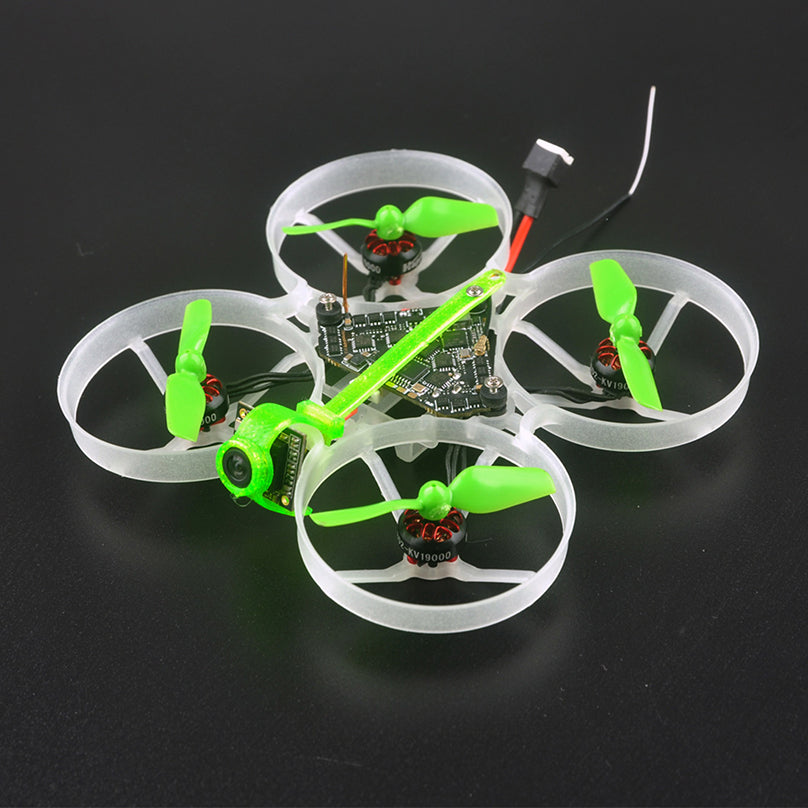

    Item Name: Moblite7 1S 75mm ultra light brushless whoop

Wheelbase: 75mm

Size: 97x97x25mm

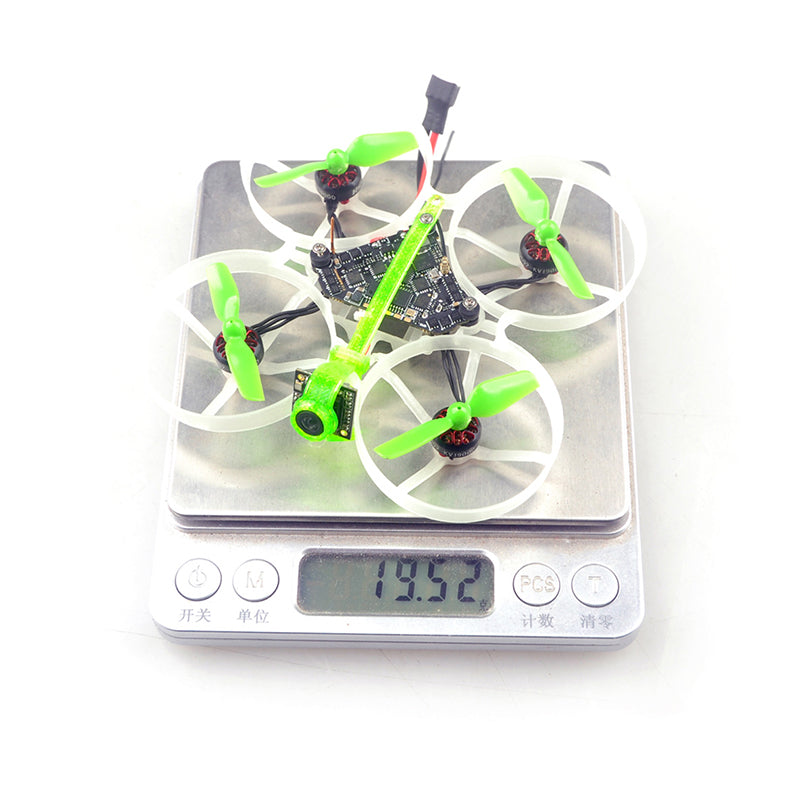

Weight: 19.5g (without battery)

Weight: 36g (with Original 1s 650mah Lipo battery )

    Motor

    Model: EX 0802 19000KV ( New Unibell Version)

Configuration: 9N12P

Stator Diameter: 8mm

Stator Length: 2mm

Shaft Diameter:Φ1mm

Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm

Weight(g): 1.7g

No.of Cells(Lipo): 1S only

    Flight Controller

    (Frsky SPI RX Version) DiamondF4 FR Flight Controller Firmware Target: CrazybeeF4FR

MCU: STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000 (SPI connection)

Original whoop size compatible

Power supply: 1S battery input (DC 2.9V-4.35V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)

Built-in 5.8G VTX

Built-in SPI Frsky/Flysky receiver

Built-in 5V 1A BEC

    Onboard 4in1 ESC

    MCU Upgraded to EFM8BB21

Power Supply: 1S LiPo/LiPo HV

Current: 5A continuous, peak 6A (3 seconds)

Support BLHeliSuite programmable

Factory Firmware: O_H_50_REV16_8.HEX

Default Protocol: DSHOT600

    Onboard Frsky SPI D8 receiver Version

    SPI BUS Receiver Frsky D8 Compatible Compatible Non EU transmitter D8 model

Channels: 8CH

Failsafe Support

No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m

    Onboard Flysky Receiver Version

    SPI BUS Receiver

Protocol: AFHDS and AFHDS-2A Switchable

Channels: 8CH (AFHDS) or 14CH (AFHDS-2A)

No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m

Failsafe Support

    Onboard 5.8G 40CH 25-200mW VTX

    Output Power: 25mw~200mw switchable

Frequency: 40CH

Input Voltage: 3.3V 5.5V

Current Consumption: 300mA (type)

Frequency: 5.8GHz 5bands 40 channels (include Race band)

Smartaudio Ready

    Runcam 4 Lite

    Model: RunCam 4 Lite

Image Sensor: 1/3″ CMOS

Horizontal Resolution: 800TVL

Lens: 2.1mm(M8) FOV 160°

Signal System: PAL/NTSC Non Switchable

S/N Ratio: >50dB

Electronic Shutter Speed: Auto

Auto Gain Control (AGC): Auto

Min. Illumination: 0.01Lux@1.2F

D-WDR: Auto

Day/Night: Color

Power:DC 3-5.5V

Current: 170mA@5V 180mA@3.3V

Housing Material: ABS

Net Weight: 1.0g

Dimensions: L14mm*W12mm*H9mm

    Lipo Battery

    Capacity: 650mAh

Voltage: 3.8V

Continuous Discharge Rate: 30C

Instantaneous Discharge Rate: 60C

Size: 60mmx18mmx8mm

Weight: 16g

Connector: PH2.0

Quantity: 2 PCS

    Features:

- The lightest 1s 75mm brushless whoop

- Powerful and efficiency

- The lightest 1s AIO 5IN1 F4 flight controller

- New Unibell EX0802 brushless motors

- Low profile Canopy design

- VTX power switchable 25mw~200mw

Package Included:

1 x Happymodel Moblite7 75mm Whoop RC FPV Racing Drone

Option1: 1 x DiamondF4 FR built-in SPI Frsky Receiver

Option2: 1 x DiamondF4 FS built-in SPI Flysky Receiver

4 x EX0802 KV19000 Unibell Brushless Motor

1 x HQPROP 40MMX2 Propeller(4cw+4ccw)

1 x Runcam 4 Lite

1 x Built-in 5.8G 40ch 25mw-200mw VTX

2 x 1S 650mah Lipo Battery

1 x Propeller Disassemble Tool

1 x Screwdriver

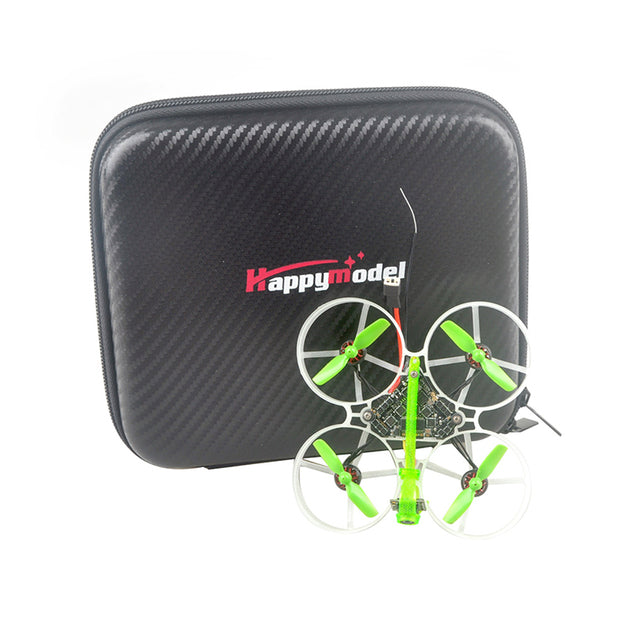

1 x Happymodel Carry Case
