Features:

Infrared thermal imager that can blend the visible and infrared images.

Higher resolution of infrared image/visible image: 320x240/640 * 480 (300,000 pixel).

Integrates surface temperature measurement and real-time thermal image with non-contact target.

This infrared imaging device is professional, precision and efficient with a visible light camera.

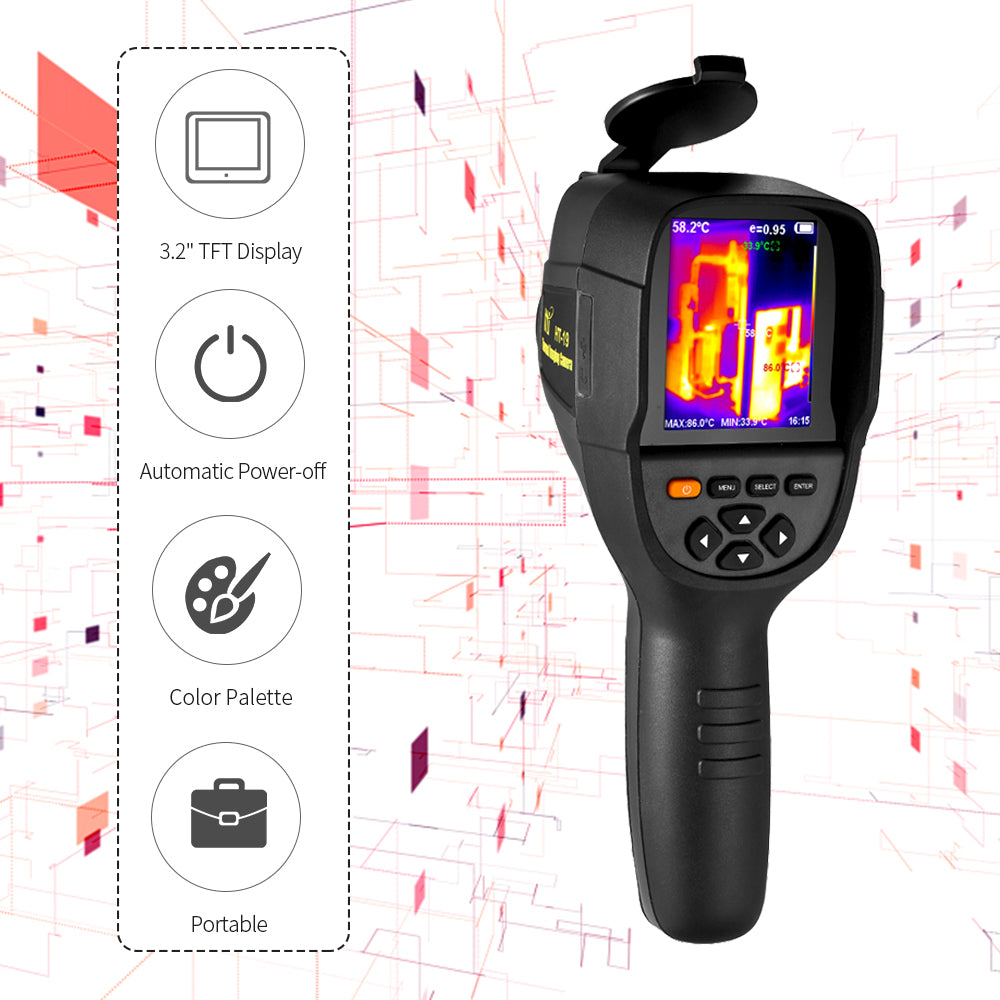

3.2" full angle TFT display screen can get the information you need more clearly.

For car engine overhaul, transformer room line maintenance, air conditioner repair, etc.

Turn thermal image into visional image, quickly find out the problem area.

The thermal images and visible images are stored in the device and can be read through USB or stored in a computer to generate a report or for print.

Can be used in fields of medical treatment, fire fighting, archaeology, traffic, agriculture, geology, energy, smelting, electronic manufacture, etc.

Perfect tool for electrician, maintenance personnel and technicians, and can be used to find the problem area quickly.

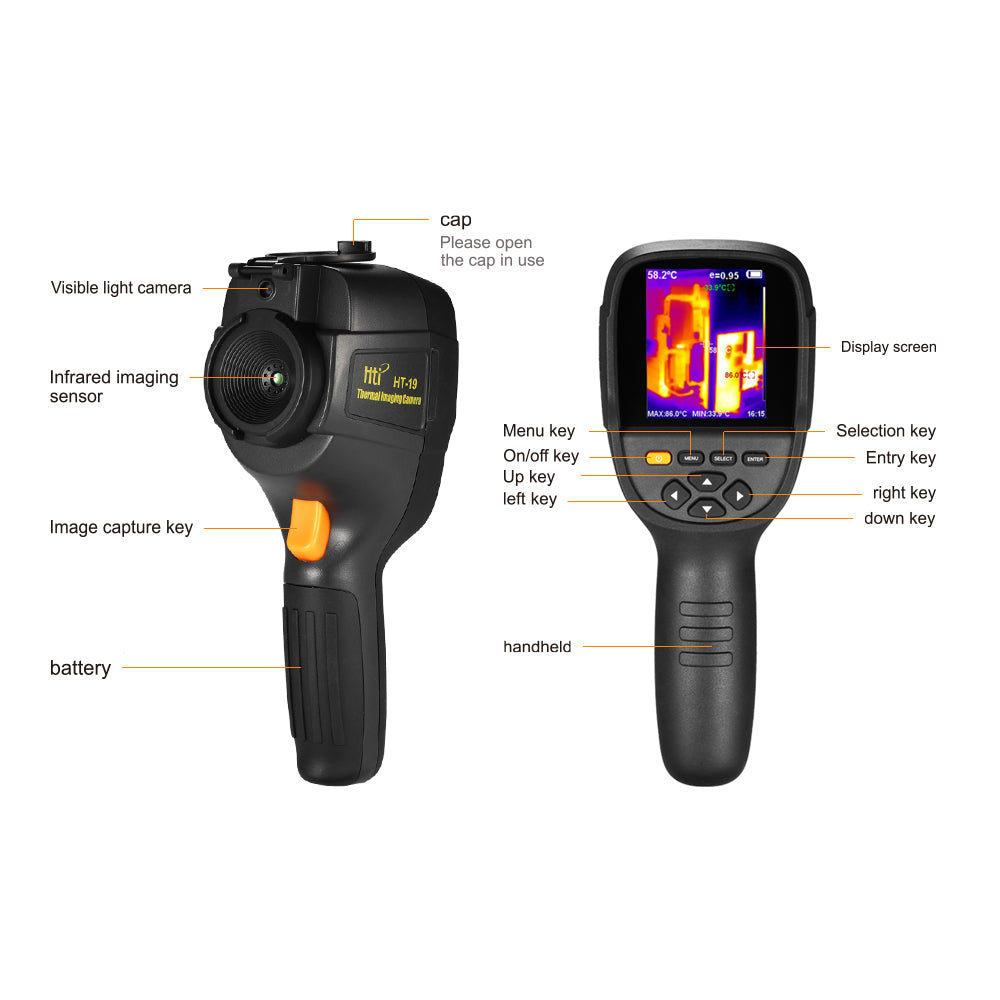

The buttons on the thermal imager body are clearer and easier to operate.

Equipped with a hanging rope and a protection bag for easy carrying.

The following major functions increase the product's accuracy and usability:

1. The adjustable radiation coefficient increase the measurement accuracy of half reflection surface.

2. The thermal point and cold point temperature mark may guide the users to the area with highest or lowest temperature of thermal image.

3. The selectable color palette.

Specification:

Input Voltage: AC 100-250V, 50/60Hz

Material: Plastic + Rubber

Color: Black

Material: ABS

Display Screen: 3.2" full viewing angle high-resolution color TFT screen

Infrared Image Resolution: 320x240

Visible Image Resolution: 640 * 480 (300,000 pixel)

Field Angle/Shortest Focus Length: 26°*34°/0.15m

Thermal Sensitivity: 0.07℃

Measuring Mode: Thermopile

Temperature Measurement Range: -20℃ to 300℃ (-4℉ to 572℉)

Measurement Accuracy: ±2% / ±2℃

Emissivity: Adjustable from 0.01 to 1.0

Frame Rate of Thermal Images: 9Hz

Wavelength Coverage: 8-14μm

Focus Mode: Fixed

Imaging Distance: 0.5-40m

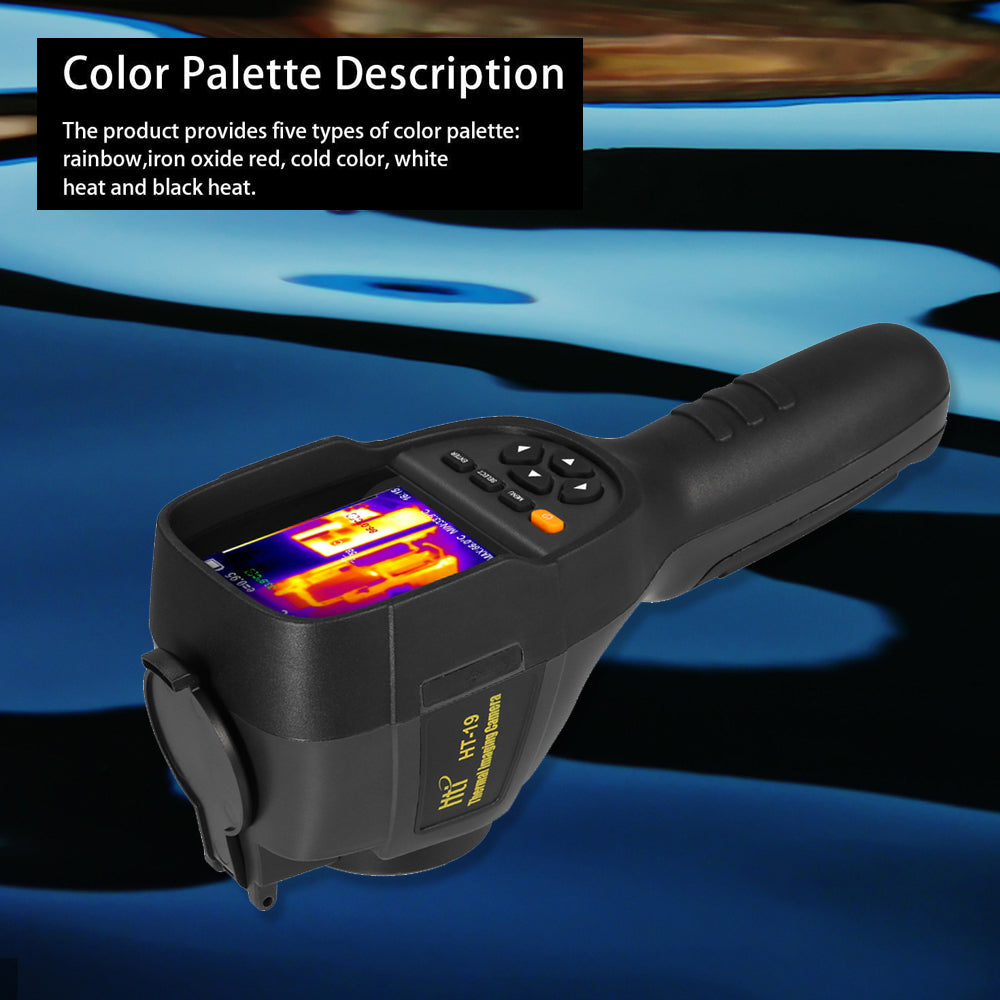

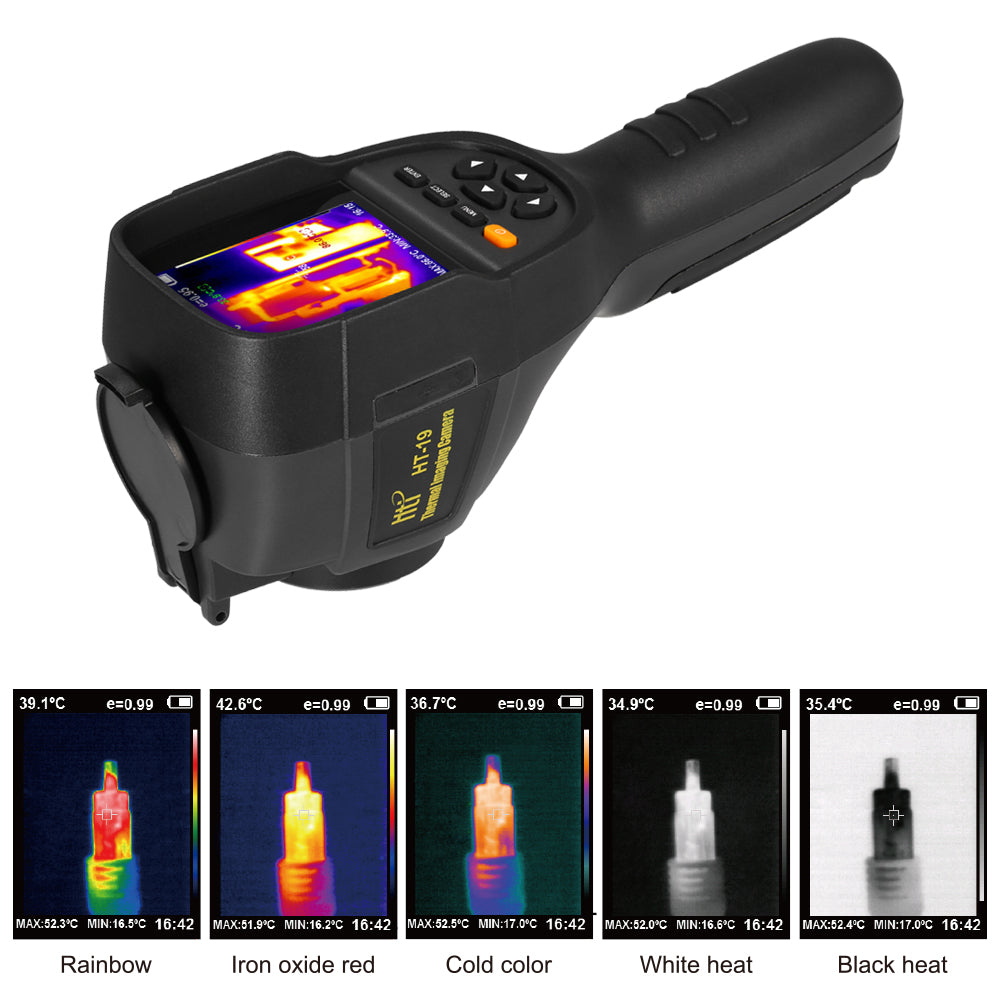

Color Palette: Rainbow, iron oxide red, cold color, black & white, white & black

View Option: The integration of thermal image with 25% step length and visible image

Storage Medium: Built-in 3G (Above 20 thousand images stored)

File Format: JPG

Set Control: Unit Adjustment/Language/Date Time Format/Automatic Power-off Time

USB: Micro USB 2.0

Battery: 1 * Built-in Rechargeable 18650 3.7V 1800mAh Lithium Battery (Included)

Battery Life: 2-3 Hours

Automatic Power-off Time: Selectable: 5 minutes/20 minutes/ not power off automatically

Working Temperature: 0℃-45℃

Storage Temperature: -20℃-60℃

Relative Humidity: <85%RH

Item Size: 90 * 105 * 223mm / 3.54 * 4.13 * 8.78in

Item Weight: 389g / 13.7oz

Package Size: 27.5 * 18.6 * 11.2cm / 10.8 * 7.3 * 4.4in

Package Weight: 1089g / 38.4oz

Package List:

1 * Thermal Infrared Imager

1 * USB Data Cable

1 * Protection Bag

1 * Hanging Rope

1 * User Manual

1 * Gift Box
