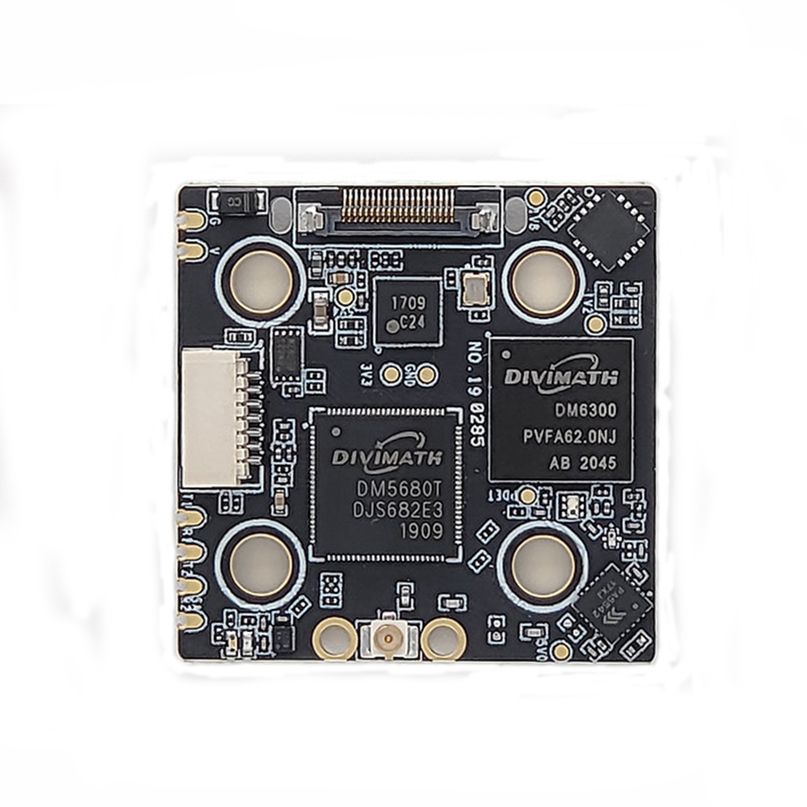

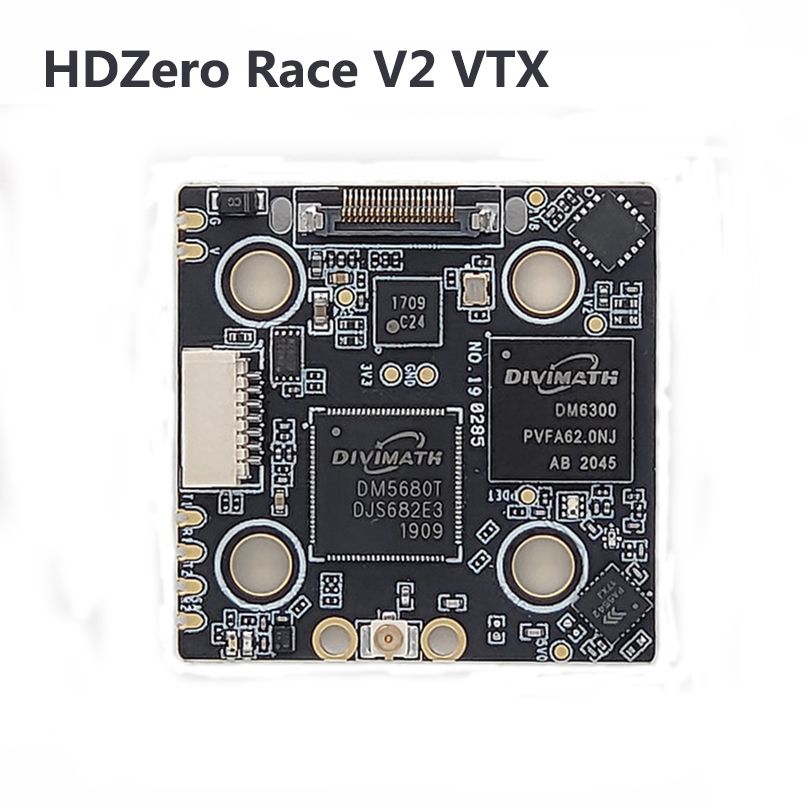

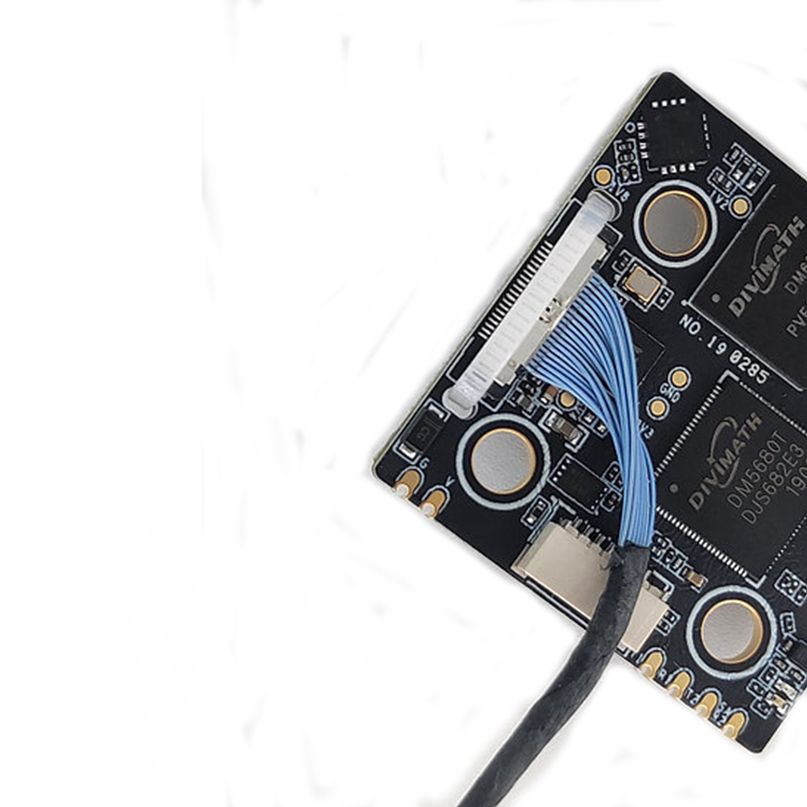

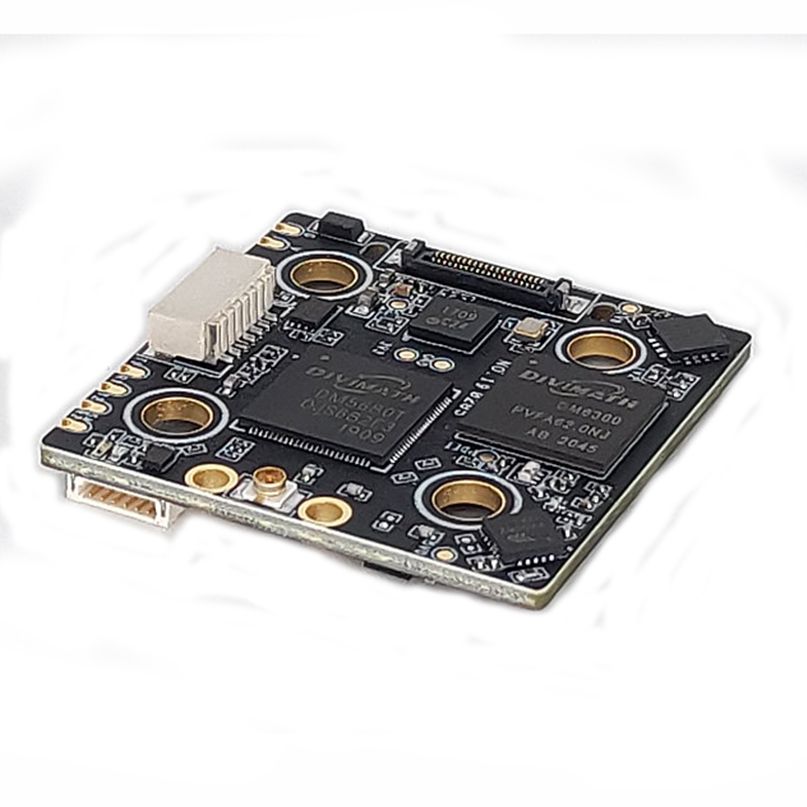

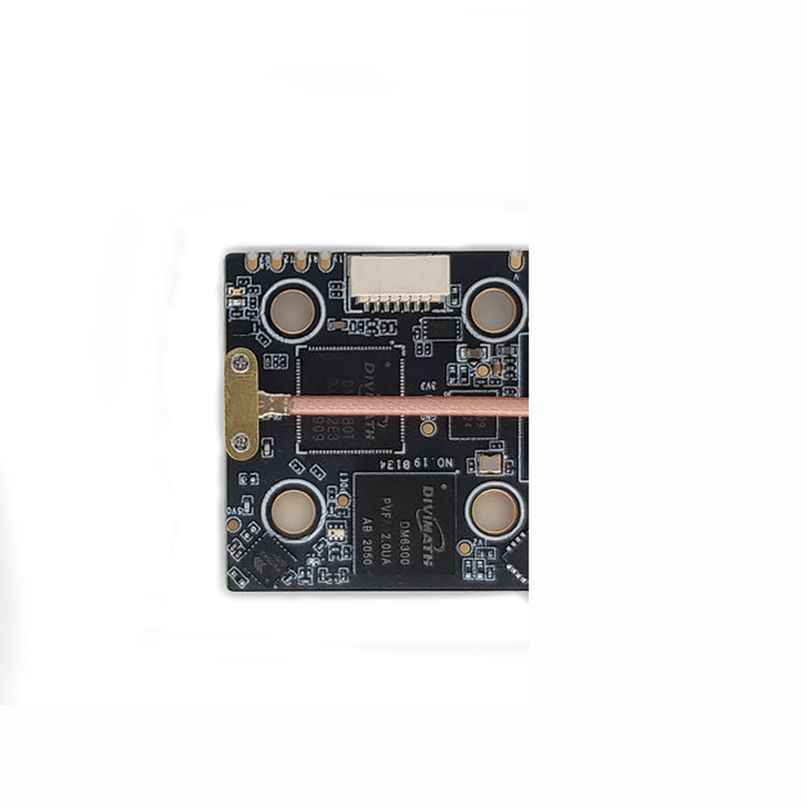

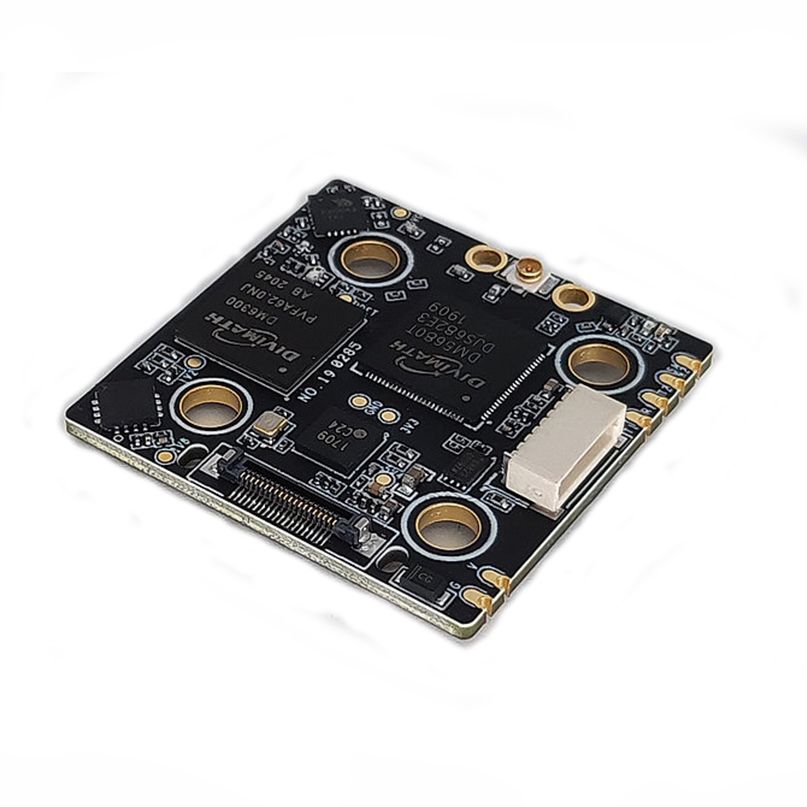

The HDZero Race VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. It works with the Shark Byte RX5.1 goggle module to transmit video, and with a remote controller to wirelessly control the parameters for the transmitter and camera.
Specifications
Model:
HDZero Race V2
Frequency:
5.8G
Resolution Default:
1280*720@60fps
RF power：
25mw/200mw
RF Connector:
Secured U.FL
Interface:
4 lane MIPI CSI YUV422
Video Connector:
20 Position 0.30mm Pitch
Size:
34mm x 34mm x 6mm
Weight:
5.9g
Power:
410mA@12V
power input：
7V-26V(2S-6S)
Mounting：
20mm x 20mm M4 with rubber grommets
Packaging Include:
HDZero Race V2 VTX * 1;
Power/ Uart Cables * 5；
Zip ties * 4；
Rubber Grommet (M4 to M3) * 8
u.FL Antenna Retention Screws * 4/Nut * 4/Plate * 1
