1.Latest version: V3
2.with two antenna ports
3. Registered 1.10D firmware , support 2G.
4.with additional Expansion board, Significantly improved medium wave and short wave
1) Based on SDR architecture, msi001 RF front-end is used for 12bit quantitative sampling, stm32h743 processor is used, and the main frequency is up to 480mhz;
2) The receiving frequency is 50 kHz to 49.999 MHz, 50.001 MHz to 249.999 MHz, 400 MHz to 2GHz;
3) Demodulation type: am, SSB, NFM, WFM, CW;
4) The sensitivity is better than 0.2-0.3 μ V;
5) Anti blocking is better than 85 dB;
6) The real-time sampling bandwidth is 160 kHz;
7) Functions: variable filter, adaptive noise reduction, threshold noise reduction, noise suppressor, AGC, equalizer, etc;
8) The display screen is IPS 3.5 inch, capacitive touch screen with backlight adjustment;
9) The battery capacity is 3000mAh with USB-type interface;
10) The working current shall not exceed 300mA;
11) Dual antenna input option version, front-end attenuation filter module, attenuation up to 30dB, high resistance input, improve short wave sensitivity, add four additional front-end filters;
12) Through USB connection to the computer, cat, IQ and audio communication can be realized;
Material: aluminum alloy
colour: as shown

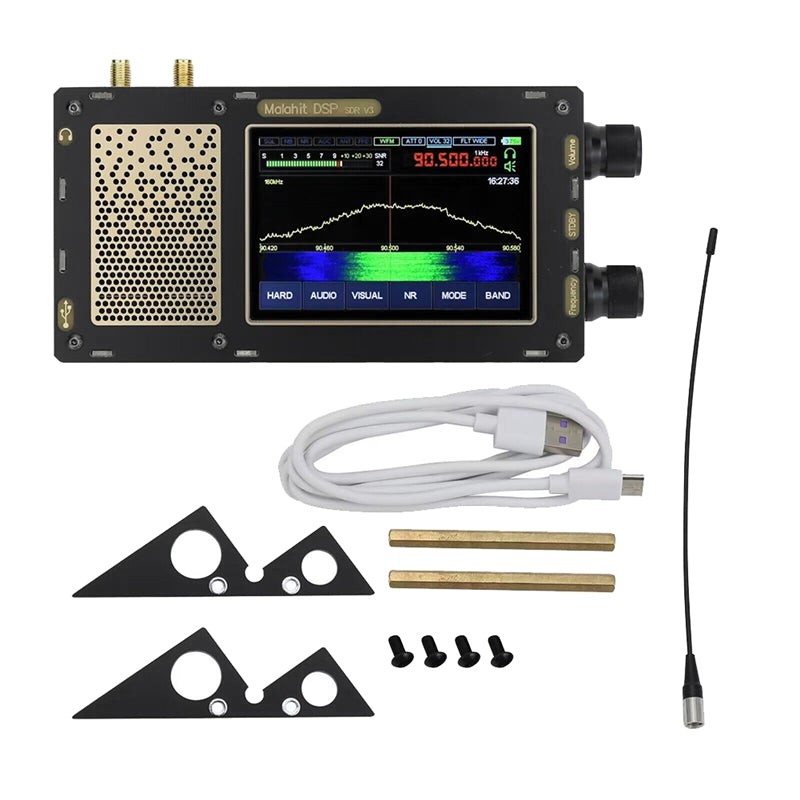

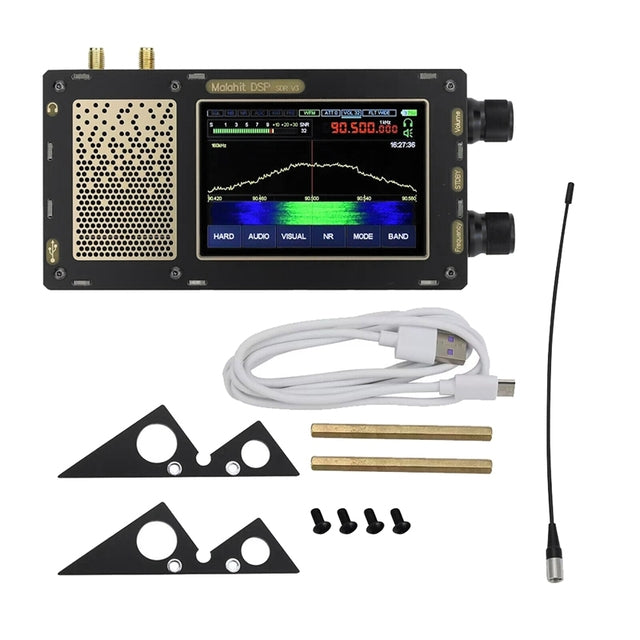

Package Contents:
1 x Malachite Host+Expansion Edition
1 x antenna
1 x charging cable(Note: Random color, don't accept the specified color.)
1 x installation accessories
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
