Supports wide power supply voltage (3.0V-8VDC)
-

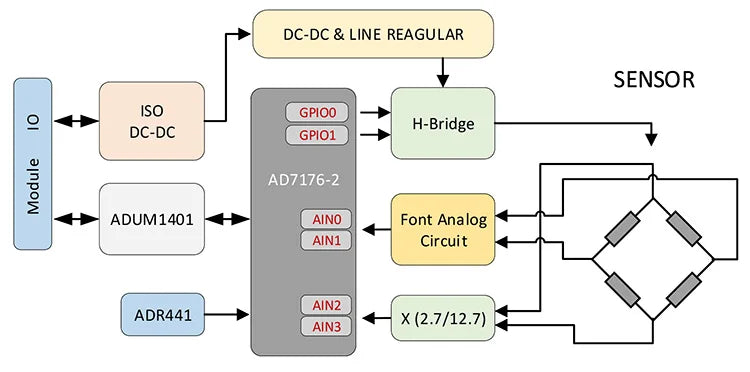

Collect data and control the excitation source through an SPI interface, which is easy to use.
-

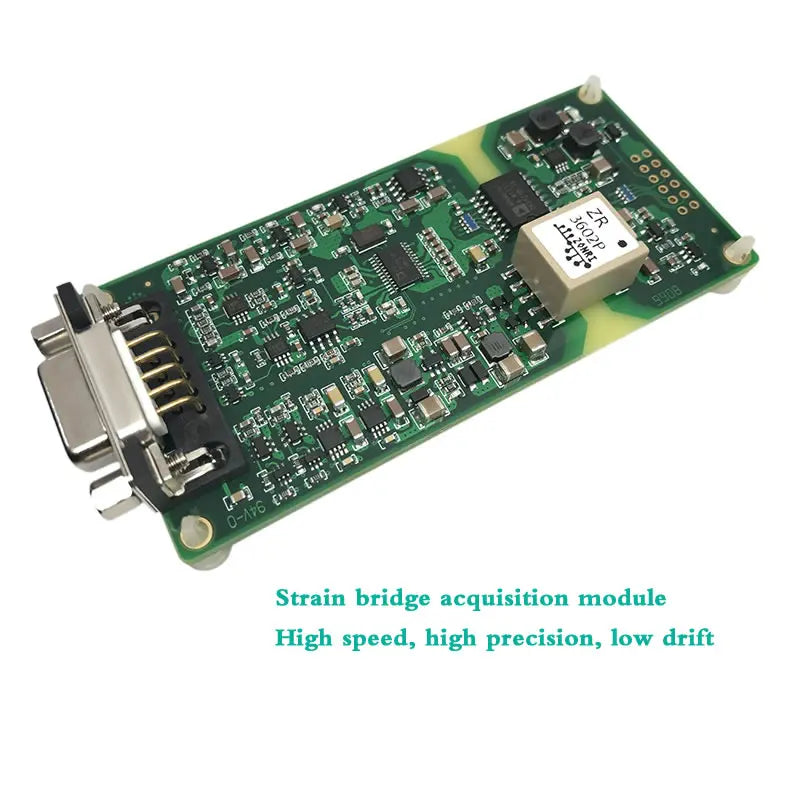

With correct hardware connection, high-speed, high-precision and drift-free strain data acquisition can be achieved using the provided Demo code.
-
When not using filters, you can still get good data.
-
Supports a sampling rate of up to 250Ksps and a -3DB analog bandwidth of 48KHz, and is flat within the DC-48KHz passband.
-
At a data update rate of 10Ksps, the typical system-level peak-to-peak noise is 16.5Bit, and the RMS noise is 18Bit (there may be differences due to different testing methods and definition methods)
-

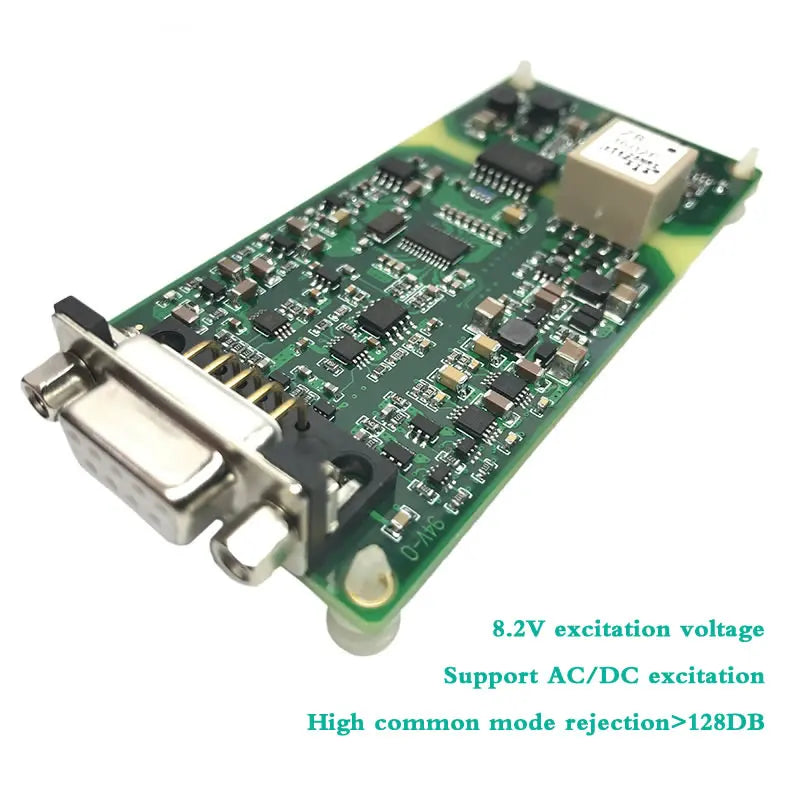

The excitation source voltage is 8V, and the excitation source polarity can be controlled.
-

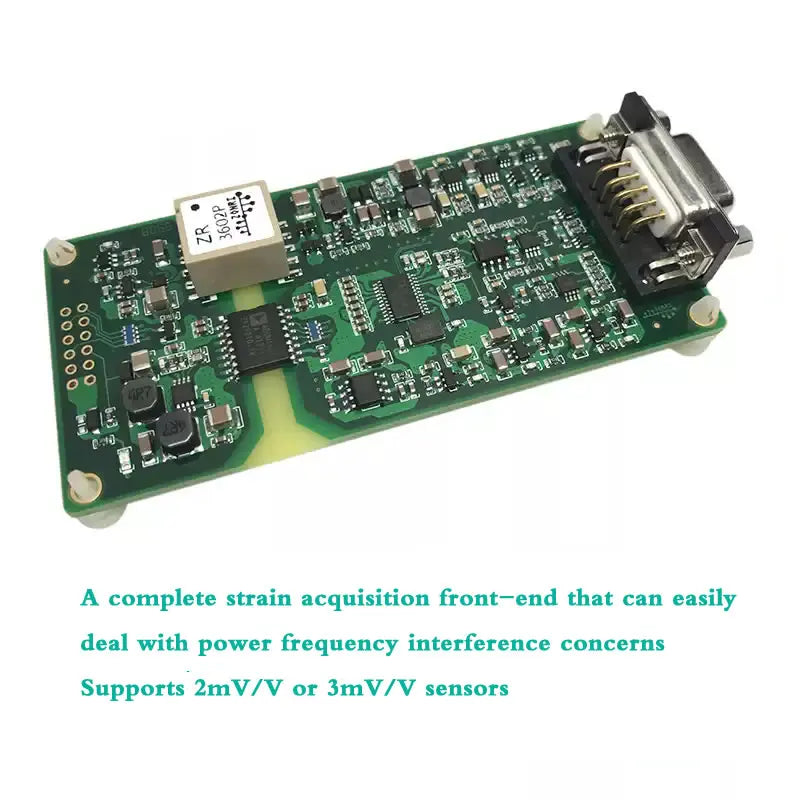

The total gain of the system is 80.48, the maximum input signal amplitude is 31mV, and it supports 2mVV or 3mV/V sensors.
-
Designing a low-drift front end eliminates the need to compensate for the drift of the amplifier circuit through AC excitation.
