Use real imported magnetic ring: T68-2

NOTE:Recommended maximum power while tuning not above 30 watts. (after tuning you can set 100 watts and work on this power)

SWR greater than 1.1 will automatically activate tuning, and the minimum power has been changed from 5W to 1W.

After modification, it can be tuned below 5W.Too low value may result in insufficiently fine tuning (original default is greater than 5W auto tuning), please know before placing an order.

All use Samsung SMD capacitors, C-channel capacitors, we use Samsung 1000V high-voltage SMD capacitors (the original default uses 500V), and the PIC chip imported from the United States.

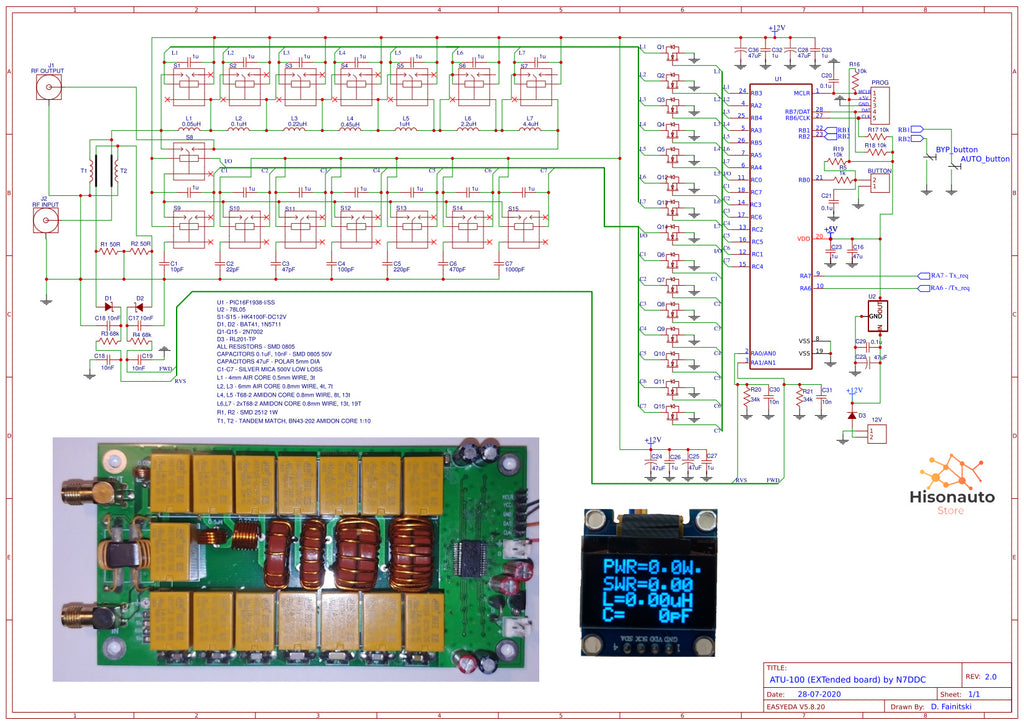

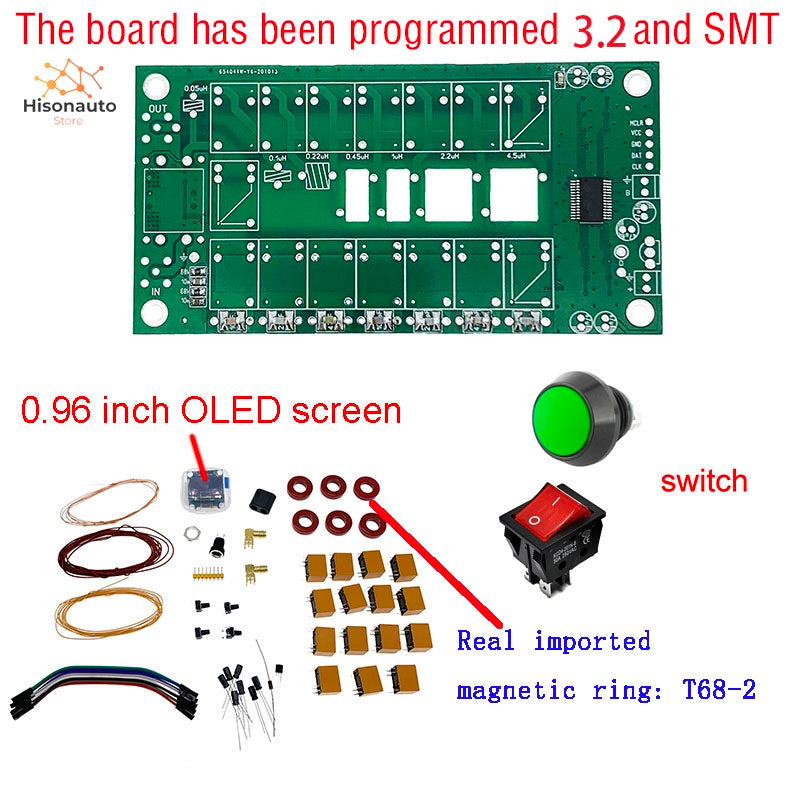

Order guide

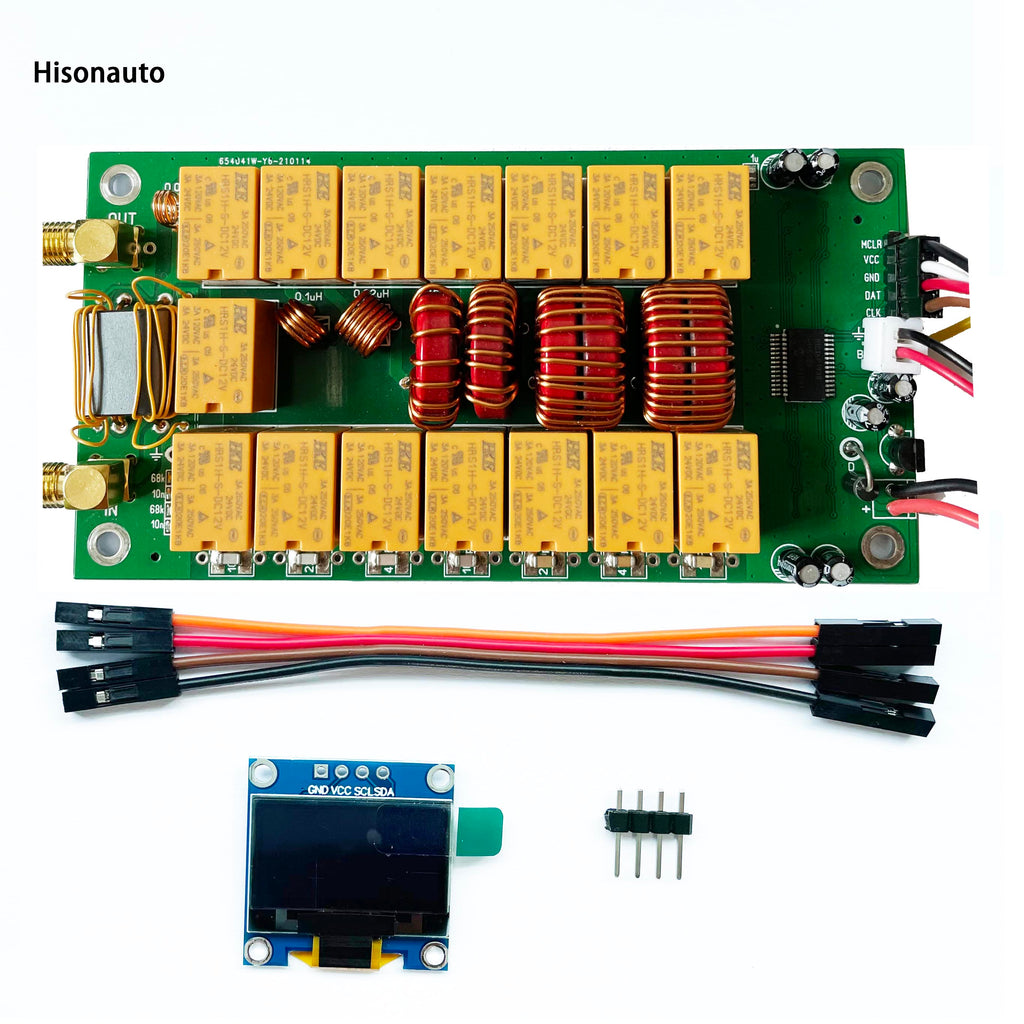

Type 1:

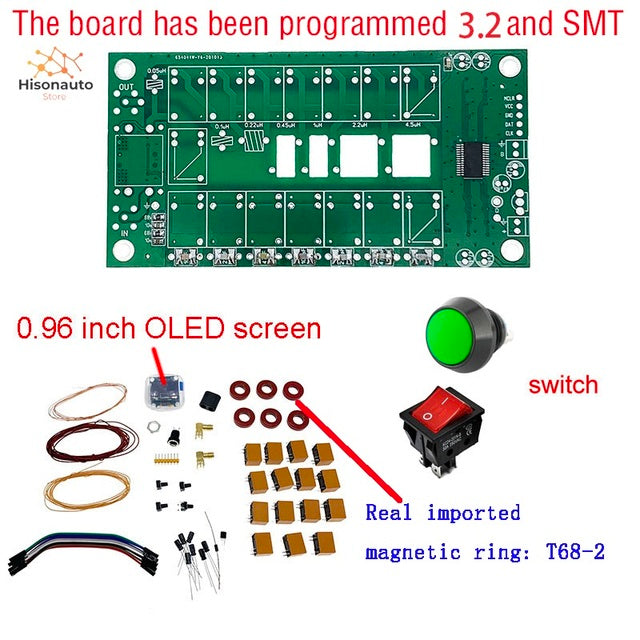

1. PCB motherboard x1. (SMD electronic components on the front and back have been soldered, and the latest version of the firmware has been burned)
2. Several plug-in electronic components and accessories. (User welding is required).
3. 0.96 inch OLED screen x1

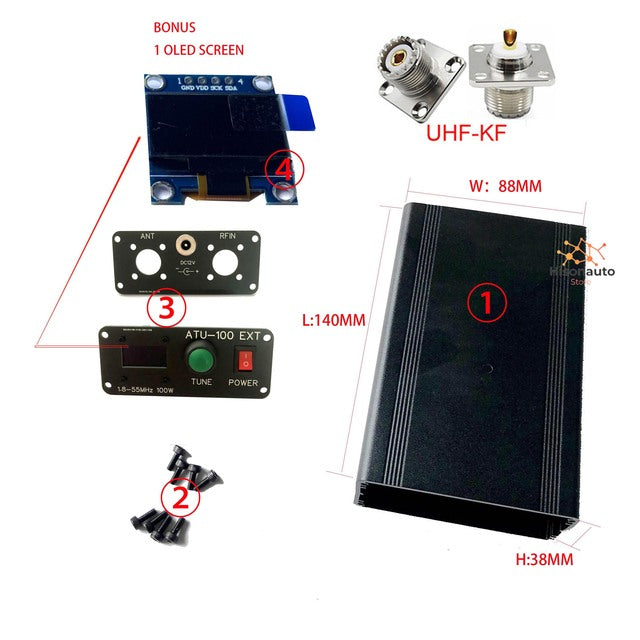

Shell 1:
1. Aluminum alloy shell x 1.(140x 88x 38mm L*W*H)
2. Front panel x1
3. 0.96 inch OLED screen x1
4. Power switch x1
5. Tune button x1

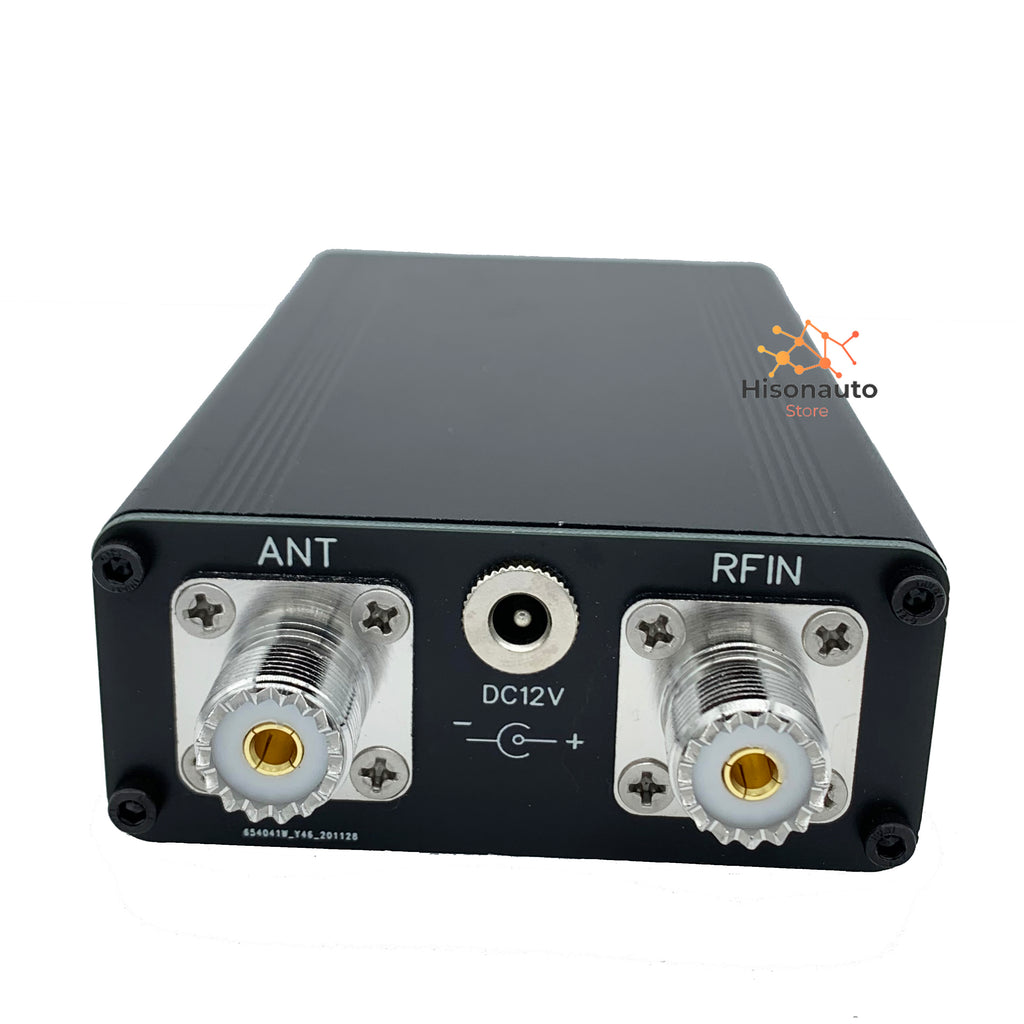

6. Rear panel x1 (including a DC5.5x 2.1 female socket, note that UHF connectors is not included)
7.UHF-KF female connectors * 2 (also named SO239/SL16/PL259)

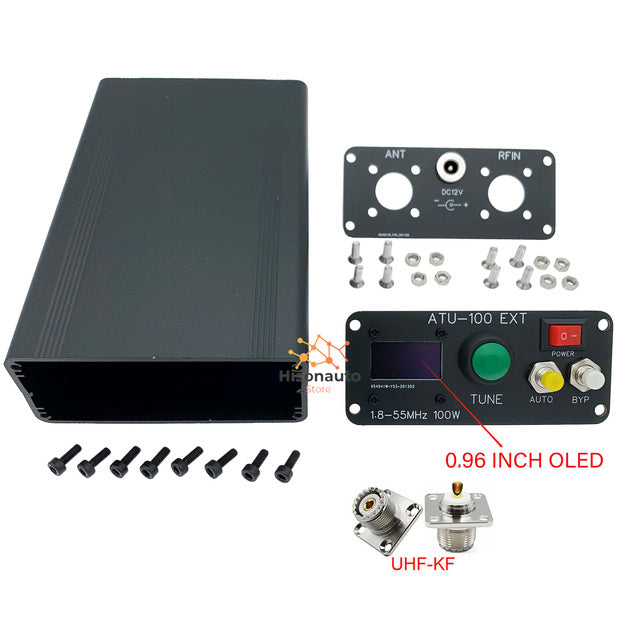

Shell 2:
1. Aluminum alloy shell x 1.(140x 88x 38mm L*W*H)
2. Front panel x1
3. 0.96 inch OLED screen x1
4. Power switch x1
5. Tune button x1
6. Auto button x1
7. Byp button x1
8. Rear panel x1 (including a DC5.5 x 2.1 female socket, please note that UHF connectors is not included)
9.UHF-KF female connectors * 2 (also named SO239/SL16/PL259)

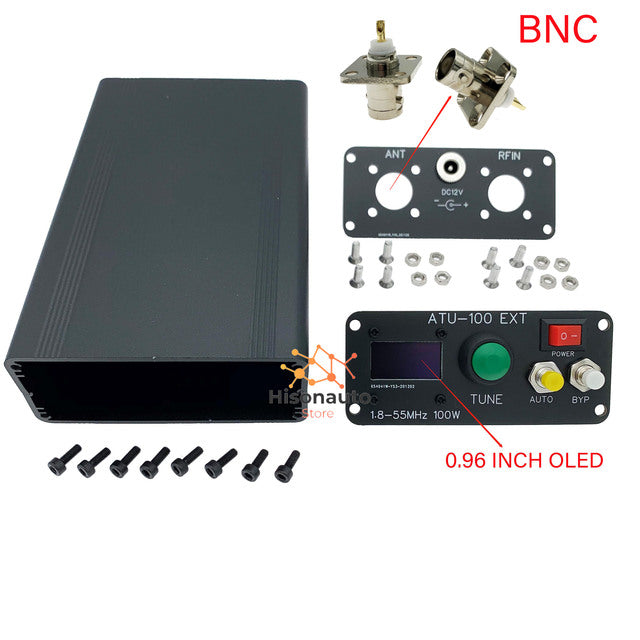

Shell 3:
1. Aluminum alloy shell x1.(140x 88x 38mm L*W*H)
2. Front panel x1
3. 0.96 inch OLED screen x1
4. Power switch x1
5. Tune button x1
6. Auto button x1
7. Byp button x1
8. Rear panel x1
9. DC5.5 x 2.1 female socket x1
10. BNC connectors x2

Shell 4:
1. Aluminum alloy shell x1.(140x 88x 38mm L*W*H)
2. Front panel x1
3. 0.96 inch OLED screen x1
4. Power switch x1
5. Tune button x1
6. Auto button x1
7. Byp button x1
8. Rear panel x1
9. DC5.5 x 2.1 female socket x1
10. SMA connectors x2

The latest firmware version is 3.2

New in the version 3.2
1.Fixed bug with continuous data transfer to the display.

2.Added a new ability to disable all relays along with the timer display. New cell 35-01 to activate the refunction. Display Off Timer setup - cell 32.You can use this future in your QRP setup where power consumption is critical.

3.Timeout for display reset increased to 2 seconds. This is required for some OLED displays with a very chain on the reset pin.

Notice：

Machine introduction:

SIZE: 140 x 88 x 38 mm (L*W*H)

Machine: There are 2 modes: automatic mode and manual mode tuning function.

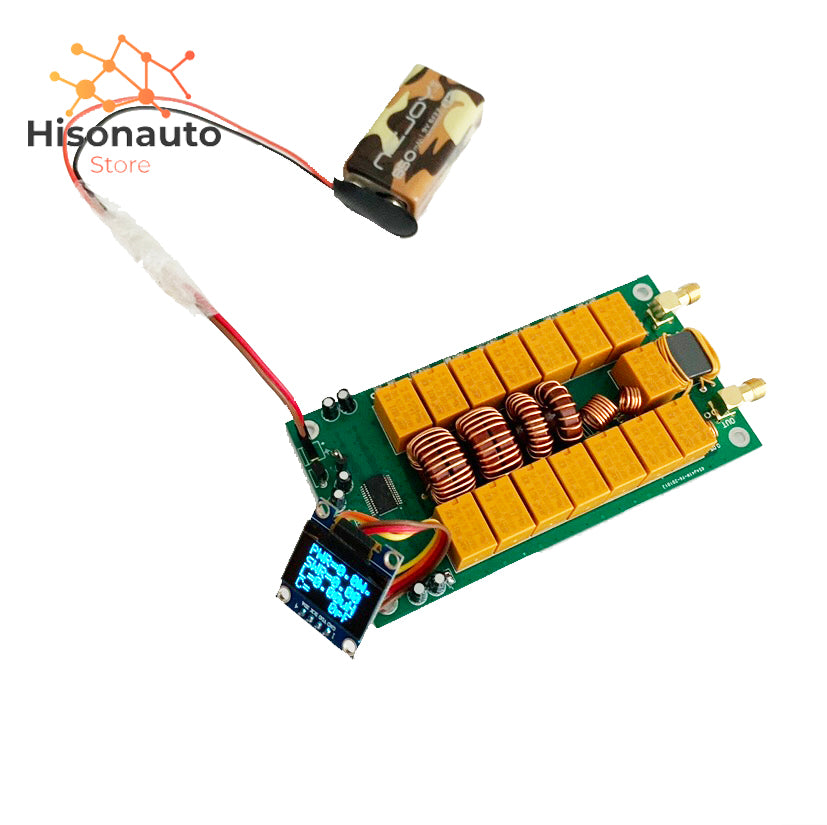

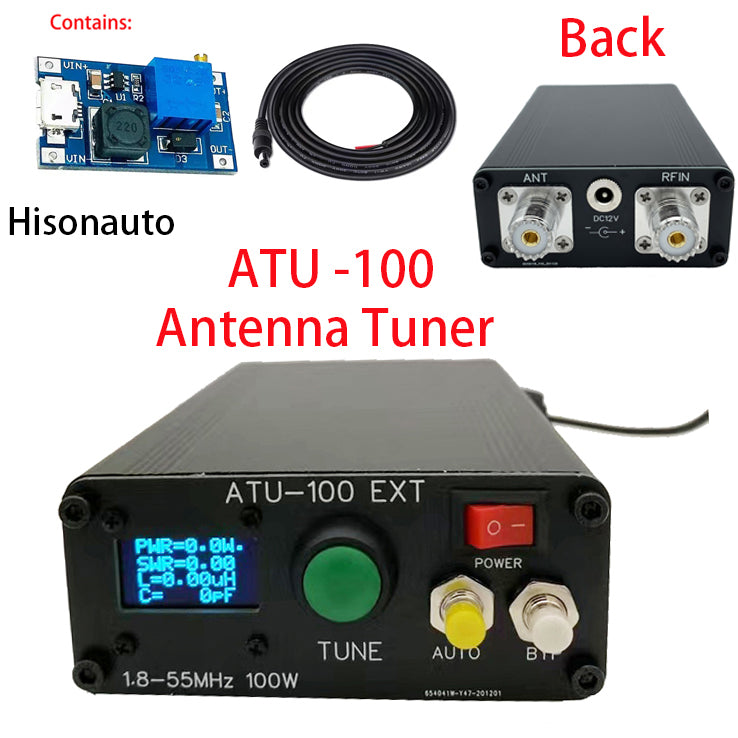

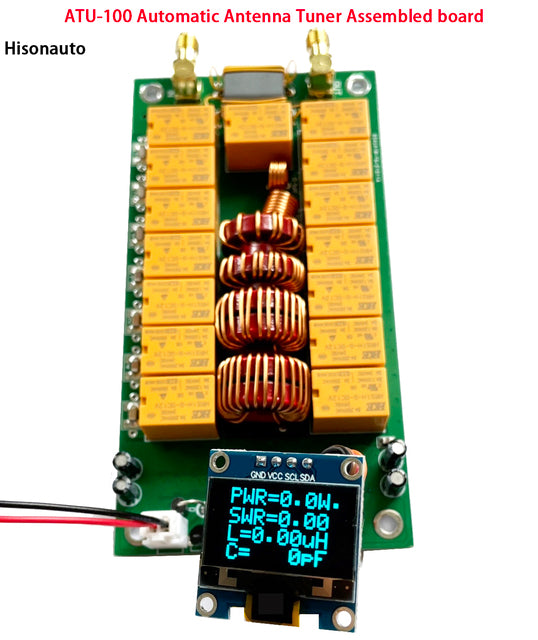

（1）Machine UHF:

Machine UHF: Include

1. Finished machine x1 (default SMA female connectors, it can be used after connecting the device to power supply.)
2. DC5.5 x 2.1 power cord x1 (50cm)
3. USB 5V to 9V Booster board x 1
