1.1 Output: EZRUN-SC8: Continuous 120A, burst 760A;

  1.2 Input: EZRUN-SC8: 6-12 cells NiMH/NiCd or 2-4S Lipo;

1.3 BEC Output:  * Note #1

EZRUN-SC8: 6V/3A (Switching mode);

1.4 Resistance: EZRUN-SC8: 0.0004 Ohm;

1.5 Motor Supported: Sensorless Brushless Motor;

1.6 Suitable Brushless Motor:

EZRUN-SC8:

With 6 cells NiMH/NiCd or 2S Lipo: KV≤6000;

With 7-9 cells NiMH/NiCd or 3S Lipo: KV≤4000;

With 10-12 cells NiMH/NiCd or 4S Lipo: KV≤3000;

1.7 Suitable Car:

EZRUN-SC8: 1/10 4WD SCT, 1/8 2WD and 4WD buggy and SCT (Include TRAXXAS 1/10 SCT);

1.8 Size: 53.5mm(L) * 36mm(W) * 36mm(H);

1.9 Weight: EZRUN-SC8: 98g;

* Note #1: Thecooling fan of EZRUN-SC10 and EZRUN-SC8 is powered by the built-in BEC.

  Combo and Main Application

COMBO-SC-A : LED Program Card , 1/10 2WD SCT/Buggy sport

COMBO-SC-B : EZRUN-SC10 , EZRUN-4065(2700KV) , LED Program Card

1/10 4WD SCT/Buggy sport

1/10 Monster sport

1/8 light weight SCT sport

COMBO-SC-C : 1/8 SCT sport

Features

3.1 Integrated and compact design, suitable for short course trucks and buggies.

3.2 The built-in switching mode BEC of EZRUN-SC8 ESC has powerful output to supply all electronic equipments.

3.3 Excellent start-up, acceleration and linearity features.

3.4 Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.

3.5 Electric brake function, also compatible with mechanical disc-brake system.

3.6 Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.

3.7 Internal timing can be changed easily to make the ESC suitable for various of motors.

3.8 Easily programmed with the SET button, LED Program Box, Professional LCD Program Box and USB Link Software.

3.9 ESC firmware can be updated through the USB adapter in the LCD Program Box .

3.10 The major electronic components are sealed against splashing water and dust.

3.11 2 mounting holes on the bottom are helpful for firmly installing the ESC on chassis.

Application/Comment

1. 1/8 scale SCT/Buggy all-weather sport racing

2. 1/10 4WD SCT/Buggy/Truggy/Monster all-weather sport racing

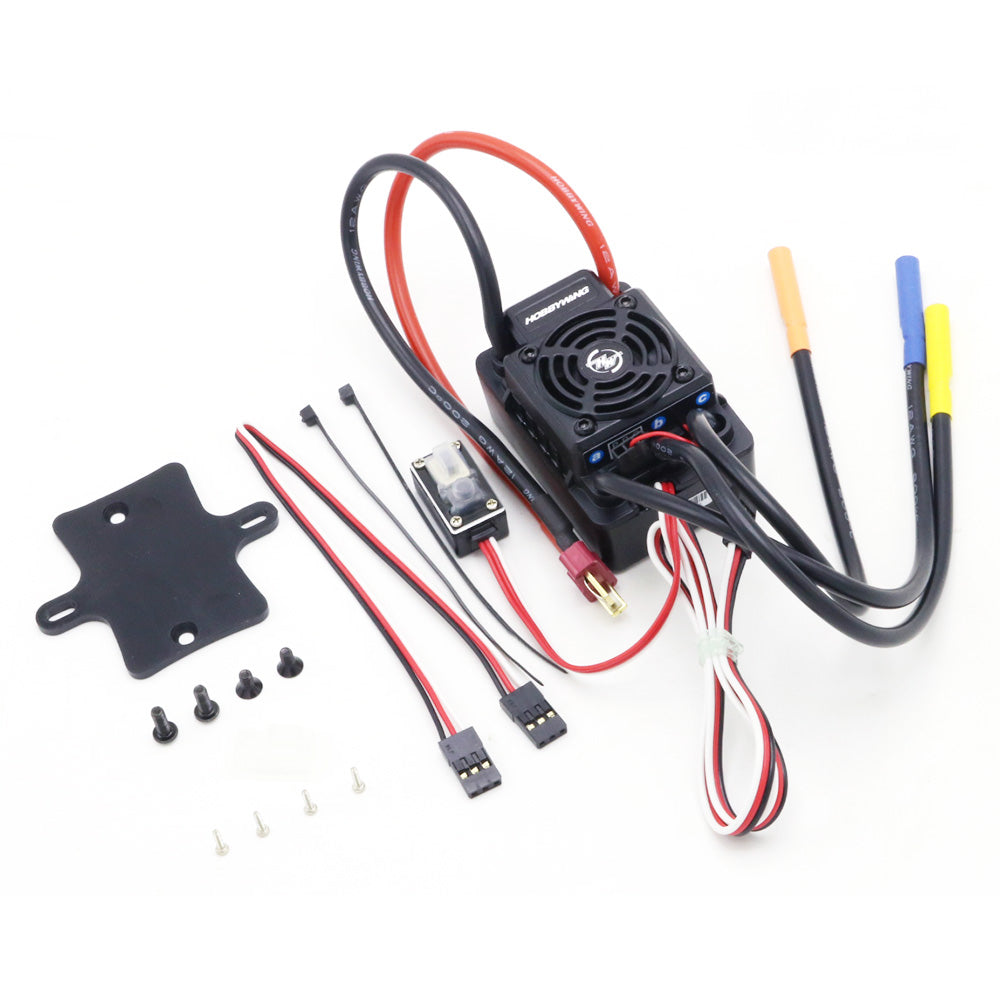

Package includes:

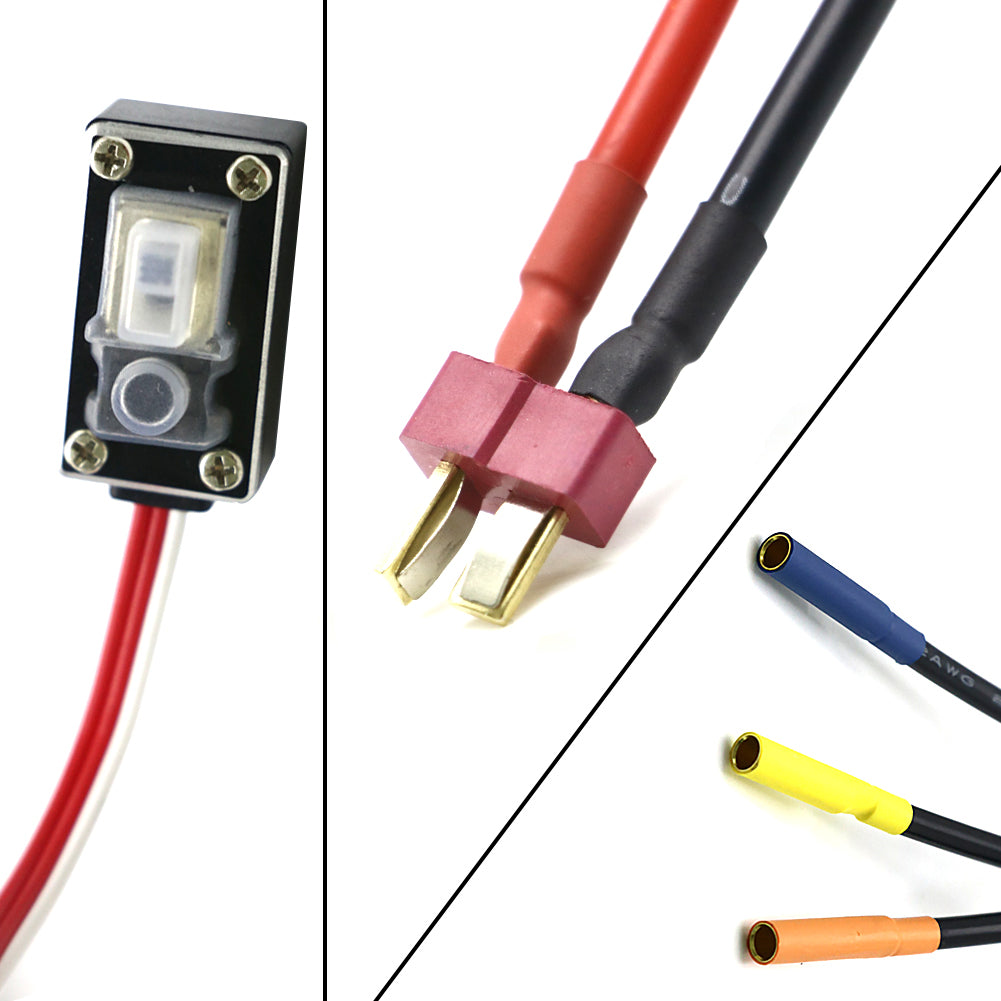

1.  Mounting Stand and Other Accessaries (3.5mm Connectors, Heat-shrink tubings, Programming line)

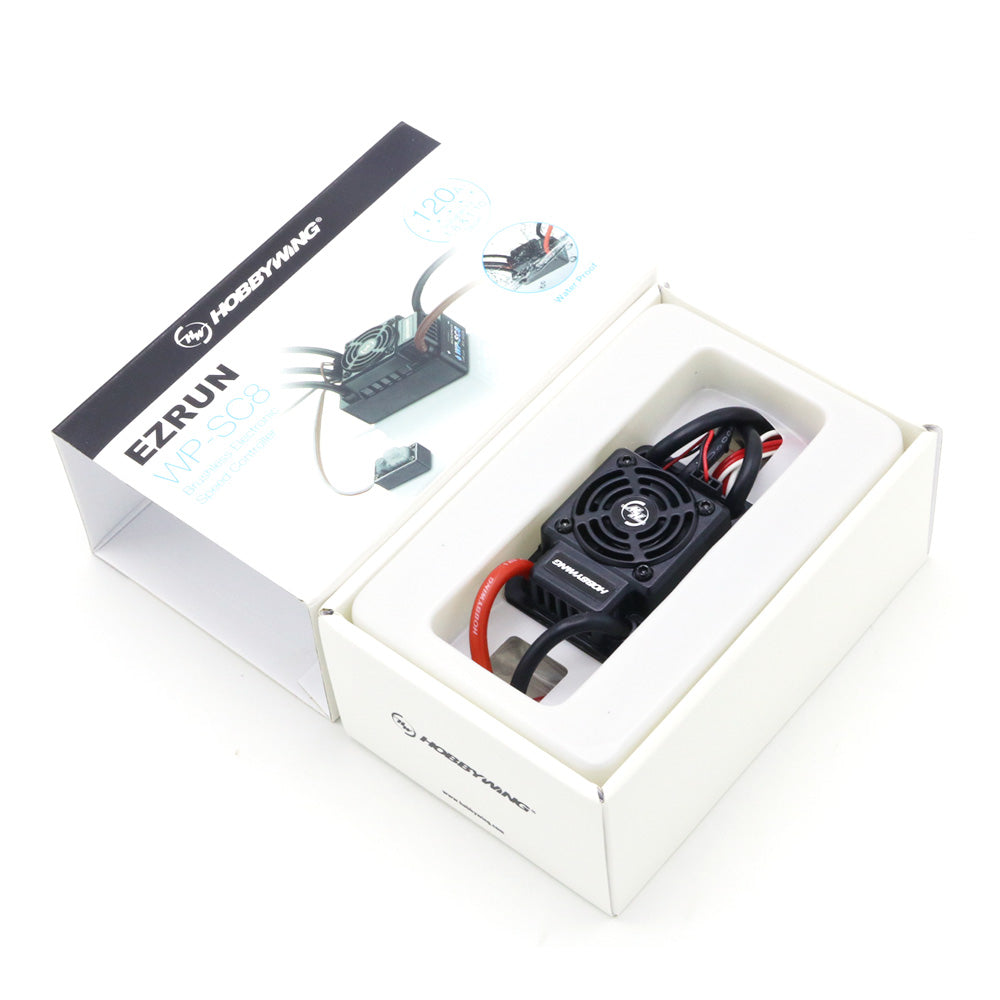

2. EZRUN WP SC8 Waterproof 120A Brushless ESC

3. English User Manual

  Package Contents:

              100% Brand New

                  1 x hobbywing ESC
