Features:
Display screen: 3.5 inch full viewing angle high-resolution TFT screen
Infrared Image Resolution: 384 * 288
Display screen resolution:640 * 480

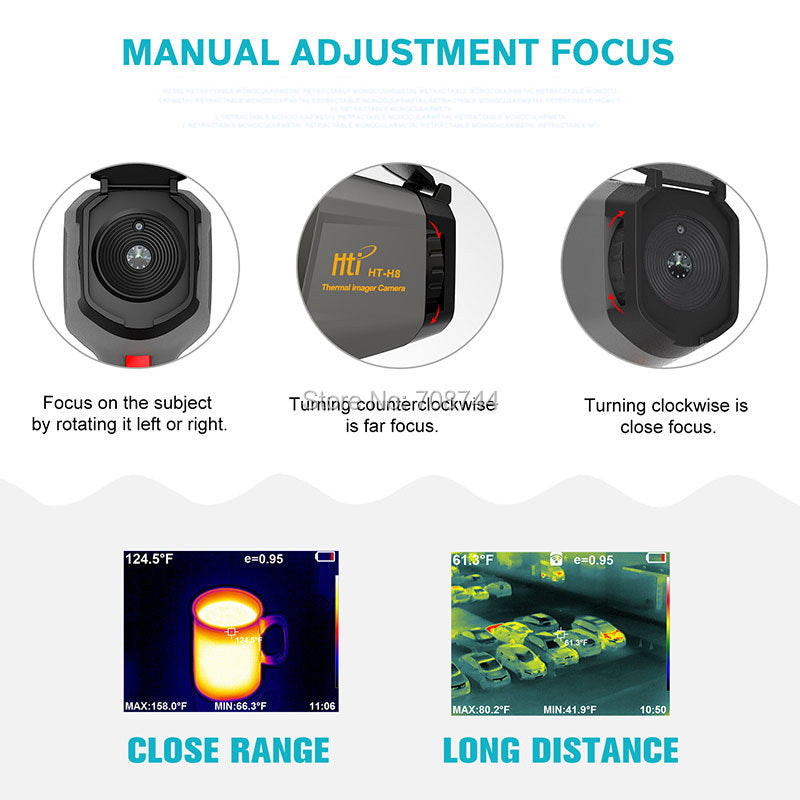

Field angle/shortest focus length :13mm
Thermal sensitivity:≤60mk@25℃，F#1.0
Temperature measurement range:-20℃ to 550℃ (-4°F to 1022°F)
Measurement accuracy:±2% digital / ±2℃
Emissivity:Adjustable from 0.01 to 1.0
Frame rate of thermal images:25Hz /50Hz

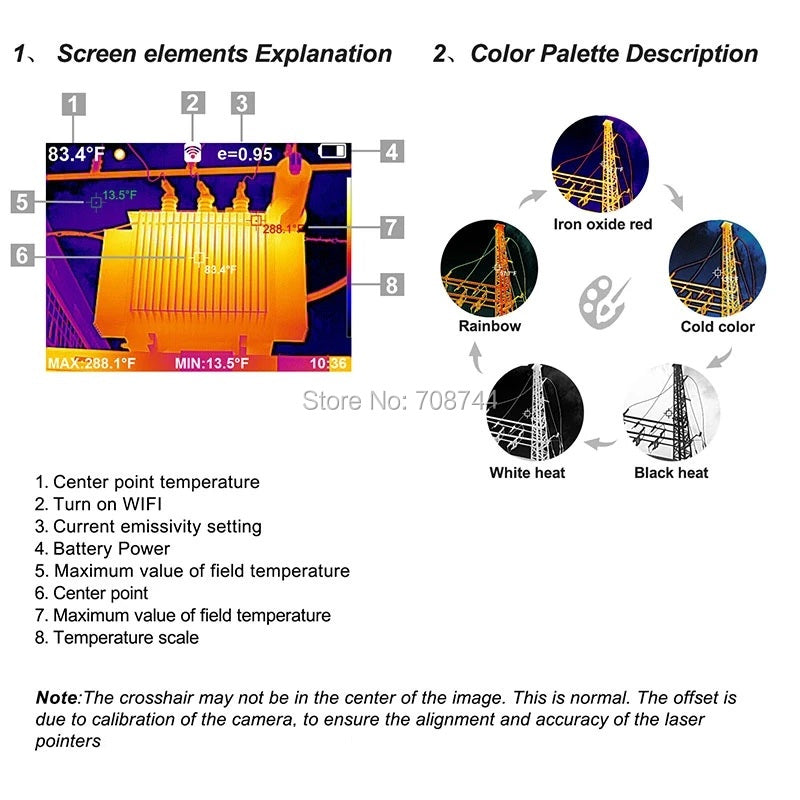

Color palette:rainbow,iron oxide red,cold color,black&white,white&black
View option:the integration of thermal image with 25% step length and visible image
Storage medium:Built-in 3G(above 20 thousand image stored)
File format:JPG
USB:micro USB 2.0
Power supply:built-in chargeable 26650 battery Automatic power-off time"selectable:5 minutes/20 minutes/not power off automatically
Product size(length*width*height):97mm*129mm*256mm
Work temperature:0℃ to 45℃
Storage temperature:-20℃ to 60℃
Relative humidity:＜85%RH

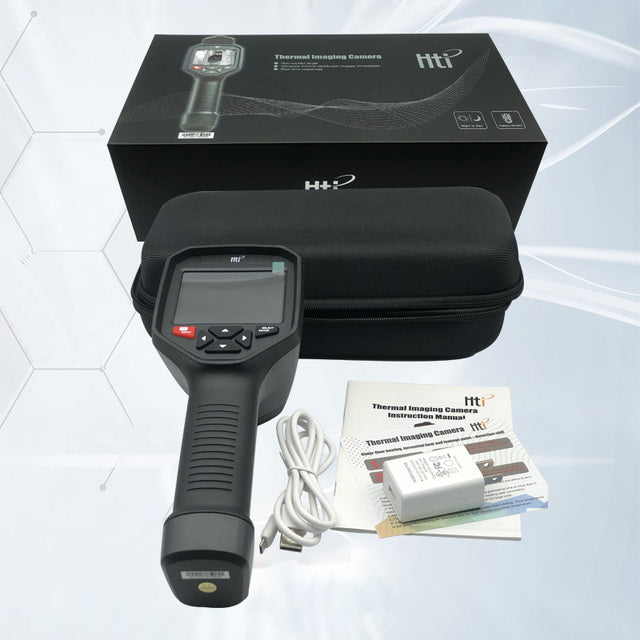

Package List:
1 * Thermal Imaging Camera
1 * User Manual
1 * US/UK/EU/AU Plug Charger
1 * USB Line
1 * Protection Case
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
