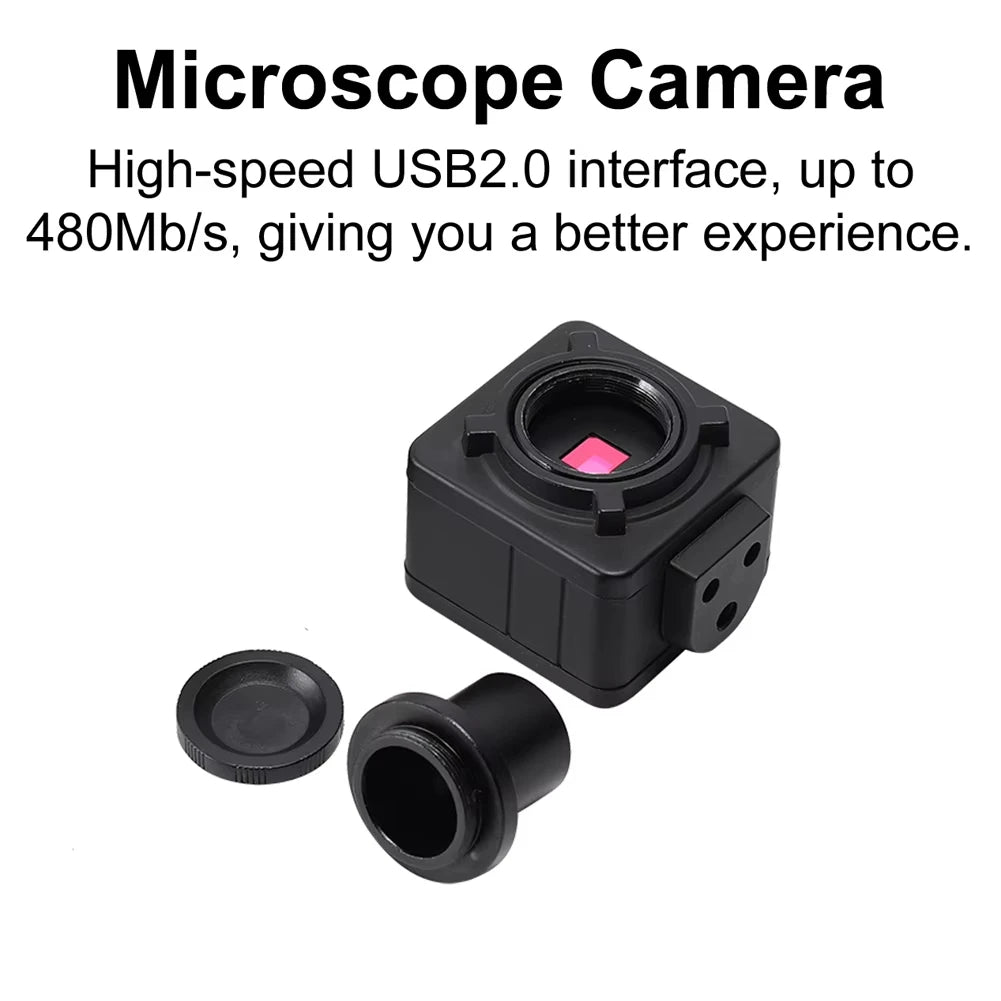

1. High-speed USB2.0 interface, up to 480Mb / s.
2. Large area array CMOS progressive scan image sensor.
3. Support for static and dynamic image capture.
4. Exposure time: any adjustable.
5.8bit uncompressed raw image data, software implementation Bayer color conversion plug and play installation.

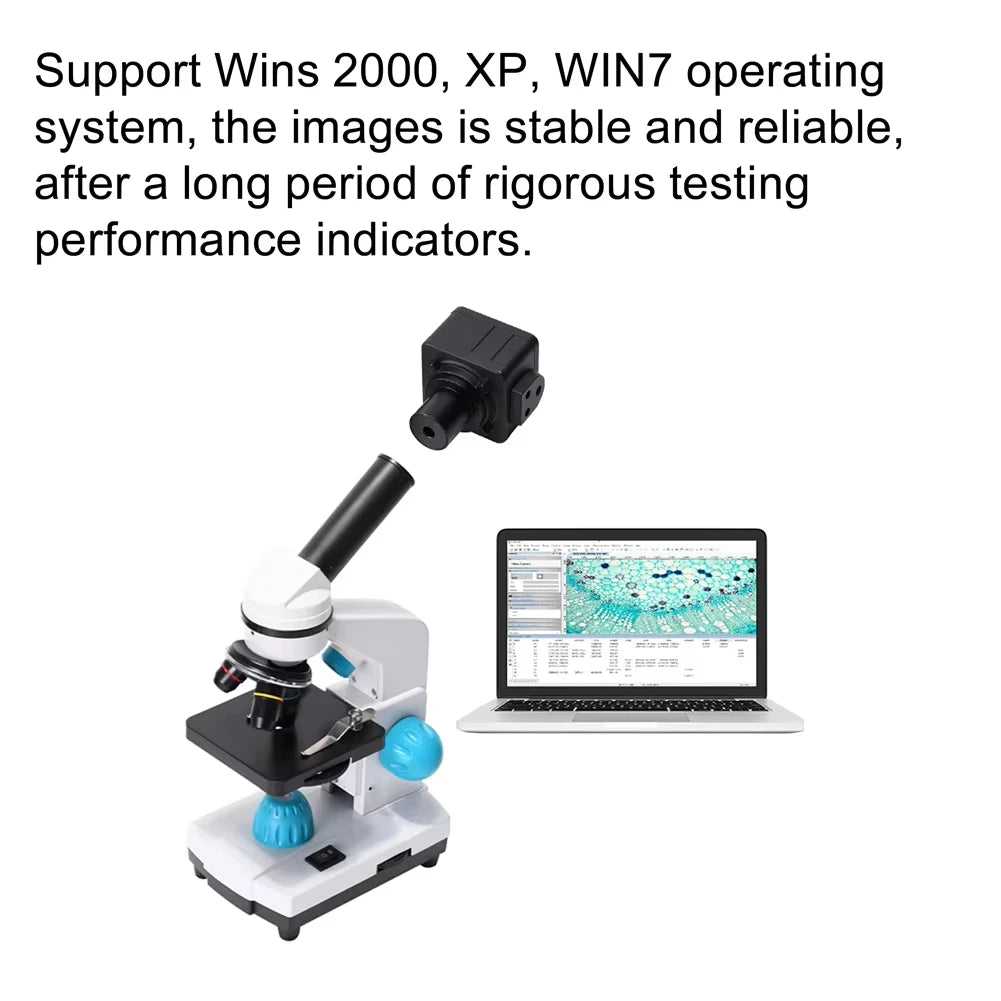

6. Support Windows 2000, XP, WIN7 operating system.
7. The image is stable and reliable, after a long period of rigorous testing performance indicators.
Can be widely used in pattern recognition, industrial testing, medical microscopy and traffic management and machine vision and other fields. More widely used in various fields of microscope and image acquisition of various occasions.

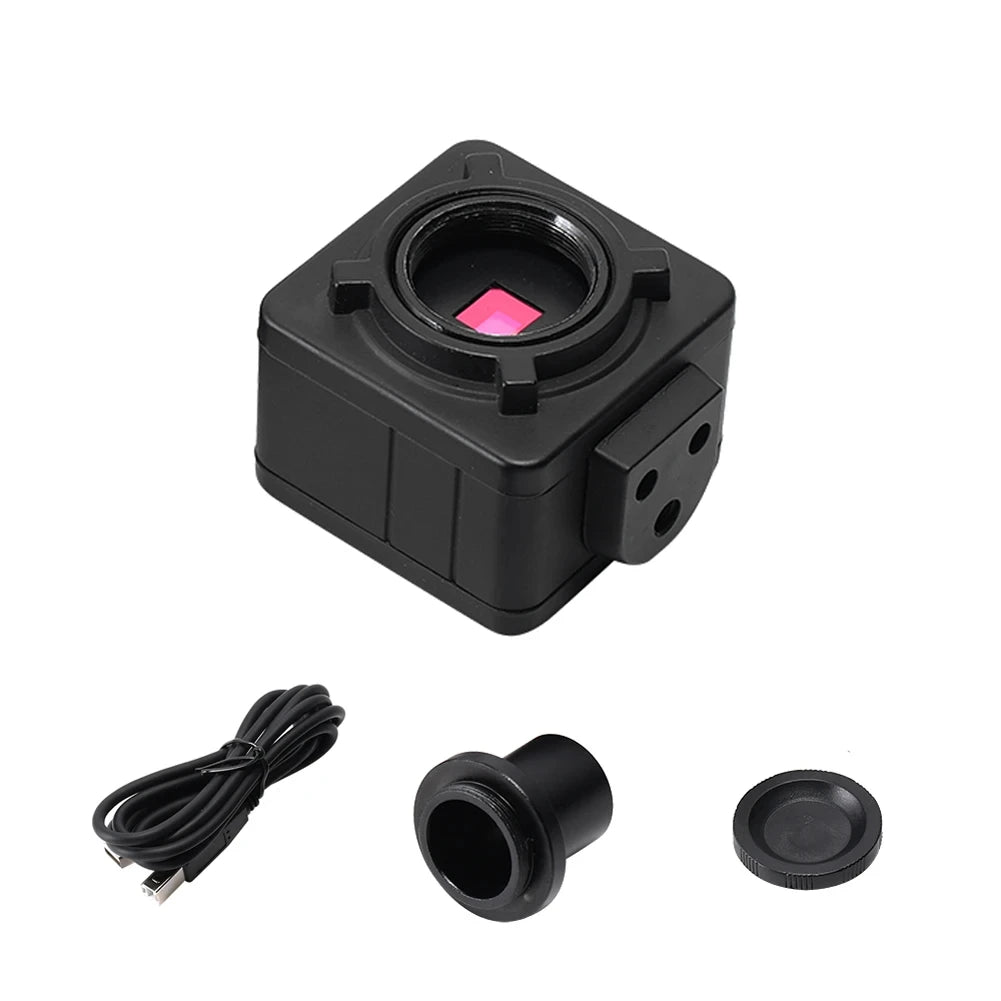

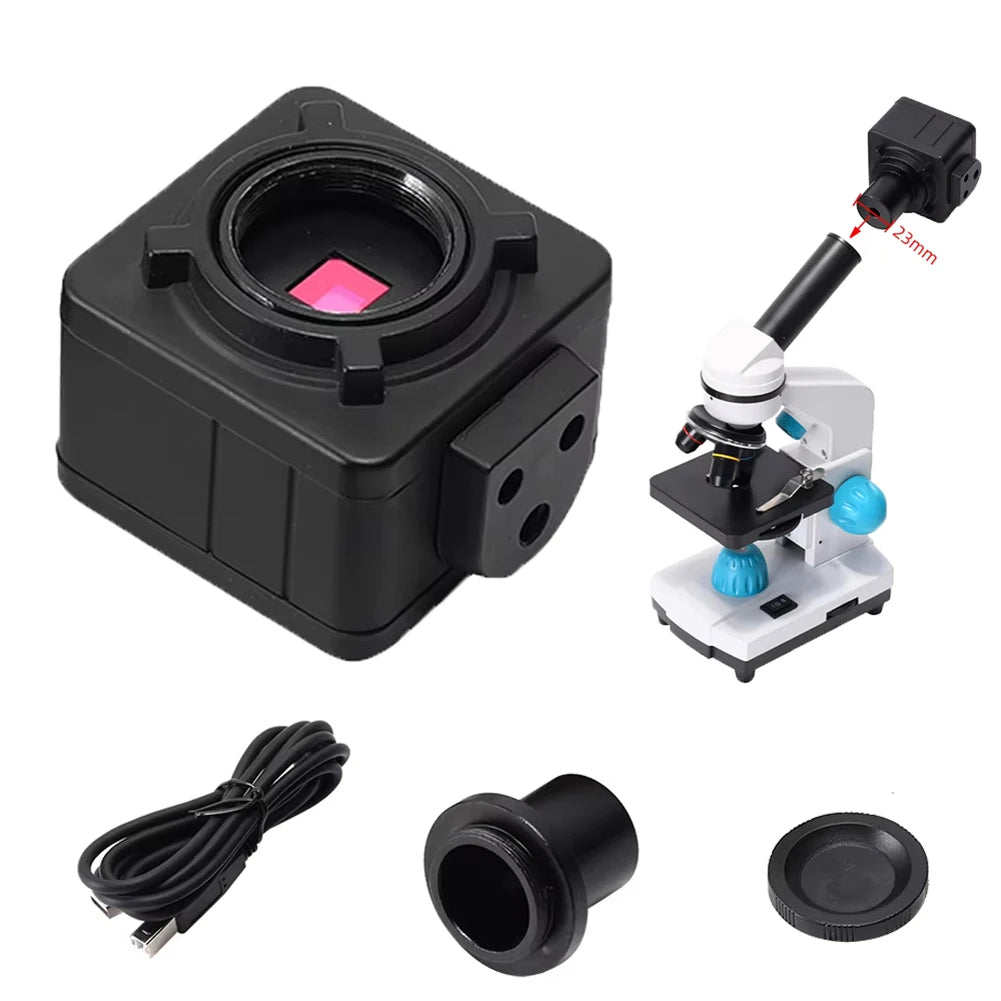

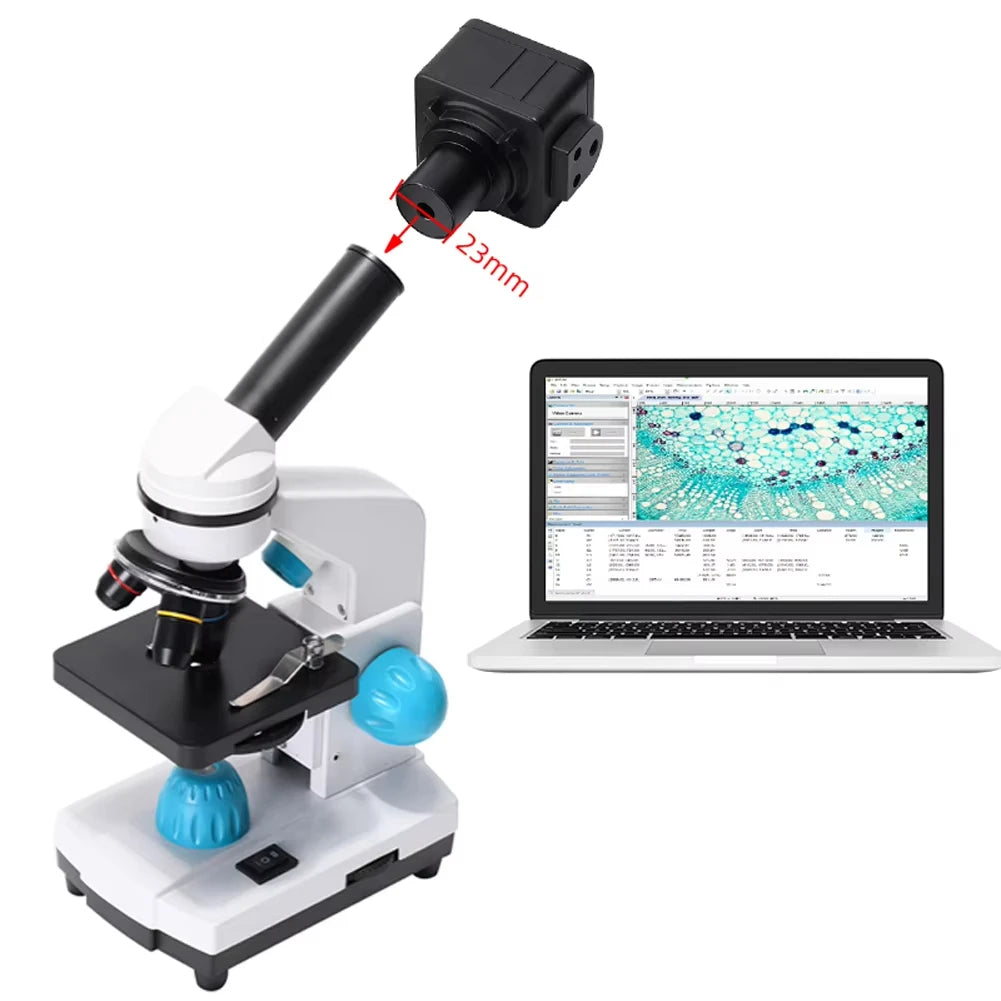

C mouth eyepiece interface (adapter), designed for the microscope .The upper mouth is C interface (connected to the microscope CCD, CMOS cameras, digital cameras, industrial cameras), the under mouth is the 23.2mm straight inserted,
Camera's Features:
Camera Specification:
-Image sensor: 1 / 2.5" color CMOS image sensor
-Pixels size: 2.2 μm × 2.2 μm
-The spectral response: 400 nm to 1000 nm
-Scan mode: progressive scan
-Pure hardware 5 megapixel image sensor, no compression, no interpolation
-Resolution: 640X480,1280x1024,1600x1200,1920x1080,2048x1536,2592x1944
-White Balance: Auto / Manual
-R.G.B value setting independent
-Auto Exposure Control: Auto / Manual
-Image output: USB2.0, 480Mb / s
-Operating temperature: 0 ° C ~ 50 °
