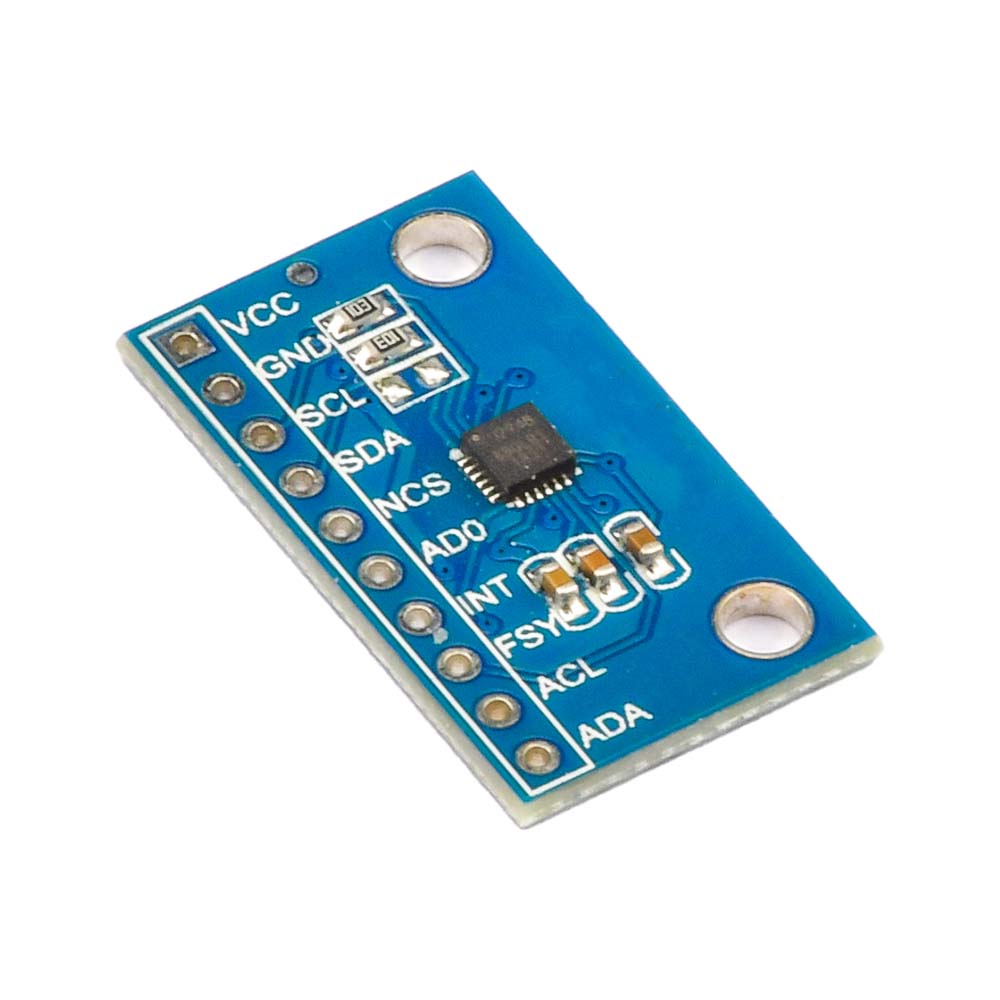

ICM20948 DC 3.3V Low Power Nine Axis DMP Motion Tracking Device Sensor Module IIC and 7M high-speed SPI, IIC interface
Features:
1. This module adopts ICM20948 chip
2. Integrated 3-axis gyroscope, 3-axis accelerometer, 3-axis magnetic field and built-in digital motion processing engine
3. It can reduce complex fusion calculation data
4. Reduce the load on the processor and make the power consumption lower
5. The module communication port includes IIC and 7M high-speed SPI, and has an auxiliary IIC interface
Specifications:
1. Working voltage: DC 3.3V
2. Three-axis gyroscope: programmable FSR of ±250 dps, ±500 dps, ±1000 dps and ±2000 dps
3. Triaxial acceleration: programmable FSR of ±2g, ±4g, ±8g and ±16g
4. Three-axis magnetic field: wide range to ±4900μt
5. On-chip 16-bit ADC and programmable filters
6. 7MHz SPI or 400 kHz Fast Mode I2C
7. Digital Motion Processor (DMP)
Precautions:
1. The power supply voltage is 3.3V, please do not exceed this voltage or the chip may be damaged;

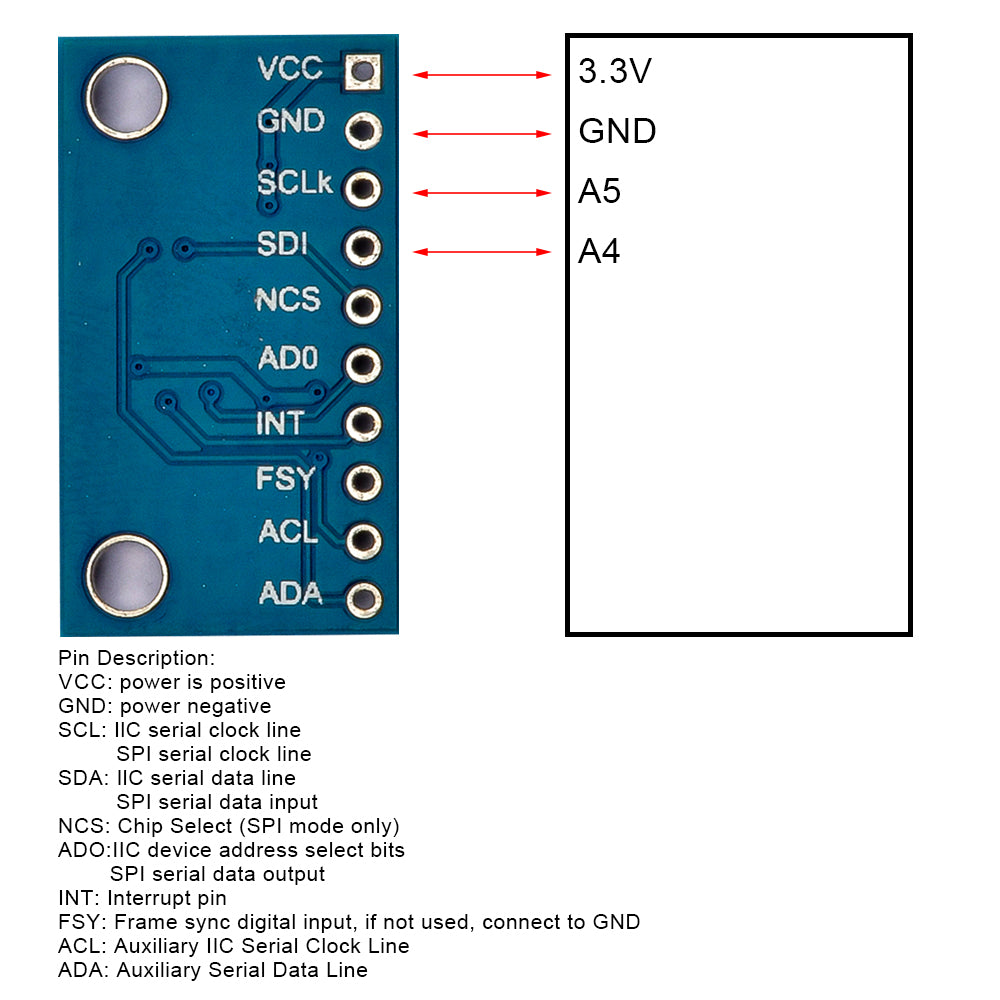

2. The IC device address of the module is determined by the ADO pin (floating to low level)
When the ADO pin is low, the module 7-bit IIC device address bit 1101000
When ADO pin is high, module 7.IIC device address bit 1101001
Package Included:
Static bag packaging

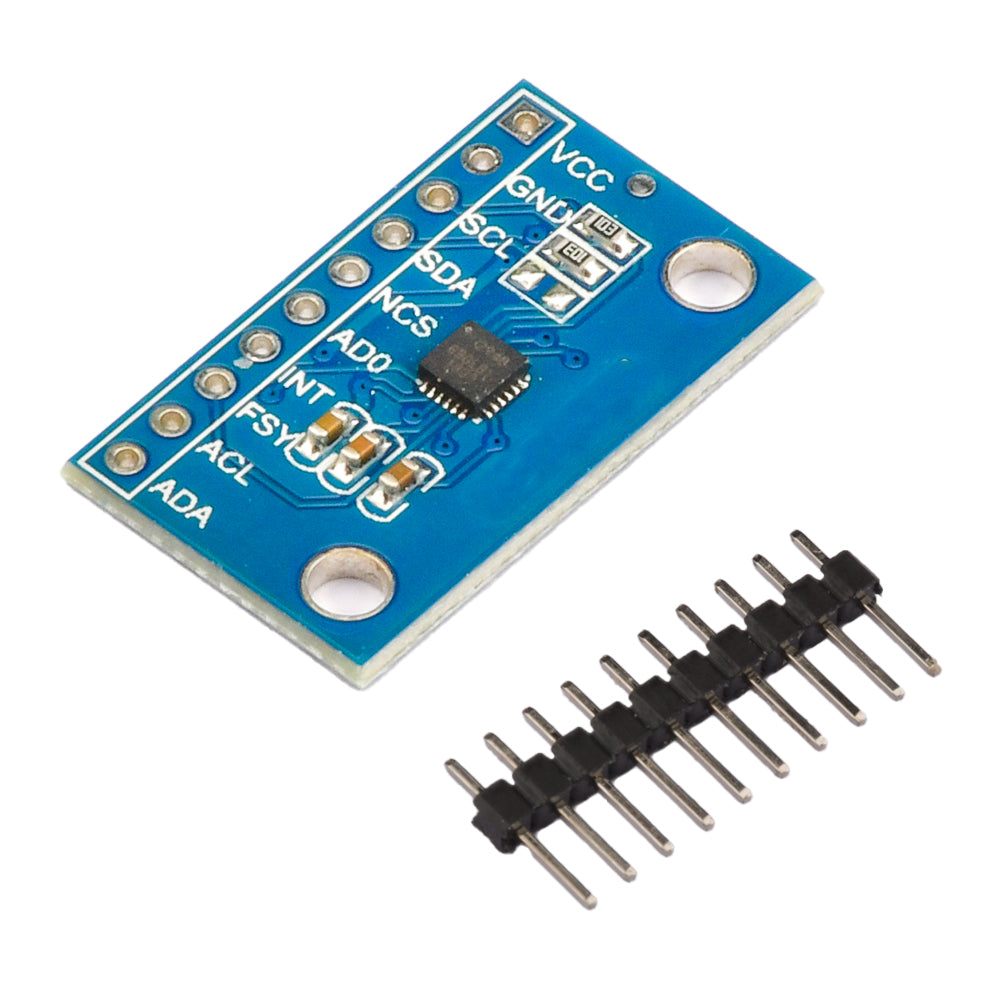

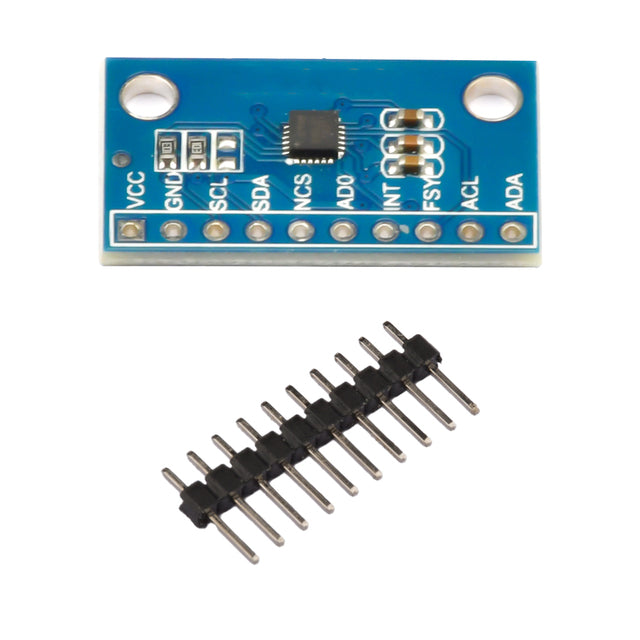

ICM20948 Nine-axis sensor module*1+pin header*1
