Duo22 Dyna

USB Audio Interface for Computers, Tablets, and Smartphones

The iCON Pro Audio Duo22 Dyna USB 2.0 recording interface provides an audio input and output module as well as analog & digital connectivity with any Smart mobile device for live streaming applications.

The iCON Pro Audio Duo 22 Dyna is ideal for musicians, producers, and performers who want to incorporate a mobile device into their setup. Featuring simultaneous desktop and mobile connectivity, it enables you to stream audio from your computer directly to your mobile device.

Create the perfect recordings on your computer or mobile device with high-end analog-to-digital converters. High dynamic range ensures your performances are captured in the greatest of detail. Hook up a condenser or dynamic microphone, and a guitar or bass to lay down your ideas.

Connect speakers or headphones and use Direct Monitoring to hear yourself with zero latency while recording. Dual connectivity designed to enhance your mobile live streams, podcasts, or videos. From a one man show to a full live band, broadcast your mix at ultra low-latency directly to your mobile device.

Our ProDriver software lets you redirect audio from any source on your computer and hosts your favorite AU, VST, VST3 or Direct X plugins without a DAW. Save your plugin chains as presets and recall them during your session.

 Pristine Audio: 2-in/2-out USB recording interface with premium converters for world-class 24-bit/192kHz recording and mixing with ultra-low latency

 Live Streaming: simultaneous desktop and mobile connectivity enables you to live stream audio from the computer to a mobile device with analog (TRRS) and digital (USB-C) connections for any smartphone, adjustable onboard inputs level and monitoring

 Compatibility: Fast USB 2.0 connection (bus-powered) is compatible with Mac and PC.

 Virtual Plug-In Rack: iCON ProDriver software redirects audio from any source on the computer and enables hosting of AU, VST, VST3 or Direct X plugins without a DAW. Save plugin chains as presets and recall them during a session

 Built To Last: Rugged aluminum construction

 Bitwig Studio 8-Track DAW is also included

 Main features include:

 24-Bit 192KHz 1 mic-In/1 inst-In, 2-Out USB Recording Interface

 Hi-end studio grade DAC/ADC provides super high dynamic range Dynamic Range: 127dB

 Supporting Mac/PC connectivity operating simultaneously with SmartDevice

 Live session possible with audio signal processing via ProDriver4 virtual plug-in rack

 2×2 analog I/O full duplex recording and playback

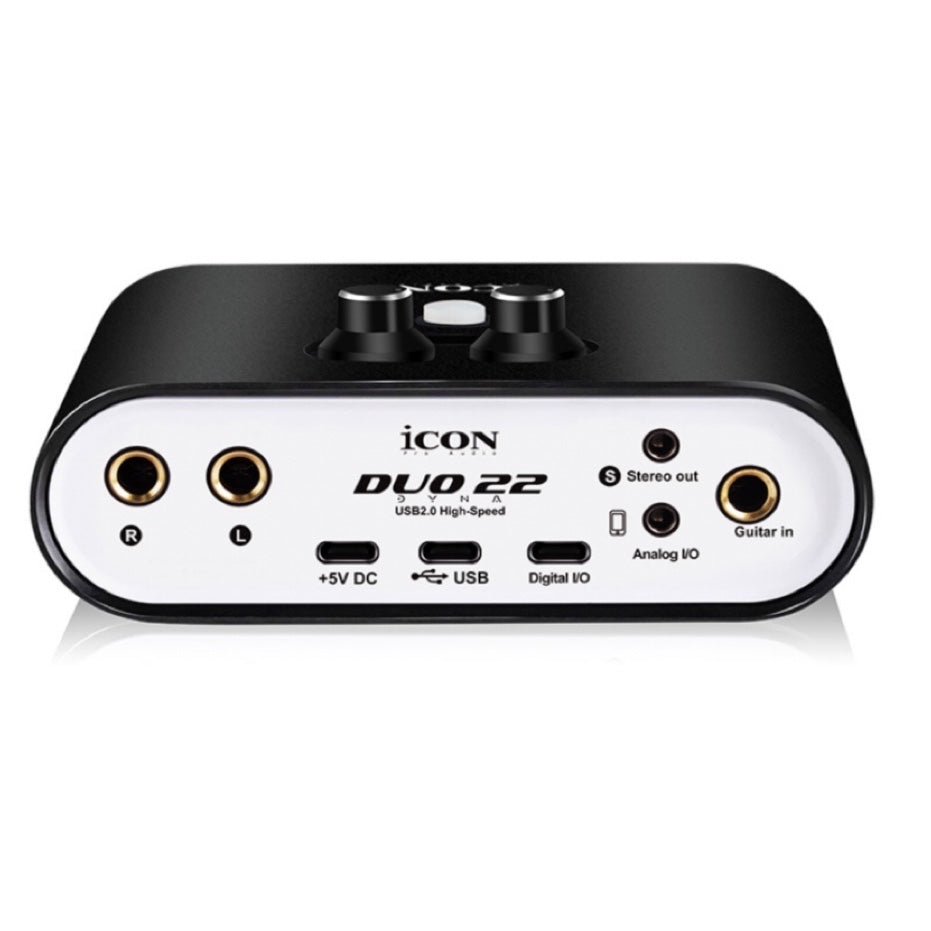

 Compatible with iOS and Android Digital I/O jack (Type C) & Analog I/O jack (3.5mm stereo TRRS)

 For direct connection with smartphone, tablet or other device

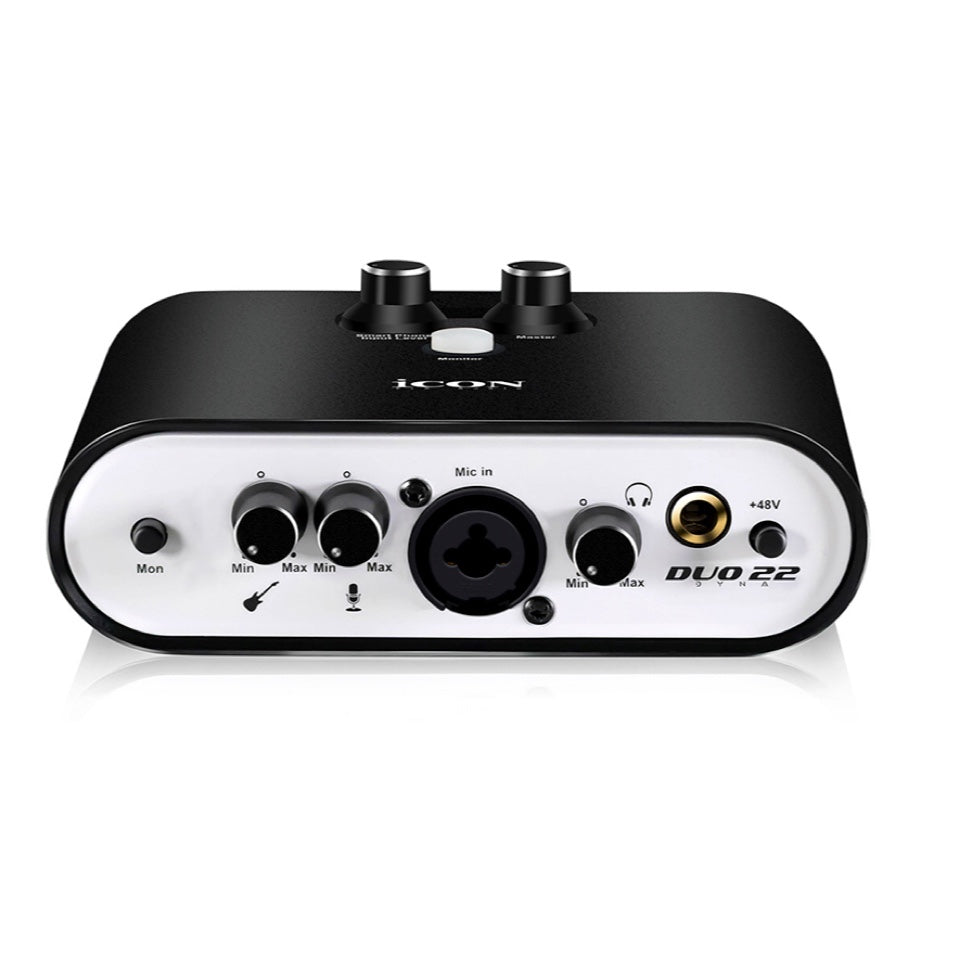

 Mic/Instrument preamps with individual gain control and phantom power switch

 2 analog outputs on 1/4” TRS jacks or stereo output on 3.5mm phone connector

 Smart phone input level control on the top panel

 Direct monitor button control on the top panel

 1 headphone output with assignable source and individual volume control

 Flexible channel routing via the ProDriver4 software control panel

 ICON ProAudio developed ultra low latency ProDriver4™driver is provided

 ICON ProAudio innovative and user friendly plug-in hosting rack software is built-in with ProDriver4™ (Windows and Mac)

 USB2.0 High Speed equipped and USB bus-powered

 ARM-M7/500MHz processing power and technology for super fast and stable signal processing

 Supports DirectSound, WDM and ASIO 2.0

 LoopBack function is equipped with ProDriver 4™ for both Mac and Windows platforms

 Compatible with mac OS (M1/ Intel Mac) 10.11 and later, iOS 9 or above, Andriod and Windows 7, 8 & 10 (32-bit/64-bit) Full duplex, simultaneous record/playback

 +5VDC power supply connector is equipped for external power supply when using with iOS

 Rugged aluminum construction

 Bitwig 8Track included

 Dotec audio plugins included

 Tracktion DAW Essentials Collection included

 Kilohearts Toolbox plugins included

 Harrison 32c Vocal Intensity Processor plugin included
