M4
Studio condenser microphone (5V & 48V)
Large 25mm diaphragm condenser microphone specially tuned for present, clear, powerful vocals
Cardioid pickup pattern for outstanding sound source separation and feedback rejection
Equipped with 5V or 48V phantom power selection switch for operation

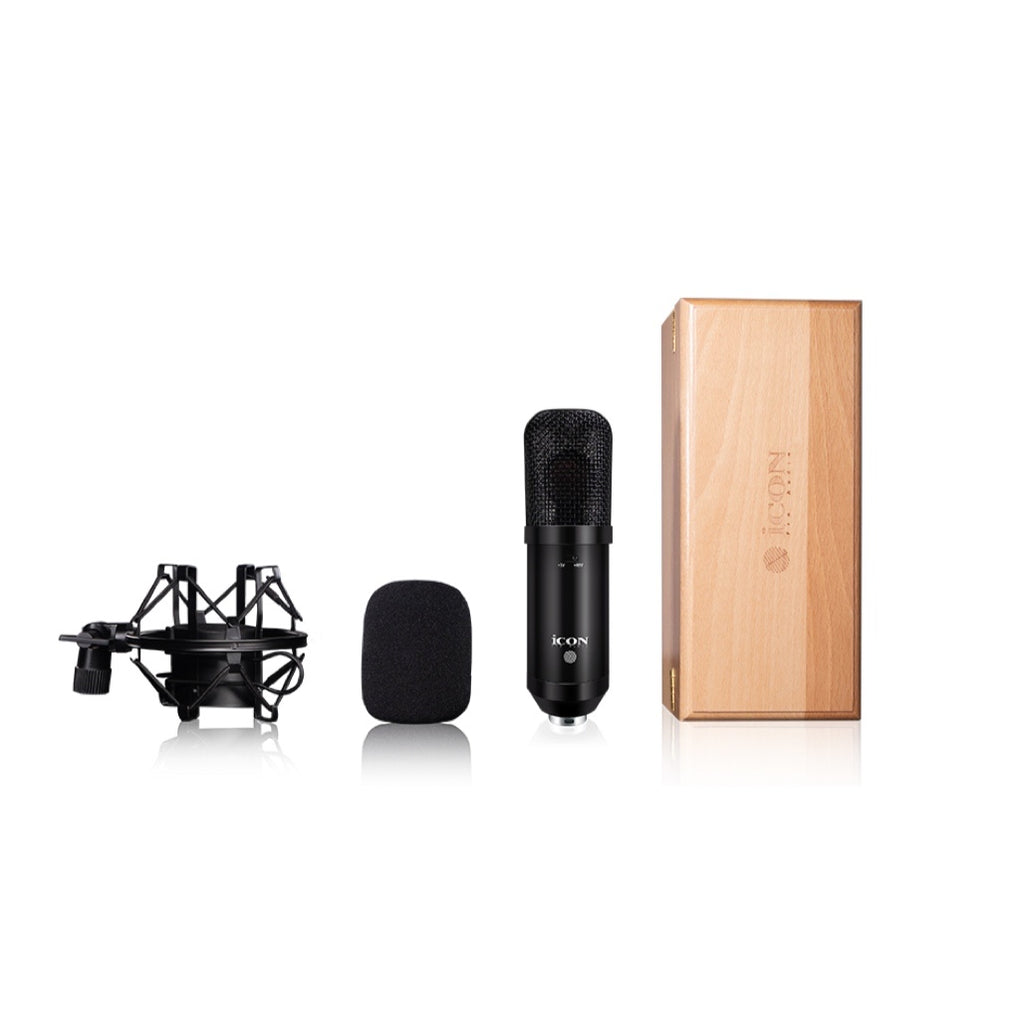

Heavy-duty suspension mount and wooden transport case included
Ultra-rugged construction with metal die-cast body
Tech Specs
Transducer type
Electrostatic condenser
Operating principle
Pressure Gradient
Active Diaphragm Diameter
25 mm
Frequency range
20 Hz to 20 kHz
Polar pattern
unidirectional, cardioid
Output impedance
50 Ω
Rated load impedance
600 Ω
Suggested load impedance
>500 Ω
Maximum SPL for 0,5% THD at 1000 Ω load
130 dB
S/N Ratio DIN/IEC 651 A-weighten
80 dB
Equivalent noise level DIN/IEC A-weighten
7 dB
Dynamic range of the microphone preamplifier
123 dB
A. Phantom powering voltage on pin 2&3 of XLR
+48V (+/-4V)
B. Phantom powering voltage on pin 2 of XLR
+5V (+/-2V)
Current consumption
≤5 mA
Output connector
3-pin XLR male
Dimension
44mm X 44mm X 161mm
Dimension
1.73"(L)x1.73"(W)x6.34"(H)
Weight
0.253 kg(0.56lb)
