What if you could get the combined MCU speed and ESC power of a big stack, but carefully arranged on a 25x25 whoop size board? That would be crazy right? Well, we just did it...

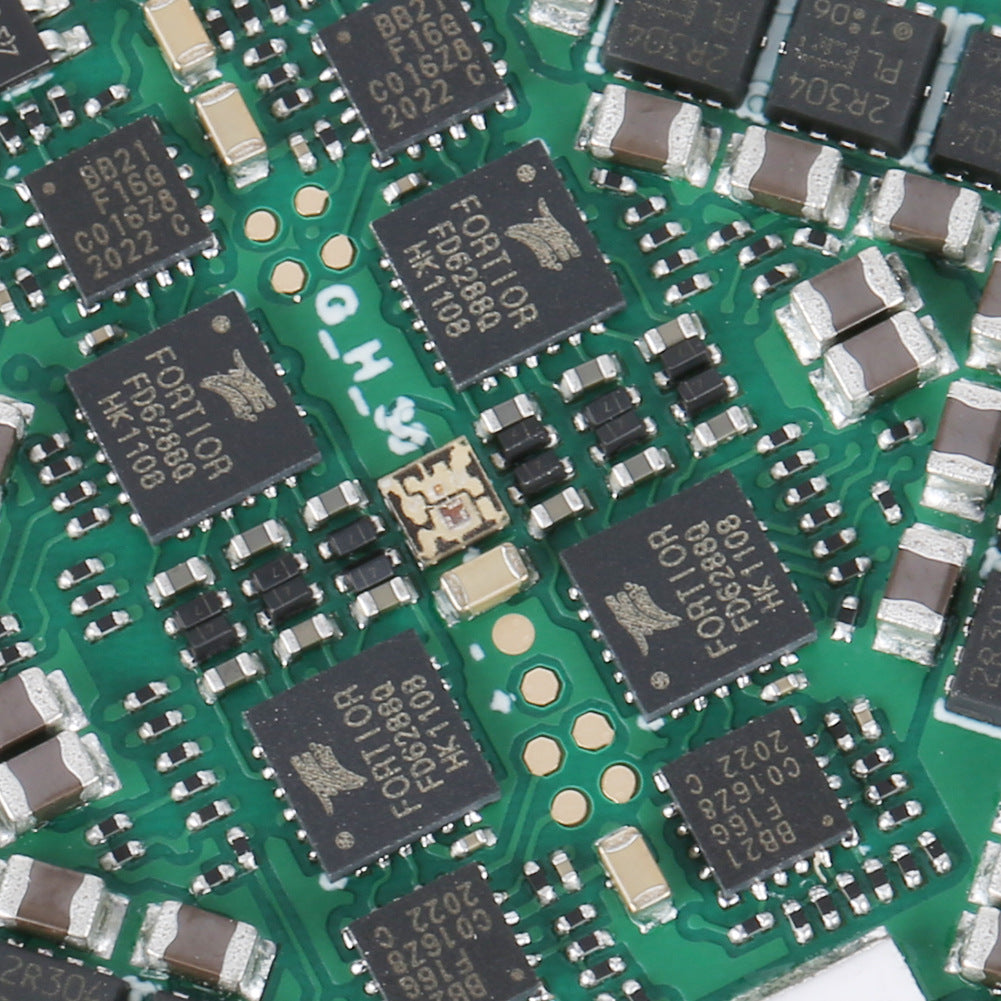

     This is our new iFlight BEAST series AIO FCs for your ultimate build. A future proof all-in-one FC to step up the game and make some more room for future flight firmware development like Betaflight, Emuflight etc. Lightweight, minimum size, minimum work.This could only be achieved by using BGA chipsets instead of ordinary QFP (big size) MCUs and ultra powerful Mosfets for almost any build. Solder your motor wires on and let's go! DJI Plug&Play plug and so many UARTs most people wouldn't even use em' all. Compatible to digital and analog FPV, onboard Barometer for possible long range flights and much more. Unleash the beast!

     Top Features:

     Vista digital system Plug-and-Play (VBAT passthrough)

     MCU: BGA-STM32F745, 216MHz

     OSD: AT7456E

     Gyro: Bosch BMI270

     Black box: 16MB Onboard Flash

     BEC output: 5V 2.5A

     Safety reminder:

     The DJI plug&play port has no voltage regulator (BEC) and is passing through VBAT. The Caddx Vista goes up to 26.4V (6S), the DJI Air Unit goes up to 17.6V (4S). Make sure not to plug-in your DJI Air Unit directly when you're flying 6S, because this would fry it!

     Small motor 4S builds should usually need an additional capacitor of at least 16V/220uF, for 6S go up to 35V or even 50V. Bigger motors have a bigger current draw, higher voltage spikes and more serious back EMF (motor braking, works like a generator). Make sure to add big enough or even bigger low ESR capacitors on the AIO battery pad or on your battery lead the more aggressive motors you fly. There's a choice of capacitors in the package, but it's never a bad idea to make sure to protect your board. Smaller boards have less capacitance which has to be covered with external capacitors, there's no way around.

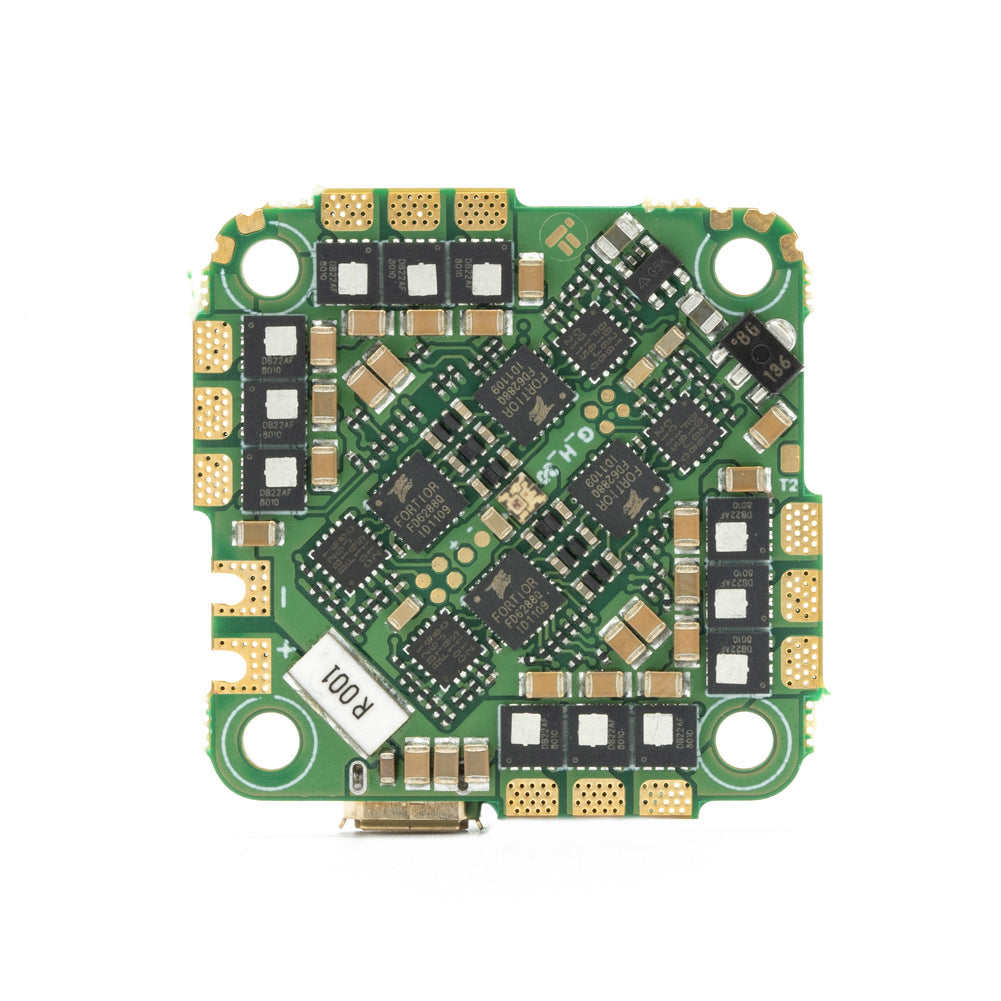

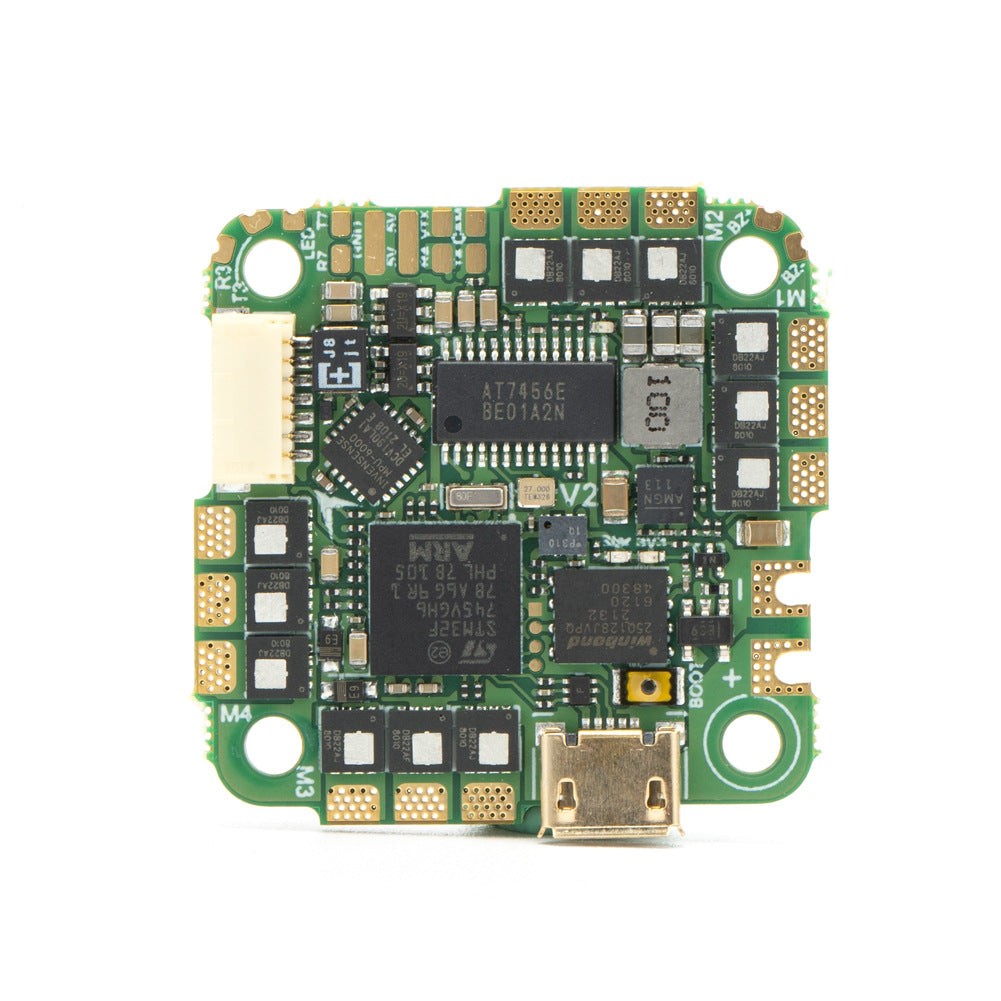

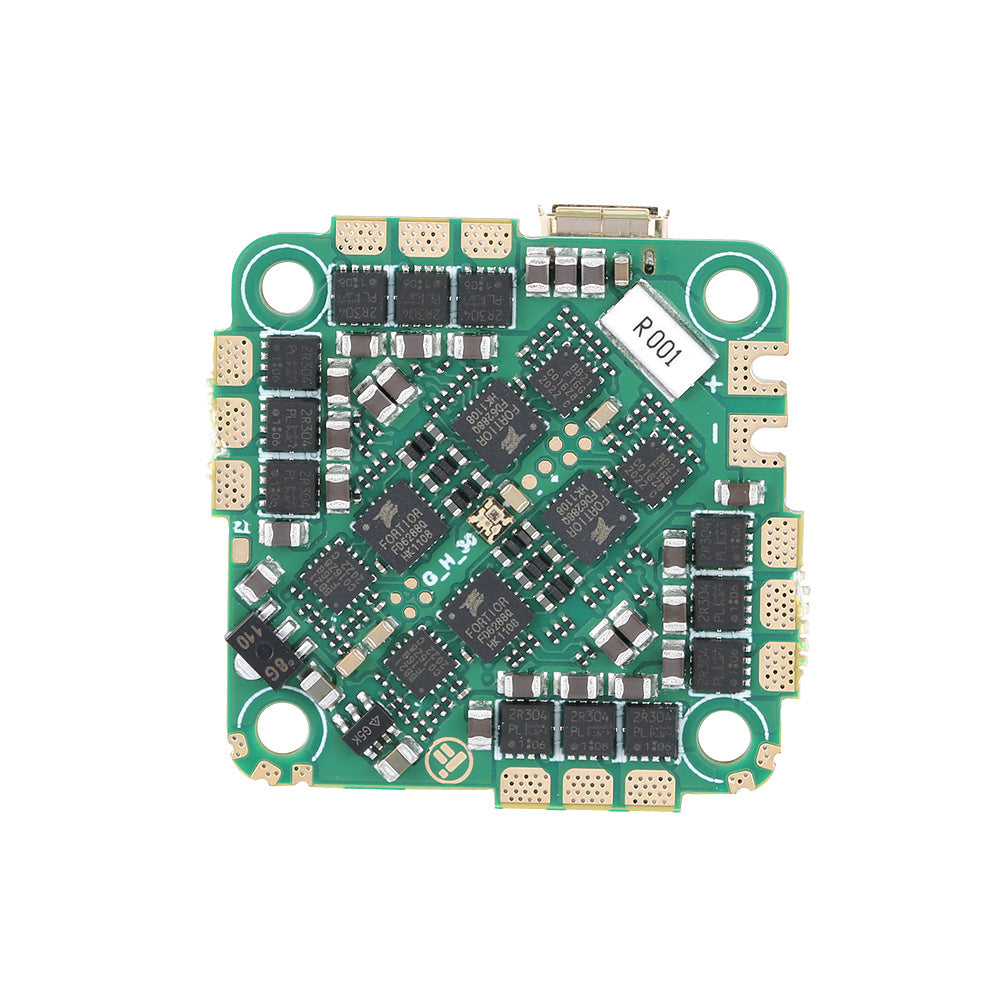

     FC :Beast F7 AIO

     Specification:

     MCU: BGA-STM32F745

     Gyro: Bosch BMI270

     Blackbox: 16MB Onboard Flash

     BEC output: 5V 2.5A

     Barometer: NO

     Connector: Micro-USB

     OSD: IFLIGHT OSD (AT745E）

     FC Firmware：IFLIGHT_F745_AIO_V2

     Mounting pattern: 25.5*25.5mm φ3mm

     Dimensions: 32.5*32.5mm

     Weight: 8.5g

     ESC : 55A 2-6S

     Specification:

     Uarts: 5

     Current Sensor: Yes

     Input: 2-6S LIPO

     Current scale: 100

     Constant: 55A / Burst: 60A

     BLHeli: BLHeli-S

     Telemetry: no

     ESC Firmware: G-H-30 BLS

     Mounting pattern: 25.5*25.5mm/Φ3mm

     Dimensions:32.5*32.5mm

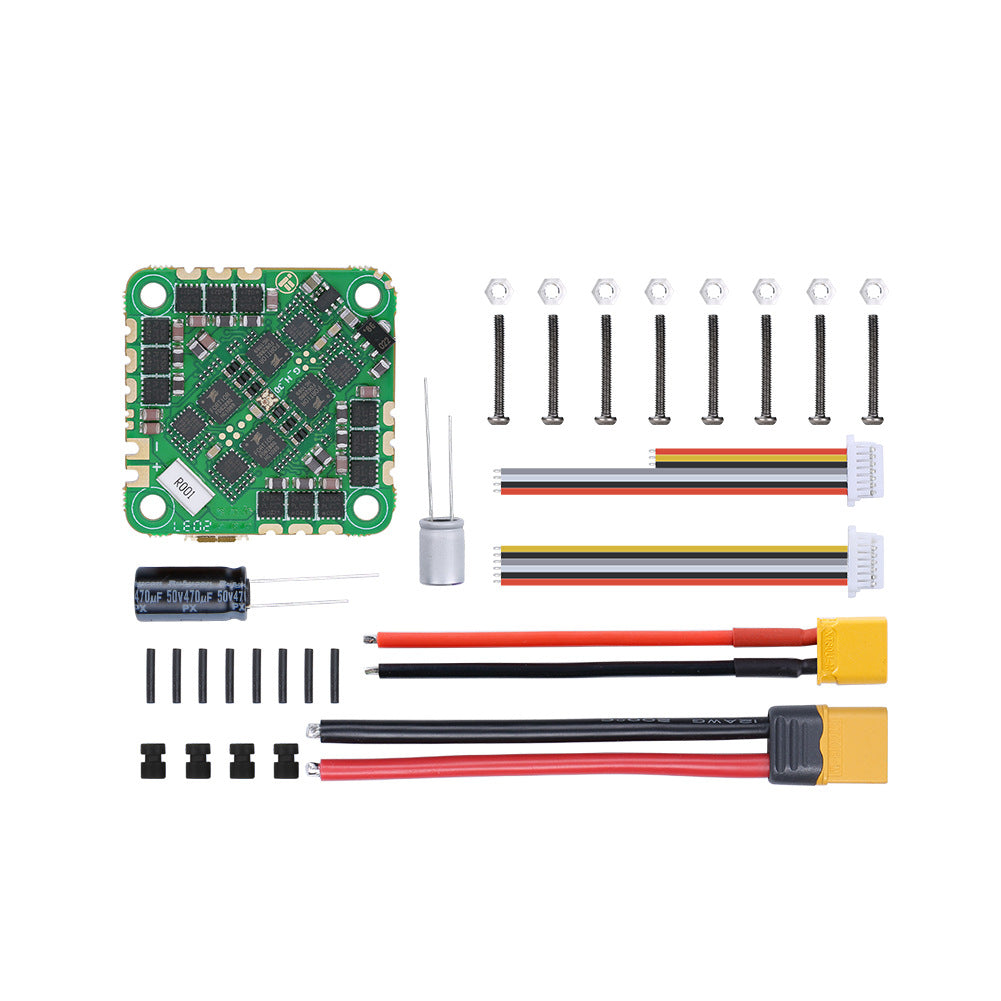

     Package Includes:

     Beast F7 AIO x 1

     Capacitor 470uF/35V x 2

     XT60 16AWG cable 100mm x 1

     XT30U 18AWG cable 70mm x 1

     14AWG Silicone Cable Red 100mm x 1

     14AWG Silicone Cable Black 100mm x 1

     1.0-7P cable 50mm-28mm x 1

     1.0-7P cable 50mm x 1

     M2 silicon grommets x 4

     M2*12mm screws x 8

     M2 Transparent Nylon Nut x 8

     0.8mm black Heat shrink tube 10mm x 8
