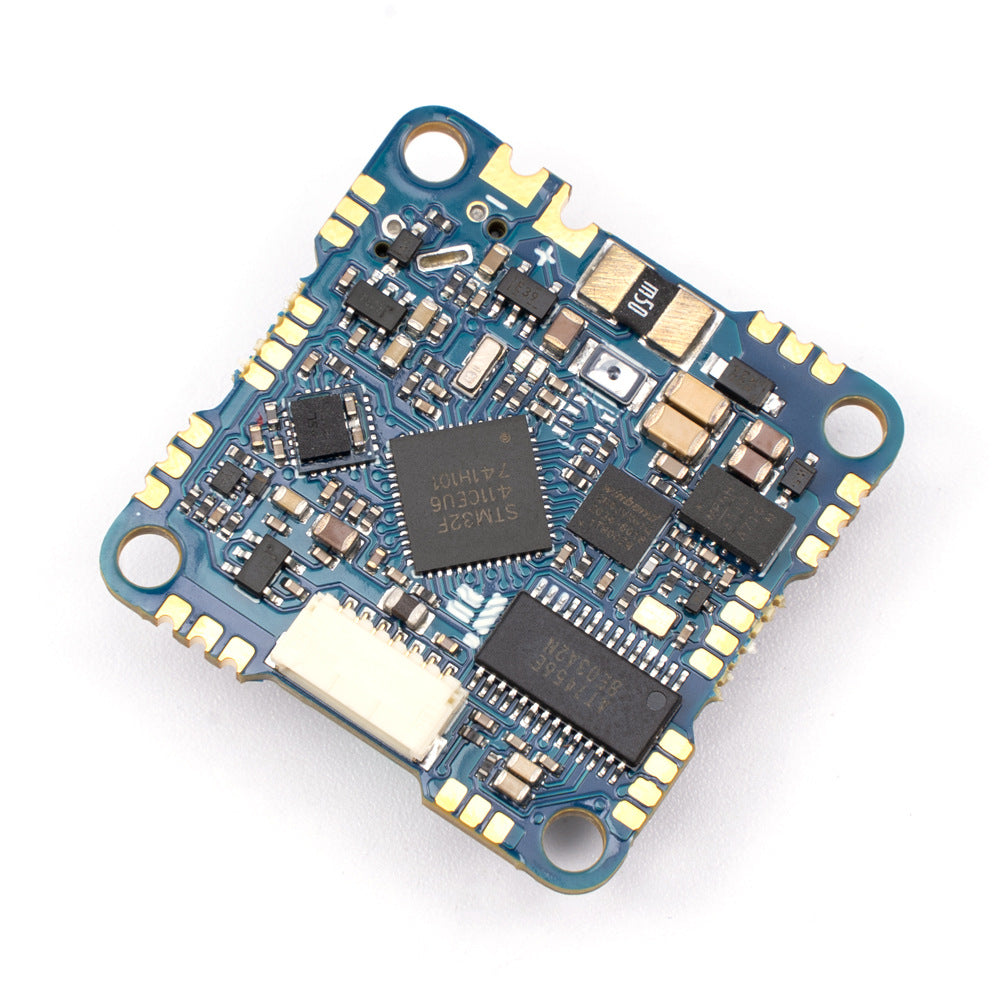

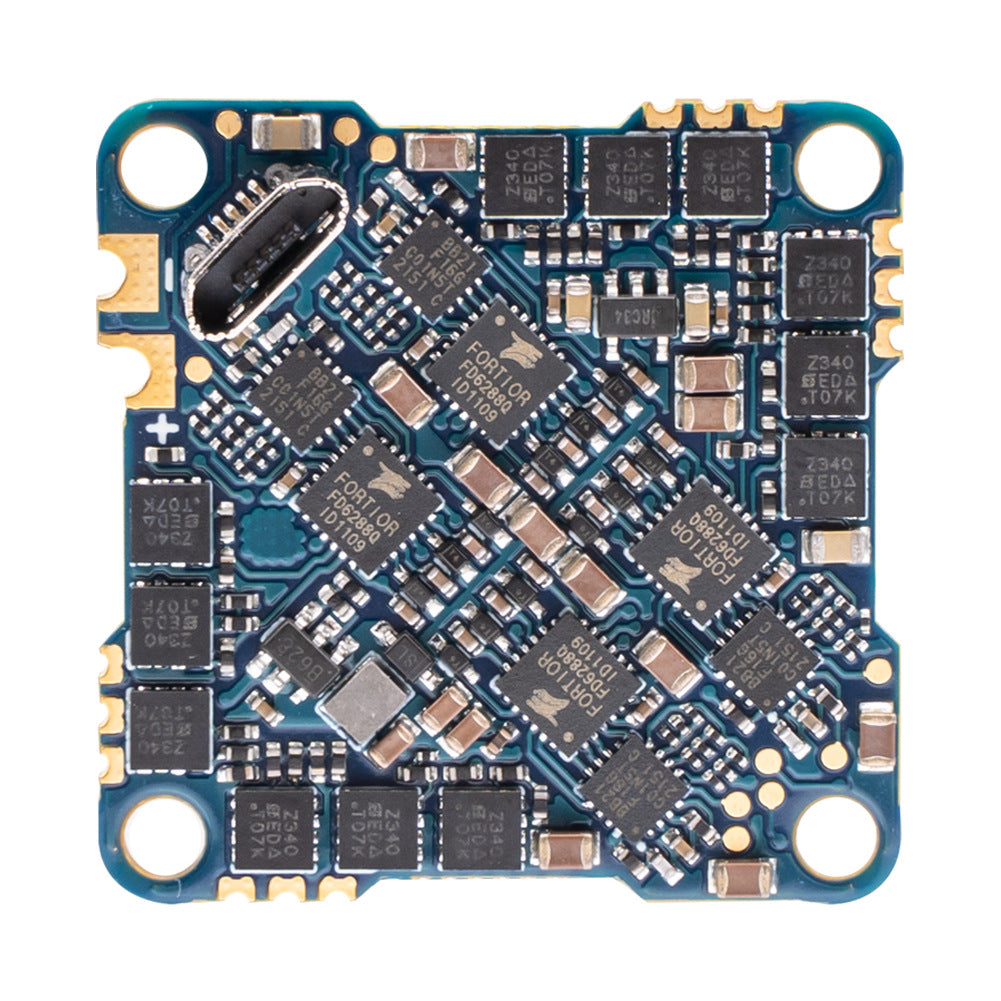

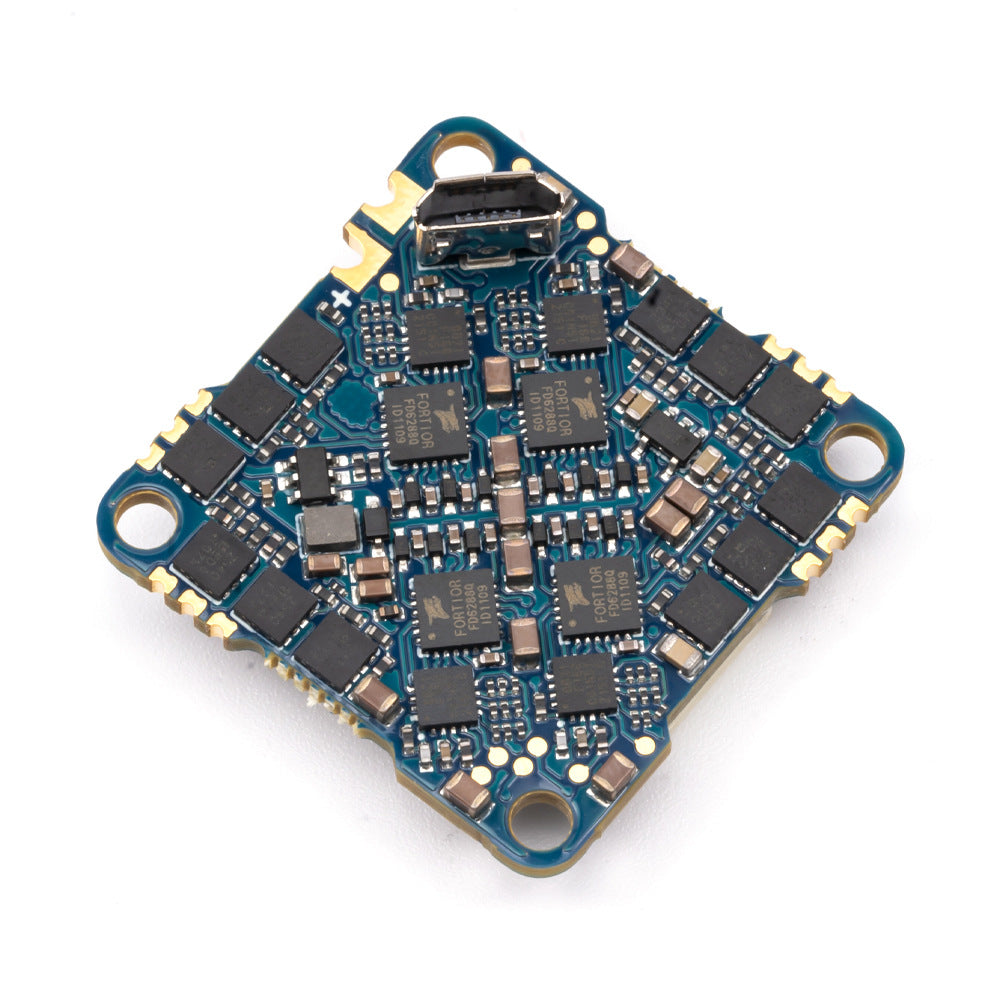

FC // SucceX-D F4 AIO
Size：33*33mm
Mounting pattern：25.5*25.5mm/φ3mm
Connector：Micro-USB
MCU：STM32F411
Gyro：MPU6000
Blackbox：16MB
BEC output: 5V 2A
INA pad：nR2
Barometer：no
Constant current：20A，25A（Burst）
Input：2-4S
Current sensor：yes
BLHeli：BLHeli-S
ESC Telemetry：no
Firmware Target：IFLIGHT_F411_PRO
ESC Firmware：G-H-30 BLS
Package Includes:
SucceX-D Whoop V3.1 F4 AIO Board× 1
Capacitor 470uF/16V × 1
XT30 18awg cable

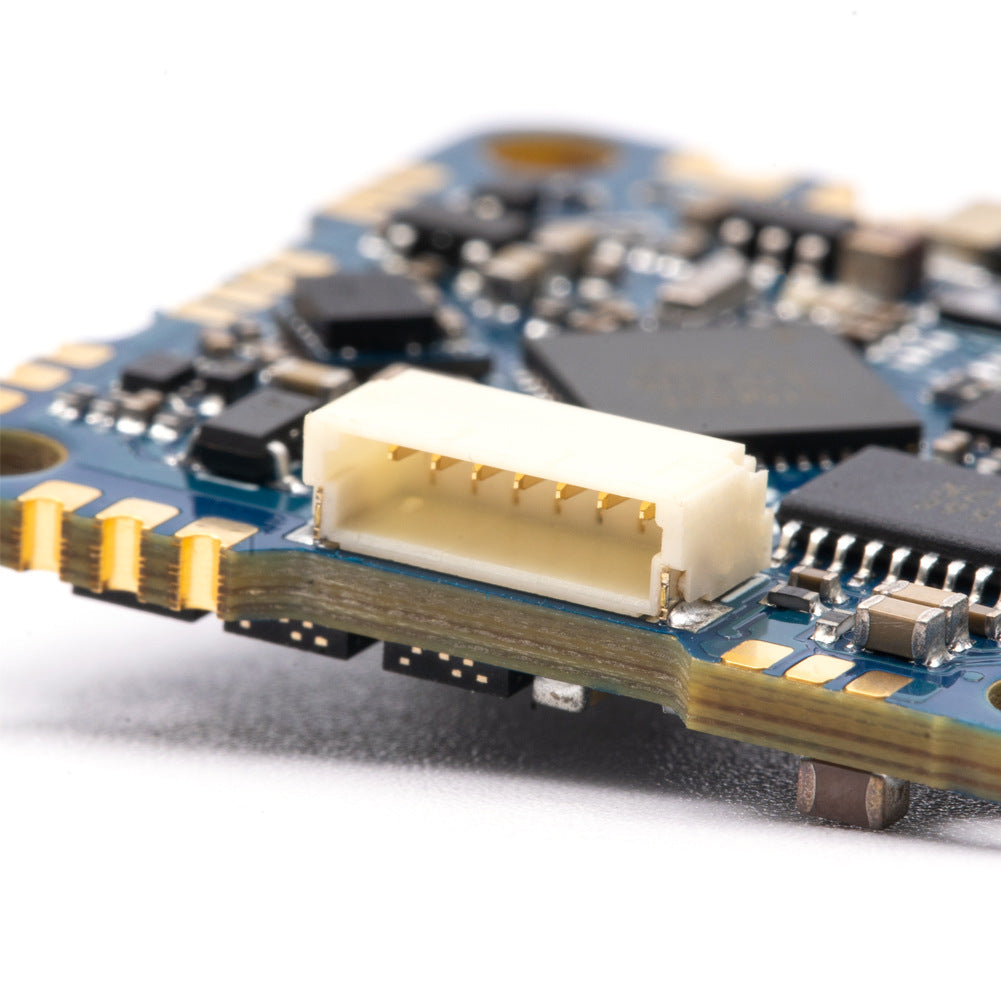

Wire harness (plug&play) for DJI Air Unit × 1
M2 silicon grommets × 4
M2 damping balls x 4
M2*8mm Screws x 4
Changelog:
V3 - V3.2: Due to some global supply issues, the Barometer and Flash component was updated as well as some circuit improvements implemented.
24th June 2021:Circuit design optimized, the exterior design changed.
Before BMP280 changed to DPS310
Before 8MB Flash changed to 16MB Flash
*Barometer can only be used with Betaflight 4.3.0 and above!
